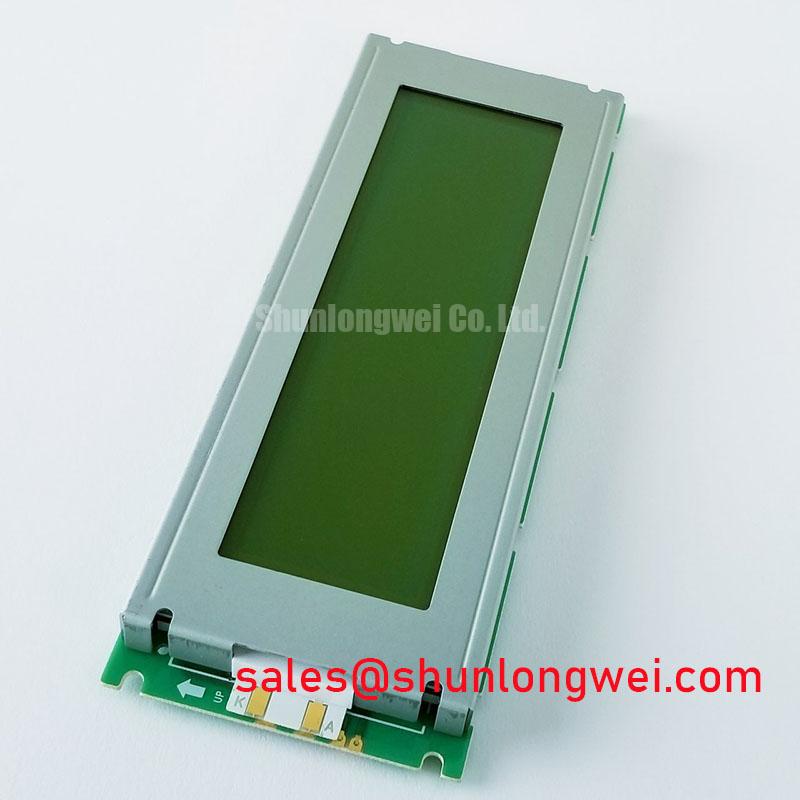

Optrex DMF5005N-SEW-ABE-CP | Robust 240x64 STN Display for Demanding Industrial HMIs
The Optrex DMF5005N-SEW-ABE-CP is an industry-proven monochrome graphic LCD module engineered for applications where clarity, reliability, and operational longevity are non-negotiable. More than just a display, this 240x64 dot matrix module is a workhorse component designed to deliver consistent performance in challenging industrial environments, from factory floor controllers to specialized test and measurement equipment.
Core Strengths for the Design Engineer
- Exceptional Readability: Utilizes high-contrast Super-Twisted Nematic (STN) fluid with a bright, uniform white LED backlight, ensuring data is clearly legible under a wide range of ambient lighting conditions.
- Simplified System Integration: Features an integrated Toshiba T6963C (or equivalent) controller, which manages all display functions. This offloads the host microcontroller, freeing up processing power and significantly simplifying firmware development.
- Industrial-Grade Durability: The "-SEW" designation signifies its wide operating temperature range (-20°C to +70°C), making the DMF5005N-SEW-ABE-CP a reliable choice for unconditioned indoor and sheltered outdoor applications.
- Long-Term Availability: Built for products with long life cycles, offering a stable and dependable supply chain, crucial for industrial, medical, and instrumentation sectors.
Application Scenarios & Engineering Value
The true value of the Optrex DMF5005N-SEW-ABE-CP emerges in its targeted application performance. While modern color TFTs have their place, this module excels where focused information display and extreme reliability are paramount.
- Process Control & Automation: In PLC interfaces and machine controllers, the crisp text and simple graphics provide operators with unambiguous status updates and parameter readings, reducing the risk of error. Its inherent noise immunity is a significant advantage in electrically noisy factory settings.
- Test & Measurement Instruments: For portable or benchtop devices like oscilloscopes, spectrum analyzers, and network testers, the low power consumption of the STN and LED backlight extends battery life. The integrated controller simplifies the hardware design, allowing for more compact product footprints. For more on creating dependable displays, explore our guide on engineering for reliable displays in heavy machinery.
- Legacy System Retrofits: This module often serves as a form-fit-function replacement for older, discontinued 240x64 displays. Its standard interface and command set enable engineers to upgrade end-of-life equipment with a modern, reliable display without a complete system redesign.
Technical Deep Dive: The Engineering Behind the Performance
The DMF5005N-SEW-ABE-CP isn't just a collection of parts; it's an engineered solution. Its key technologies directly address common design challenges.
STN vs. TFT Technology: A Strategic Choice: While not as vibrant as color TFTs, STN technology provides an exceptionally high Contrast Ratio for monochrome applications. It does not suffer from the limited viewing angles of older TN displays and consumes significantly less power than an equivalent TFT panel, a critical factor in power-sensitive designs.

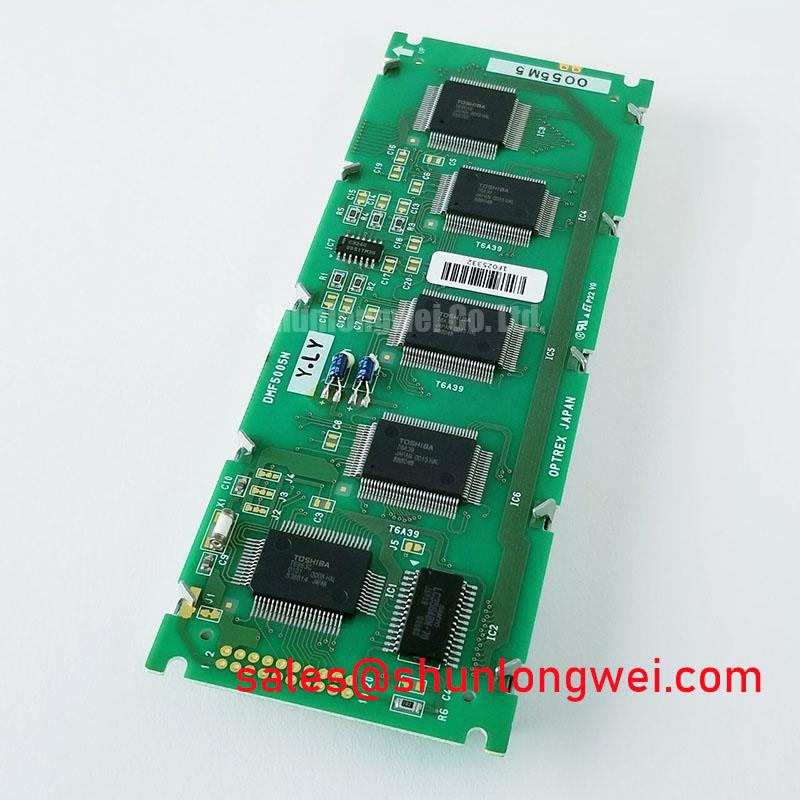

The Power of an Integrated Controller: The built-in T6963C is the cornerstone of this module's ease of use. It contains its own character ROM and display RAM, handling tasks like cursor management, text/graphic layer mixing, and scrolling. This means your host CPU simply sends high-level commands over a standard 8-bit parallel bus, drastically reducing the integration effort compared to raw glass panels. This design philosophy is central to many modern industrial LCD displays.
Key Technical Specifications
For a comprehensive overview of all parameters, designers should consult the official datasheet. You can Download the Datasheet here for detailed electrical and timing characteristics.
| Parameter | Specification |
|---|---|
| Display Technology | STN (Super-Twisted Nematic), Positive, Transmissive |
| Resolution | 240 x 64 dots |
| Backlight | White LED |
| Controller IC | Toshiba T6963C or compatible |
| Viewing Area | 132.0mm x 39.0mm |
| Module Dimensions | 180.0mm x 65.0mm x 11.0mm |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Interface | 8-bit Parallel |
Frequently Asked Questions (FAQ)
1. What power supplies are required for the DMF5005N-SEW-ABE-CP?Typically, the module requires a +5V supply for logic and a separate supply for the LED backlight, which can vary. The datasheet specifies the forward voltage and current for the backlight LEDs, allowing you to design an appropriate constant current or current-limiting resistor circuit. An external negative voltage generator is often needed for the LCD bias voltage (Vee), which is critical for adjusting contrast.
2. Is this module a suitable replacement for a VFD (Vacuum Fluorescent Display)?In many cases, yes. The DMF5005N-SEW-ABE-CP offers a significant power-saving advantage over VFDs and avoids the high-voltage drive circuitry they require. While the aesthetic is different, the high-contrast STN with a white LED backlight provides comparable or superior clarity. The primary consideration will be matching the command set and interface of the original VFD controller.
For expert guidance on integrating the DMF5005N-SEW-ABE-CP into your next project or to discuss your specific HMI requirements, please contact our technical team for personalized support.
