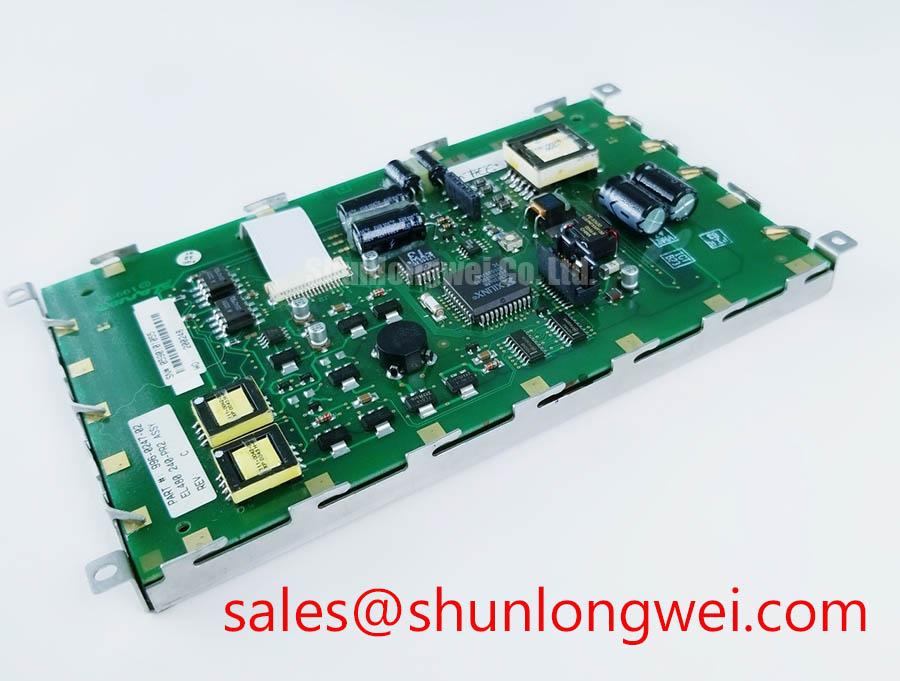

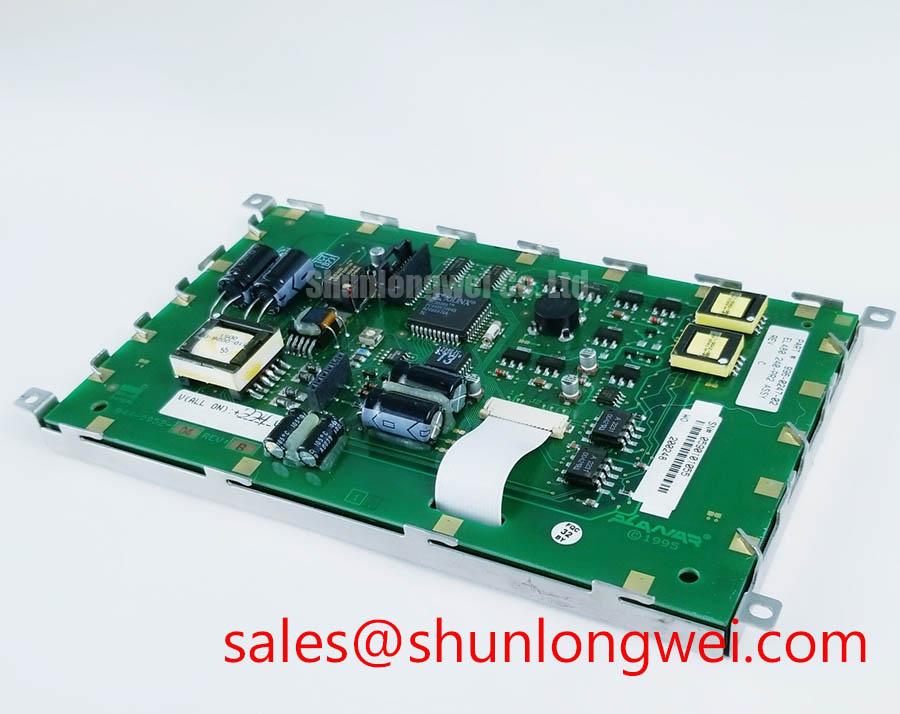

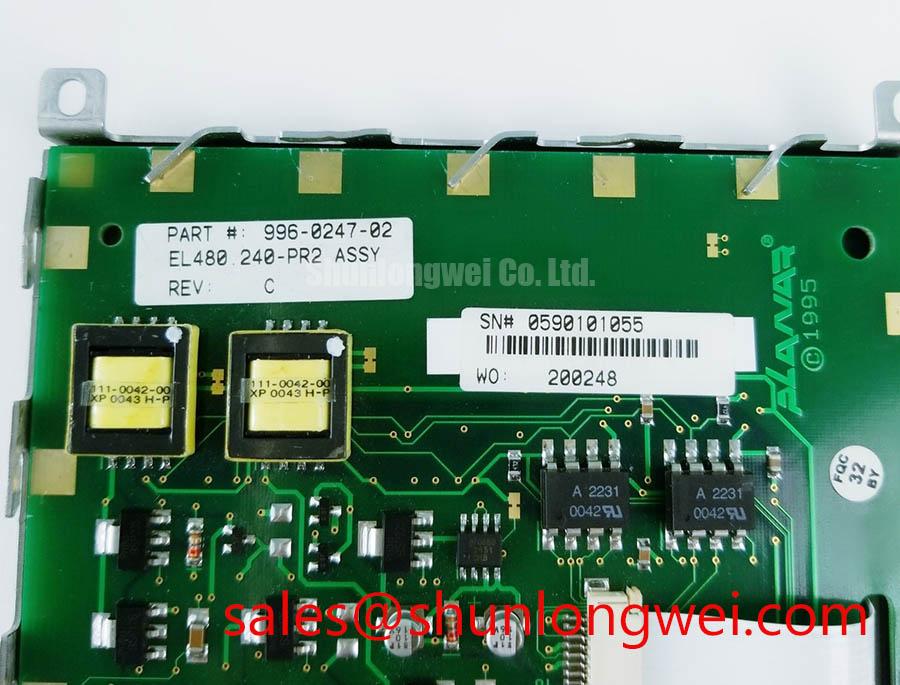

Lumineq EL480.240-PR2 | Rugged Electroluminescent Display for Extreme Conditions
The Lumineq EL480.240-PR2 is a state-of-the-art Electroluminescent (EL) display engineered for unwavering performance in the most demanding industrial and commercial environments. Unlike conventional liquid crystal displays, this 5.7-inch module leverages robust thin-film EL technology to deliver exceptional readability, durability, and a long operational lifespan. It is the definitive HMI solution for applications where failure is not an option, including heavy machinery controls, railway systems, and critical medical devices.
Technical Deep Dive: The Core of EL Superiority
The performance of the EL480.240-PR2 is rooted in its fundamental technology. Here’s how its key features translate into tangible value for your system design:
- Inherent Solid-State Durability: The display is constructed from solid inorganic materials, making it intrinsically resistant to mechanical shock and vibration. Whereas LCDs rely on fragile liquid crystal layers, the EL480.240-PR2 can withstand shocks of up to 100 G and vibrations of 20 G. This eliminates a common point of failure in mobile, high-impact applications, drastically reducing maintenance cycles and improving overall system reliability.
- Unmatched Viewing Experience: As a self-emitting technology, each pixel is its own light source. This results in an extremely high contrast ratio (>100:1) and a near-180° viewing angle on both horizontal and vertical axes. For operators, this means crisp, clear data visualization from any position, in any lighting condition—from dimly lit control rooms to fluctuating ambient light—without the color shifts or contrast degradation common in LCDs. The sub-1ms response time also ensures blur-free rendering of moving graphics.
Application Focus: Solving Real-World Challenges
The unique characteristics of the **EL480.240-PR2** make it the ideal choice for environments where standard displays falter:
- Heavy Machinery & Agriculture: In the cabs of excavators, cranes, or tractors, operators face extreme temperatures and constant vibration. This ruggedized LCD alternative thrives in this setting, providing reliable engine diagnostics and control data from -40°C to +85°C, ensuring operator safety and machine uptime.
- Railway & Mass Transit: For train driver displays or passenger information systems, reliability is paramount. The EL480.240-PR2's proven resilience to constant vibration and its long MTBF make it a fit-and-forget solution, minimizing service costs and ensuring uninterrupted operation across the transit network.
- Medical and Laboratory Instrumentation: Devices like patient monitors and analytical equipment require instant data display without motion blur for accurate readings. The EL display's fast response time provides artifact-free imaging, a critical requirement for an LCD for medical application where precision is key.
- Industrial Automation & Process Control: On factory floors, HMIs are often exposed to dust, humidity, and temperature swings. The robust, sealed design of this industrial LCD module ensures it continues to function flawlessly, providing critical process feedback year after year.
Key Technical Specifications: EL480.240-PR2
| Parameter | Value |
|---|---|
| Technology | Thin Film Electroluminescent (TFEL) |
| Resolution | 480 x 240 pixels |
| Active Area | 122 x 66 mm (5.7" diagonal) |
| Luminance | 48 cd/m² (typical) |
| Contrast Ratio | > 100:1 @ 500 lux |
| Operating Temperature | -40°C to +85°C |
| Viewing Angle | > 179° (Horizontal & Vertical) |
Comparison: EL Display vs. Industrial TFT-LCD
When selecting a display, it's crucial to match the technology to the application's demands. While a standard industrial TFT-LCD may offer full color and higher resolutions at a lower cost, the **Lumineq EL480.240-PR2** excels where TFTs struggle. Choose the EL480.240-PR2 when your primary concerns are absolute reliability in extreme temperatures, immunity to shock and vibration, and perfect readability from any angle. If your application is in a controlled environment and requires complex, colorful graphics, a TFT might suffice. For mission-critical systems in harsh conditions, EL technology is the superior engineering choice.
Frequently Asked Questions
- What is the main benefit of the EL480.240-PR2's monochrome display?
While color is often desired, a high-contrast monochrome display offers superior clarity and removes ambiguity for critical data readouts. The amber color provides excellent readability in a wide range of ambient light conditions without causing eye strain during long-term use. - How does this display handle humidity and dust?
The solid-state construction of the EL panel makes it inherently sealed and impervious to moisture and particulate ingress that can damage traditional LCDs over time. This makes it a perfect fit for environments like food processing or pulp and paper mills. - Is an EL display a drop-in replacement for an LCD?
Electrically, the EL480.240-PR2 uses a standard 4-bit LCD-type interface, which simplifies integration. However, its mechanical footprint and power requirements should be reviewed against your existing design. Contact us for detailed integration support and to confirm compatibility.
