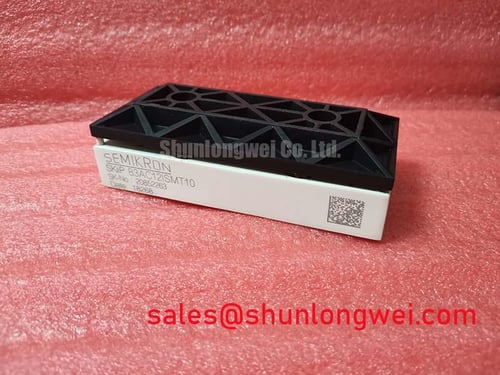

Semikron SKiiP 83AC12ISMT10 | Integrated 1200V IPM for High-Reliability Motor Drives
The Semikron SKiiP 83AC12ISMT10 is not merely an IGBT module; it is a fully integrated Intelligent Power Module (IPM) engineered to be the robust core of modern power conversion systems. By combining Semikron’s 1200V Trench IGBTs, CAL free-wheeling diodes, and a complete gate driver unit with protection features into a single, high-reliability package, this module dramatically simplifies design, accelerates assembly, and enhances the operational lifespan of demanding applications.
Key Features at a Glance:
- Complete System Integration: Features a 3-phase inverter bridge with an integrated, optimized gate driver, eliminating complex external driver circuits and potential sources of failure.
- Pioneering SKiiP® Technology: Utilizes a solder-free, pressure contact mounting system that eliminates solder fatigue, boosts thermal efficiency, and ensures exceptional power cycling capability.
- High-Efficiency Silicon: Employs advanced Trench Gate IGBTs for a low collector-emitter saturation voltage (VCE(sat)), minimizing conduction losses and improving overall system efficiency.
- Robust Protection Suite: Integrated undervoltage lockout (UVLO), short-circuit protection, and a built-in temperature sensor provide a comprehensive safety net for the power stage.
- Optimized for Dynamic Loads: The integrated CAL (Controlled Axial Lifetime) free-wheeling diodes are designed for soft-recovery behavior, reducing voltage overshoots and electromagnetic interference (EMI).
Technical Deep Dive: The SKiiP® Advantage
The core innovation of the SKiiP 83AC12ISMT10 lies in Semikron’s proven SKiiP® technology. Traditional power modules rely on soldered connections to the heatsink, which are susceptible to fatigue and cracking over thousands of thermal cycles. This module circumvents that fundamental failure mode by using a precisely engineered pressure contact system. This solder-free interface creates a direct, highly efficient thermal path from the DBC substrate to the heatsink, improving heat dissipation and allowing for higher power density. For system designers, this translates directly to enhanced reliability, longer service life, and simplified, faster assembly processes. Analyzing and preventing such common points of failure is crucial for long-term system performance, a topic further explored in our guide on IGBT failure analysis.
Application Synergy and Value
High-Performance Variable Frequency Drives (VFDs)
In the demanding environment of VFDs, the SKiiP 83AC12ISMT10 excels. Its integrated nature significantly reduces the component count and design complexity of the power stage. The robust short-circuit withstand time and precise gate control ensure reliable operation under fluctuating motor loads. The superior thermal performance allows for more compact heatsink designs, enabling smaller and more cost-effective VFD units, which is a critical consideration for high-efficiency inverter air conditioners and industrial motors.
Commercial HVAC and Pumping Systems
For applications where long-term reliability and minimal maintenance are paramount, this module is an ideal choice. The solder-free design ensures a long operational life, reducing the total cost of ownership by minimizing service calls. The integrated temperature sensor provides a vital feedback mechanism for the system controller, allowing for proactive thermal management and preventing catastrophic failures before they occur.
Key Technical Specifications
The following table provides a high-level overview of the SKiiP 83AC12ISMT10's critical parameters. For a complete engineering overview, refer to the official product datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Nominal DC Collector Current (I_Cnom @ Tc=70°C) | 75 A |
| Topology | 3-Phase Bridge Inverter (Six-Pack) |
| V_CE(sat) (Typical, T_j=125°C) | 1.8 V |
| Thermal Resistance, Junction to Heatsink (R_th(j-s)) per IGBT | 0.24 K/W |
| Short-Circuit Withstand Time (t_sc) | > 10 µs |
Frequently Asked Questions for the SKiiP 83AC12ISMT10
What are the main benefits of this integrated design versus using a discrete IGBT module and a separate driver?
The primary benefits are reliability and simplicity. The integrated driver is perfectly matched to the IGBTs, optimizing switching performance and minimizing parasitic inductance that can cause voltage overshoots. This eliminates the extensive design, testing, and validation work required for a discrete solution. Furthermore, it reduces assembly time, simplifies the supply chain with a single part number, and shrinks the overall PCB footprint.
How does the pressure contact system impact the assembly process?
The pressure contact system streamlines manufacturing. It requires a specific mechanical mounting procedure to apply even pressure but eliminates the need for soldering, which is a complex process step that requires significant quality control. This makes assembly faster and more repeatable, while also allowing for easier disassembly and replacement in the field if necessary, a significant advantage over permanently soldered modules. Understanding the impact of physical construction on thermal performance is key to leveraging this advantage fully. For expert advice on integrating this advanced module into your next project, please contact our technical team.
