FWP-100B Bussmann Series High-Speed Fuse: Engineering-Grade Semiconductor Protection
Introduction and Key Specifications
Maximizing Uptime and Safety in High-Power Electronics

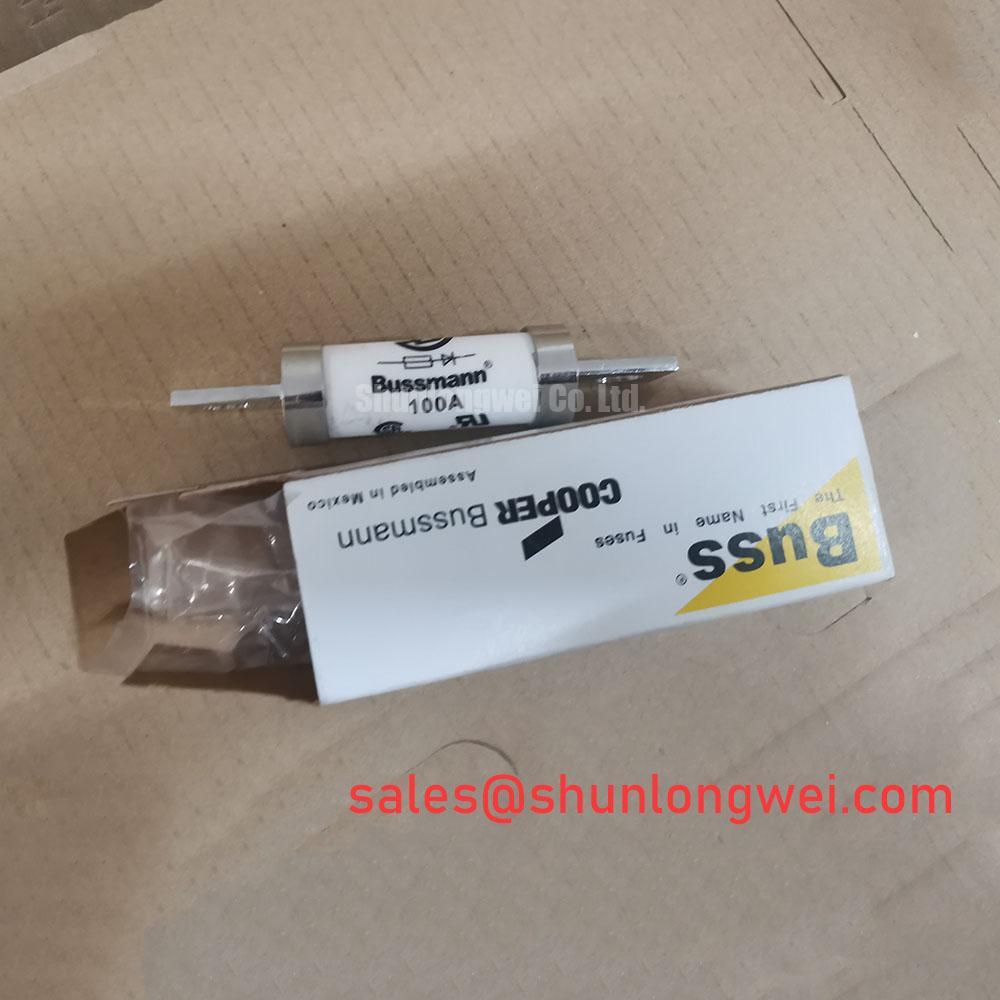

The Eaton Bussmann series FWP-100B is a high-speed fuse engineered to provide superior protection for sensitive power semiconductors, maximizing system reliability by minimizing destructive thermal energy during fault events. With its core specifications of 700Vac/700Vdc | 100A | 200kA Interrupting Rating, this device offers robust performance for demanding applications. Its key benefits include maximizing semiconductor lifespan through extremely low let-through energy (I²t) and reducing the overall thermal load on the system. This fuse directly addresses the critical engineering need for precise, fast-acting overcurrent protection that standard fuses cannot provide, safeguarding expensive components like IGBTs, SCRs, and power diodes from catastrophic failure. For power conversion systems requiring uncompromising protection and thermal efficiency, the FWP-100B's low watt loss and high interrupting capacity make it the optimal choice.
Application Scenarios & Value
System-Level Benefits in Demanding Power Conversion Circuits
The FWP-100B is engineered for critical roles within high-power conversion equipment where component survival is paramount. Its primary value is demonstrated in applications such as the DC link or AC input stages of Variable Frequency Drives (VFDs), uninterruptible power supplies (UPS), and large-scale rectifier circuits.
Consider a common engineering challenge: protecting the IGBTs within a VFD's inverter stage during a short-circuit on the motor output. A standard industrial fuse may not react quickly enough, allowing a massive surge of current to destroy the power module. The FWP-100B, with its extremely low I²t rating, acts as a firewall for thermal energy. It opens the circuit in microseconds, limiting the total destructive energy to a level well within the semiconductor's tolerance. This isn't just circuit protection; it's asset preservation, preventing costly downtime and complex repairs. Its low watt loss of just 12 watts at the full 100A rating also means less heat is generated within the cabinet, contributing to a more stable operating environment for all surrounding electronics and simplifying thermal management design.
This level of protection is essential for modern, high-power-density designs that utilize advanced components. For instance, in systems built around modules like the FS450R12KE3, which are designed for high efficiency, ensuring their protection with a fuse of corresponding quality and speed is a critical design consideration for achieving long-term system reliability.
Key Parameter Overview
Decoding the FWP-100B's Performance for Your Design
The following parameters are extracted from the official manufacturer's datasheet and highlight the core capabilities of the FWP-100B fuse. Each specification is presented with its direct engineering value, enabling a more informed evaluation for your specific application needs.
| Parameter | Value | Engineering Value & Interpretation |
|---|---|---|
| Rated Current | 100 A | Defines the maximum continuous current the fuse can carry without degradation, suitable for mid-range power systems. |
| Voltage Rating | 700 Vac / 700 Vdc | Provides ample margin for use in standard 400V, 480V, and up to 690V industrial AC systems, as well as high-voltage DC common bus applications. |
| Interrupting Rating | 200 kA RMS Symmetrical (AC)100 kA (DC) | This extremely high rating ensures the fuse can safely clear even the most severe fault currents from high-capacity sources without rupture, guaranteeing equipment and personnel safety. |
| Total Clearing I²t (at 700Vac) | 4,800 A²s | Critical Protection Metric. This value represents the total thermal energy the fuse lets through during a fault. Its low value is key to protecting sensitive semiconductors, which have their own I²t withstand limits. Think of it as the fuse absorbing the "thermal punch" before it reaches the component. |
| Power Dissipation (Watts Loss) | 12 W (@ 100A) | Indicates high operational efficiency. Lower watt loss translates directly to less heat generated, reducing the load on cooling systems and allowing for more compact, power-dense enclosure designs. |
| Fuse Class | aR | Denotes a fuse with extremely fast-acting characteristics specifically for the protection of power semiconductors, as defined by standards like IEC 60269-4. |
Download the FWP-100B datasheet for detailed specifications and performance curves.
Frequently Asked Questions (FAQ)
What is the primary advantage of the FWP-100B's low I²t rating compared to a standard fuse?
The extremely low I²t (4,800 A²s) ensures that under a short-circuit condition, the fuse interrupts the current so rapidly that the total thermal energy passed through to downstream components is minimal. This is the critical factor in preventing the junction failure of sensitive semiconductors like IGBTs and SCRs, which a slower, general-purpose fuse would fail to protect.
How does the 12W power loss at 100A impact my panel design?
A lower watt loss translates directly to less waste heat being generated within your enclosure. This reduces the ambient temperature rise, which can improve the reliability of all components in the panel. It may also allow for a smaller, less expensive heatsink or cooling system, contributing to a more compact and cost-effective overall design.
Is the FWP-100B suitable for protecting a Variable Frequency Drive (VFD)?
Yes, this is an ideal application. The FWP-100B's fast-acting (aR Class) characteristic and high interrupting rating make it perfectly suited for protecting the AC input rectifiers or the critical DC link bus within a Variable Frequency Drive (VFD).
Can this fuse be used in DC circuits?
Absolutely. It features a 700 Vdc rating with a robust 100 kA DC interrupting capacity, making it a reliable choice for protecting battery energy storage systems, DC common bus architectures, and large DC power supplies.
What do the UL and CSA recognitions signify for my design?
The UL Recognition (File E76491) and CSA Component Acceptance (Class 1422-30) confirm that the FWP-100B has been independently tested and meets the stringent safety and performance standards for the North American market. This simplifies the certification process for your end equipment.
From an Engineer's Perspective
A Final Design Consideration
When evaluating a protection device, it's easy to focus solely on the current and voltage ratings. However, for semiconductor circuits, the selection process must be more nuanced. The FWP-100B exemplifies a design where the dynamic characteristics—specifically the clearing I²t and watt loss—are as important as the static ratings. Integrating this fuse is not merely about meeting a current requirement; it is a strategic decision to enhance the long-term reliability and thermal stability of the entire power stage. Its performance allows for tighter design margins and greater confidence in the system's ability to withstand unexpected fault conditions without incurring catastrophic damage. This is the level of engineering detail that differentiates a robust system from a merely functional one.
