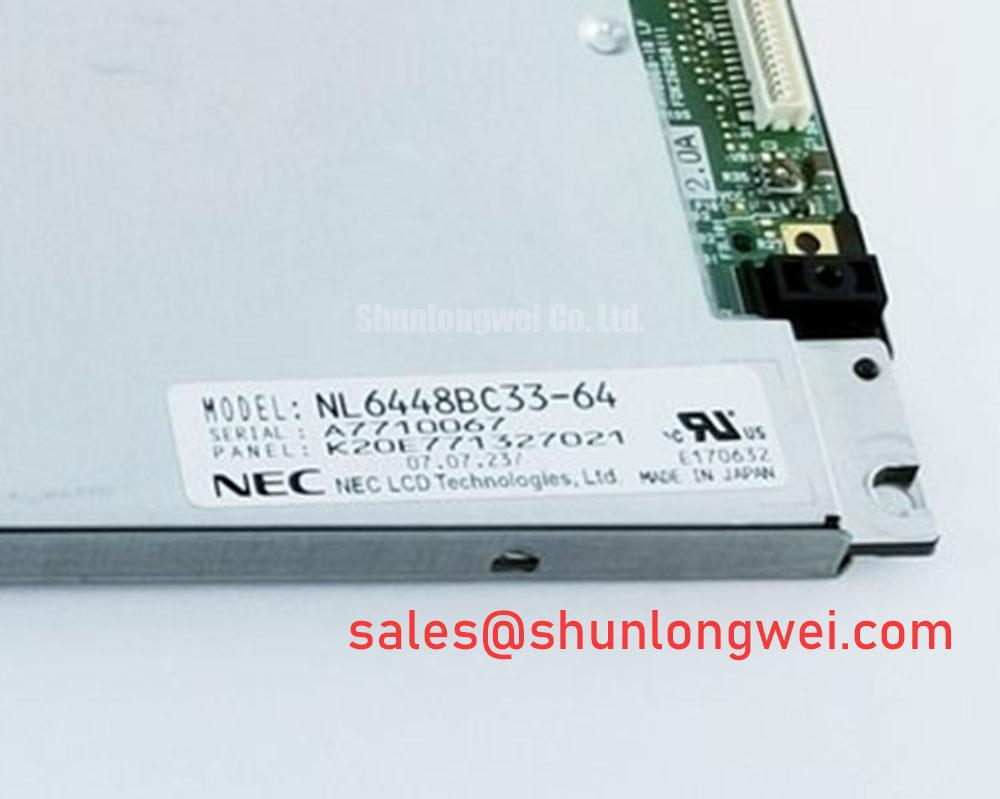

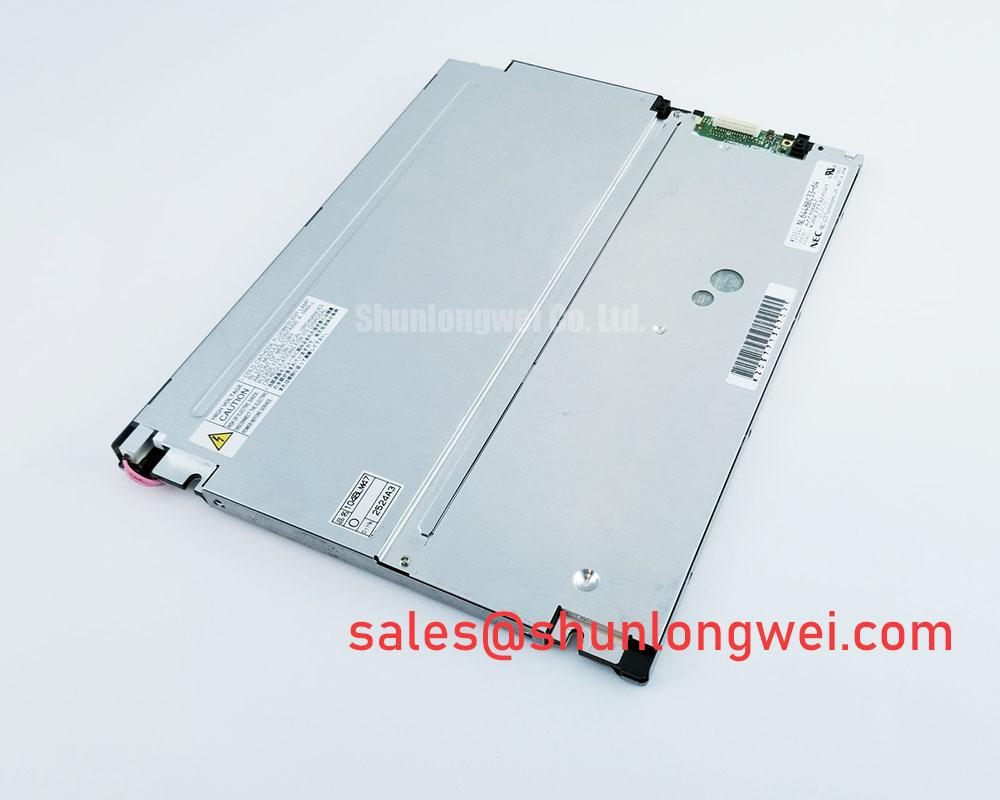

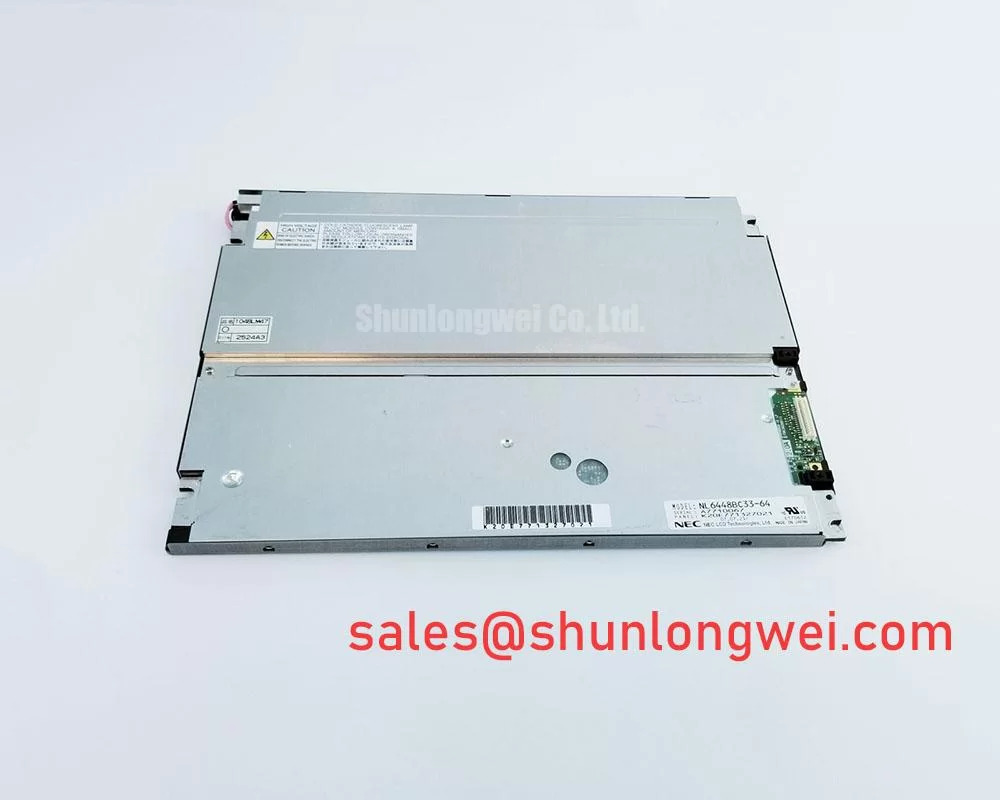

NL6448BC33-64: 10.4-inch VGA TFT LCD Engineered for Industrial HMI Reliability
An Engineering Overview of the NEC Color TFT-LCD Module
The NL6448BC33-64 is an industrial-grade 10.4" VGA display engineered for exceptional longevity and reliability in demanding environments. This amorphous silicon TFT active matrix module delivers consistent performance with key specifications of 10.4-inch VGA (640x480) resolution, 400 cd/m² brightness, and a -10 to +70°C operating temperature range. Its design provides two primary engineering benefits: enhanced environmental resilience and simplified long-term maintenance. The module's robust operating temperature range and high-brightness panel make it a dependable choice for new and legacy HMI systems operating in challenging industrial light and temperature conditions. For industrial systems requiring a durable VGA display with field serviceability, the NL6448BC33-64's replaceable backlight offers an unmatched long-term value proposition.
Key Parameter Overview
Decoding the Specs for Environmental Robustness and Serviceability
The technical specifications of the NL6448BC33-64 are tailored for integration into industrial equipment where performance and durability are critical. The parameters below highlight the module's suitability for challenging operational contexts.
| Specification | Value | Engineering Value & Interpretation |
|---|---|---|
| Display Technology | 10.4" a-Si TFT Active Matrix | Provides a stable, proven display foundation for clear and reliable visual output in industrial HMI applications. |
| Resolution | 640(H) x 480(V) pixels (VGA) | Standard VGA format ensures seamless compatibility with a vast range of industrial controllers and legacy systems, simplifying retrofits. |
| Luminance | 400 cd/m² (Typical) | High brightness ensures screen legibility in well-lit factory floors or control rooms, reducing potential for operator error. |
| Operating Temperature | -10°C to +70°C | This wide range allows for deployment in non-climate-controlled environments, from cold-start conditions to high-heat industrial processes. |
| Backlight System | 2 CCFLs, Edge-light type (Replaceable) | The field-replaceable backlight is a critical feature for extending the display's service life, directly lowering the total cost of ownership. |
| Signal Interface | Analog RGB (0.7 Vp-p) | Provides a straightforward connection to a multitude of embedded systems and video controllers without requiring digital interface converters. |
Download the NL6448BC33-64 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Control and Automation
The NL6448BC33-64 is purpose-built for applications where operational continuity is paramount. Its feature set directly addresses common challenges faced by engineers designing and maintaining industrial systems.
A primary application is in the retrofitting and manufacturing of Human-Machine Interfaces (HMIs) for equipment like CNC machines, injection molding controllers, and process control systems. In these settings, a display must endure years of operation amidst temperature fluctuations, vibration, and varying ambient light. The NL6448BC33-64's 400-nit brightness ensures that critical data remains readable under bright overhead factory lighting. More importantly, its wide operating temperature range guarantees stable performance whether the machine is starting up in a cold facility or running at peak temperature, preventing display flicker or failure that could halt production. The analog VGA interface makes it an ideal drop-in replacement for older CRT or early-generation LCDs, minimizing the engineering effort and cost associated with system upgrades. While this model is a robust VGA solution, for systems requiring a digital interface, the related NL6448BC33-71D offers a potential alternative for evaluation.
Frequently Asked Questions (FAQ)
Technical Clarifications for Design Engineers
What is the primary engineering benefit of the NL6448BC33-64's replaceable backlight unit?
Its key benefit is a significantly reduced total cost of ownership and extended operational life for the host system. Backlights have a finite lifespan; the ability to replace only the CCFL unit in the field avoids the need to replace the entire expensive TFT module, simplifying maintenance and minimizing downtime.
How does the 400 cd/m² brightness impact its use in industrial environments?
A luminance of 400 cd/m² provides the necessary screen clarity to be readable in typical indoor industrial settings with high levels of ambient light. This is crucial for reducing operator eye strain and preventing errors when reading critical parameters or alarms on a machine's HMI.
Is the analog RGB interface still relevant for new designs?
Yes, for many industrial applications. While digital interfaces are common, the analog RGB interface provides robust, cost-effective compatibility with a massive installed base of industrial single-board computers, PLC video outputs, and legacy controllers. This makes the NL6448BC33-64 an excellent choice for both new designs prioritizing simplicity and for retrofitting existing equipment.
What does the -10 to +70°C operating temperature range mean for system design?
This wide temperature range simplifies thermal management design. It allows the display to be integrated into sealed enclosures or non-ventilated cabinets in environments without active climate control. It eliminates the need for auxiliary heaters or fans in many cases, which saves cost, reduces system complexity, and improves overall reliability by removing potential points of failure.
Application Vignette
Retrofitting Aging CNC Machine Control Panels
Consider the engineering challenge of upgrading a fleet of 15-year-old CNC machines. The original CRT monitors are failing, leading to unplanned downtime and a scarcity of replacements. The goal is a cost-effective, low-impact upgrade that extends the machinery's life. The NL6448BC33-64 from NEC presents a strategic solution. Its 640x480 VGA resolution and analog RGB input perfectly match the output of the existing machine controllers, enabling a direct "drop-in" replacement without costly software or hardware re-engineering. The display's mechanical footprint is designed for standard industrial panel mounting, further simplifying the physical integration. In the machine shop environment—subject to oil mist, temperature swings from -5°C in winter to +45°C near equipment in summer, and intense overhead lighting—the module's wide temperature range and 400-nit brightness ensure flawless, readable operation year-round. The most significant long-term value comes from the replaceable backlight. The maintenance team can stock low-cost backlight units and perform a simple replacement in minutes, a stark contrast to replacing an entire display assembly. This approach not only solves the immediate obsolescence problem but also establishes a sustainable, low-cost maintenance strategy for the next 10-15 years of the machine's life.
Strategic Outlook
Commitment to Longevity in Industrial Systems
The design philosophy of the NL6448BC33-64 prioritizes the long-term operational and financial realities of the industrial sector. By combining a robust a-Si TFT panel with field-serviceable components, it provides a stable platform for critical HMI applications. This focus on durability and maintainability ensures that investments in industrial machinery are not compromised by the shorter lifecycle of consumer-grade display technology. For engineering and procurement teams, selecting a component like the NL6448BC33-64 is a strategic decision that supports uptime, controls maintenance budgets, and ensures system viability for years to come.
