LM057QC1T01: Technical Product Analysis for Engineering Evaluation
Introduction and Core Specifications

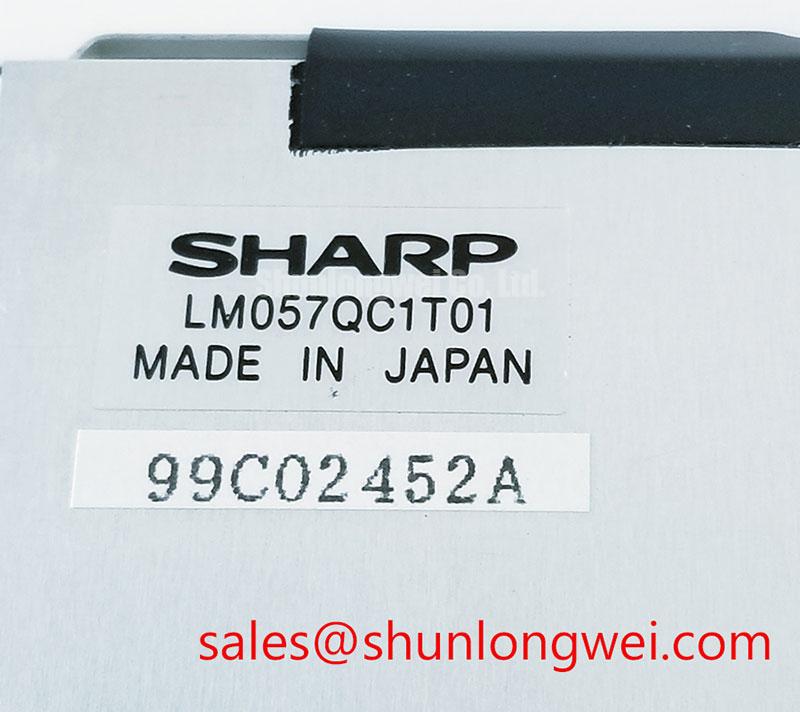

The Sharp LM057QC1T01 is a 5.7-inch Color STN (CSTN) LCD module engineered for clear and reliable visual output in a range of industrial and instrumentation applications. It delivers a proven display solution focused on maintainability and straightforward integration. Key specifications include a 5.7-inch diagonal size, 320x240 QVGA resolution, a 180:1 typical contrast ratio, and a 4-bit parallel data interface. This combination offers excellent readability for status indicators and simple GUIs while simplifying driver development. Its standard form factor and interface make it a prime candidate for extending the operational life of existing HMI systems, mitigating the need for costly and time-intensive redesigns. Best fit for maintaining industrial control panels and test equipment where reliable display of static information is critical.
Application Scenarios & Value
System-Level Benefits for Legacy Equipment and New Designs
The LM057QC1T01 provides significant value in applications where long-term product lifecycle management is a primary engineering concern. For designers of new, cost-sensitive devices, the display offers a straightforward and economical HMI solution. Its most prominent value, however, lies in the maintenance and repair of legacy systems. Consider the engineering challenge of servicing an aging industrial control panel or piece of medical test and measurement equipment where the original display has failed. A complete system redesign is often financially unfeasible. The LM057QC1T01, with its industry-standard 5.7-inch QVGA footprint and classic parallel data interface, serves as a form-fit-function replacement, enabling rapid repair, minimizing downtime, and extending the capital investment in the existing equipment.
The panel's specified 180 cd/m² brightness and 180:1 contrast ratio ensure that critical operational data is presented with sufficient clarity for operators in typical indoor industrial environments. This level of performance is well-suited for displaying numerical readouts, process flow diagrams, and menu-driven interfaces common in factory automation and specialized instrumentation. For systems requiring a different form factor or higher resolution, the LQ064V3DG06 offers a 6.4-inch VGA alternative.
Key Parameter Overview
Decoding the Specifications for System Integration
The technical specifications of the LM057QC1T01 are tailored for direct integration with embedded controllers. Understanding these parameters is key to leveraging the module's capabilities effectively. Think of the 180:1 contrast ratio like the difference between light grey text on a white background versus crisp black text. A higher ratio delivers a sharper, more defined image, which is crucial for reducing operator eye strain when reading numerical data over long shifts.
| Feature | Specification |
|---|---|
| Display Technology | Color STN (Super-Twisted Nematic) LCD |
| Screen Size (Diagonal) | 5.7 inches (14 cm) |
| Resolution | 320(H) x 240(V) Pixels (QVGA) |
| Active Area | 115.2 (H) x 86.4 (V) mm |
| Pixel Pitch | 0.36 (H) x 0.36 (V) mm |
| Luminance (Brightness) | 180 cd/m² (Typical) |
| Contrast Ratio | 180:1 (Typical) |
| Data Interface | 4-bit Parallel Digital RGB |
| Backlight System | 1x CCFL, Edge-light type (Requires external inverter) |
| Outline Dimensions | 167.0 (W) x 109.0 (H) x 9.5 (D) mm (Max) |
| Weight | 220g (Typical) |
| Operating Temperature | 0°C to +50°C |
Note: The parameters listed above are derived from the official product specification document. For complete design details, including timing diagrams and absolute maximum ratings, it is essential to consult the full datasheet.
Download the LM057QC1T01 datasheet for detailed specifications and performance curves.
Frequently Asked Questions (FAQ)
Engineering Questions on the LM057QC1T01
What are the power supply and inverter requirements for the CCFL backlight?
The LM057QC1T01 integrates a Cold Cathode Fluorescent Lamp (CCFL) which requires a separate, external high-voltage inverter for operation. The datasheet specifies the lamp voltage, current, and starting voltage, which are critical parameters for selecting a compatible inverter. Logic power for the display itself is typically supplied via a separate low-voltage rail as detailed in the datasheet's electrical characteristics.
How does the Color STN (CSTN) technology of the LM057QC1T01 affect its suitability for modern GUI applications?
CSTN is a passive-matrix technology, which generally has a slower response time compared to modern active-matrix TFT displays. This makes it ideal for static or slowly updating content such as numerical readouts, menus, or simple status graphics. It is less suitable for applications requiring full-motion video playback or rapid animations where ghosting could occur. This is a key consideration for its use in industrial HMI design.
What is the advantage of the 4-bit parallel data interface in embedded system design?
A 4-bit parallel interface requires fewer I/O pins from the host microcontroller compared to 8-bit or 16-bit interfaces. This simplifies the hardware design, reduces PCB complexity, and frees up valuable GPIO pins on the MCU for other tasks. It's a significant advantage in legacy system repairs where the original controller has limited I/O availability or in new cost-optimized designs.
The datasheet specifies a 180:1 contrast ratio. Is this sufficient for typical industrial environments?
A 180:1 contrast ratio provides clear, distinct legibility for text and simple graphics under controlled indoor lighting conditions, such as those found in a control room or laboratory. For applications in direct sunlight or very high ambient light, a display with a higher contrast ratio and brightness would be necessary. This specification is well-matched for the intended applications in machine control and instrumentation.
Application Vignette
A Closer Look: Extending the Life of Test and Measurement Equipment
An engineering team is tasked with servicing a fleet of portable spectrum analyzers deployed in the field for over a decade. The original displays are beginning to fail, but the high cost of replacing the entire units is prohibitive. The primary challenge is sourcing a display that matches the original's 320x240 resolution, fits the existing chassis cutout precisely, and can be driven by the legacy 8-bit microcontroller with limited I/O resources.
In this scenario, the LM057QC1T01 emerges as an ideal solution. Its 4-bit parallel interface is a key enabling feature. This interface acts like a four-lane local road instead of a sixteen-lane highway. While it can't handle the data volume for high-speed video, it's perfectly efficient for sending the simple commands and pixel data needed for a control panel, and it connects easily to the 'local streets' (GPIO pins) of a standard microcontroller without needing a complex interchange. This conserves the controller's limited I/O pins. The CCFL backlight, powered by a readily available Sharp-compatible inverter, matches the power architecture of the original design. By integrating the LM057QC1T01, the team successfully extends the service life of the valuable test equipment, ensuring technicians have a clear and reliable interface for years to come and preserving the organization's capital investment.
From a strategic perspective, incorporating components like the LM057QC1T01 is a critical practice in managing the lifecycle of long-deployment capital equipment. It enables a maintenance-focused approach that prioritizes total cost of ownership over the initial acquisition price, ensuring operational continuity and maximizing the return on investment for established technological assets.
