LM057QB1T04: Technical Specifications and Engineering Analysis for a Robust 5.7-inch QVGA STN Display

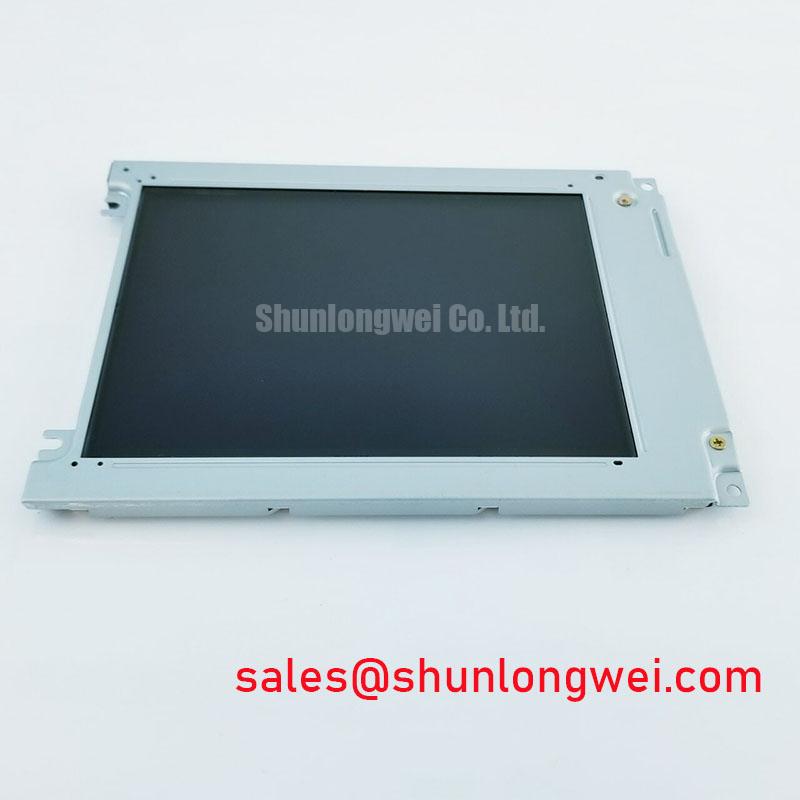

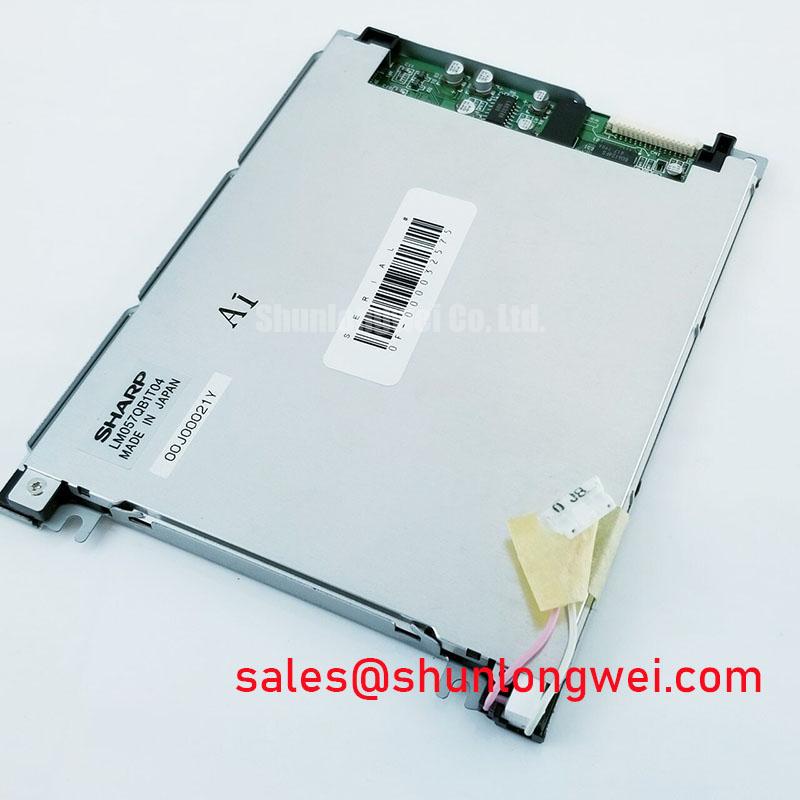

A Focused Introduction to the LM057QB1T04
Engineered for Clarity and Longevity in Industrial Environments
The LM057QB1T04 is a highly reliable 5.7-inch STN-LCD module, engineered to deliver consistent performance in demanding industrial applications. This display provides a clear, stable human-machine interface (HMI) solution where operational uptime and long-term durability are critical design criteria. With key specifications of 5.7-inch Diagonal | 320 x 240 (QVGA) Resolution | -10°C to 60°C Operating Temperature, it offers two primary engineering benefits: exceptional thermal resilience for non-conditioned environments and proven display technology for long-lifecycle systems. For engineers questioning its suitability for factory floors, its wide operating temperature and robust construction ensure consistent readability and reliability. For legacy industrial controls and test equipment requiring a durable, long-lifecycle QVGA display, the LM057QB1T04 offers a proven and reliable solution.
Key Parameter Overview
Highlighted Specifications for System Integration
The technical specifications of the LM057QB1T04 are tailored for integration into industrial control panels, measurement instruments, and embedded systems. The following table highlights the key metrics that directly influence design and performance.
| Parameter | Specification |
|---|---|
| Display Technology | STN (Super-twisted Nematic), Monochrome (Blue Mode) |
| Screen Size (Diagonal) | 5.7 inches (14.5 cm) |
| Resolution | 320 x 240 pixels (QVGA) |
| Pixel Pitch | 0.36(H) x 0.36(W) mm |
| Active Area | 115.2(H) x 86.4(V) mm |
| Luminance (Brightness) | 130 cd/m² (Typical) |
| Contrast Ratio | 12:1 (Typical) |
| Backlight System | 1 x CCFL with Inverter |
| Interface | 4-bit Parallel Data |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature Range | -25°C to +70°C |
| Module Dimensions | 167(W) x 109(H) x 10(D) mm (Max) |
Application Scenarios & Value
Delivering System-Level Reliability in Industrial Control and Measurement
The LM057QB1T04 is optimally suited for environments where a full-color, high-refresh-rate display is unnecessary, but operational robustness is non-negotiable. Its primary value lies in its ability to function reliably over a wide temperature range, making it a prime candidate for deployment in challenging settings.
High-Fidelity Engineering Scenario: Consider the HMI for a PLC-based controller on a factory floor where ambient temperatures fluctuate significantly between shifts or seasons. The engineering challenge is to ensure the display remains legible and functional without costly environmental controls. The LM057QB1T04's -10°C to 60°C operating range directly addresses this, preventing screen freezing or fading that can plague consumer-grade displays. Its specified luminance of 130 cd/m² is engineered for indoor industrial lighting, providing sufficient clarity for operators to monitor processes and input commands accurately. This is analogous to having an instrument gauge that works reliably whether the machine is starting up in a cold warehouse or running for hours in a warm enclosure.
While the LM057QB1T04 provides excellent monochrome clarity, for applications requiring basic color differentiation, the related KCG057QV1DB-G000 offers a similar form factor with a color STN panel. Understanding the differences between industrial and consumer-grade screens is crucial for long-term project success, a topic explored further in our guide to why total cost of ownership trumps initial price.
Frequently Asked Questions (FAQ)
Engineering-Focused Inquiries for the LM057QB1T04
What makes the LM057QB1T04 a suitable replacement for older industrial displays?
Its standard 5.7-inch QVGA form factor and parallel data interface make it a common drop-in or near-equivalent replacement for many legacy monochrome displays used in equipment from the past two decades, simplifying maintenance and extending the life of capital equipment.
How does the STN (Super-twisted Nematic) technology impact the performance of this display?
STN technology offers a highly durable and cost-effective solution for displaying static or slow-changing information. What is the primary benefit of its STN construction? Enhanced reliability and lower power consumption compared to TFT panels of the same era, making it ideal for displaying critical parameters, text, and simple graphics in industrial machinery and test equipment.
What are the design considerations for the integrated CCFL backlight?
The Cold Cathode Fluorescent Lamp (CCFL) requires an external inverter, which is typically integrated into the assembly. Engineers must account for the high-voltage AC power required by the inverter and ensure proper shielding to mitigate potential EMI. The CCFL also has a defined operational lifetime (typically 20k-50k hours to half-brightness), which should be factored into the system's maintenance schedule.
Does the -10°C to 60°C operating range guarantee full optical performance across the entire spectrum?
While the display will function reliably within this range, optical characteristics like response time and contrast can vary. At the lower end of the temperature range, the liquid crystal response will be noticeably slower. The datasheet provides specific performance curves that designers should consult to ensure readability meets application requirements under all expected conditions.
Technical Deep Dive
An Analysis of STN Construction and Thermal Resilience
The choice of STN technology in the LM057QB1T04 is a deliberate engineering decision prioritizing durability over high-fidelity graphics. Unlike modern TFTs, STN displays have a simpler cell structure, which inherently makes them more resilient to the mechanical shock and vibration common in industrial settings. This structural simplicity contributes directly to the module's long-term operational stability.
The display's thermal resilience is its defining feature. Its ability to operate from freezing temperatures to the heat of a non-ventilated enclosure is critical for equipment deployed globally or in uncontrolled environments. The response time of an STN panel can be visualized as being similar to turning the page of a book—it’s crisp and clear for static content but not designed for the fluid motion of a video. This characteristic is a strength in its target applications, as it results in lower power consumption and predictable performance for displaying the vital, unchanging data that operators of heavy machinery or test instruments rely on.
Strategic Value Proposition
Specifying the LM057QB1T04 is a strategic decision for product lines where longevity and reliability are key market differentiators. In an industry focused on long-term support and minimizing total cost of ownership, integrating a component with a proven track record of stability provides a significant advantage. This display is not intended to compete on the metrics of consumer electronics but to deliver steadfast performance as a critical component in the interface of a larger, mission-focused industrial system, ensuring a dependable link between operator and machine for years of service.
