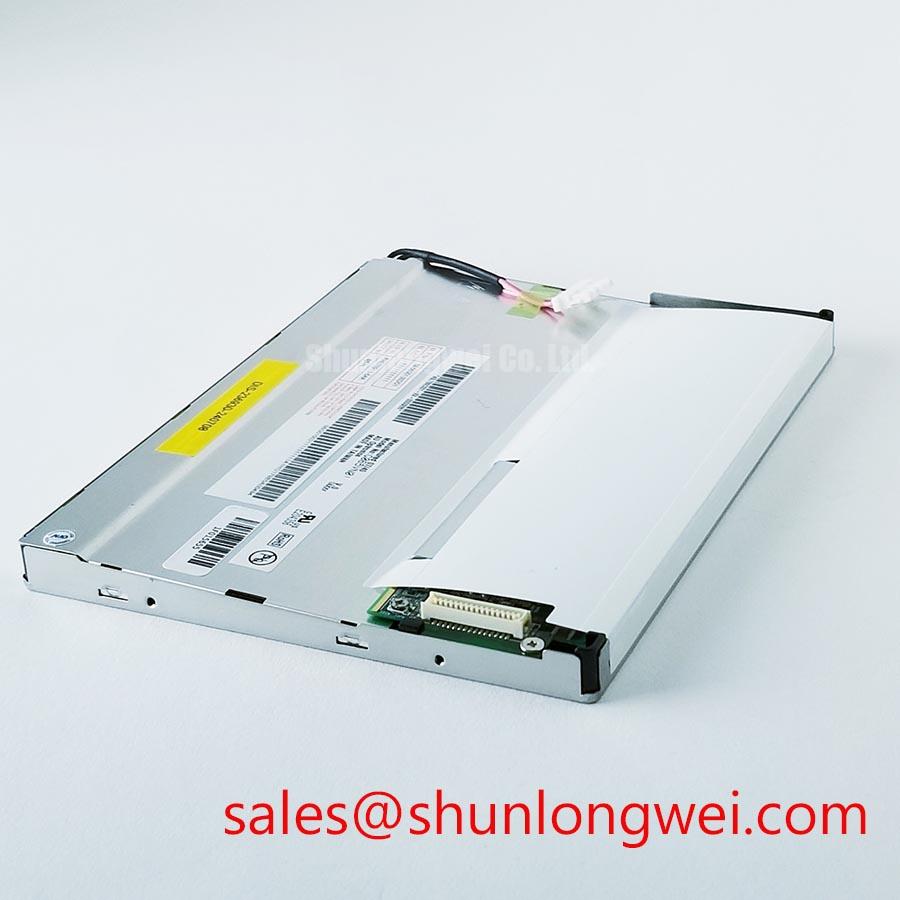

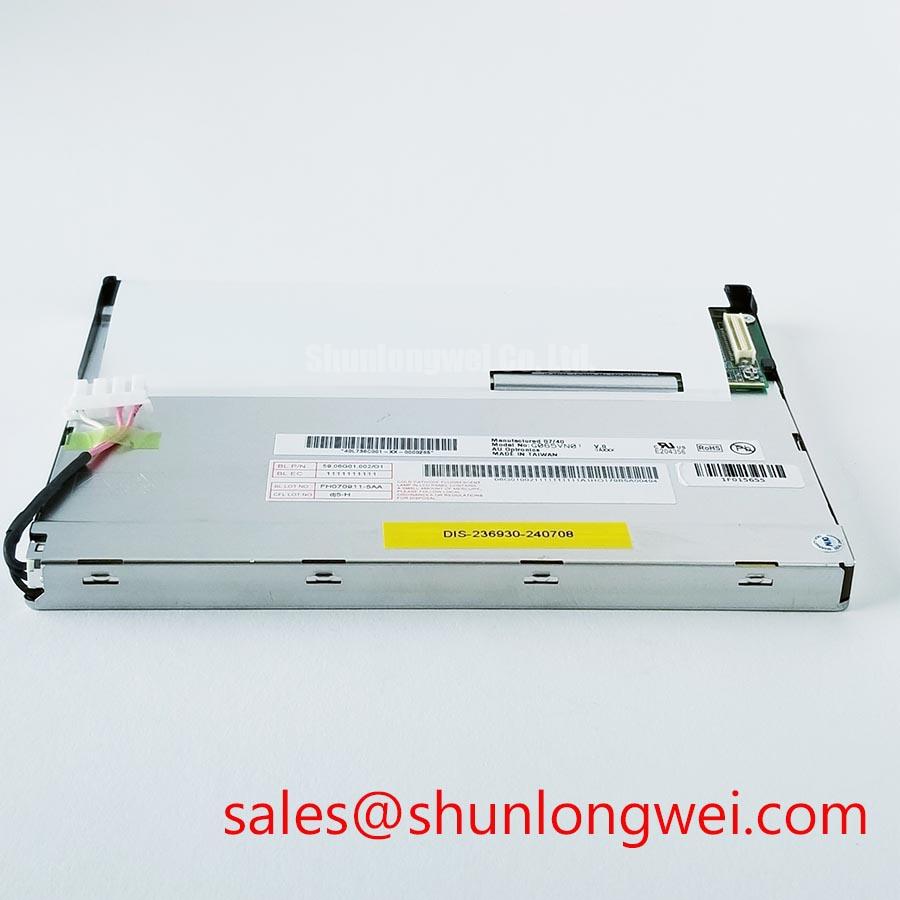

AUO G065VN01 V0: 6.5-inch Industrial TFT-LCD
Engineered for Visual Clarity and Resilience in Demanding Environments
The AUO G065VN01 V0 is a 6.5-inch industrial display engineered for unwavering operational reliability and optical performance under challenging environmental conditions. This module combines a wide operating temperature range with proven mechanical durability to deliver consistent, readable imaging where standard displays fail. Key specifications include: 640x480 VGA | 500 nits Brightness | -10°C to +70°C Operating Temp. Its design delivers two critical engineering benefits: enhanced system durability and long-term operational stability. Answering a key concern for system integrators, its 500-nit brightness coupled with an anti-glare surface ensures clear readability in typical high-ambient-light industrial settings, though direct sunlight applications may require additional design considerations. For HMI systems in manufacturing or transportation that demand proven resilience against vibration and temperature extremes, the G065VN01 V0 provides a robust and reliable display foundation.
Application Scenarios & Value
Delivering System-Level Reliability in High-Vibration and Temperature-Variant Conditions
The G065VN01 V0 is engineered to address the core challenges of deploying Human-Machine Interfaces (HMIs) in environments where temperature is uncontrolled and mechanical stress is a constant. Consider a CNC machine controller on a factory floor. It's subjected to continuous, low-frequency vibration from the machinery and significant temperature swings between shutdown periods and peak operation. A standard display's components could fail prematurely under such stress. The G065VN01 V0 directly mitigates this risk through its robust design, validated against operational vibration of 1.5G and non-operational shock of 50G. This resilience ensures the HMI remains operational, preventing costly downtime and maintaining operator efficiency. The display's ability to function flawlessly from -10°C to +70°C means it can be deployed in unheated warehouses, outdoor-covered kiosks, and vehicle cabins without requiring specialized thermal management hardware, simplifying the overall system design and reducing bill-of-materials cost.
This module's feature set makes it an excellent fit for industrial automation panels, process control systems, and specialized vehicle instrumentation. For designs requiring a more compact footprint, the related G057VN01 V2 offers similar industrial-grade characteristics in a 5.7-inch format. Conversely, for applications needing a larger interface, the G084SN05 V9 provides an 8.4-inch alternative.
Key Parameter Overview
Decoding the Specs for Environmental Durability and Optical Performance
The technical specifications of the G065VN01 V0 are centered on delivering sustained performance in industrial applications. The parameters below highlight the module's resilience and visual capabilities, which are crucial for long-term reliability and user interface effectiveness.
| Parameter | Specification | Engineering Value & Interpretation |
| Operating Temperature | -10°C to +70°C | Provides a wide operational window, enabling deployment in environments without climate control, from cold storage facilities to factory floors with high ambient heat. This range is like having an all-season tire for your display; it performs predictably across a broad spectrum of conditions without special adaptation. |
| Luminance | 500 cd/m² (nits) | Delivers bright, clear images suitable for well-lit indoor industrial environments. Combined with the anti-glare surface, it ensures excellent readability and reduces operator eye strain. |
| Contrast Ratio | 600:1 (Typ.) | Ensures sharp differentiation between light and dark colors, which is critical for rendering detailed schematics, text, and safety warnings with high fidelity. |
| Backlight Lifetime | 50,000 hours (Typ.) | Translates to over 5.7 years of continuous 24/7 operation before the backlight reaches half its original brightness. This minimizes maintenance requirements and significantly lowers the total cost of ownership, a key metric explored in the differences between industrial and consumer displays. |
| Vibration Resistance | 1.5 G, 10 ~ 200 Hz (Operational) | Confirms the module's ability to withstand the constant mechanical stresses found in transportation, mobile machinery, and factory automation environments, preventing connection fatigue and component failure. |
| Signal Interface | LVDS (1 ch, 6/8-bit) | The use of a standard LVDS Interface ensures low electromagnetic interference (EMI) and straightforward integration with a wide range of industrial motherboards and single-board computers. |
Download the G065VN01 V0 datasheet for detailed specifications and performance curves.
Technical Deep Dive
A Closer Look at the Mechanical Design for Long-Term Reliability
The reliability of the G065VN01 V0 is not an accident but a result of deliberate design choices by AUO targeting industrial stressors. The panel's construction incorporates materials and mechanical reinforcements that specifically counter the effects of shock and vibration. The datasheet's reliability section details a non-operational shock test at 50G with a 20ms half-sine waveform. Passing this test indicates that the internal connections, the liquid crystal cell, and the backlight assembly are robustly secured within the module's chassis, preventing catastrophic failure from accidental impacts during transport, installation, or field use. Think of the internal structure as having its own suspension system, absorbing and dissipating sudden energy spikes that would shatter a consumer-grade display. This focus on durability is a core principle when engineering for extreme environments, ensuring that the display is not the weakest link in the system chain.
Application Vignette
Enhancing Operator Interface Durability in a Food Processing Plant
In a food processing facility, an HMI panel used for monitoring and controlling a packaging line faces a unique combination of challenges. The environment is frequently subjected to high-pressure washdowns, leading to high humidity, and temperatures can fluctuate significantly. Furthermore, the conveyor systems and robotic arms generate constant, low-amplitude vibration. A system integrator chose the G065VN01 V0 for this application specifically for its documented resilience. The primary challenge was ensuring the HMI remained readable and functional through years of service in these conditions. The G065VN01 V0's -10°C to +70°C operating temperature provided ample margin for temperature variations. Its anti-glare screen was critical for visibility under the harsh overhead fluorescent lighting common in such plants, preventing reflections that could cause misreadings. Most importantly, its proven vibration resistance ensured that the continuous mechanical jitter from the packaging line would not degrade the display's internal connections over time, delivering a stable and reliable interface that maximizes production uptime and minimizes service calls.
Frequently Asked Questions (FAQ)
What is the primary benefit of the G065VN01 V0's specified shock and vibration resistance?
Its primary benefit is enhanced long-term reliability in mobile or mechanically active environments. The specified resistance to 1.5G operational vibration and 50G non-operational shock means the display can be confidently integrated into systems like vehicle dashboards, portable diagnostic tools, and machinery control panels without risk of premature failure due to mechanical stress.
How does the -10°C to +70°C operating temperature range impact system design?
This wide temperature range simplifies thermal management for the overall system. It allows the display to be used in sealed enclosures and in locations without active heating or cooling, reducing system complexity, power consumption, and potential points of failure associated with fans or heaters.
Is the 500-nit brightness sufficient for outdoor applications?
The 500-nit brightness is excellent for indoor industrial environments and shaded outdoor use. For applications in direct, bright sunlight, a display with a higher luminance rating (typically 1000 nits or more) would be recommended to ensure optimal readability.
What is the significance of the 50,000-hour backlight lifetime?
A 50,000-hour backlight lifetime translates to a Total Cost of Ownership (TCO) advantage. It ensures a long, service-free operational life, reducing the need for costly maintenance cycles to replace the backlight unit. For equipment intended to run continuously for years, this is a critical reliability metric.
Does the module come with an inverter for the CCFL backlight?
The datasheet specifies that the inverter card for the CCFL backlight is not included. System designers must source a compatible inverter that meets the specified electrical requirements for lamp current and frequency to ensure proper performance and longevity of the backlight.
From an engineer's perspective, the G065VN01 V0 is a component defined by its predictable performance under stress. Its value lies not just in its optical quality, but in the confidence that it will continue to deliver that quality reliably for years, even when subjected to the heat, cold, and vibration that are routine in its intended industrial habitats. It represents a conservative but highly effective engineering choice for systems where uptime is the most critical metric.
