Polarizer Durability & Optical Retardation Film Inspection under Direct Industrial Lighting
Direct cabinet lighting can expose scratches, pressure marks, uneven polarizer contact, and viewing-angle changes that are not obvious on a dark test screen. Inspect the display with the unit unpowered first, using diffuse light and an oblique viewing angle. Check the polarizer surface, perimeter frame, connector region, and mounting contact points. Any mark that changes appearance when the display is viewed from different directions should be compared with a known-good panel before the unit is accepted for service.
TN, IPS, and MVA technologies can produce different grayscale behavior and viewing-angle characteristics. Those characteristics must not be inferred from the model name alone. When a railway cab signalling display or passenger information terminal is being repaired, compare the replacement against the original panel using the same image, brightness setting, ambient lighting, and viewing position. A change in grayscale inversion, contrast, or optical retardation can affect status indicators even when the display powers on normally.
Anti-glare treatment also requires practical inspection. Strong overhead illumination may reveal surface haze, localized reflections, or inconsistent texture. Designers should verify whether the replacement surface treatment matches the enclosure window and operator viewing angle. The product information supplied for this page does not confirm a particular AG etch, optical film construction, viewing cone, resolution, or luminance value, so those items should be checked against the original KOE documentation before procurement.
For digital image paths, the system integrator should verify the actual interface type and signal requirements from the original panel documentation. If the host uses a high-speed differential link, trace impedance, pair skew, termination, and cable routing should be evaluated against the transmitter and receiver specifications rather than copied from a generic LCD design guide. A reference display such as TX23D11VM2BAA may be reviewed as a separate comparison point, but mechanical and electrical interchangeability must be confirmed independently.
High-Humidity Storage Evaluation (60°C / 90% RH) & Delamination Prevention Protocols
Storage inspection should begin with the enclosure, gasket contact surface, protective film, and panel perimeter. Moisture can enter through an improperly seated bezel, damaged sealing material, or a cable opening that was altered during maintenance. The supplied data does not define a humidity rating, condensation rating, or delamination life for SX19V007-Z2A. A 60°C and 90% RH evaluation should therefore be treated as a system qualification condition only when it is specified by the equipment owner or an applicable test plan, not as an automatic factory rating for this display.
Before energizing a panel moved from a cold or humid environment, allow the complete assembly to reach a stable, dry condition. Condensation on the glass, connector, or controller board can produce intermittent operation and should be investigated without assuming a single root cause. Inspect for haze, edge lifting, trapped moisture, and changes in uniformity after environmental exposure. The original display drawing should be used to confirm the approved mounting pressure and sealing arrangement.
Low-temperature operation can alter liquid-crystal response and may produce visible transition lag. This behavior should be assessed with the intended image sequence and temperature profile rather than with a general response-time assumption. Gray-to-gray performance, clock stability, data hold timing, and transmitter compatibility remain system-level items unless explicitly stated in the applicable factory datasheet.
⚠️ Maintenance Note: Check cabinet airflow paths and the condition of the display gasket during scheduled service so heat and moisture are not trapped around the panel assembly.
Industrial EMI Noise Immunity, Chassis Shielding Continuity & Common-Mode Ferrite Chokes
When a display is installed near variable-frequency motor drives, inspect the complete signal route before changing the panel. Follow the cable from the host controller to the display connector, checking for parallel runs beside motor conductors, loose shield terminations, excessive bending, and unintended contact with the chassis. Horizontal noise bands, pixel instability, or intermittent loss of image can involve grounding, cable routing, connector condition, power integrity, or interface timing, so the symptom should be compared with a known-good signal path.
A continuous chassis reference can reduce unwanted coupling when it is implemented according to the equipment grounding architecture. Designers should evaluate shield termination, connector backshell construction, cable impedance, and return-current paths as one system. A common-mode ferrite may be considered only after confirming that it does not interfere with the required differential signal or create an unsuitable resonance. The correct component and placement depend on measured noise, cable construction, switching frequency, and the host interface specification.
Do not assign a generic differential impedance or skew limit to this model without its confirmed interface documentation. If the service drawing specifies LVDS or another differential link, verify the transmitter output, receiver input, cable requirements, termination arrangement, and allowable timing margin. An oscilloscope or suitable high-speed probe can help compare the replacement display path with the original assembly under the same operating load.
Additional cabinet-level guidance is available through Industrial Display & HMI Solutions. General workmanship practices may also be reviewed through the IPC Association Connecting Electronics Industries; such guidance does not replace the KOE / Hitachi panel documentation or the equipment manufacturer’s wiring rules.
Backlight Insulation and Driver Verification

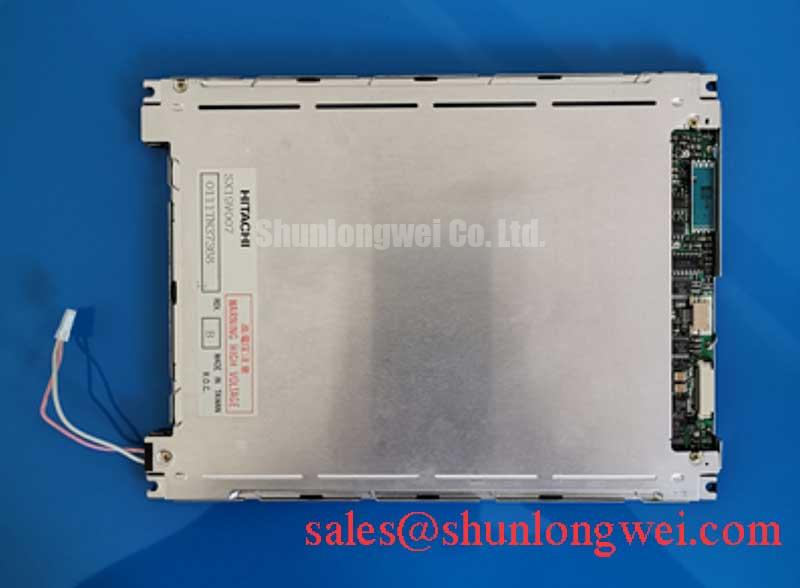

The backlight construction for SX19V007-Z2A is not identified in the supplied official product data. The system integrator should verify from the original panel documentation whether the installed assembly uses a particular backlight technology, driver arrangement, connector, and dimming method. Do not apply a CCFL ignition-voltage test or an LED-driver test simply because the replacement is listed as a TFT-LCD module.
Where a high-voltage backlight circuit is confirmed by the approved service documentation, insulation testing must be performed with the circuit isolated, discharged, and protected against accidental reconnection. Test voltage, ramp rate, duration, acceptance criteria, and accessible-surface limits should come from the equipment safety procedure or the relevant product specification. A partial-discharge explanation such as this technical reference can provide general background, but it does not establish an SX19V007-Z2A rating.
For LED-equipped systems, brightness decay, thermal conditions, constant-current regulation, PWM behavior, and driver compatibility should be verified as a complete assembly. A claimed half-life or operating-life value must be supported by the applicable manufacturer datasheet or test report; no such lifetime figure is established by the supplied product parameters. In railway passenger information systems and cab displays, confirm image stability, dimming response, connector retention, and thermal behavior after installation before returning the equipment to service.
