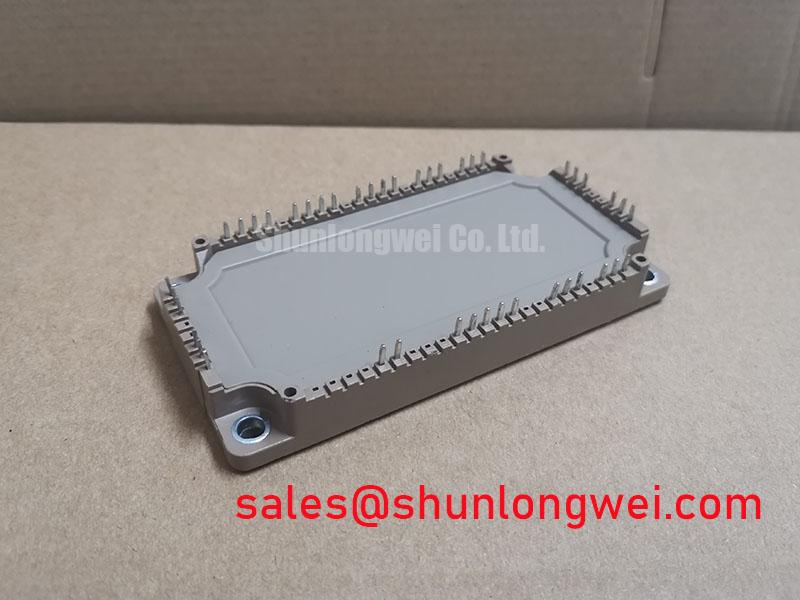

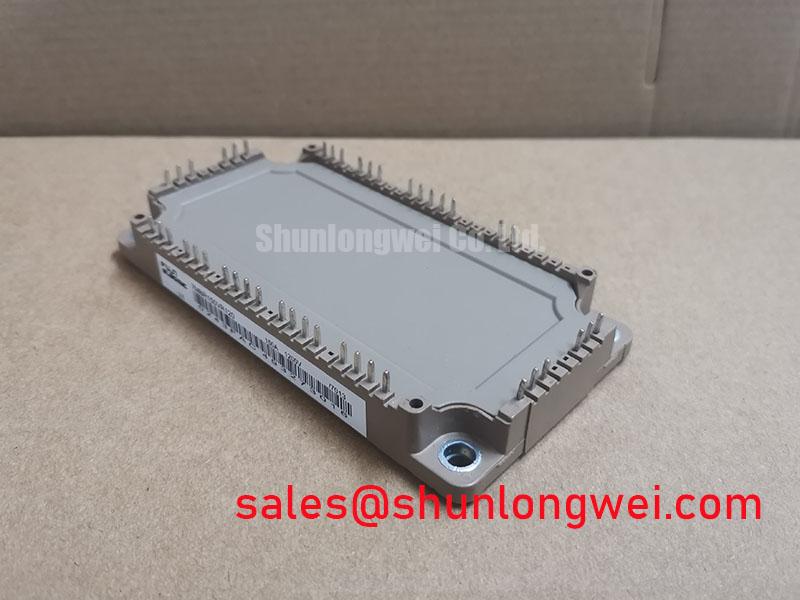

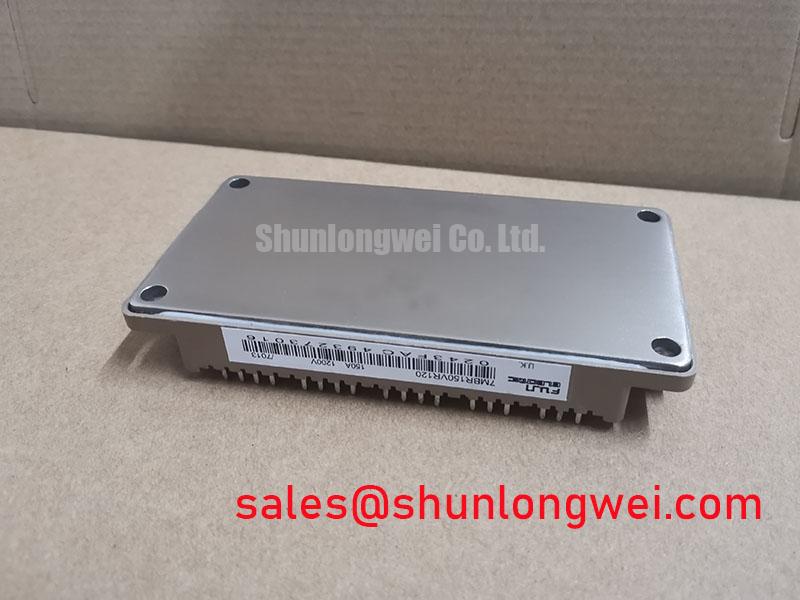

Fuji 7MBR150VR120 IGBT Module

7MBR150VR120-50: 1200V 150A IGBT Module Datasheet Analysis

As the industrial sector pushes for higher power density and greater operational uptime, the Fuji Electric 7MBR150VR120-50 IGBT Module emerges as a solution engineered for superior thermal performance and system reliability. This V-Series 7-in-1 PIM (Power Integrated Module) provides a robust foundation for compact motor drives and power conversion systems. With its integrated topology, it addresses the critical engineering challenge of managing heat in space-constrained designs. The module's design inherently simplifies the thermal interface, which is a key factor in achieving long-term operational stability under demanding industrial workloads.

Strategic Thermal Design for Modern Industrial Demands

In the landscape of industrial automation, the drive towards more compact and powerful machinery places significant stress on power electronics. The 7MBR150VR120-50 directly supports this trend by offering a highly integrated solution that simplifies thermal management. Its all-in-one design, which combines a three-phase converter, a dynamic brake circuit, and a three-phase inverter, consolidates heat generation into a single package. This allows engineers to design a more efficient and reliable cooling system, avoiding the complexity of managing multiple discrete component hotspots. This approach is vital for equipment where consistent performance and longevity are primary strategic advantages, reducing the total cost of ownership through enhanced reliability.

Application Focus: Where Thermal Reliability is Key

The thermal characteristics of the Fuji Electric 7MBR150VR120-50 make it a strong candidate for a range of demanding applications. Its robust thermal architecture ensures dependable operation in systems where effective heat dissipation is crucial for performance and service life.

• Variable Frequency Drives (VFDs): In motor control, consistent thermal performance is essential to prevent torque degradation and system faults. The module's low thermal resistance and integrated NTC thermistor provide the stability and safety monitoring needed for high-performance VFDs.
• AC and DC Servo Drives: Precision motion control systems in robotics and CNC machinery require power stages that can handle dynamic loads without overheating. The module's ability to operate with a junction temperature up to 175°C provides a critical thermal margin.
• Uninterruptible Power Supplies (UPS): For UPS systems, reliability is the most important metric. The 7MBR150VR120-50's integrated design and thermal monitoring capabilities contribute to building highly reliable power backup solutions.

For motor drive applications requiring different current or voltage ratings, system designers may also evaluate related components such as the 7MBR100VX120-50 for lower current needs. With its specified thermal resistance of 0.24 °C/W for the inverter IGBT, this module is an optimal choice for compact VFDs up to 22kW that prioritize reliable thermal management.

Datasheet-Driven Comparison for System Design

When evaluating power modules, a direct comparison of datasheet parameters is essential for making an informed engineering decision. The 7MBR150VR120-50 presents a specific set of trade-offs geared towards reliability and integration.

Parameter-Based Considerations:

• Integration Level: As a 7-in-1 module, it consolidates the entire power conversion and braking stage. This can be compared to solutions using separate rectifier modules and 6-pack inverter modules. The integrated approach of the 7MBR150VR120-50 reduces assembly complexity and potential points of failure.
• Thermal Resistance (Rth(j-c)): The module's specified thermal resistance values are critical data points for thermal simulation. For instance, the inverter IGBT features an Rth(j-c) of 0.24 °C/W. This metric is essential for comparing its heat dissipation capability against other modules under identical load conditions. What is the benefit of its integrated NTC thermistor? It enables real-time temperature monitoring for proactive system protection.
• Maximum Junction Temperature (Tj max): The 175°C rating for the inverter and brake sections provides a significant operating margin compared to older modules rated for 150°C. This enhances the module's ability to survive transient thermal stresses, a key factor in overall system robustness.

A Closer Look at the Module's Thermal Architecture

The reliability of a power module is fundamentally linked to its ability to manage heat. The 7MBR150VR120-50 is built on a foundation that prioritizes efficient thermal transfer from the semiconductor junctions to the heatsink. A key parameter in this process is the thermal resistance (Rth), which acts like a bottleneck for heat flow. The lower the Rth, the more efficiently heat can be removed. This module's datasheet provides specific Rth values for each internal component, allowing for precise thermal modeling.

Another critical feature is the integrated NTC (Negative Temperature Coefficient) thermistor. This component acts as an onboard thermal sensor. Its resistance changes predictably with temperature, providing the system's control unit with a direct reading of the module's substrate temperature. This feedback loop is essential for implementing over-temperature protection, which can prevent catastrophic failure by reducing power or shutting the system down before thermal limits are exceeded. For more insights on this topic, refer to the guide on Why Rth Matters: Unlocking IGBT Thermal Performance.

Key Specifications of the 7MBR150VR120-50

The following parameters are derived from the official datasheet and are crucial for system design and evaluation. For complete details, please refer to the product datasheet.

For further design support, Fuji Electric's V-Series application notes provide valuable information on implementation.

For a detailed technical breakdown, please contact us to request the full datasheet for the 7MBR150VR120-50.
