Innolux G150XGE-L05 | Industrial-Grade 15" XGA TFT-LCD for High-Reliability HMIs

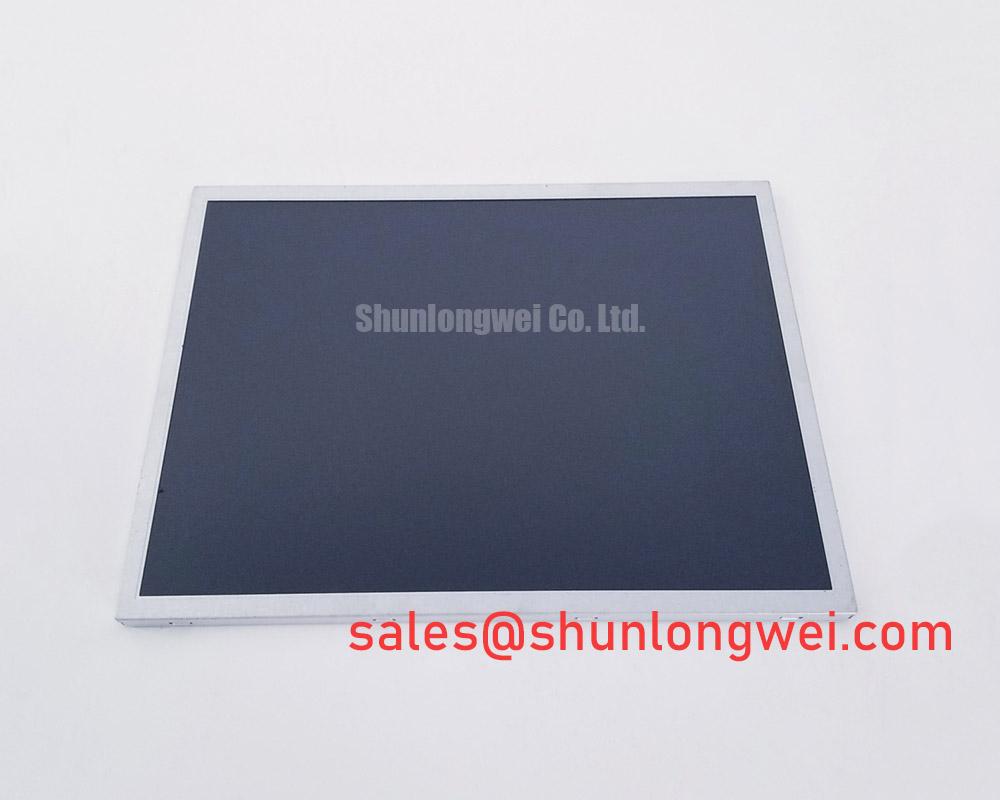

The Innolux G150XGE-L05 is an industrial-grade 15.0-inch TFT-LCD panel engineered for longevity and consistent performance in demanding environments. It represents a robust, cost-effective solution for system integrators and OEMs who require a reliable display for Human-Machine Interfaces (HMIs), control systems, and specialized equipment. This display is not just a component; it's a foundational element for building dependable user interfaces that stand the test of time.
- Standardized XGA Resolution (1024x768): Delivers crisp, clear visuals perfectly suited for industrial control software, data monitoring, and point-of-sale applications, ensuring broad software compatibility.
- Long-Life WLED Backlight: With a typical lifetime of 50,000 hours, the backlight system significantly reduces maintenance cycles and total cost of ownership compared to older CCFL technologies.
- Wide Operating Temperature Range: Built to operate reliably from 0°C to +70°C, making the G150XGE-L05 a resilient choice for factory floors and environments with limited climate control.
- Industry-Standard LVDS Interface: Simplifies system integration with a common 1-channel, 6/8-bit LVDS interface, ensuring seamless connectivity with a wide array of industrial motherboards and single-board computers.
Key Technical Specifications
For engineers requiring at-a-glance information for system design and integration, the following parameters highlight the core capabilities of the G150XGE-L05. For comprehensive electrical and mechanical details, you can download the full G150XGE-L05 datasheet.
| Parameter | Value |
|---|---|
| Screen Size | 15.0 inch |
| Resolution | 1024(RGB)×768, XGA |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Signal Interface | LVDS (1 ch, 6/8-bit) |
| Backlight Technology | WLED |
| Backlight Lifetime | 50,000 Hours (Min.) |
| Operating Temperature | 0 ~ 70 °C |
| Surface Treatment | Anti-glare, Hard coating (3H) |
Technical Deep Dive: Engineering for Reliability
The true value of the Innolux G150XGE-L05 lies in its design choices, which prioritize stability and operational lifespan over superfluous features. Two aspects are critical for system designers to understand:
1. The WLED Backlight System: The move from Cold Cathode Fluorescent Lamp (CCFL) to a White Light Emitting Diode (WLED) system is a significant engineering upgrade. The 50,000-hour rating is not just a number; it translates to over 5.7 years of continuous 24/7 operation. This dramatically lowers the total cost of ownership by minimizing the need for costly field replacements and maintenance downtime. Furthermore, WLED backlights offer superior power efficiency and produce less heat, which simplifies the thermal management of the entire enclosure. For a deeper understanding of this technology, explore our guide on the energy efficiency of LED backlights.
2. a-Si TFT Active Matrix: The G150XGE-L05 utilizes Amorphous Silicon (a-Si) Thin-Film Transistor technology. While newer technologies like LTPS exist, a-Si remains the gold standard for industrial applications due to its mature, highly reliable manufacturing process. This results in exceptional uniformity and a proven track record of stability across wide temperature ranges, ensuring that the display's performance remains consistent from a cold start to peak operating temperatures.
Application Scenarios and Value Proposition
The G150XGE-L05 is a versatile workhorse, ideally suited for a range of professional and industrial applications where reliability is paramount.
- Industrial Automation HMIs: On the factory floor, uptime is money. The display's robust operating temperature range and long-life backlight ensure it can withstand the rigors of manufacturing environments, providing clear, reliable visualization for machine control and process monitoring.
- Medical Device Interfaces: For non-diagnostic equipment such as patient monitors, infusion pump controllers, and lab instruments, the G150XGE-L05 offers the perfect balance of clear readability, long-term reliability, and cost-effectiveness.
- Point-of-Sale (POS) and Kiosks: The 700:1 contrast ratio and anti-glare screen ensure excellent legibility for both operators and customers. Its standard form factor allows for easy integration into existing kiosk and POS terminal designs.
Frequently Asked Questions (FAQ)
Q1: Is the G150XGE-L05 suitable for outdoor or high ambient light environments?
The G150XGE-L05 has a typical brightness of 350 nits, which is optimal for indoor industrial and commercial environments. For applications in direct sunlight or very high ambient light, a display with higher brightness (typically 800 nits or more) and potentially optical bonding would be necessary. For more on this topic, review our engineer's guide to sunlight-readable HMIs.
Q2: What is the benefit of the anti-glare (AG) surface treatment?
The AG coating diffuses incident light, such as reflections from overhead factory lighting or windows. This is a crucial ergonomic feature that reduces specular reflections, minimizes operator eye strain, and improves the accuracy of on-screen interactions over long shifts.
For inquiries about volume pricing, design-in support, or to explore our full catalog of industrial LCD displays, please contact our technical team.
