G185XW01 V201: 18.5-inch WXGA Display for Reliable Commercial HMI & Digital Signage
Product Overview & Key Specifications
Engineered for Longevity in Commercial-Grade Applications

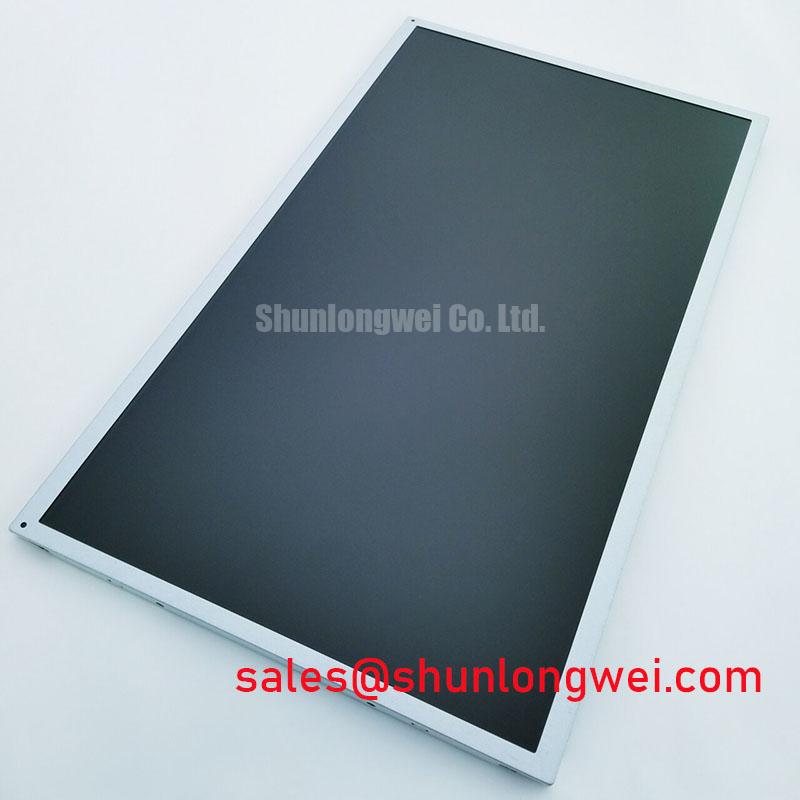

The AUO G185XW01 V201 is a robust 18.5-inch WXGA TFT-LCD panel designed for sustained performance in commercial and light industrial environments. Its value proposition is centered on delivering consistent visual quality and long-term operational reliability, directly addressing the core requirements of systems that demand extended service life. With key specifications of 1366x768 Resolution | 300 nits Brightness | 50,000-Hour Backlight Lifetime, this display provides a dependable foundation for interactive and informational applications. Core engineering benefits include a significantly reduced total cost of ownership and enhanced image clarity in typical indoor lighting. For systems requiring a durable display with a proven service life, the G185XW01 V201's 50,000-hour backlight rating ensures tens of thousands of hours of continuous operation before requiring replacement. With its balanced performance and durable construction, this 18.5-inch panel is the optimal choice for cost-sensitive HMI and digital signage projects prioritizing operational uptime.
Application Scenarios & Value
System-Level Benefits in Public-Facing Interfaces
The G185XW01 V201 is engineered to excel in applications where display clarity and long-term uptime are critical for the user experience and operational efficiency. A prime example is its integration into Point-of-Sale (POS) terminals and interactive information kiosks in retail or public transit settings. In these high-traffic environments, the challenge is to maintain screen legibility under variable overhead lighting while minimizing maintenance cycles. The panel's 300 cd/m² brightness, combined with a 1000:1 contrast ratio and an anti-glare surface treatment, directly solves this problem by ensuring that on-screen information remains sharp and easily readable, reducing user error and transaction time. What is the primary benefit of its long-life backlight? It enables system integrators to design for lower total cost of ownership, as the 50,000-hour rating drastically reduces the frequency of service calls for backlight replacement compared to consumer-grade alternatives.
This panel's WXGA resolution is well-suited for a wide range of standard graphical user interfaces. For applications demanding higher pixel density for detailed medical imaging or advanced graphic design, the related G185HAN01.1 offers a Full HD (1920x1080) resolution in a similar 18.5-inch form factor.
Key Parameter Overview
Decoding the Specs for Integration and Performance
The technical specifications of the G185XW01 V201 are tailored for straightforward integration and reliable performance. The following table highlights key parameters and their direct engineering value.
| Parameter | Specification | Engineering Value & Interpretation |
|---|---|---|
| Screen Size | 18.5 inch | A standard size for broad compatibility with existing enclosures for HMI and digital signage applications. |
| Resolution | 1366 x 768 (WXGA) | Provides ample pixel density for clear text and graphics in typical control interfaces and informational displays. |
| Brightness | 300 cd/m² (nits) | Ensures solid readability in standard indoor commercial environments, from office lighting to retail floor settings. |
| Viewing Angle (L/R/U/D) | 85/85/80/80 ° | Wide viewing angles ensure color and contrast consistency for users interacting with the display from off-center positions. |
| Backlight System | WLED, 50,000 hours lifetime | This is a core reliability feature. A 50K-hour lifetime translates to over 5.7 years of continuous 24/7 operation, minimizing maintenance. |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins | A widely adopted LVDS Interface simplifies connection to a vast range of industrial PCs and single-board computers. |
| Operating Temperature | 0 ~ 50 °C | Suitable for controlled indoor environments common in retail, hospitality, office automation, and light industrial control rooms. |
Download the G185XW01 V201 datasheet for detailed specifications and performance curves.
Application Vignette
Enhancing Reliability in Interactive Kiosk Systems
Consider the design of a self-service ticketing kiosk for a transportation hub. The primary engineering challenges are ensuring maximum uptime and maintaining a clear, responsive user interface under constant use. System downtime for component failure translates directly to lost revenue and customer frustration. The G185XW01 V201 is a strategic choice for this scenario. Its most critical feature is the 50,000-hour WLED backlight. This is not just a number; it is an assurance of longevity. It means the display's light source is built to last for years of non-stop operation, aligning perfectly with the kiosk's need for high availability. The anti-glare and hard-coating (3H) on the display surface provide a second layer of value. The anti-glare treatment diffuses reflections from terminal lighting, making the screen easy to read from various angles, while the hard coat protects against incidental scratches from daily public interaction. By integrating this TFT-LCD, the system integrator builds a more robust and reliable final product, reducing the long-term total cost of ownership and protecting the operator's brand reputation.
Frequently Asked Questions (FAQ)
How does the 50,000-hour backlight lifetime impact system design and maintenance planning?
A 50,000-hour rating allows for a "set and forget" design approach for many applications. It equates to over 5.7 years of continuous 24/7 operation. This significantly extends planned maintenance intervals, reduces the need for spare parts inventory, and lowers the overall cost of ownership, making it a crucial parameter for unattended or mission-critical systems.
What is the practical benefit of the Anti-Glare (AG) surface treatment in a real-world application?
The AG coating scatters ambient light, preventing harsh, mirror-like reflections from overhead sources like fluorescent lights or windows. This ensures the screen remains legible and comfortable to view, which is essential for user-facing applications like information kiosks or POS systems, where usability directly impacts customer satisfaction and transaction speed.
Is the LVDS interface on the G185XW01 V201 compatible with common single-board computers (SBCs)?
Yes, the 1-channel, 8-bit LVDS interface with a 30-pin connector is a very common standard in the industry. It ensures broad compatibility with a wide range of industrial motherboards, SBCs, and dedicated display controller boards, simplifying the system integration process for engineers.
Does the G185XW01 V201's color depth of 16.7M meet the needs of modern graphical user interfaces?
Absolutely. With its 8-bit color depth, the panel can display 16.7 million colors. This is the standard for true-color representation and is more than sufficient for rendering rich, vibrant, and accurate graphics, icons, and images found in modern HMI and digital signage content.
What are the limitations of the 0 ~ 50 °C operating temperature range?
This temperature range makes the display ideal for controlled, indoor environments. It is not designed for outdoor applications exposed to direct sunlight and extreme temperatures or for unheated/uncooled industrial settings where temperatures could fall below freezing or exceed 50°C. For such demanding environments, a display with a wider operating temperature range would be required.
An Engineer's Perspective on Integration
From an integration standpoint, the G185XW01 V201 from AUO presents a low-risk, high-value component for systems where reliability is paramount. Its standardized LVDS interface, common physical footprint, and well-documented performance characteristics streamline the design-in process. The key is to leverage its longevity as a core system feature, building products that promise and deliver extended operational life with minimal service intervention.
