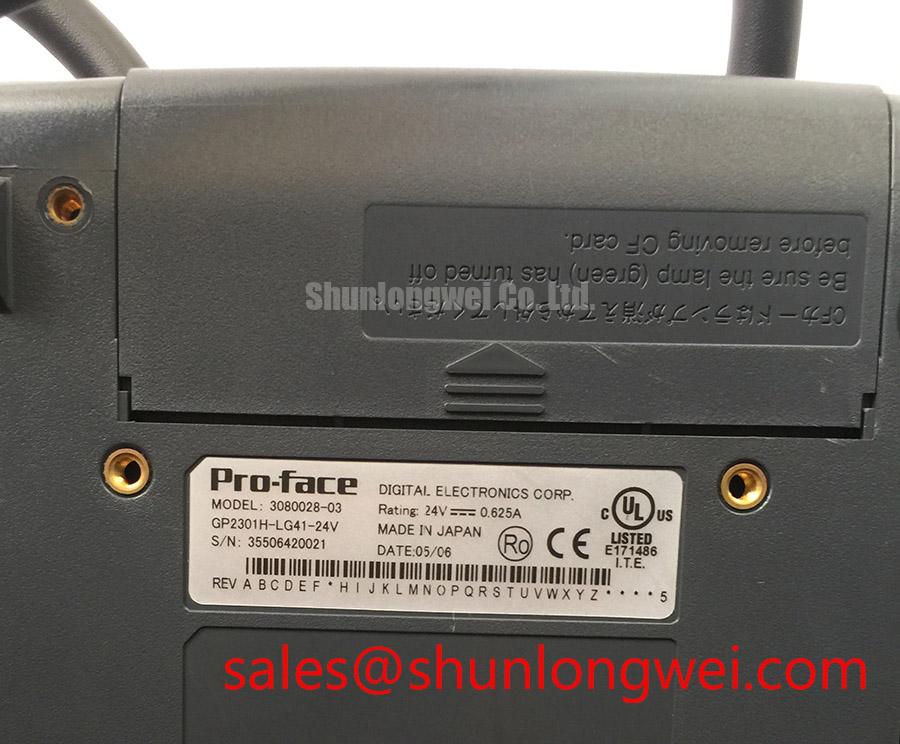

Pro-face GP2301H-LG41-24V 5.7-inch HMI: Engineering for Control Cabinet Efficiency and Longevity
Product Overview: GP2301H-LG41-24V Human Machine Interface
The GP2301H-LG41-24V is a robust 5.7-inch Human Machine Interface (HMI) engineered for streamlined integration and reliable performance in demanding industrial environments. It delivers clear visualization and control with a 256-color STN display, optimized for low power consumption and straightforward connectivity. Key specifications include: 320 x 240 pixels | 24VDC Input | RS-232C/RS-422 Interface | IP65f Front Panel Protection. This HMI excels in providing long-term operational stability and simplifying panel design. Its compact footprint and integrated communication ports directly address the challenge of minimizing wiring complexity in crowded control cabinets. For applications demanding high-resolution graphics and wider viewing angles, the G101EVN01.0 offers a TFT alternative with enhanced optical performance. With its focus on essential control functions and durability, the GP2301H-LG41-24V is the optimal choice for cost-sensitive automation projects prioritizing reliability over complex multimedia features.
Application Scenarios & Value
System-Level Benefits in Industrial Automation and Control
The GP2301H-LG41-24V is engineered to solve a common challenge for system integrators: deploying a reliable operator interface in space-constrained industrial control panels. Consider its application in a packaging line's conveyor control system. Here, an operator needs a clear, immediate interface for monitoring status, adjusting speeds, and responding to alarms. The HMI's 5.7-inch form factor is crucial, conserving valuable DIN rail or panel door real estate. Its native RS-232C and RS-422 ports allow for direct, point-to-point communication with a legacy PLC, eliminating the need for protocol converters and reducing both hardware cost and potential points of failure. This streamlined connectivity is a significant advantage in maintaining system uptime.
Furthermore, the specified 24VDC power input aligns with the standard control voltage used in industrial cabinets, simplifying power distribution and wiring design. What is the primary benefit of its IP65f rating? It ensures the front panel is completely protected against dust ingress and low-pressure water jets, a critical requirement for environments with airborne particulates or washdown procedures. This level of protection prevents costly downtime caused by environmental contamination, enhancing the overall reliability of the automation system. The integration of these features makes the GP2301H-LG41-24V a highly practical solution for machine control, process monitoring, and building automation systems where dependability and efficient design are paramount.
Key Parameter Overview
Decoding the Specs for Reliable System Integration
The specifications of the GP2301H-LG41-24V are tailored for clear, functional performance in industrial settings. The combination of its display characteristics, robust environmental ratings, and standard communication interfaces provides a solid foundation for a variety of control applications.
| Feature Category | Specification | Engineering Significance |
|---|---|---|
| Display Type | 5.7-inch Color STN LCD | Provides clear, functional visualization with low power draw, ideal for status indication and simple control tasks. |
| Resolution & Colors | 320 x 240 Pixels (QVGA), 256 Colors | Offers sufficient detail for graphical user interfaces in typical machine control applications. |
| Backlight | CCFL (Cold Cathode Fluorescent Lamp) | A proven, long-life illumination technology providing stable brightness. |
| Input Voltage | 24VDC | Matches standard industrial control panel voltage, simplifying power supply design and integration. |
| Communication Ports | RS-232C / RS-422 (Serial) | Enables direct, robust communication with a wide range of PLCs, drives, and other industrial devices. |
| Front Panel Protection | IP65f Equivalent | Ensures resilience against dust and water, crucial for reliability in factory floor environments. |
| Touch Panel | Resistive Film (Analog) | Allows for reliable operation with gloved hands, a key requirement in many industrial settings. |
Download the GP2301H-LG41-24V datasheet for detailed specifications and performance curves.
Technical Deep Dive
A Closer Look at the Resistive Touch Panel and Serial Interface
The selection of a resistive touch panel and standard serial interfaces for the GP2301H-LG41-24V is a deliberate engineering choice focused on maximizing reliability and compatibility in industrial contexts. The resistive touchscreen technology operates based on pressure, closing a circuit between two flexible layers. This is fundamentally different from the capacitive screens common in consumer electronics. For an industrial engineer, this means the HMI will respond reliably to input from a gloved finger, a stylus, or any other object, which is essential on a factory floor where operators are required to wear personal protective equipment. This technology is also less susceptible to false triggers from electrical noise or water droplets on the screen surface, directly contributing to more predictable machine operation.
The inclusion of both RS-232C and RS-422 ports provides critical flexibility for system integration. Think of these serial ports as universal languages for industrial hardware. RS-422, in particular, is a differential interface that allows for reliable data transmission over long distances (up to 1200 meters) and in environments with high electromagnetic interference (EMI), such as those with large motor drives or welding equipment. This inherent noise immunity prevents data corruption that could lead to incorrect machine commands or system halts. By providing these robust, industry-standard communication options, the GP2301H-LG41-24V simplifies connection to a vast ecosystem of new and legacy automation components, from PLCs to temperature controllers like those from Fuji Electric, thereby reducing engineering effort and project risk.
Frequently Asked Questions (FAQ)
What is the primary advantage of the resistive touchscreen on the GP2301H-LG41-24V in an industrial setting?
Its main advantage is operational reliability. The pressure-based activation allows operators to use the HMI while wearing gloves, and it is more resistant to false inputs from common factory floor contaminants like dust or moisture compared to capacitive touchscreens.
How does the standard 24VDC power input simplify system design?
Using the 24VDC standard, which is ubiquitous in industrial control cabinets, eliminates the need for a separate, dedicated power supply for the HMI. It can be powered from the same source as the PLCs, sensors, and relays, which simplifies wiring, reduces component count, and saves valuable panel space.
Can the GP2301H-LG41-24V communicate with older PLC models?
Yes. The inclusion of both RS-232C and RS-422 serial ports ensures broad compatibility with a vast range of industrial devices, including many older or legacy PLC systems that rely on these robust communication standards. This makes it a versatile option for both new installations and retrofitting existing machinery.
What does the IP65f rating mean for the operational life of the HMI?
The IP65f rating signifies that the front of the unit, when properly installed, is completely protected from dust and can withstand low-pressure water jets from any direction. This robust sealing prevents internal components from being damaged by environmental factors, directly contributing to a longer operational lifespan and reducing the likelihood of failure in typical factory environments.
Strategic Integration for Long-Term Value
Integrating the GP2301H-LG41-24V into an automation architecture is a strategic decision for projects where operational reliability and total cost of ownership are the primary drivers. Its design philosophy emphasizes proven, robust technologies—such as the resistive touch interface and standard serial communication—over features that may add complexity and cost without enhancing core control functions. This focus ensures the HMI serves as a durable and dependable node in the control system. For engineering and procurement teams, this translates to reduced maintenance overhead, simplified troubleshooting, and confidence in the long-term performance of the human-machine interface, making it a sound investment for critical industrial applications.
