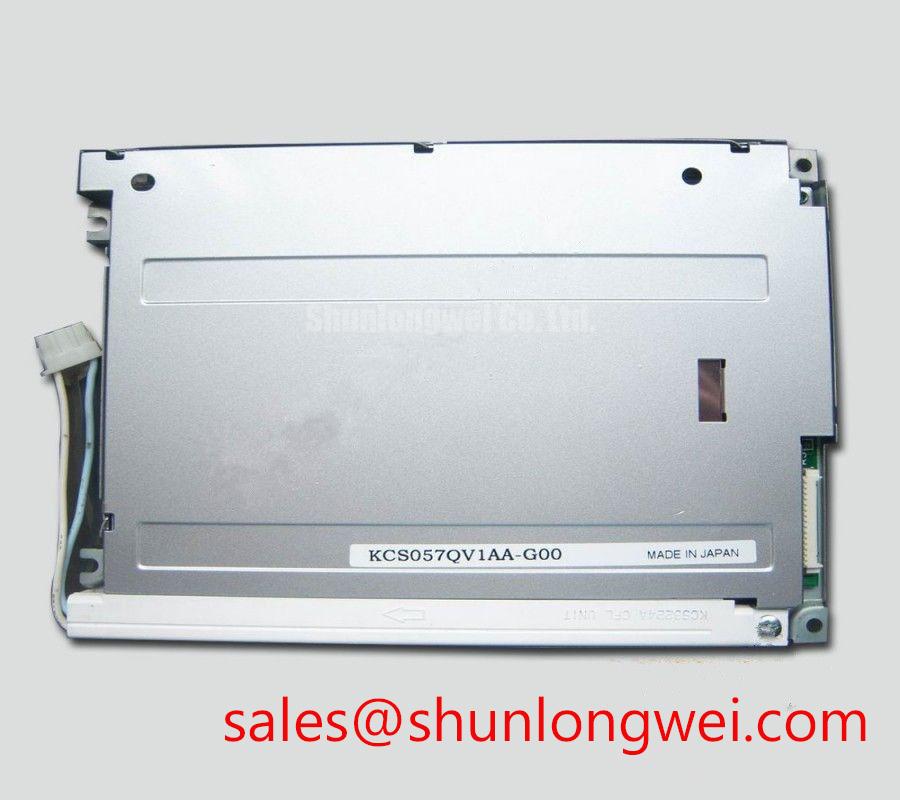

Mitigating Gray-to-Gray Response Time Escalation during Cold-Start Machine Power-Up
During a cold equipment start, observe the panel before treating an apparently slow image transition as a permanent display failure. Liquid crystal response can become visibly slower when ambient temperature falls, and the behavior can affect menu movement, cursor updates, grayscale ramps, and moving graphics. This is a general display physics consideration rather than an official operating-temperature specification for KCS057QV1AA-G23. The permitted operating and storage temperature limits must be taken from the original Kyocera documentation for the installed assembly.
A practical bench check begins with the equipment in a known-safe condition. Power the display system using the host controller’s intended sequence, allow the image to stabilize, and show neutral gray, black, white, red, green, and blue screens from a known-good graphics source. Compare behavior after controlled warm-up rather than comparing a cold unit with a separate panel of unknown history. If image motion improves as the cabinet reaches a normal service temperature, the result should be documented as temperature-dependent behavior pending confirmation against the panel specification.
Power sequencing deserves attention where a panel shows a transient white screen, intermittent image start, or residual image while power is removed. The system integrator should verify the required supply voltage, enable relationship, signal-valid timing, and shutdown order from the original panel documentation. Applying a guessed supply rail or substituting an interface cable without validating pin assignments can damage the display electronics or create misleading symptoms.
For enclosures exposed to direct ambient light, perceived contrast is influenced by the cover window, surface reflection, enclosure angle, and optical stack. Neither a sunlight contrast ratio nor an anti-glare treatment is confirmed in the provided product record for this exact part number. When a replacement is being evaluated for a bridge-console or outdoor-facing terminal, measure readability in the actual installed optical path instead of assuming that an industrial TFT module has a particular sunlight performance.
Condensation is also a field concern during fast temperature changes. A sealed cabinet can trap moisture, while a poorly seated perimeter gasket can admit moisture and dust. Design Consideration: inspect mating surfaces for debris, distortion, and compression irregularity before closing the bezel, then verify that the enclosure’s drainage and ventilation arrangement remains consistent with the equipment manufacturer’s environmental design.
Glass-Substrate Mechanical Stress and Damage Prevention
When a screen shows a persistent line, partial field loss, unstable color region, or image change after cabinet handling, begin with non-destructive isolation rather than assigning one cause. Place the module on a supported flat surface, avoid carrying it by the flexible cable, and inspect whether the bezel or rear support introduces uneven pressure. The internal construction details of KCS057QV1AA-G23, including its driver attachment method, are not confirmed in the available official product record and should not be assumed.
A useful three-stage primary-color bench test presents solid red, green, and blue fields from a validated source, followed by black and white fields. A defect that repeats at the same physical location across each pattern can help separate panel-area behavior from a graphics-source issue. A defect that changes with source timing, cable movement, or connector position may indicate a signal-path or retention issue, but it should be investigated with the original cable and a known-good signal path before a panel-level conclusion is made.
A flashlight inspection at an oblique angle can assist visual triage. With the intended image source removed or a black field displayed, examine the surface and bezel edge for nonuniform illumination, pressure marks, trapped debris, or panel-frame contact. This inspection does not identify a root cause by itself. It provides a record of whether the observed defect tracks backlight distribution, a surface stack issue, external mechanical pressure, or an image-data condition requiring electrical verification.
The flexible printed cable should remain within the routing geometry intended by the host equipment. Avoid repeated bending at the connector exit, sharp edge contact, and pulling force transmitted from the chassis harness. Confirm the connector lock is fully engaged and that strain relief does not push the cable sideways. Where the existing harness has visible stiffness, abrasion, or a damaged retention feature, evaluate the harness and mating connector as part of the repair scope rather than assuming the display module is solely responsible.
⚠️ Maintenance Note: Disconnect power and allow stored energy in the host equipment to discharge before unlocking or reconnecting the panel cable.
Long-running industrial HMI screens can also show temporary image retention depending on display technology, image content, temperature, and operating duration. This should not be described as permanent panel damage without controlled testing. Use ordinary interface changes, screen refresh behavior, and controlled idle content where supported by the host software, then assess the result after normal operating conditions have returned.
Flush-Mount and Perimeter Gasket Integration
Flush mounting should begin with a dry mechanical fit before the display connector is installed. Check that the chassis opening, bezel lip, rear support points, and gasket land are clean and coplanar. A mounting arrangement that loads one corner first can create visible edge shading, localized brightness variation, or a pressure pattern that is mistaken for an optical failure. The official record supplied for KCS057QV1AA-G23 does not define the chassis cutout, mounting-hole pattern, fastener size, bezel envelope, or fastening torque.
Engineering Recommendation: use the equipment manufacturer’s mounting drawing and fastening sequence, applying load progressively across the frame rather than fully tightening one side before the others. Fastener torque must be determined by the chassis material, thread engagement, support geometry, gasket characteristics, and the panel assembly documentation. Do not apply a generic torque value to this model without those records.
Perimeter gasketing has two jobs in an industrial terminal: it helps maintain the enclosure barrier and spreads bezel contact more evenly. A gasket that has hardened, shifted, accumulated debris, or compressed unevenly can produce poor sealing or localized force. Replace or reposition enclosure materials only when their thickness, material compatibility, and intended compression are confirmed for the host assembly. The provided product information does not verify that this display includes a factory optical-bonded stack, so optical bonding must not be assumed during service planning.
Equipment builders sometimes add a heater, ventilation path, or thermal control method to support cold-start behavior. That control strategy belongs to the complete enclosure system, not to an assumed capability of the LCD module. Designers should verify panel temperature, image behavior, power sequencing, and enclosure humidity under the actual duty cycle before adopting any heater-control setting. A screen that appears slow during a cold start may require environmental evaluation alongside interface and power checks.
For possible use in marine radar and navigation bridge consoles, salt-bearing air, direct light, vibration, and enclosure wash-down exposure are system-level conditions. Compatibility should be assessed through the console enclosure, sealing design, approved window material, cable entry method, and original equipment environmental requirements. The identified Kyocera module should not be represented as independently qualified for those conditions unless that qualification is stated in the applicable manufacturer documentation.
For broader context on panel interfaces, optical performance factors, and industrial integration checks, consult The Ultimate Guide to Industrial TFT-LCD Technology. Kyocera also presents its industrial display technology portfolio at Kyocera Industrial TFT-LCD Display Technologies.
Luminance Consistency and Backlight Reliability Verification
Brightness consistency should be evaluated as an installed-system condition. Screen luminance can appear nonuniform because of panel age, surface contamination, cover-window haze, power instability, thermal concentration, or uneven bezel pressure. The available official record does not identify the backlight technology, luminance rating, backlight lifetime metric, L70 value, B50 value, or thermal specification for KCS057QV1AA-G23. These values must not be inferred from the TFT-LCD module classification.
Inspect the display cavity for blocked airflow, loose insulating material, accumulated dust, and chassis features that contact the rear of the module. Design Consideration: distribute mechanical support and thermal paths in accordance with the host equipment design so that one narrow edge or corner is not exposed to avoidable heat concentration. Any added heat spreader, thermal pad, or adhesive must be assessed for clearance, electrical isolation, material compatibility, and its effect on frame loading.
Where image brightness rises and falls, verify the host power rails, display enable behavior, and backlight control circuit against a known-good equipment path. A dim field does not prove that the panel is defective; it may be associated with the upstream supply, control signal, connector contact, cable assembly, or enclosure thermal state. Capture the observed condition, source pattern, cabinet temperature, and cable position so the repair decision is based on repeatable evidence.
The interface type and signaling requirements for this exact model are not stated in the supplied official record. Do not assume TTL, LVDS, connector pinout, clock tolerance, or data hold requirements. The system integrator should verify the required interface from the original panel documentation and host controller schematic, then observe the signal path with appropriate test equipment if image instability persists. This prevents an electrically incompatible replacement from being treated as a mechanical fit problem.
For static HMI pages, maintenance teams should review the application’s normal display behavior rather than relying on a permanent fixed test image. Alternating approved diagnostic screens, confirming screensaver or idle behavior where the control system supports it, and keeping the front window clean can make visual assessment more reliable. Maintain records of the panel identifier, symptom pattern, installation condition, and confirmed interface documentation for future preventive maintenance.
