LQ057Q3DG02: An Engineer's Look at a Resilient 5.7" QVGA Industrial Display
A Robust Display Solution for Demanding Industrial Environments

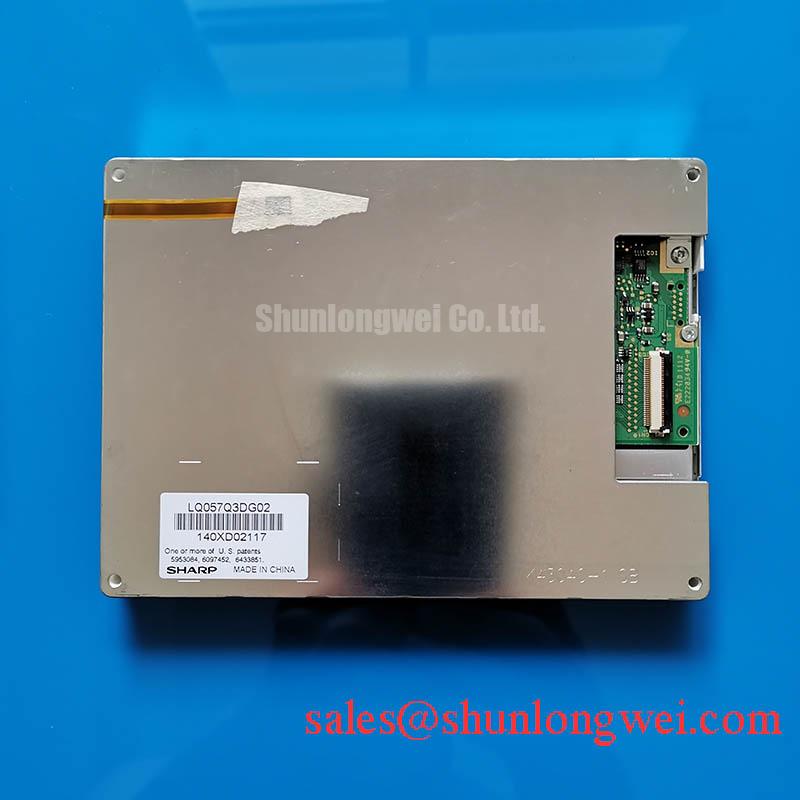

The Sharp LQ057Q3DG02 is a 5.7-inch a-Si TFT-LCD module engineered for operational reliability where temperature extremes and long service life are non-negotiable. It delivers a combination of core specifications—320x240 QVGA resolution, 400 cd/m² brightness, and a 3.3V CMOS interface—that makes it a workhorse for industrial applications. This display provides a clear visual interface in challenging conditions and a straightforward integration path for system designers. For industrial HMIs requiring proven durability in fluctuating temperatures, the LQ057Q3DG02's wide thermal range and serviceable design present a low-risk, long-term solution.
Key Parameter Overview
Decoding the Specs for Operational Resilience
The technical specifications of the LQ057Q3DG02 are centered on delivering consistent performance in industrial settings. The combination of its luminance, wide operating temperature, and standard interface forms a dependable foundation for a variety of HMI and monitoring applications. Each parameter is a critical piece of the puzzle for engineers designing systems for reliability.
| Feature | Specification |
| Panel Size | 5.7 inch |
| Resolution | 320(RGB)×240 [QVGA] |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 550:1 (Typ.) |
| Operating Temperature | -30°C to 70°C |
| Storage Temperature | -30°C to 70°C |
| Interface Type | CMOS (1 ch, 6-bit) |
| Power Supply Voltage | 3.3V (Typ.) |
| Backlight | WLED, 30,000 hours (Typ.) |
| Outline Dimensions (mm) | 144(W) × 103.8(H) × 12.3(D) |
Download the LQ057Q3DG02 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial HMI and Control Systems
For industrial HMIs requiring proven durability in fluctuating temperatures, the LQ057Q3DG02's wide thermal range and serviceable design present a low-risk, long-term solution. Its core value lies in its ability to function reliably in environments where consumer-grade displays would fail. The -30°C to 70°C operating temperature range is a critical feature, ensuring functionality in non-climate-controlled settings, from factory floors and outdoor kiosks to vehicle cabins. This broad temperature tolerance simplifies thermal management design, potentially reducing the need for auxiliary heating or cooling components and thus lowering system complexity and cost.
The 400-nit brightness, paired with a 550:1 contrast ratio, delivers clear, readable information, which is essential for operators in variable lighting conditions. What is the key benefit of its replaceable backlight? It allows for field servicing, extending the display's operational lifespan. This is a direct contributor to a lower Total Cost of Ownership (TCO), a key metric for industrial equipment procurement. The standard CMOS digital interface ensures compatibility with a wide array of single-board computers (SBCs) and microcontrollers, streamlining the development process for HMI systems, test and measurement equipment, and medical devices. While this QVGA display is a strong fit for focused data visualization, for applications demanding higher resolution data dashboards, the LQ064V3DG06 offers a 640x480 VGA resolution in a similar form factor.
Technical Deep Dive
Analyzing the Backlight System for Extended Field Life
A defining feature of the LQ057Q3DG02 is its WLED backlight unit, specified with a typical lifetime of 30,000 hours. While this number provides a solid baseline for reliability, the engineering value extends to its serviceability. Unlike many modern displays where the backlight is integrated permanently, this module's design often allows for the backlight unit to be replaced. This is analogous to being able to replace the engine in a vehicle chassis; it allows the most wear-prone component to be swapped out, significantly extending the service life of the entire assembly. For an industrial machine intended to operate for a decade or more, this feature transforms the display from a disposable component into a maintainable asset. This design philosophy directly addresses the long-term operational needs of industrial automation and reduces electronic waste.
Industry Insights & Strategic Advantage
Meeting the Demand for Durable and Maintainable HMIs
The design of the LQ057Q3DG02 aligns with a persistent trend in industrial and medical equipment design: the prioritization of long-term reliability and serviceability over raw performance specifications. As industries push for greater operational efficiency, the cost of downtime due to component failure becomes a major financial driver. A display like the LQ057Q3DG02, with its robust temperature range and maintainable backlight, offers a strategic advantage. It allows OEMs to build systems that are not only resilient in the field but also cheaper to maintain over their entire lifecycle. This focus on durability is a cornerstone of devices built for sectors like heavy machinery and fixed-installation control panels, where frequent replacement is impractical and costly.
Frequently Asked Questions (FAQ)
Engineering Inquiries on Integration and Longevity
What is the primary advantage of the -30°C to 70°C operating temperature range?
This wide range ensures the display can be deployed in harsh industrial environments without dedicated climate control systems. It provides confidence in performance from cold-start conditions to high-heat factory settings, enhancing system-level reliability.
How does the 6-bit CMOS interface impact system design?
The 6-bit digital RGB interface is a widely supported standard, simplifying integration with many off-the-shelf microcontrollers and display driver ICs. It allows for 262,144 colors, sufficient for most industrial HMI applications that require clear status indicators and basic graphics, reducing development time compared to more complex interfaces like LVDS.
Is the 30,000-hour backlight lifetime sufficient for 24/7 operation?
A 30,000-hour lifetime equates to approximately 3.4 years of continuous, 24/7 operation to half-brightness. For applications that run intermittently or at less than maximum brightness, the functional life is significantly longer. The serviceability of the backlight is the key factor that mitigates this wear item, allowing for planned maintenance to restore full brightness.
With a QVGA resolution, what applications is this display best suited for?
Its 320x240 resolution is ideal for displaying critical process parameters, status indicators, soft key labels, and simple diagnostic menus. It excels in dedicated control interfaces where information density is secondary to clarity and at-a-glance readability, common in PLC-driven machinery and test equipment.
