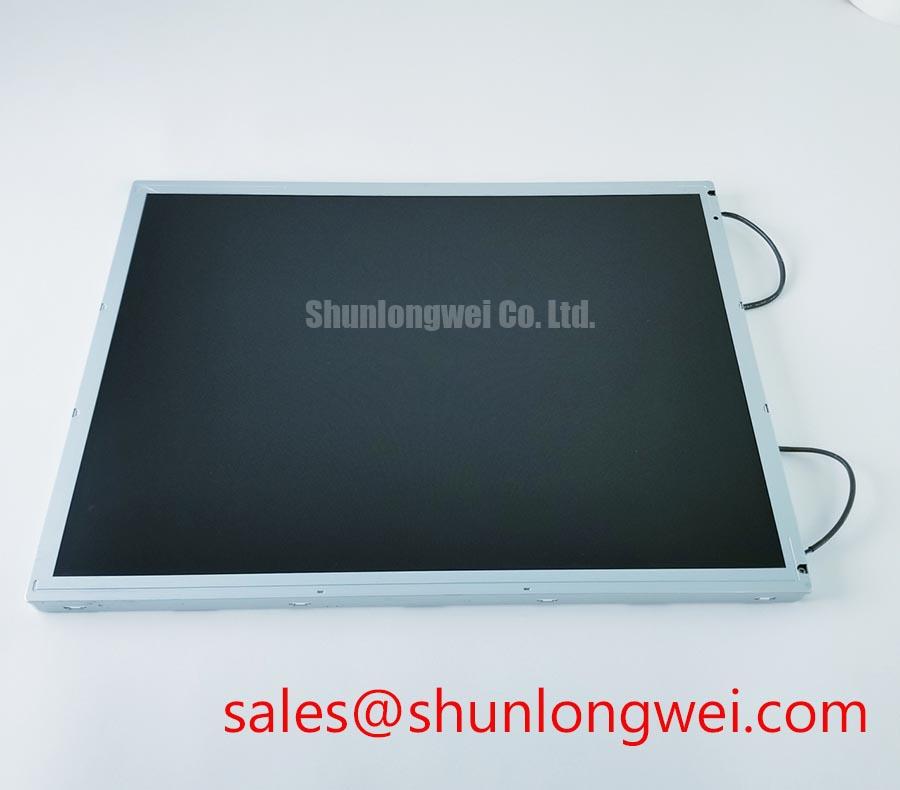

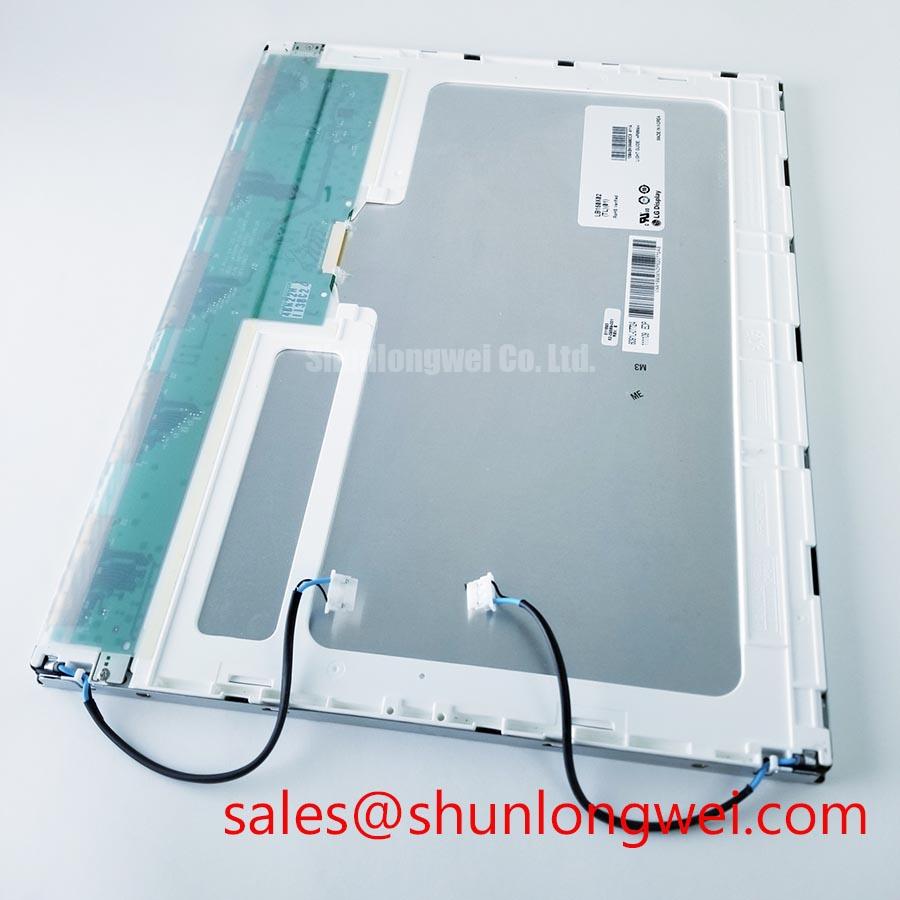

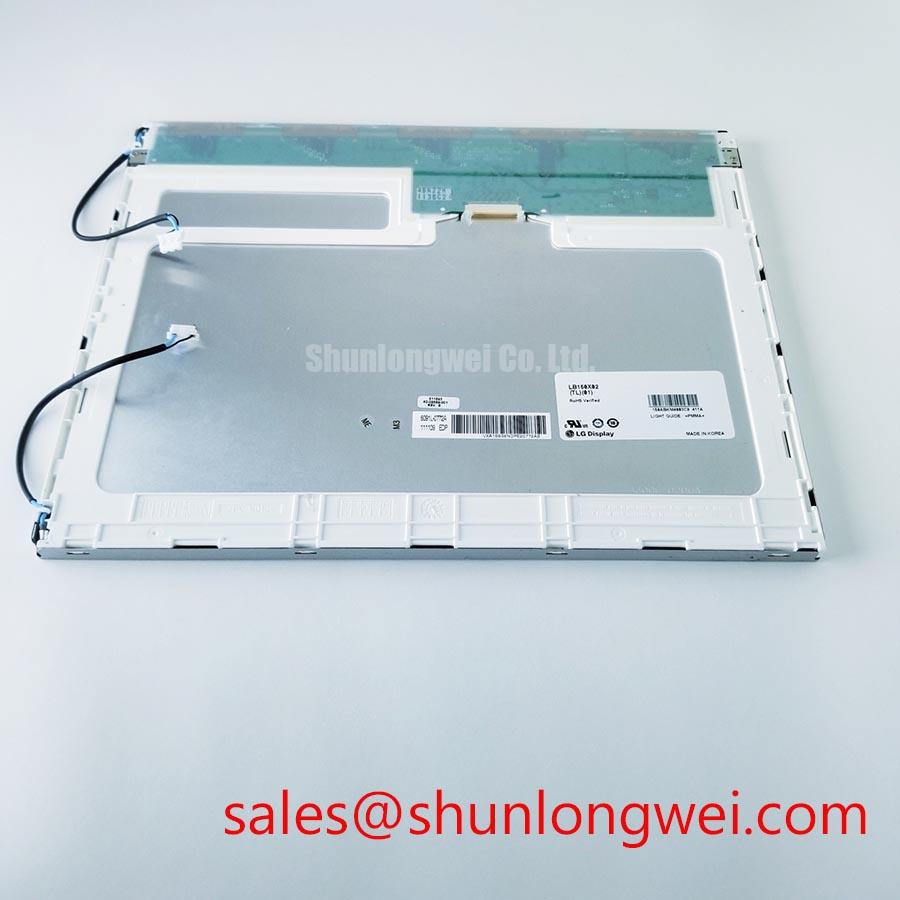

LG Philips LB150X02-TL01 | Engineered for Legacy System Longevity and Visual Clarity
The LG Philips LB150X02-TL01 is a 15.0-inch XGA TFT-LCD panel meticulously designed for applications where reliability and long-term availability are non-negotiable. It represents a cornerstone solution for industrial automation, medical imaging, and test equipment, providing a stable and consistent visual interface. This display is not about chasing the latest specifications; it’s about delivering proven performance that system integrators and maintenance engineers can depend on for years to come.
Technical Deep Dive: The Foundation of Reliability
- Proven a-Si TFT Technology: The LB150X02-TL01 is built upon an Amorphous Silicon (a-Si TFT) active matrix. While newer technologies like LTPS exist, a-Si remains the gold standard for industrial applications. Its mature manufacturing process ensures exceptional pixel uniformity and operational stability over extended periods and across wide temperature ranges. For engineers designing HMIs or control panels, this translates directly to reduced field failures and a lower total cost of ownership.
- Standardized LVDS Interface: Integration is streamlined thanks to its single-channel LVDS Interface. This industry-standard connection minimizes electromagnetic interference (EMI)—a critical factor in electrically noisy factory environments—and simplifies the driver board design. It guarantees seamless compatibility with a vast ecosystem of legacy and contemporary single-board computers, making the **LB150X02-TL01** an ideal drop-in replacement or a low-risk choice for new system designs.
Application Scenarios: Where the LB150X02-TL01 Excels
The value of this display is most evident in applications that prioritize stability over cutting-edge features. Its design directly addresses the pain points of specific industrial sectors.
- Industrial HMI Panels: In manufacturing and process control, uptime is paramount. The clear 1024x768 resolution is perfect for rendering SCADA interfaces, machine diagnostics, and process flow diagrams. The panel's durability ensures it can withstand the rigors of a 24/7 operational environment, providing a dependable window into your automation systems.
- Medical Diagnostic Equipment: For legacy ultrasound machines, patient monitors, and laboratory analysis devices, consistency is key. The **LB150X02-TL01** delivers the reliable brightness and contrast ratio needed for accurate, non-critical diagnostic viewing, ensuring that replacement parts don't compromise system performance.
- Test and Measurement Instruments: Precision instruments require clear, unambiguous readouts. This display provides a stable canvas for displaying waveforms, measurement data, and user interfaces without flicker or distortion, allowing engineers and technicians to focus on their critical tasks. Explore our range of industrial LCD solutions for similar applications.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Screen Size | 15.0 inch |
| Resolution | 1024(RGB)×768, XGA |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) |
| Viewing Angle | 120°/100° (H/V) (Typ.) |
| Signal Interface | LVDS (1 ch, 6-bit) |
| Backlight | CCFL |
| Operating Temperature | 0 ~ 50 °C |
For a complete list of parameters, please refer to the official LB150X02-TL01 Datasheet.
Selection Guidance: A Pragmatic Choice
When comparing the LB150X02-TL01 to a modern IPS panel, you'll notice differences in viewing angles and color gamut. However, for its intended purpose, this panel holds a distinct advantage. If your project involves maintaining a fleet of existing equipment or if your budget prioritizes reliability and compatibility over the widest viewing angles, the **LB150X02-TL01** is the superior engineering choice. It mitigates the integration risks and software redevelopment costs associated with upgrading to a fundamentally different display technology.
Frequently Asked Questions
- Is this panel suitable for new designs? Absolutely. For applications where a standard XGA resolution is sufficient and a robust, cost-effective display is required, the LB150X02-TL01 offers a proven, low-risk solution that simplifies the supply chain.
- What are the main considerations for replacing an older panel with this model? While it's a common replacement, always verify the mounting dimensions and the LVDS connector pinout against your existing system's requirements. Small variations can exist between manufacturers.
- Can this display be used outdoors? With a typical brightness of 250 nits and a CCFL backlight, it is designed for indoor industrial and medical environments. For outdoor or high ambient light conditions, you should explore specialized sunlight-readable HMIs with high-brightness LED backlights. If you have any questions, feel free to contact our technical team for support.
