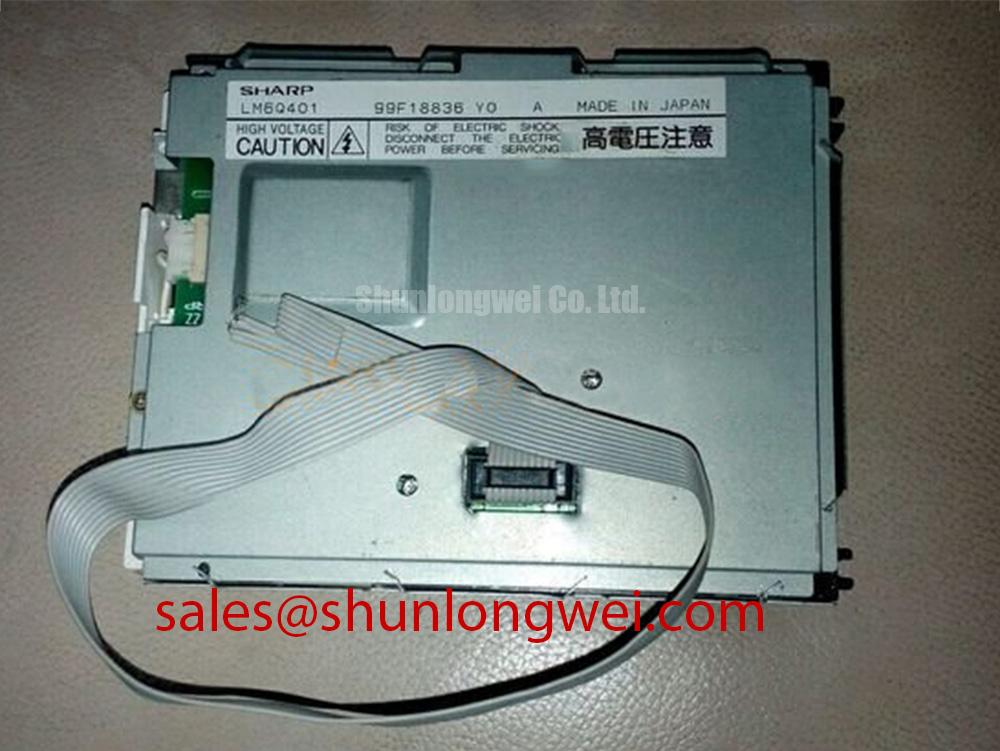

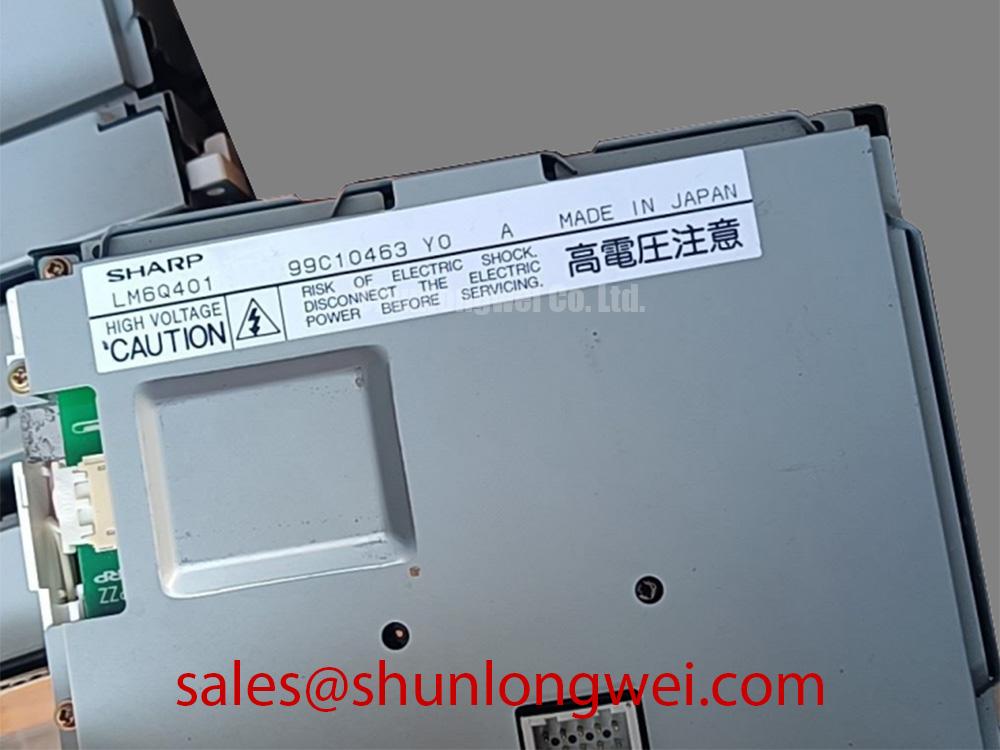

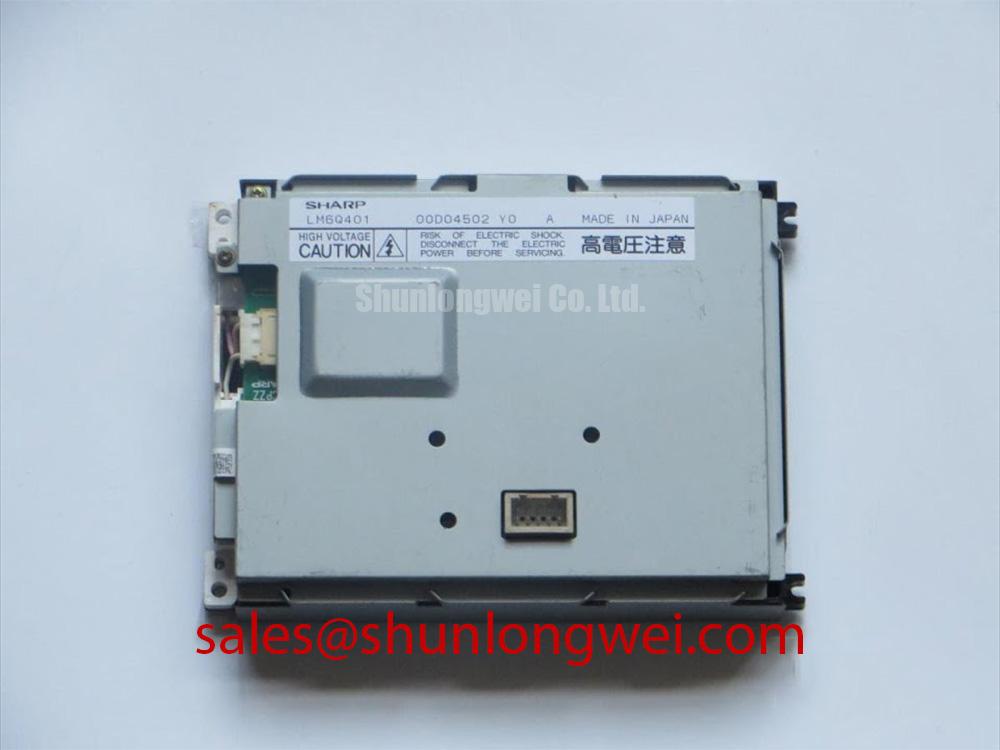

Sharp LM6Q401: Robust 320x240 FSTN Display Module
Engineered for Mechanical Resilience in Industrial HMIs
The Sharp LM6Q401 is a graphic type FSTN-LCD module designed for enduring performance in demanding operational environments. This display delivers crisp, high-contrast monochrome visuals, supported by a mechanical framework built to withstand the rigors of industrial machinery and portable instrumentation. Its validated tolerance for shock and vibration provides a dependable human-machine interface solution where long-term reliability is a primary design criterion. The integrated nature of the panel, controller, and CCFL backlight simplifies system design and enhances structural integrity.
Strategic Advantages in Legacy and Industrial Systems
In an era of rapid technological turnover, components that guarantee stability and longevity offer a significant strategic benefit. The LM6Q401 FSTN display addresses the critical need for reliable visual interfaces in long-lifecycle equipment common in manufacturing, automation, and test and measurement sectors. Its robust construction minimizes failure points, reducing total cost of ownership by mitigating the need for frequent replacements and servicing. For engineers maintaining or developing systems with proven technologies, this display provides a mechanically sound platform, ensuring consistent performance and extending the operational life of valuable assets. This aligns with a strategic focus on asset maximization and operational continuity, key considerations in capital-intensive industries. Explore more on the value of durable displays in our guide on Industrial vs. Consumer Displays.
Operational Contexts: Where Durability Defines Value
The true value of the Sharp LM6Q401 is realized in environments where mechanical stress is a constant. Its specifications are tailored for specific operational challenges, ensuring readability and function are maintained. What is the primary benefit of its physical design? Its verified tolerance to 5G shock and industrial vibration, preventing data loss or catastrophic failure.
- Industrial Control Panels: Mounted on machinery subject to continuous, low-frequency vibration, the display's structural integrity prevents flickering and connection degradation, ensuring operators have a constant, clear view of process parameters.
- Portable Test & Measurement Equipment: For devices used in the field, the risk of accidental drops and impacts is high. The LM6Q401's shock absorption capabilities (withstanding 49 m/s²) are crucial for protecting the internal components and maintaining functionality after an impact.
- Point-of-Sale (POS) Systems: In high-traffic retail or service environments, POS terminals endure constant interaction and occasional bumps. This display's robust build ensures a long service life, minimizing downtime and maintenance costs.
For industrial panels requiring clear monochrome readability under typical indoor lighting, its 18:1 contrast ratio makes it a functionally superior choice over older, lower-contrast TN displays.
Core Performance Parameters at a Glance
This table highlights the key specifications for the LM6Q401, focusing on the metrics most relevant to its mechanical resilience and visual performance in its intended applications. For a comprehensive list of specifications, please refer to the official product datasheet.
| Parameter | Specification |
|---|---|
| Display Resolution | 320 x 240 Pixels (QVGA) |
| Technology | FSTN (Film-compensated Super-twisted Nematic) LCD, Blue Mode |
| Contrast Ratio (Typ.) | 18:1 |
| Operating Temperature | 0°C to +45°C |
| Shock Resistance | 49 m/s² (5G), 11ms, 3 axes |
| Outline Dimensions | 167.0 x 109.0 x 10.0 mm |
Frequently Asked Technical Questions
The module is designed with defined mounting points and a rigid frame that secures the LCD glass and internal connections. Its vibration tolerance is specified in the datasheet (e.g., 10 to 55 Hz sweeps), meaning it has been tested to ensure that these frequencies do not cause components to loosen or the display to fail, a common issue in displays not built for industrial use.
FSTN technology provides higher contrast and a wider viewing cone compared to older STN types. "Blue Mode" refers to the display's appearance, showing dark pixels on a lighter blue/gray background. This combination was widely adopted in industrial and medical equipment for its high clarity and reduced eye strain under various lighting conditions. For broader context on display technologies, see The Ultimate Guide to TFT-LCD.
The datasheet specifies the CCFL backlight has a typical life of 25,000 hours. While the CCFL tube is an integrated component, its replacement is typically a specialized service rather than a field-swappable part. The design prioritizes the reliability of the integrated unit over modular repair.
The LM6Q401 requires a logic supply voltage (VDD) of +5V. Additionally, it needs a separate high-voltage supply for the integrated CCFL backlight, which is detailed in the datasheet's interface pin connections. Proper power sequencing is important for display longevity.
Proven Performance in Established Applications
The Sharp LM6Q401 has a long history of deployment in devices where a straightforward, reliable monochrome display is the ideal solution. It has been integrated into legacy CNC machine controllers, medical monitoring devices, and various types of electronic testing equipment. Its continued relevance stems from its proven durability and the value of maintaining system integrity without costly redesigns. The display serves as a testament to designs where operational uptime and component predictability are the most critical metrics.
Technical Analysis of Mechanical and Visual Characteristics
Structural Integrity and Mounting
The module's resilience begins with its physical design. With an outline of 167.0 x 109.0 x 10.0 mm and a weight of approximately 240g, it forms a compact and sturdy unit. The datasheet provides precise mechanical drawings, including the location of mounting holes, which are critical for ensuring a secure, vibration-resistant installation into a larger system chassis. The bezel and frame are designed to protect the edges of the LCD glass, which is often the most vulnerable part of a display.
Interpreting Shock and Vibration Data
The shock rating of 49 m/s² (or 5G) for 11ms is a key reliability indicator. This can be compared to the force of an object suddenly stopping or being struck. A 5G rating ensures the display can survive the jolts and bumps common in portable equipment or machinery with heavy moving parts. Think of it as a built-in shock absorber for the delicate liquid crystal and its electrical connections, preventing catastrophic failure from everyday operational hazards.
Comparative Data for Informed Decision-Making
To assist in your evaluation process, the following table provides a factual comparison between the LM6Q401 and another common display format. This data is intended to provide a clear, unbiased view to support your specific design requirements. Please note that for applications demanding color and wider temperature ranges, a different class of display, such as the LQ064V3DG06, may be a relevant consideration.
| Feature | Sharp LM6Q401 | Typical Modern Color TFT |
|---|---|---|
| Technology | Monochrome FSTN-LCD | a-Si TFT-LCD |
| Resolution | 320 x 240 | 480 x 272 or higher |
| Power Consumption | Low (LCD Logic) + High (CCFL) | Moderate (LED Backlight) |
| Interface | 4-bit Parallel | RGB, LVDS, or MIPI |
| Shock Tolerance | Specified (e.g., 5G) | Often not specified for non-industrial models |
Future-Proofing Through Proven Reliability
As industrial systems become more interconnected, the reliability of every component, including the primary user interface, becomes more critical. Investing in a display module with proven mechanical durability like the Sharp LM6Q401 is a strategic decision. It ensures that the point of human interaction remains clear and functional for the intended lifecycle of the equipment, safeguarding against premature obsolescence driven by component failure. This focus on foundational robustness allows engineering resources to be allocated toward higher-level system innovations rather than remedial hardware fixes.
