LM641836R: A Deep Dive into the Industrial-Grade 9.4-inch VGA Monochrome FSTN-LCD Module
Product Overview
Engineered for Enduring Clarity in Demanding Environments

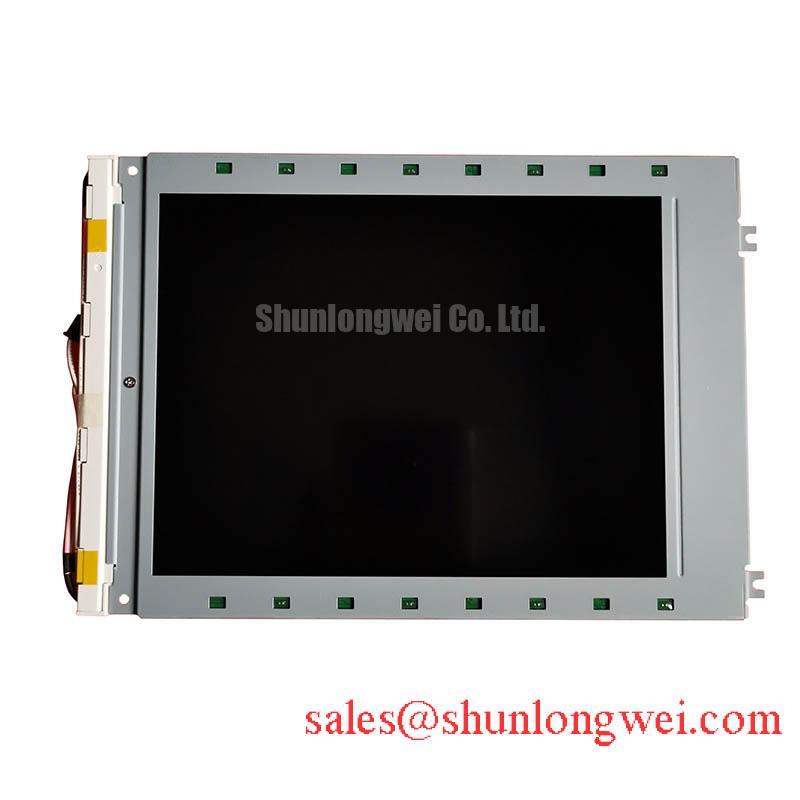

The Sharp LM641836R is a 9.4-inch monochrome FSTN-LCD module engineered for long-term operational reliability in demanding industrial and medical applications. It delivers exceptional readability through its core specifications: 640x480 VGA Resolution | FSTN (Blue Mode) Display | Integrated CCFL Backlight with Driver. Key engineering benefits include superior contrast for critical data visualization and a simplified integration path for legacy systems. This module directly addresses the need for a robust, field-proven display solution for maintaining or upgrading existing industrial HMIs and instrumentation. For legacy industrial HMIs requiring a robust VGA display, the LM641836R offers a proven, integrated solution.
Application Scenarios & Value
System-Level Benefits for Legacy and Specialized Equipment
The primary value of the LM641836R lies in its ability to provide a clear, reliable human-machine interface (HMI) in environments where high-resolution color is not a prerequisite, but absolute readability is. Its design is a perfect fit for MRO (Maintenance, Repair, and Operations) and new designs targeting long service life.
Consider the challenge of maintaining legacy industrial automation equipment, where a failed operator panel can halt an entire production line. The controller often outputs a standard VGA signal, and the physical enclosure is designed for a specific form factor. The LM641836R's 640x480 resolution and physical dimensions make it a direct-fit replacement, minimizing downtime and engineering effort. The FSTN display technology ensures that critical process values and alerts are clearly legible under typical factory floor lighting, a significant advantage over older, lower-contrast display technologies. While this 9.4-inch display is ideal for compact control panels, for larger interface requirements, the G150XNE-L01 provides a 15.0-inch XGA option.
- Industrial Control Panels: Provides a clear, unambiguous display for PLCs and other machine controllers.
- Medical Diagnostic Equipment: Offers high-contrast visualization for critical numerical data and simple waveforms.
- Test and Measurement Instruments: Ensures precise readings in devices like oscilloscopes and network analyzers.
- Point-of-Sale Systems: Delivers a durable and easy-to-read operator display.
Key Parameter Overview
Decoding the Specs for Integration and Performance
The specifications of the LM641836R are tailored for reliability and straightforward implementation into existing system architectures. The combination of its optical characteristics and operational robustness defines its suitability for specialized industrial applications.
| Parameter | Specification | Engineering Value & Interpretation |
|---|---|---|
| Display Technology | FSTN (Film-compensated Super-twisted Nematic), Blue Mode | Delivers a high-contrast, paper-like viewing experience for monochrome graphics and text. The blue mode is comfortable for viewing over extended periods. |
| Resolution | 640 x 480 pixels (VGA) | A widely adopted standard, ensuring native compatibility with a vast range of industrial controllers and single-board computers without signal scaling. |
| Active Area | 191.97(W) × 143.97(H) mm | Provides a substantial 9.4-inch diagonal viewing area, balancing information density with a compact module footprint suitable for panel mounting. |
| Contrast Ratio | 18:1 (Typical) | This ratio is the difference between the brightest white and darkest black. An 18:1 ratio in an FSTN display is analogous to crisp, black ink on clean white paper, ensuring excellent legibility. |
| Backlight System | 1 CCFL with integrated inverter | Simplifies system design significantly. The built-in driver (inverter) eliminates the need for an external high-voltage power supply for the backlight, reducing component count and potential EMI issues. |
| Operating Temperature | 0°C to +50°C | Confirms the module's suitability for deployment in factory floors, control rooms, and other non-climate-controlled industrial settings. |
Technical Deep Dive
The Engineering Advantage of Integrated Design and FSTN Technology
The LM641836R's design philosophy centers on reliability and ease of use, two critical factors in industrial and medical fields. The choice of FSTN technology is a key example. Unlike simpler TN displays, FSTN incorporates a retardation film layer that corrects for optical dispersion, dramatically improving contrast and widening the viewing angle. This translates directly to a user interface that is less sensitive to the operator's position, a crucial factor for equipment that may be viewed from various angles on a busy factory floor.
Furthermore, the integration of the CCFL backlight inverter onto the module itself is a significant design choice. The inverter's job is to convert low-voltage DC from the system into the high-voltage AC required to power the CCFL tube. By integrating it, Sharp has removed a complex and potentially noisy component from the system designer's plate. This is like buying a specialized machine tool that comes with its own perfectly matched power converter, rather than requiring the engineer to source and validate a third-party unit. This simplifies the power delivery design, reduces the number of interconnecting cables, and minimizes the risk of electromagnetic interference (EMI) affecting sensitive nearby circuits.
Frequently Asked Questions (FAQ)
What is the primary benefit of the FSTN display technology used in the LM641836R?
Its primary benefit is the high contrast ratio it achieves for a passive-matrix display. This results in superior readability, presenting text and graphics with a clarity that approaches printed paper, which is essential for reducing operator error when reading critical data.
Does the LM641836R require an external backlight inverter?
No, it does not. The module includes an integrated CCFL inverter, which simplifies the power supply design and reduces the overall system component count and complexity. You only need to provide a standard low-voltage DC input.
Is the 640x480 VGA resolution sufficient for modern industrial applications?
For a significant number of applications, particularly in MRO and for dedicated machine controllers, VGA is the required standard. It is ideal for displaying numerical readouts, status indicators, simple menus, and diagnostic screens, ensuring backward compatibility with a vast installed base of industrial hardware.
How does the operating temperature range of 0°C to 50°C impact its potential applications?
This range qualifies the module for use in most indoor industrial environments, such as factory floors, warehouses, and control rooms, that are not subject to extreme cold or heat. It ensures reliable display operation without requiring specialized heating or cooling systems within the final product's enclosure.
What kind of interface does the LM641836R use?
The module uses a parallel data interface for the LCD logic. This is a common, straightforward interface for displays of this era, well-understood by engineers and directly compatible with many microcontrollers and display controllers used in industrial equipment.
An Engineer's Perspective on Application
From a design engineering standpoint, the LM641836R represents a low-risk, high-reliability solution for specific interface challenges. Its value is not in competing with modern, high-resolution color displays, but in providing an electrically and mechanically robust solution where it is needed most: in maintaining the operational lifespan of critical capital equipment. The integrated nature of the backlight driver and the standard VGA format reduce non-recoverable engineering time, allowing teams to focus on core system functionality rather than display integration minutiae. It is a component designed for longevity, both in its own operational life and in the life of the equipment it serves.
