LQ150X1LG83 Sharp 15.0" 1024x768 XGA TFT-LCD Display

Content last revised on January 16, 2026

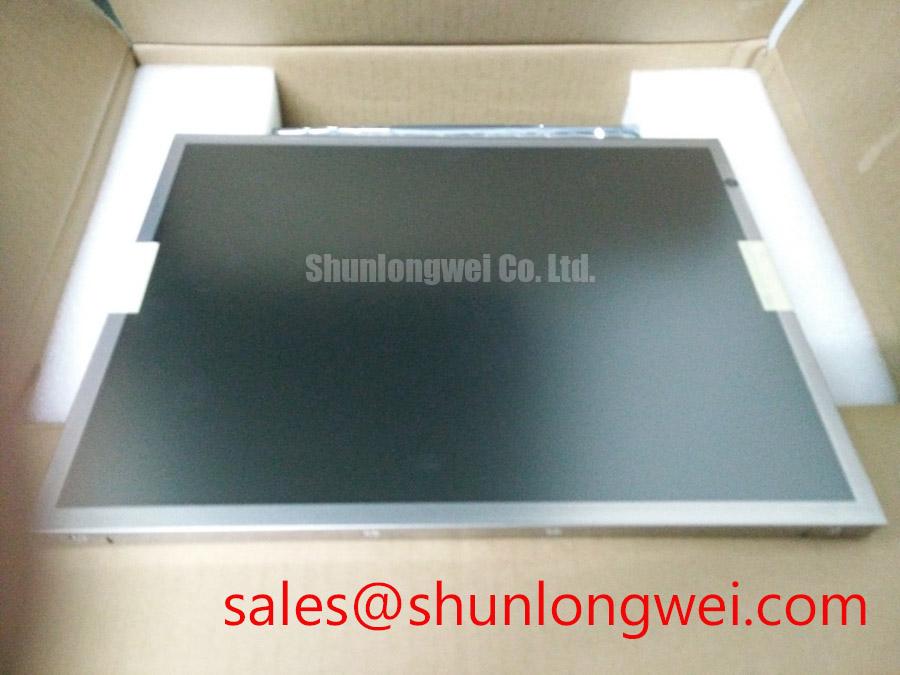

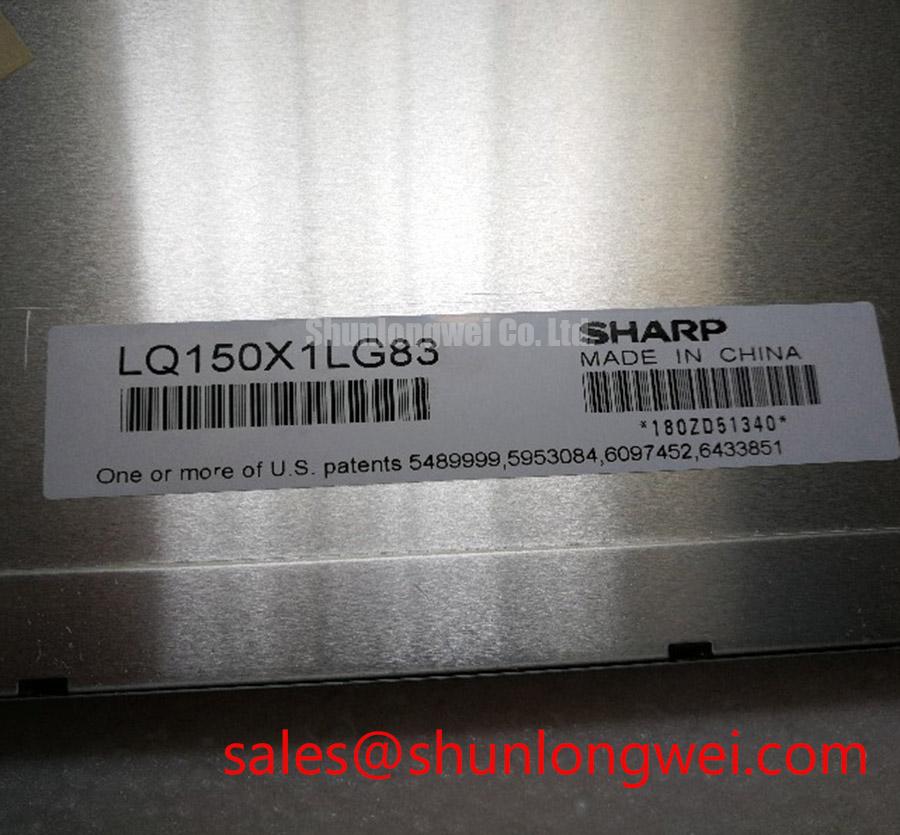

Sharp LQ150X1LG83 15.0-inch XGA Industrial TFT-LCD Module

Engineered for Durability and Clarity in Industrial Environments

The Sharp LQ150X1LG83 is a 15.0-inch a-Si TFT-LCD panel designed to deliver robust, reliable visual performance for industrial and medical applications. This display provides a proven solution for system integrators and engineers tasked with maintaining or developing human-machine interfaces (HMIs), process control systems, and diagnostic equipment. Its combination of a standard XGA resolution, functional surface treatments, and a long-life backlight system addresses the core requirements for operational longevity and clear data presentation. For industrial control systems that require a durable 15-inch XGA display with proven CCFL backlight technology, the LQ150X1LG83 provides an ideal and stable integration path.

Key Parameter Overview

Decoding the Specs for System Integration and Reliability

The technical specifications of the LQ150X1LG83 are tailored for straightforward integration into a wide range of industrial hardware. The parameters below detail the optical, electrical, and physical characteristics that define its performance envelope.

Application Scenarios & Value

System-Level Benefits in Industrial Control and Monitoring

The LQ150X1LG83 is engineered to address the specific challenges of industrial environments where reliability and long-term availability are paramount. Its feature set provides tangible benefits for engineers designing or maintaining control systems.

A primary engineering challenge in factory automation is ensuring that HMI displays remain readable under variable industrial lighting. The LQ150X1LG83's 350-nit brightness, combined with its effective anti-glare surface treatment, directly mitigates glare from overhead lighting. This ensures that operators can accurately read critical process data from a PLC or monitoring system without being hindered by reflections, reducing the potential for errors. The hard coating further enhances durability by resisting scratches from incidental contact in busy work areas.

The display's standard XGA resolution and LVDS Interface make it a prime candidate for drop-in replacements or upgrades of older systems. This simplifies the hardware and software qualification process, minimizing redevelopment costs and accelerating time-to-market for product refreshes. The panel’s 0°C to 60°C operating temperature range ensures stable performance in enclosed, non-climate-controlled cabinets typical of many manufacturing floors. For more advanced systems requiring higher resolution or wider viewing angles, the G150XNE-L01 presents an alternative with modern LED backlight technology.

Frequently Asked Questions (FAQ)

Engineering Inquiries on the LQ150X1LG83

What are the design implications of the CCFL backlight system?
The dual CCFL backlight provides a rated lifetime of 50,000 hours, offering predictable and stable performance suitable for long-life industrial equipment. A key design consideration is that it requires an external inverter (backlight driver) to operate, which must be specified and integrated into the system's power design. This architecture separates the display panel from the high-voltage driver, which can be beneficial for thermal management and serviceability.

How does the Antiglare (AG) surface treatment benefit an industrial HMI application?
The anti-glare surface, with its specified 25% haze level, is critical for maintaining screen legibility in environments with uncontrolled ambient light. It works by diffusing reflections from sources like overhead fluorescent lights or sunlight from a window, preventing sharp, distracting glare that could obscure vital data. This directly enhances operator usability and reduces eye strain during prolonged use, a crucial factor in both productivity and safety. Understanding the difference between display types can be crucial; learn more about why the total cost of ownership trumps initial price in our guide to industrial vs. consumer displays.

Technical Deep Dive

A Closer Look at the a-Si TFT Technology and its Industrial Relevance

The LQ150X1LG83 is built upon Amorphous Silicon (a-Si TFT) technology, a mature and highly reliable thin-film transistor platform. For industrial applications, the value of a-Si technology lies in its stability, manufacturability, and predictable performance characteristics over a long operational life. What is the primary benefit of its a-Si technology? It offers a cost-effective and proven foundation for reliable industrial displays.

The panel's TN (Twisted Nematic) liquid crystal mode allows for fast pixel response times (typically 2ms rise, 6ms fall), which is more than sufficient for the graphical user interfaces found in most industrial machinery, where rapid video playback is not the primary requirement. This rapid response minimizes ghosting or motion blur on changing numerical readouts or status indicators. While TN technology typically has more constrained viewing angles compared to IPS, the specified 60/60/45/55 degrees are engineered to be optimal for a fixed-mount operator station where the user is positioned directly in front of the screen. This makes it a pragmatic and cost-effective choice for its intended applications. For a broader overview, explore The Ultimate Guide to TFT-LCD.

Integration & Technical Support

Facilitating Your Design-In Process

To support the successful integration of the LQ150X1LG83 into your system, we provide access to comprehensive technical documentation and resources. Proper implementation of the LVDS interface, selection of a compatible backlight driver, and adherence to mechanical mounting guidelines are crucial for achieving optimal performance and long-term reliability. Our team can assist in providing the necessary information to streamline your design and verification stages. Please contact us to discuss your application's specific requirements and to request detailed documentation.
