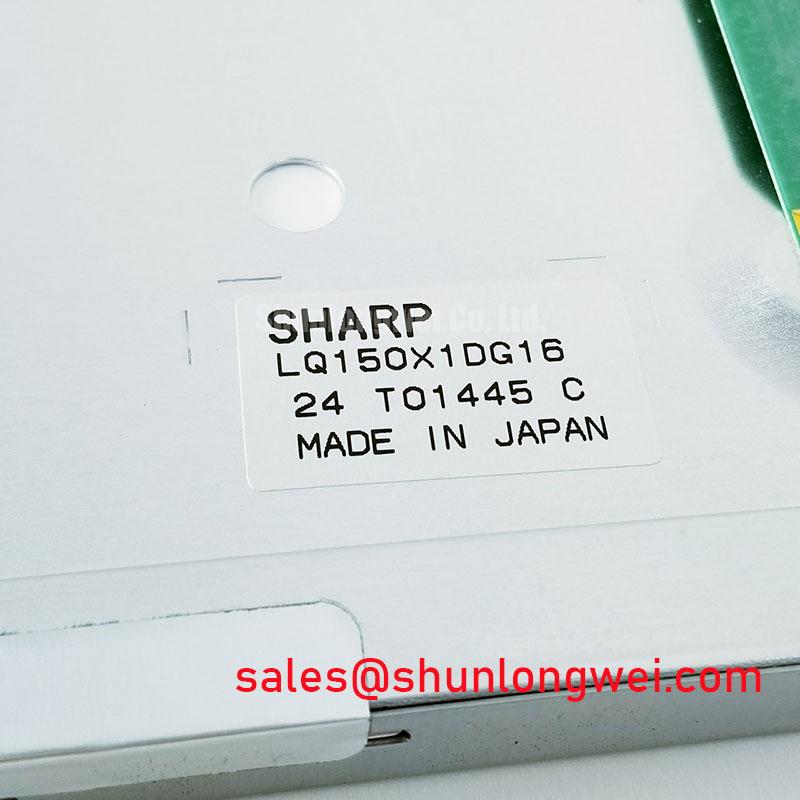

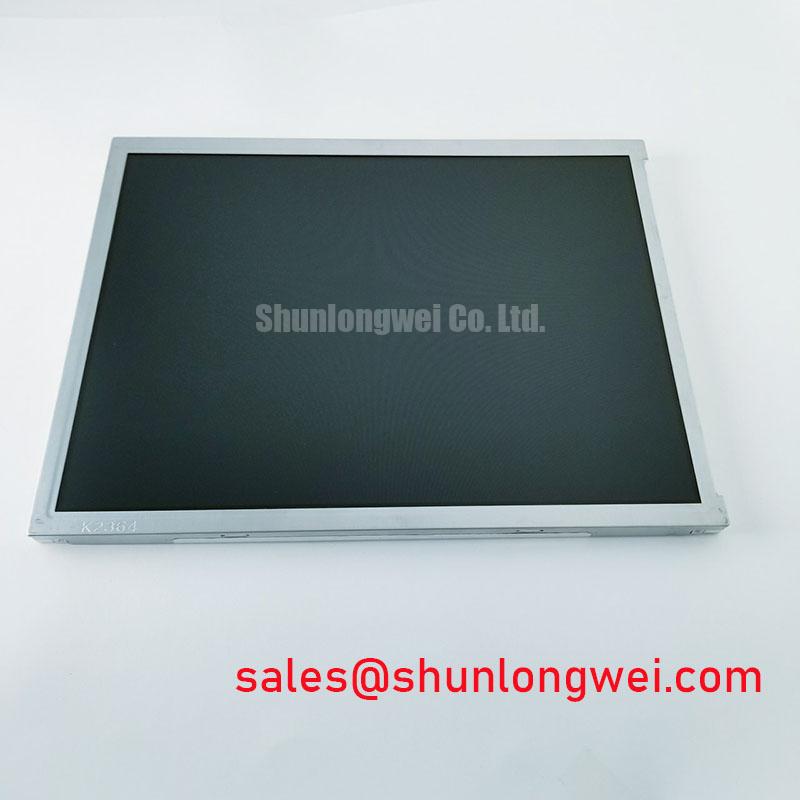

Sharp LQ150X1DG16 | Legacy Reliability Meets Industrial Clarity
The Sharp LQ150X1DG16 is not just another display; it's an engineering component trusted for years in critical applications where downtime is not an option. This 15.0-inch XGA TFT-LCD panel is designed for longevity and performance, making it a cornerstone for industrial HMI, medical diagnostic systems, and specialized instrumentation. Its reputation is built on delivering consistent, readable visuals in demanding operational environments, representing a smart investment in system stability.
Technical Deep Dive: Why the LQ150X1DG16 Endures
While the market is flooded with newer technologies, the Sharp LQ150X1DG16 holds its ground due to a deliberate and proven design philosophy. Its core strengths lie in technologies optimized for long-term industrial use rather than consumer trends.
- Proven a-Si TFT Technology: The display is built on an a-Si TFT (Amorphous Silicon) active matrix. For industrial applications, this technology's value is its predictability and stability over tens of thousands of hours. The manufacturing process is mature, resulting in exceptional uniformity and reliability, which translates directly to a lower total cost of ownership and fewer field failures for your equipment.
- Engineered for Readability: With a typical luminance of 350 cd/m² and a strong contrast ratio, this panel ensures data is clearly legible under varied factory and lab lighting. Its wide viewing angles are a critical feature for HMI panels, where operators may not always be positioned directly in front of the screen, ensuring accurate readings from multiple perspectives.
Application-Specific Value: Where the LQ150X1DG16 Excels
The true value of a component is measured by its performance in the field. The Sharp LQ150X1DG16 delivers tangible benefits across several key sectors:
- Industrial Automation & HMI: In a manufacturing setting, an HMI display must be a reliable workhorse. The robust construction and stable CCFL backlight of the LQ150X1DG16 ensure it can withstand the rigors of 24/7 operation, vibration, and temperature fluctuations, providing a dependable interface for machine control. It's a prime example of a durable industrial LCD.
- Medical Diagnostic Equipment: For legacy and new designs in medical imaging and patient monitoring, the XGA (1024x768) resolution provides sufficient detail. More importantly, its consistent colorimetry and long-term stability are crucial for accurate diagnostic interpretation, where visual consistency can be a matter of patient safety.
- Test and Measurement Instruments: Engineers and technicians rely on oscilloscopes, spectrum analyzers, and other instruments for precise data visualization. The 15-inch screen offers ample real estate for complex waveforms and datasets, while its clarity ensures that critical details are not missed.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | LQ150X1DG16 |
| Panel Size | 15.0 inch |
| Resolution | 1024(RGB)×768, XGA |
| Display Technology | a-Si TFT-LCD |
| Luminance (Brightness) | 350 cd/m² (Typ.) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Interface Type | 30 pins LVDS (1 ch, 6-bit) |
| Operating Temperature | 0 ~ 60 °C |
| Backlight | 2 pcs CCFL, 50K hours, W/O Inverter |
For complete technical details, you can access the [LQ150X1DG16 Datasheet](https://www.artisantg.com/99293-6/Sharp-LQ150X1DG16).
Selection Insight: A Strategic Choice for System Maintainability
For engineers maintaining or designing long-lifecycle equipment, the Sharp LQ150X1DG16 presents a compelling case. Many industrial systems were originally designed around CCFL-backlit displays. Using this panel as a drop-in replacement avoids the costly and time-consuming process of re-validating system electronics, power supplies, and firmware for a newer LED-backlit panel. While modern LED displays offer lower power consumption, the LQ150X1DG16 prioritizes proven reliability and seamless integration into established platforms, a crucial factor in regulated industries like medical or aerospace. Understanding the nuances of different TFT-LCD technology is key to making the right choice for your project.
If your project requires a battle-tested display solution known for its endurance and as a perfect fit for legacy system upgrades, this panel is an outstanding choice. For personalized advice on integrating the Sharp LQ150X1DG16 into your application or to explore other display options, please contact our specialists for an in-depth consultation.
