LQ150X1MW21: 15.0-inch XGA TFT-LCD for High-Performance Industrial HMI
Engineered for Uncompromised Readability in Extreme Environments
A Deep Dive into an Industrial Display Built for Clarity and Endurance

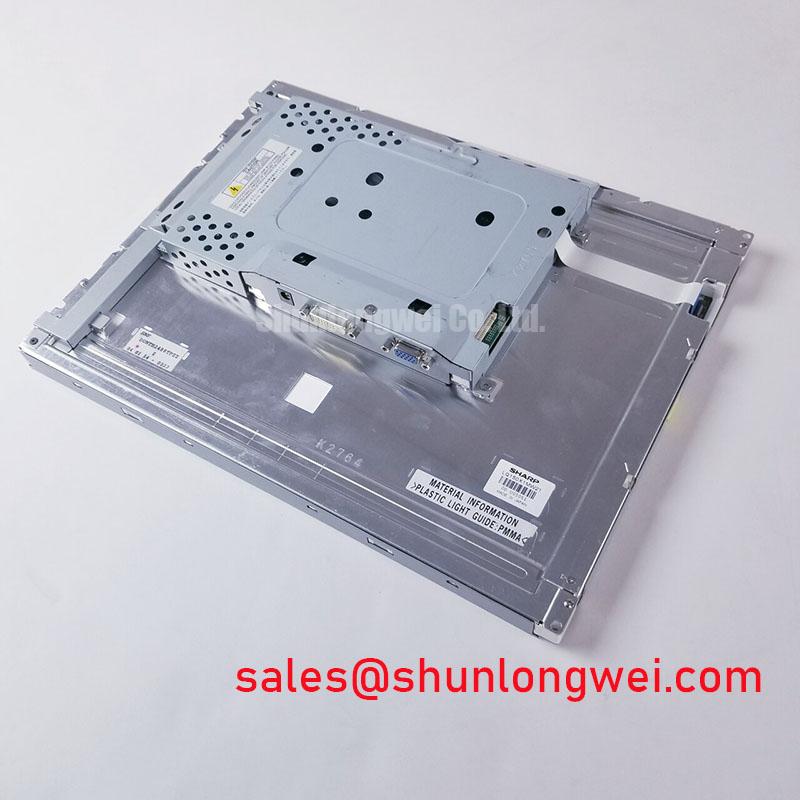

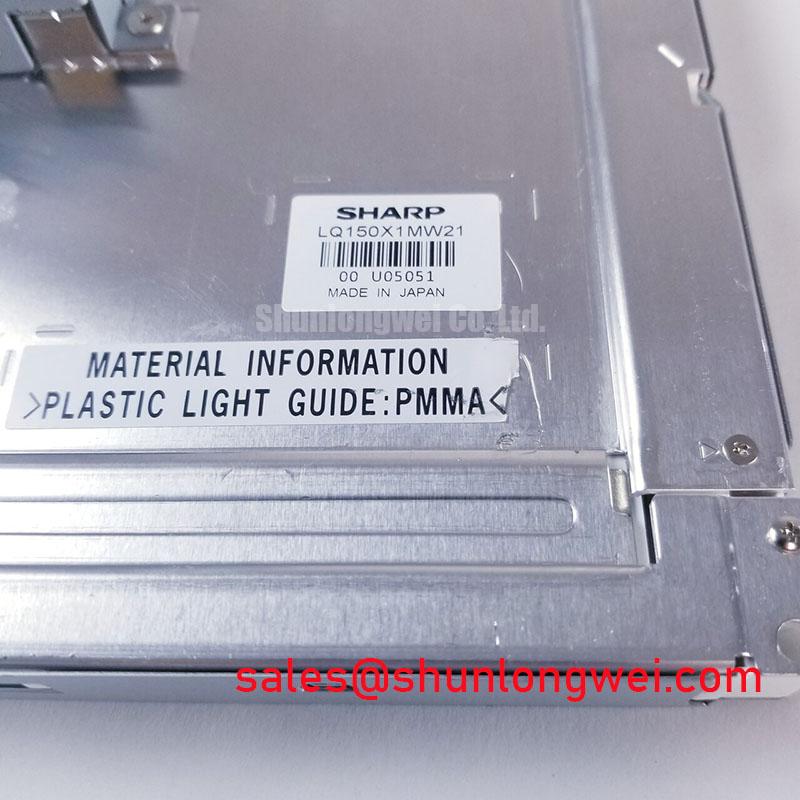

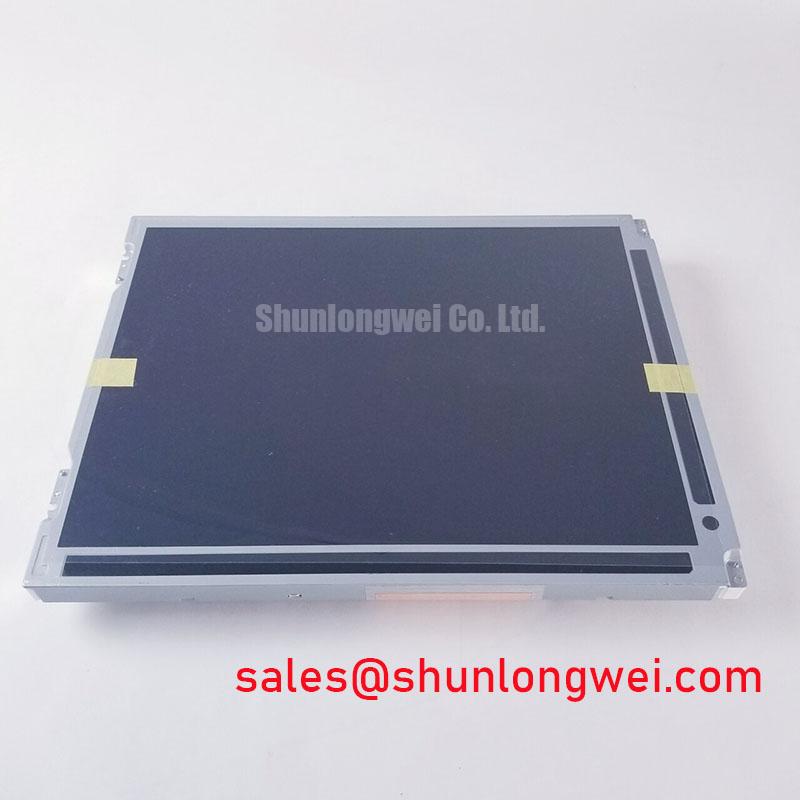

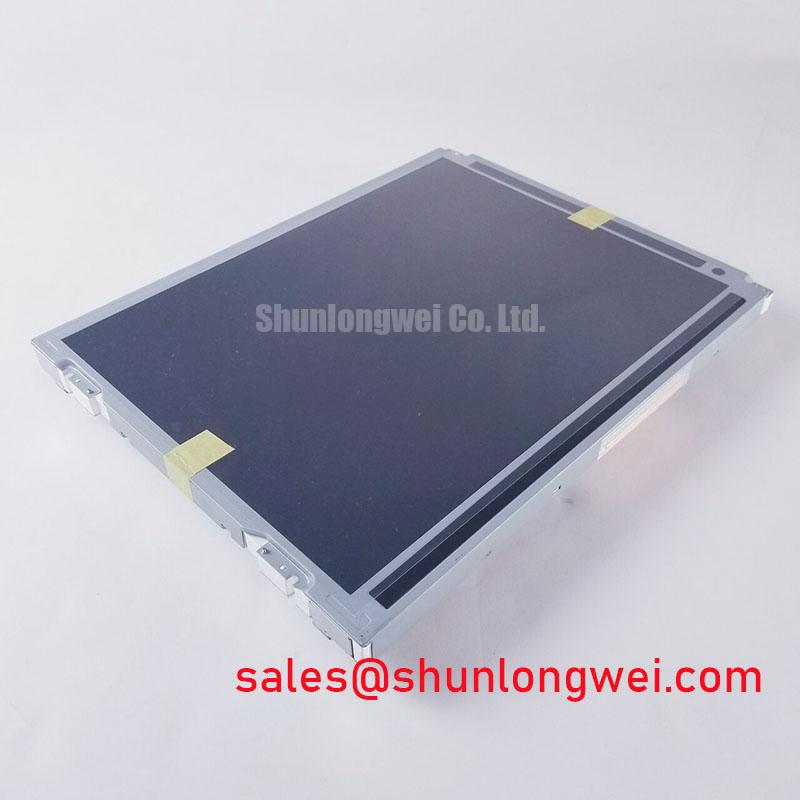

The Sharp LQ150X1MW21 is a 15.0-inch color TFT-LCD module designed from the ground up for applications demanding exceptional visual performance and rugged durability. Its core value proposition lies in delivering pristine image clarity under the most challenging ambient light and temperature conditions. Featuring key specifications of 1024x768 XGA | 1600 cd/m² Brightness | -30 to +80°C Operating Temperature, this display provides two critical engineering benefits: superior sunlight readability and unwavering operational reliability. It directly addresses the need for a robust HMI solution in environments where standard displays fail, ensuring critical data remains legible for operators of heavy machinery or outdoor systems. For applications requiring a different resolution or size, the related G156XW01 V1 offers a 15.6-inch diagonal with WXGA resolution.
Key Parameter Overview
Decoding the Specifications for Optical Performance and Environmental Resilience
The technical specifications of the LQ150X1MW21 underscore its suitability for specialized industrial and commercial applications. The combination of high brightness, a wide thermal operating range, and excellent viewing angles forms the foundation of its performance. This design focus ensures that system integrators can deploy this display in environments that are off-limits to conventional consumer-grade panels.
| Parameter | Specification | Engineering Value |
|---|---|---|
| Screen Size | 15.0 inch (38 cm) diagonal | Provides a large, clear viewing area for complex graphical user interfaces (GUIs) and data visualization. |
| Resolution | 1024(RGB) x 768, XGA | Delivers sharp, well-defined text and graphics suitable for detailed control panels and monitoring systems. |
| Brightness (Luminance) | 1600 cd/m² (Typ.) | Ensures excellent sunlight readability, critical for outdoor kiosks, marine electronics, and vehicle-mounted displays. |
| Contrast Ratio | 1500:1 (Typ.) | Renders deep blacks and vibrant colors, enhancing image quality and data legibility. |
| Viewing Angle (U/D/L/R) | 88°/88°/88°/88° (Typ.) | Guarantees consistent and accurate image reproduction from virtually any viewing direction. |
| Operating Temperature | -30 ~ +80 °C | Enables reliable operation in unconditioned indoor and outdoor environments, from cold storage to sun-exposed cabins. |
| Backlight System | WLED, 50,000 hours (Typ.) | Offers a long operational lifetime, reducing maintenance cycles and total cost of ownership in long-life systems. |
| Interface | LVDS (1 ch, 8-bit), 20 pins | Provides a standard, robust, and widely supported interface for straightforward system integration. |
Download the LQ150X1MW21 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Delivering System-Level Benefits in Mission-Critical Visual Interfaces
The LQ150X1MW21 is the optimal choice for systems where display failure or poor readability carries significant operational or safety risks. Its high brightness is a direct solution to one of the most common challenges in outdoor HMI design: washout from direct sunlight. Consider an operator interface on agricultural or construction machinery. A typical display becomes unreadable under a midday sun, forcing operators to shield the screen or guess at readings, which can lead to errors. The 1600 cd/m² luminance of the LQ150X1MW21 cuts through intense ambient light, ensuring that critical alerts, GPS mapping, and diagnostic data are always clearly visible. This directly enhances operator efficiency and safety. Similarly, its ability to function reliably at -30°C makes it an excellent candidate for control panels in refrigerated logistics or outdoor ticketing machines in cold climates.
The panel's robust feature set also extends to specialized use cases. The high contrast ratio and wide viewing angles are vital for multi-person workstations, such as those found in industrial process control rooms or medical imaging stations, where several team members need to view the screen simultaneously from different positions without color shift or loss of detail. For applications requiring different interface standards or resolutions, designers might also evaluate panels like the G121EAN01.0.
Frequently Asked Questions (FAQ)
What is the primary benefit of the 1600 cd/m² brightness level?
Its primary benefit is providing exceptional sunlight readability. This high luminance output ensures the screen content remains clear and visible even in direct, bright outdoor light, which is essential for applications like outdoor kiosks, vehicle displays, and marine chartplotters.
How does the -30°C to +80°C operating temperature range impact system design?
This wide temperature range significantly simplifies thermal management and expands deployment possibilities. It allows the display to be integrated into systems intended for harsh environments—such as unheated outdoor enclosures or vehicle cabins exposed to direct sun—without requiring complex and costly heating or active cooling systems.
Does the 1500:1 contrast ratio offer a significant advantage over standard industrial displays?
Yes. A 1500:1 contrast ratio delivers deeper blacks and more distinct color separation than many standard panels, which often range from 800:1 to 1000:1. For an engineer, this translates to superior image quality, making it easier to distinguish fine details in complex GUIs, schematics, or diagnostic imaging.
Are the 88-degree symmetrical viewing angles important for a single-operator HMI?
While crucial for multi-viewer setups, symmetrical wide viewing angles are also valuable for single-operator HMIs. They provide greater installation flexibility, as the display can be mounted at various heights and angles relative to the operator without compromising image fidelity. This is key in space-constrained cockpits or control panels.
What does a 50,000-hour backlight lifetime mean in practical terms?
A 50,000-hour backlight lifetime translates to approximately 5.7 years of continuous, 24/7 operation before the backlight brightness is expected to degrade to 50% of its initial value. This long lifespan reduces the total cost of ownership by minimizing the need for costly maintenance and panel replacements in long-life industrial equipment.
Industry Insights & Strategic Advantage
Meeting the Demand for All-Weather, High-Reliability HMIs
The market for industrial and specialized equipment is increasingly moving towards sophisticated graphical interfaces that must function flawlessly in non-traditional settings. The LQ150X1MW21 directly supports this trend. The push for greater automation in logistics, agriculture, and public infrastructure demands HMIs that are not confined to climate-controlled rooms. This display's environmental resilience is a strategic asset, enabling the development of next-generation systems like outdoor EV charging stations, smart city information pillars, and digital signage exposed to the elements. By integrating a panel with this level of intrinsic durability, OEMs can reduce field failures, lower warranty costs, and build a reputation for product reliability—a critical differentiator in the competitive industrial display market.
An Engineer's Perspective on Integration
From an integration standpoint, the LQ150X1MW21 presents a robust and straightforward solution. The standard 20-pin LVDS interface is a known quantity, simplifying the connection to a wide array of single-board computers and dedicated display controllers. The key design consideration will be ensuring the host system's power supply can adequately drive the high-brightness WLED backlight, which inherently consumes more power than a standard-brightness panel. However, this is a manageable engineering trade-off for achieving true all-weather visibility. The panel's mechanical specifications and long-term backlight reliability provide the confidence needed to design it into systems where longevity and consistent performance are non-negotiable.
