Toshiba LTA084C270F: An 8.4-inch SVGA Display Engineered for Industrial Longevity and Reliability
A Deep Dive into the LTA084C270F TFT-LCD Module
Content last revised on October 16, 2025.
Introduction: A Fusion of Proven Performance and Durability

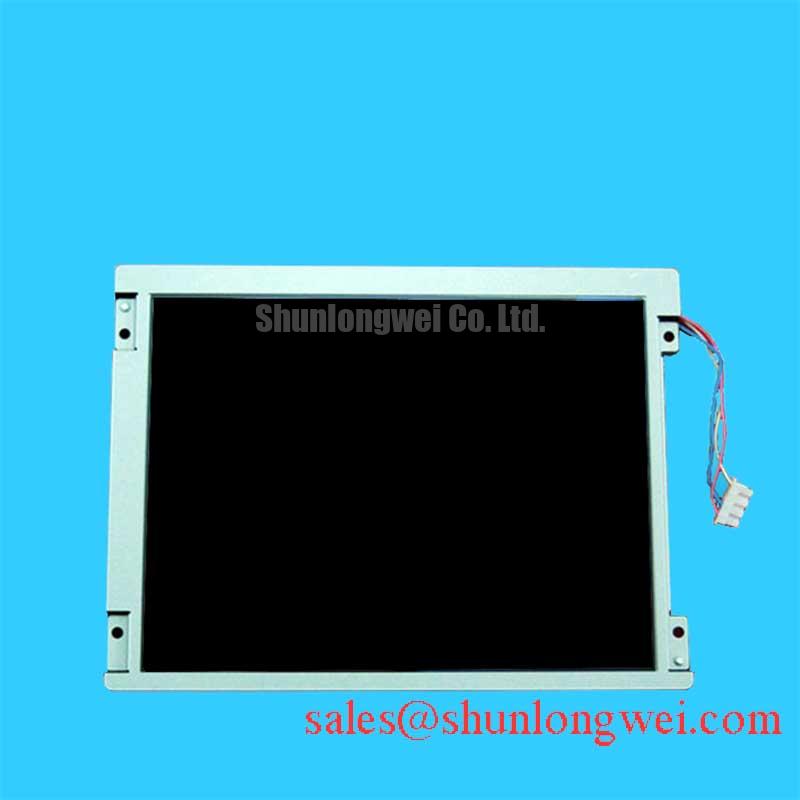

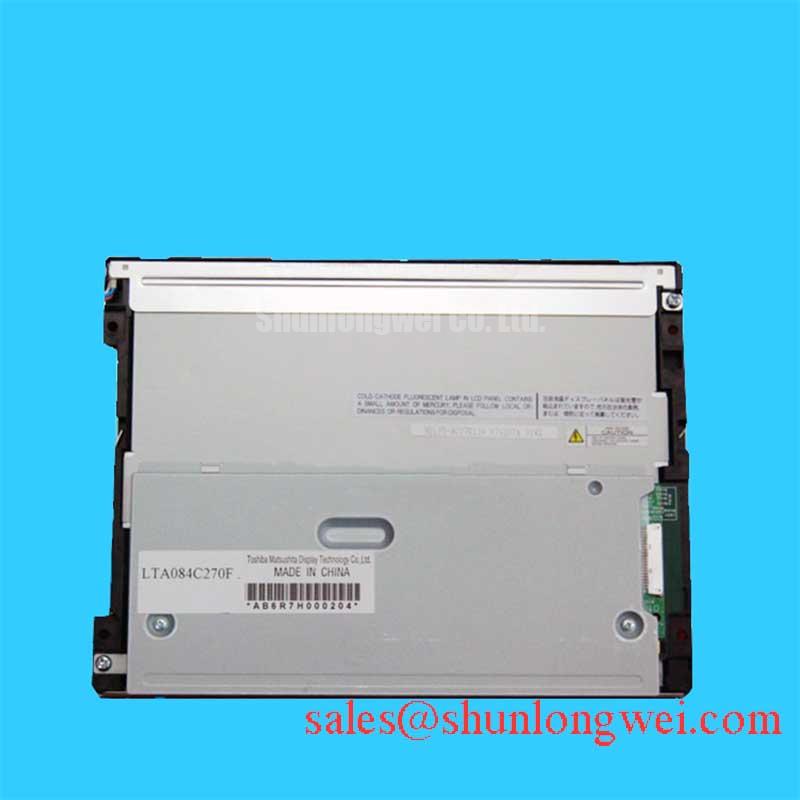

The Toshiba LTA084C270F is an 8.4-inch a-Si TFT-LCD panel engineered for consistent, reliable performance in demanding Human-Machine Interface (HMI) and industrial control applications. Its core value lies in delivering proven visual clarity and operational stability over an extended lifecycle. With specifications of 800x600 SVGA | 400 cd/m² Brightness | 50,000-Hour CCFL Backlight, this display provides two critical engineering benefits: excellent long-term reliability and straightforward system integration. It directly addresses the need for a durable display solution for legacy system upgrades or new designs where field-proven technology is paramount. For industrial systems requiring a compact and resilient display, the LTA084C270F offers an optimal balance of performance and endurance.
Application Scenarios & Value
System-Level Benefits in Industrial and Diagnostic Equipment
The LTA084C270F is best suited for environments where operational uptime and consistent readability are non-negotiable. Its 8.4-inch diagonal and SVGA (800x600) resolution provide an ideal pixel density for displaying critical data, schematics, and control interfaces without requiring significant scaling or UI redesign, a common challenge in legacy system refurbishment. Consider its application in a CNC machine control panel or a portable automotive diagnostic tool. In these scenarios, the 400-nit brightness ensures the screen remains legible under typical factory floor or service bay lighting. The most significant engineering value comes from its 50,000-hour rated CCFL backlight. This longevity translates directly to a lower total cost of ownership (TCO) by minimizing the need for costly field replacements and service calls, a critical factor for OEMs supporting equipment with long service life expectations.
The panel's reliance on a standard 1-channel, 6-bit LVDS interface simplifies integration, allowing engineers to connect it directly to a wide range of single-board computers and display controllers without the need for complex intermediary hardware. This streamlines the design process and reduces development time. For applications that require a similar form factor but with different specifications, models like the AA084VC03 may offer alternative performance characteristics.
Key Parameter Overview
Decoding the Specs for Industrial Design Integrity
The specifications of the LTA084C270F are tailored for robust industrial performance. Each parameter contributes to its role as a reliable and easy-to-integrate display solution. The table below highlights the key metrics and interprets their direct value in an engineering context.
| Specification | Value | Engineering Value & Interpretation |
|---|---|---|
| Panel Size | 8.4 inches | Provides a compact footprint suitable for space-constrained industrial panels, portable test equipment, and medical devices. |
| Resolution | 800(RGB)×600 [SVGA] | Offers a standard, highly compatible resolution that is ideal for displaying GUIs from legacy software or embedded systems without distortion. |
| Luminance | 400 cd/m² (Typ.) | Delivers sufficient brightness for clear readability in indoor industrial settings. Think of it as the display's "projection power" against ambient light. |
| Contrast Ratio | 450:1 (Typ.) | Ensures clear differentiation between blacks and whites, which is critical for rendering sharp text and detailed graphical elements. |
| Backlight System | CCFL, 50,000 Hours Lifetime | This is the display's endurance rating. A 50,000-hour life means over 5.7 years of continuous 24/7 operation, ensuring long-term system reliability. |
| Interface | LVDS (1 channel, 6-bit) | A widely adopted, low-noise digital interface that simplifies electrical integration and ensures signal integrity over short distances within a system chassis. |
| Supply Voltage | 3.3V (Typ.) | Operates on a standard low-voltage rail common in embedded systems, simplifying power supply design and management. |
Download the LTA084C270F datasheet for detailed specifications and performance curves.
Technical Deep Dive
A Closer Look at the LTA084C270F's Design Philosophy
The design of the Toshiba LTA084C270F reflects a commitment to industrial-grade durability and stable, long-term performance. The choice of a Cold Cathode Fluorescent Lamp (CCFL) backlight, while a more mature technology, is intentional. For many industrial applications, particularly those involving retrofitting or certifying systems with long design cycles, a CCFL backlight offers a known, predictable performance and failure profile. Its 50,000-hour rating provides a quantifiable metric for maintenance schedules and end-of-life planning. This is analogous to specifying a bearing in a motor; engineers select a component with a well-defined L10 life to ensure the entire system meets its reliability targets. The LTA084C270F's backlight serves the same purpose for the HMI.
Furthermore, the 8.4-inch SVGA format has been a cornerstone of industrial HMIs for years. By maintaining this standard, the LTA084C270F serves as a dependable drop-in replacement or a low-risk choice for new designs that leverage existing software ecosystems. The use of a standard 20-pin connector for the LVDS Interface further enhances its utility, guaranteeing broad compatibility with industry-standard driver boards and minimizing the need for custom cabling or interface adapters. This focus on compatibility and proven technology makes the display a practical, low-risk solution for engineers prioritizing stability over cutting-edge features.
Frequently Asked Questions (FAQ)
What is the primary benefit of the 50,000-hour CCFL backlight rating?
The primary benefit is enhanced long-term reliability and a predictable service life. This rating ensures the display can operate continuously for nearly six years, significantly reducing the total cost of ownership by minimizing maintenance and replacement cycles in critical industrial equipment.
Is the 400 cd/m² brightness sufficient for outdoor use?
The 400 cd/m² luminance is optimized for indoor industrial environments, such as factory floors, control rooms, and medical facilities. It is not designed for direct sunlight readability. For outdoor or high-ambient-light applications, a display with a brightness of 1000 nits or higher would be required.
How does the SVGA (800x600) resolution benefit legacy system integration?
SVGA is a native resolution for a vast number of existing industrial software applications and embedded systems. Using an SVGA display like the LTA084C270F eliminates the need for software redevelopment or video scaling, which can introduce artifacts and compatibility issues. It allows for a seamless "drop-in" hardware upgrade.
What does the "Normally White" display mode mean for system behavior?
"Normally White" means that if a pixel fails, it will appear white. This can be a consideration in applications where a failed-dark pixel (as seen in "Normally Black" panels) might be preferable to avoid visual distraction, such as in dark-themed GUIs for aviation or broadcast control rooms.
What are the key considerations for integrating the LVDS interface of the LTA084C270F?
Engineers should ensure their controller board has a compatible 1-channel, 6-bit LVDS output and a matching 20-pin connector. It is also crucial to manage signal integrity by keeping cable lengths short and properly shielded to prevent electromagnetic interference (EMI), which is a common concern in industrial environments.
An Engineer's Perspective
From a design engineering standpoint, the LTA084C270F represents a component chosen for stability and risk mitigation. In a world of rapidly evolving display technologies, this panel provides a known quantity. Its performance characteristics are well-documented, and its technology is mature, ensuring a stable supply chain and predictable behavior. It's a workhorse display, designed not to dazzle with specs but to perform its function reliably for years in environments where failure is not an option. For any project where the HMI must be as dependable as the machinery it controls, the LTA084C270F remains a sound and defensible engineering choice.
