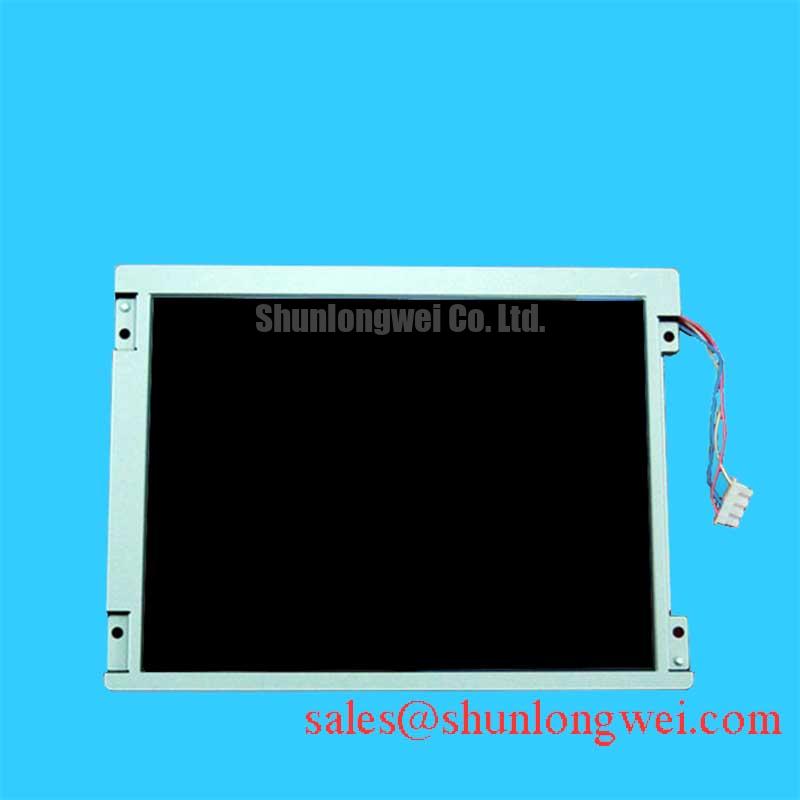

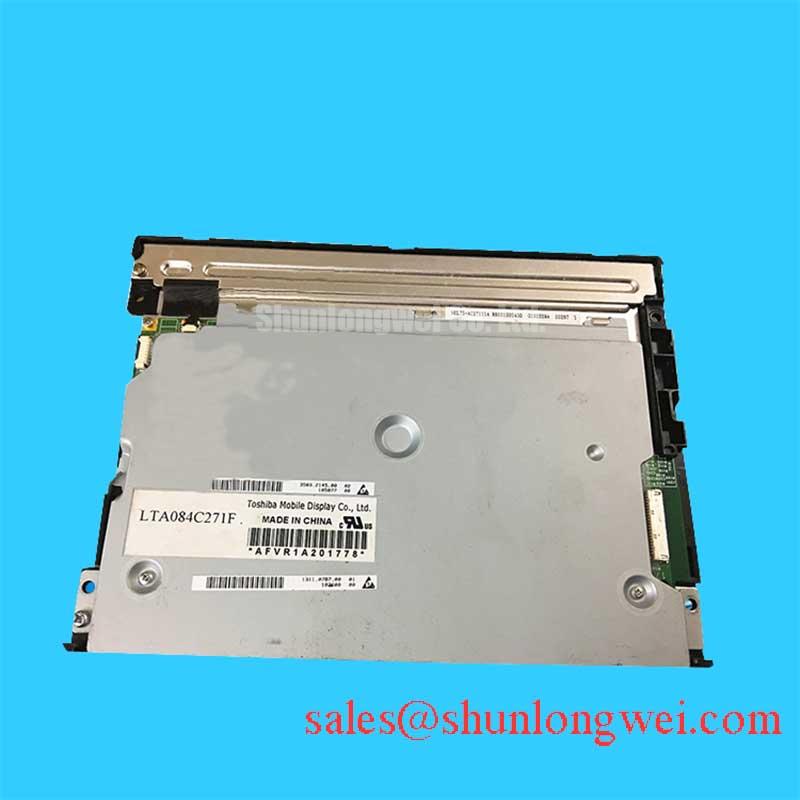

LTA084C271F Toshiba Technologies 8.4-inch XGA Industrial LCD Panel
The LTA084C271F represents a high-density visualization solution designed by Toshiba Technologies (formerly NEC) to meet the rigorous demands of professional industrial environments. This 8.4-inch module is distinguished by its 1024x768 (XGA) resolution, providing an exceptional pixel density that ensures clarity for complex data and detailed graphical interfaces. Operating within a temperature range of -20°C to 70°C, it is built for reliability where consumer-grade displays would fail. For industrial HMIs requiring high data density and LVDS signal integrity, the 1024x768 resolution LTA084C271F remains a preferred choice for long-term deployments. By utilizing a-Si TFT-LCD technology, it balances cost-efficiency with the optical performance necessary for precision control systems. Key benefits include superior vibration resistance and a long-life LED backlight system, reducing total cost of ownership in high-uptime applications. This module effectively addresses the challenge of fitting high-resolution content into compact 8-inch chassis designs without compromising signal stability.
Key Parameter Overview
Decoding the Specs for Enhanced Industrial Visualization
The following technical specifications define the operating envelope and integration requirements for the LTA084C271F. Engineers should pay close attention to the LVDS (1 ch, 6/8-bit) interface, which ensures high-speed data transmission with low electromagnetic interference.
| Feature | Technical Specification |
|---|---|
| Manufacturer | Toshiba Technologies (NEC) |
| Model | LTA084C271F |
| Diagonal Size | 8.4-inch |
| Resolution | 1024 x 768 (XGA) |
| Interface Type | LVDS (1 ch, 6/8-bit) |
| Luminance | 400 cd/m² (Typical) |
| Contrast Ratio | 600:1 (Typical) |
| Backlight Type | WLED |
| Operating Temperature | -20°C to +70°C |
| Display Colors | 262K / 16.7M |
Download the LTA084C271F datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Density Power Conversion
In modern industrial automation, the LTA084C271F serves as the critical human-machine interface (HMI) for sophisticated machinery. A common challenge faced by engineers is the "information bottleneck"—trying to display high-resolution schematics or real-time diagnostic waveforms on a small screen. With its 1024x768 resolution, this module provides nearly double the pixel count of standard VGA or SVGA 8.4-inch panels, allowing for more detailed data overlays in medical imaging consoles or CNC controller units.
The robust LED backlight architecture is particularly valuable in 24/7 manufacturing plants where maintenance cycles are costly. By integrating this module into a Variable Frequency Drive (VFD) diagnostic panel or a high-end UPS (Uninterruptible Power Supply) monitoring system, designers can ensure that critical system statuses are legible even in variable lighting conditions. For systems requiring different aspect ratios or specifications, the AA084XA02 or the G084SN05 V9 offer alternative configurations within the same size class.
Industry Insights & Strategic Advantage
Strategic Reliability in the Evolution of Industrial HMIs
The transition toward Industrial 4.0 demands displays that can handle richer data environments while maintaining the physical ruggedness of legacy hardware. The LTA084C271F bridges this gap by offering XGA clarity in a form factor traditionally reserved for lower resolutions. This enables engineers to implement modern software UIs without needing to increase the physical footprint of the equipment. Furthermore, the LVDS Interface provides a standardized, noise-resistant connection that simplifies the design of the mainboard, as detailed in our guide on TFT-LCD industrial applications.
Understanding the difference between consumer-grade and industrial-grade panels is vital. The LTA084C271F is engineered for longevity, featuring specialized liquid crystal materials that resist "image sticking" or "ghosting" during long-term static display use. Choosing a display with a high Contrast Ratio and wide Viewing Angle is not just about aesthetics; it is a safety requirement for field engineers who must read data accurately from various positions. For more on how panel technology affects visibility, refer to our analysis on TN vs IPS selection.
Frequently Asked Questions
What is the primary benefit of the LTA084C271F's XGA resolution in an 8.4-inch form factor?
It offers superior pixel density for detailed data visualization in compact HMI panels, allowing for clearer text and finer graphical detail than standard SVGA displays.
Can the LTA084C271F operate in outdoor environments with high temperature fluctuations?
With an operating temperature range of -20°C to 70°C, it is rated for typical industrial environments. However, for direct sunlight readability, additional optical bonding or high-brightness enhancements might be required depending on the enclosure design.
How does the LVDS interface impact the system's electromagnetic compatibility (EMC)?
The LVDS (Low Voltage Differential Signaling) interface used in the LTA084C271F is designed to minimize EMI by using differential signals, which is crucial for sensitive medical HMI or laboratory equipment applications.
What is the typical life expectancy of the WLED backlight in this module?
While specific longevity depends on the duty cycle and brightness settings, industrial WLED backlights from Toshiba Technologies are generally designed for 50,000 to 70,000 hours of operation to half-brightness.
Ensuring the long-term reliability of your control system starts with selecting a display that matches the complexity of your data. The LTA084C271F provides a stable, high-resolution foundation for the next generation of industrial interfaces, balancing technical precision with field-proven durability.
