Samsung LTM150XP-L01 | Legacy Reliability in XGA Industrial Display

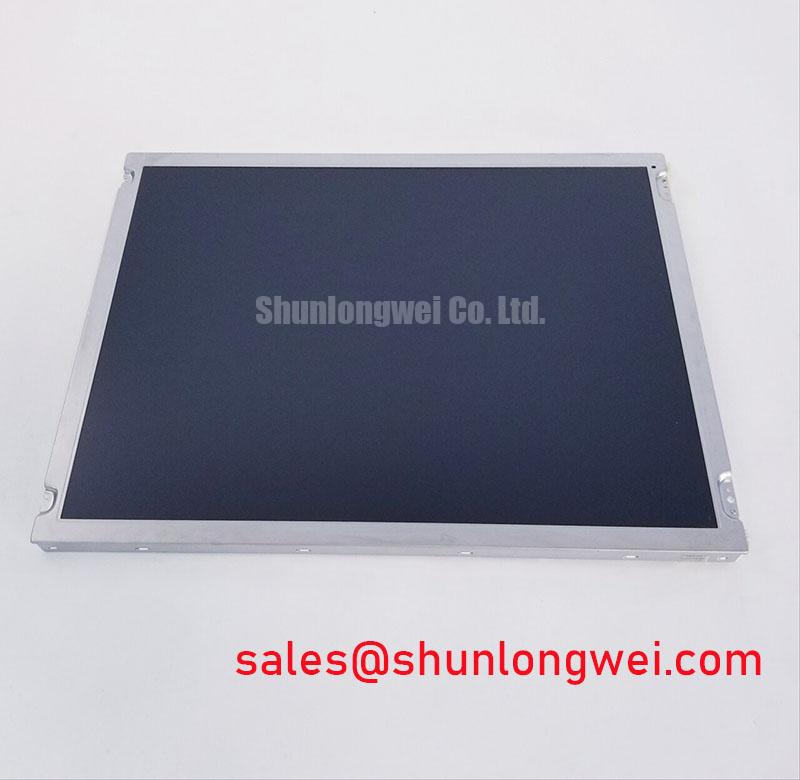

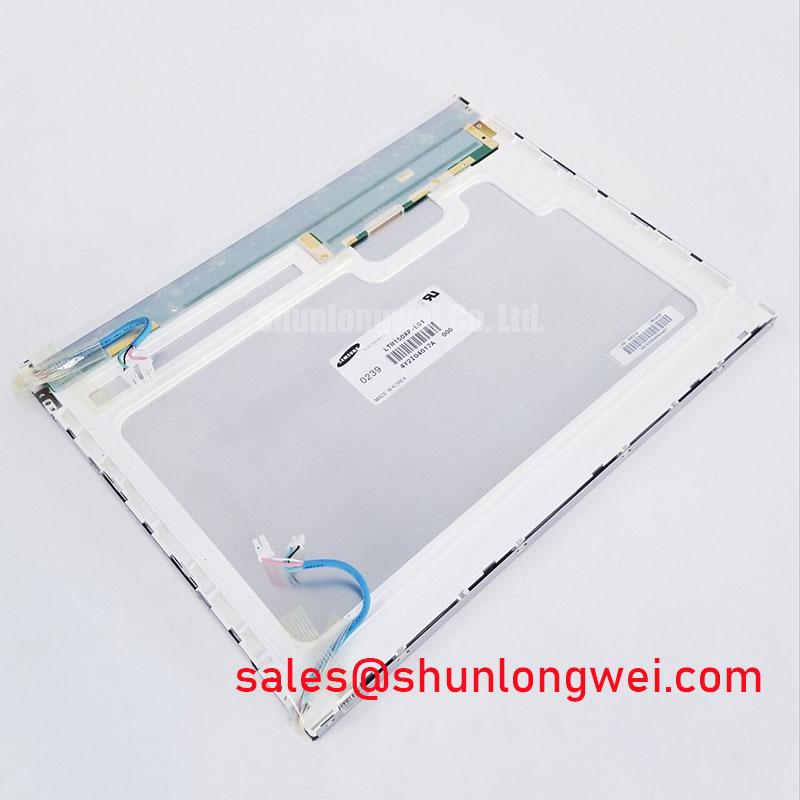

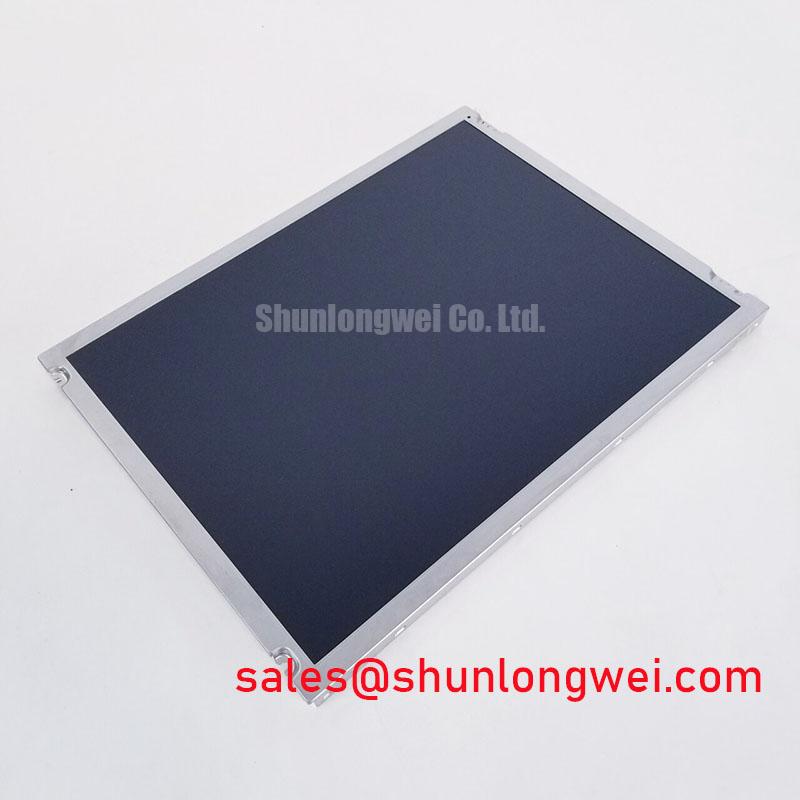

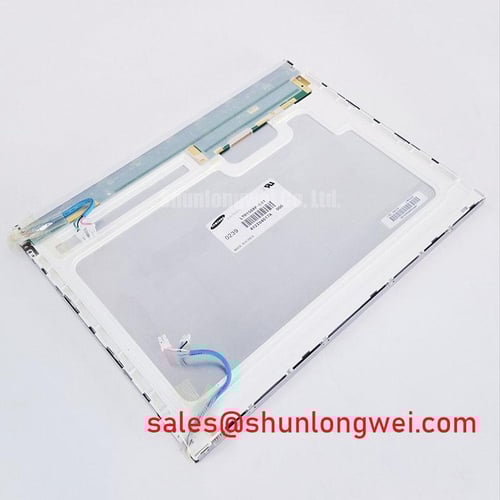

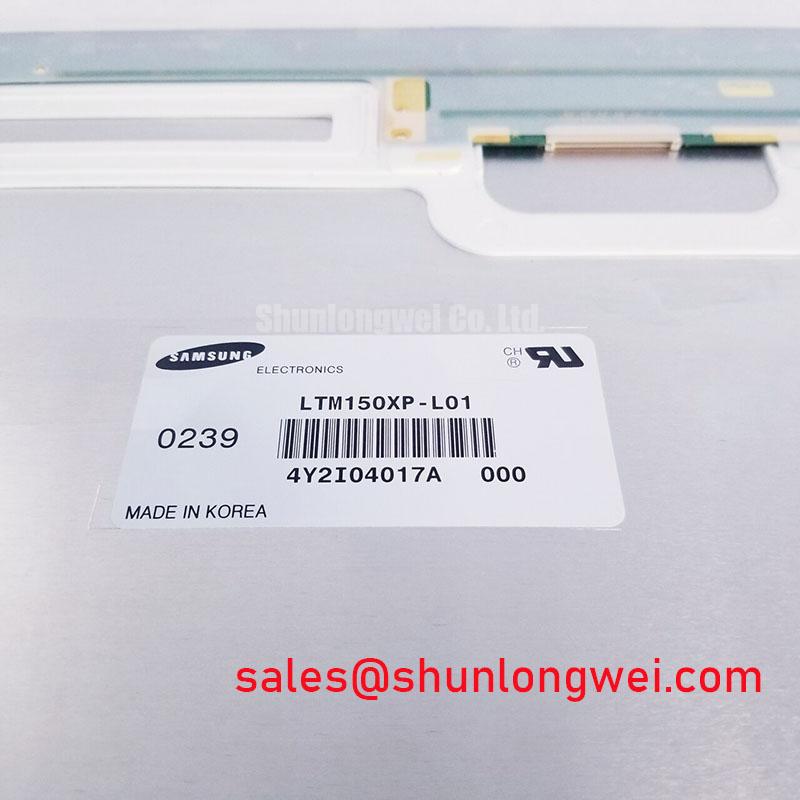

The Samsung LTM150XP-L01 is a 15.0-inch TFT-LCD panel engineered for applications where long-term reliability and consistent performance are non-negotiable. While newer display technologies emerge, this XGA (1024 x 768) panel remains a critical component for maintaining and servicing long-lifecycle equipment in medical, industrial, and specialized computing sectors. Its design prioritizes stability and backwards compatibility, making it an ideal drop-in replacement or specified component for systems built to last.
Key Performance Parameters
Engineers value predictable performance. The LTM150XP-L01 delivers on the specifications that matter most for clear and effective visualization in professional environments. For detailed electrical and mechanical specifications, you can download the LTM150XP-L01 datasheet.
| Parameter | Specification |
|---|---|
| Screen Size | 15.0 inch |
| Resolution | 1024(RGB)×768, XGA |
| Display Technology | a-Si TFT-LCD, Liquid Crystal |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) |
| Viewing Angle | 60/60/45/50 (Typ.)(CR≥10) |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Backlight | 2 pcs CCFL |
Technical Deep Dive: The Foundation of Reliability
The enduring relevance of the LTM150XP-L01 is rooted in its foundational technology, which is optimized for stability over raw performance metrics often seen in consumer-grade displays.
- Proven a-Si TFT (Amorphous Silicon) Technology: Unlike the LTPS technology found in modern smartphones, a-Si TFT is the workhorse of industrial displays. Its mature manufacturing process results in exceptional uniformity and stability over long operational lifetimes. This technology ensures that the display's performance remains consistent even after years of service in demanding 24/7 environments, a critical requirement for medical and industrial control systems.
- Robust LVDS Interface: The panel utilizes a single-channel LVDS Interface. In industrial settings rife with electromagnetic interference (EMI) from motors and power supplies, the differential nature of LVDS provides superior noise immunity compared to older parallel interfaces. This ensures signal integrity over longer cable distances, simplifying system integration and enhancing reliability.
Application Scenarios & Engineering Value
The LTM150XP-L01 isn't a one-size-fits-all solution; it excels in applications where its specific strengths provide tangible value.
- Medical Diagnostic Stations: In legacy ultrasound systems, patient monitors, and diagnostic equipment, the XGA resolution and consistent colorimetry are sufficient for displaying critical waveforms and imaging data. Its proven reliability ensures these devices remain operational, avoiding costly and complex system-wide upgrades.
- Industrial HMI and Control Panels: For factory automation and process control, clarity and durability are paramount. The LTM150XP-L01 serves as a dependable replacement for aging HMIs, preserving the existing mechanical and software infrastructure while restoring visual clarity. Its standard form factor minimizes the need for re-tooling.
- Point-of-Sale (POS) and Kiosk Systems: These systems demand displays that can withstand continuous use. The robust construction and stable CCFL backlight of the LTM150XP-L01 provide the longevity needed for high-traffic commercial environments.
Expert Insights: LTM150XP-L01 Engineering FAQ
Is the LTM150XP-L01 a good choice for brand-new product designs?
The answer depends on the design goals. For new products requiring long-term availability (10+ years) and where XGA resolution is sufficient, the LTM150XP-L01 can be a strategic choice due to its stable supply chain and proven track record. However, for designs prioritizing low power consumption or higher resolutions, modern LED-backlit and higher-density industrial LCD displays might be more suitable. This panel's primary strength lies in Maintenance, Repair, and Operations (MRO) and as a specified component in long-lifecycle products.
What is the most common maintenance consideration for a CCFL-backlit panel like this?
The most common service item is the Cold Cathode Fluorescent Lamp (CCFL) backlight. CCFLs have a finite lifespan and will gradually dim over thousands of hours of use. The inverter board that powers the backlight is also a potential point of failure. When servicing equipment with an LTM150XP-L01, it's wise to inspect the backlight brightness and consider a preemptive replacement of the CCFL assembly and inverter if the unit has seen extensive use. For more tips, see our guide on industrial display maintenance.
If you are evaluating the LTM150XP-L01 for a system upgrade or require a reliable source for MRO, contact our technical team to discuss your specific application needs.
