Samsung LTM170EU-L21 | Reliable SXGA TFT-LCD for Mission-Critical Applications

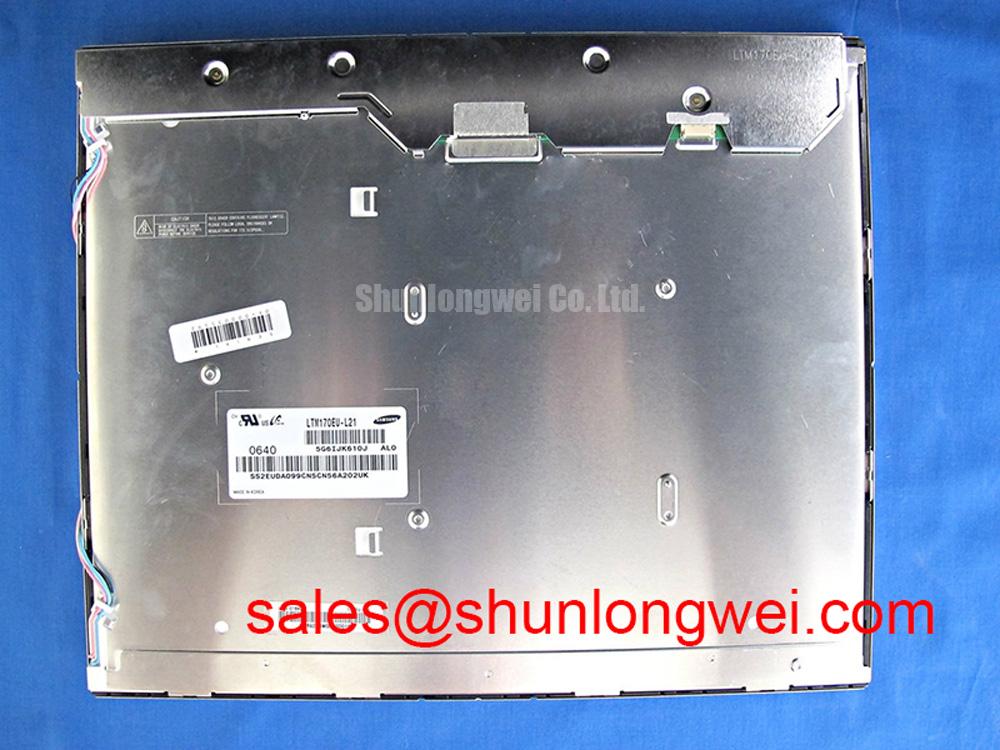

The Samsung LTM170EU-L21 is a 17.0-inch a-Si TFT-LCD module engineered for longevity and performance in demanding industrial and medical environments. It delivers crisp SXGA (1280x1024) resolution in a classic 5:4 aspect ratio, making it an ideal drop-in replacement or core component for systems where visual clarity and operational stability are non-negotiable. Designed as a workhorse display, the LTM170EU-L21 provides a dependable visual interface for everything from process control HMIs to medical diagnostic equipment.
Technical Deep Dive: Core Strengths of the LTM170EU-L21
Classic SXGA Resolution for Seamless Integration:
The 1280x1024 resolution is more than a specification; it's a strategic advantage. Many legacy industrial software interfaces and machine enclosures are specifically designed for the 5:4 aspect ratio. Upgrading to widescreen formats often requires costly software redesign and physical re-tooling. The LTM170EU-L21 eliminates this pain point, enabling direct, hassle-free upgrades and extending the life of valuable existing equipment.
Optimized Brightness and Contrast for Readability:
With a typical luminance of 300 cd/m² and a high contrast ratio of 700:1, this display ensures excellent legibility. In a brightly lit factory or a focused clinical setting, the ability to clearly read critical data, waveforms, or user prompts without error is paramount. This module’s optical performance is engineered to reduce operator fatigue and minimize misinterpretation of information.
Diverse Applications, Consistent Performance
The true value of the Samsung LTM170EU-L21 is demonstrated by its adaptability and reliability across various sectors:
- Medical Imaging Stations: The stable color reproduction and sharp SXGA resolution are essential for reviewing detailed patient data and grayscale images. It provides the visual consistency required for accurate diagnostics.
- Industrial Automation & HMI: In environments with high electromagnetic interference, a robust display is critical. The LTM170EU-L21 utilizes a standard LVDS interface that ensures signal integrity, providing machine operators with a stable and reliable control view.
- ATM and Public Kiosks: These systems demand components with a long operational lifespan and minimal maintenance. This display’s proven durability makes it a cost-effective choice, ensuring low total cost of ownership and consistent public-facing performance.
- Test & Measurement Equipment: Engineers and technicians rely on precise visual data. The panel’s sharp pixel structure allows for the clear rendering of complex schematics, measurement values, and digital waveforms.
Key Technical Specifications
| Parameter | Value |
|---|---|

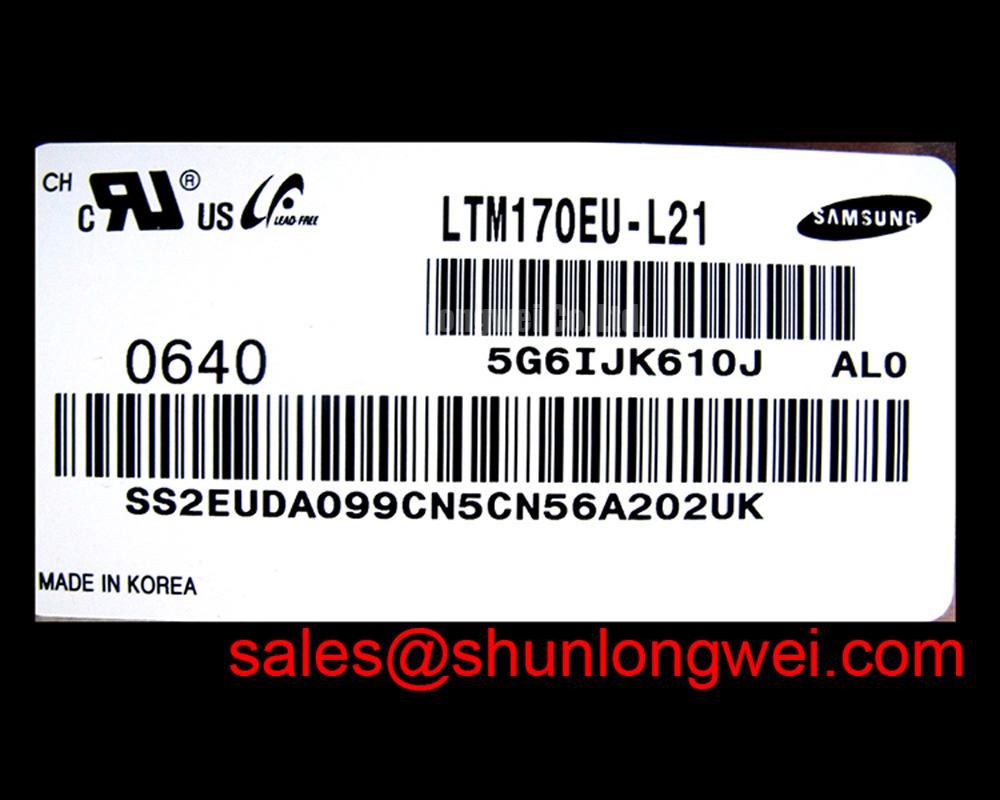

| Model Name | LTM170EU-L21 |
| Screen Size | 17.0 inch |
| Resolution | 1280(RGB)×1024, SXGA |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Interface Type | LVDS (2 ch, 8-bit) |

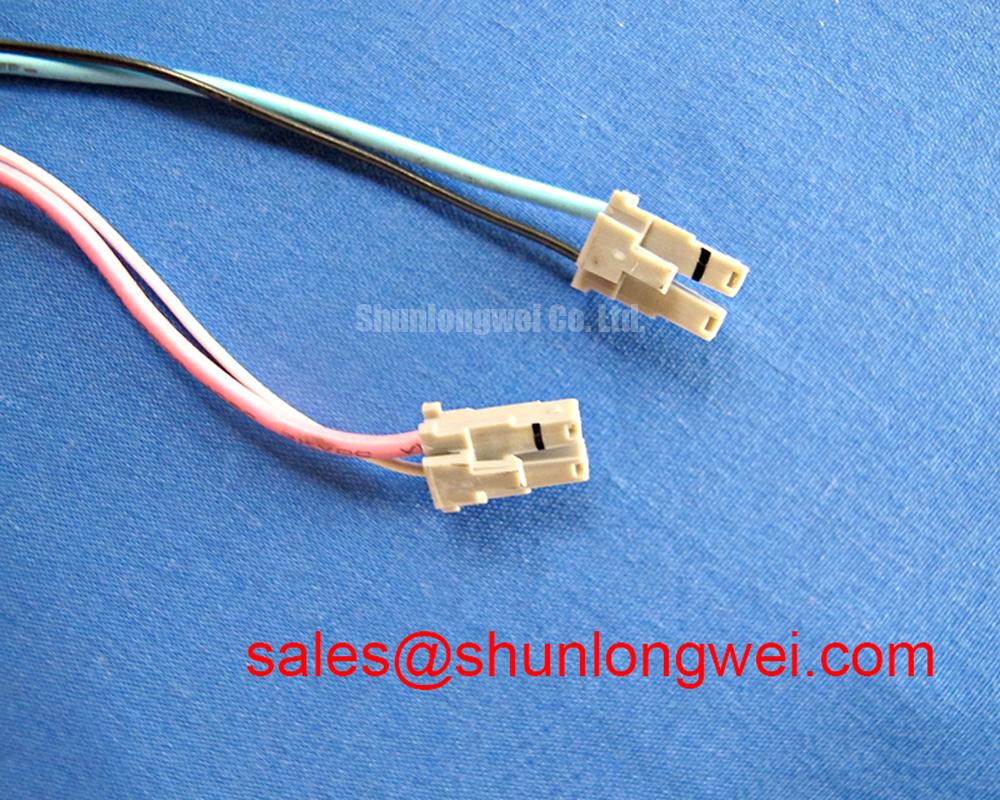

| Backlight System | 4 pcs CCFL |
| Operating Temperature | 0 ~ 50 °C |
For a complete list of parameters, please review the official LTM170EU-L21 Datasheet.
Selection Advice: Why Choose a Legacy Workhorse?
In an era of rapidly changing display technologies, choosing a mature panel like the Samsung LTM170EU-L21 is a calculated engineering decision. For systems with validated software and fixed mechanical designs, it represents the path of least resistance and lowest risk. The cost and complexity associated with adapting to different aspect ratios or interfaces are often prohibitive. This makes the LTM170EU-L21 not just a component, but a strategic solution for lifecycle management and system maintenance. If you're looking for other dependable industrial LCD modules, our catalog offers a wide selection.
For availability, technical support, or to request a quote for the LTM170EU-L21, please contact us today.
