CLAA170EA07 | Robust 17-Inch SXGA Industrial LCD for Demanding Visual Applications

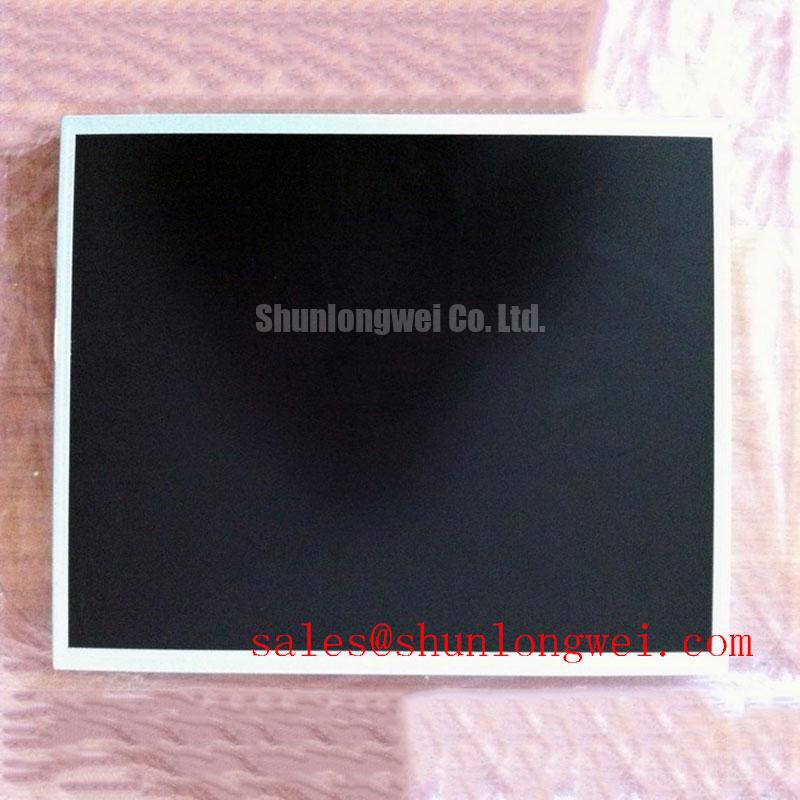

The Chunghwa Picture Tubes (CPT) CLAA170EA07 is a 17.0-inch a-Si TFT-LCD module engineered for performance and longevity in challenging environments. It delivers crisp SXGA (1280x1024) resolution, making it an ideal display solution for industrial control systems, medical equipment, and specialized information kiosks. The CLAA170EA07 prioritizes image clarity, operational reliability, and ease of integration, addressing the core needs of system designers looking for a dependable visual interface for long-lifecycle products.
Technical Deep Dive: Performance & Reliability
The value of an industrial display lies in its ability to perform flawlessly over years of service. The CLAA170EA07 is built on this principle with several key features:
- Superior Visual Fidelity: Leveraging a-Si TFT-LCD technology, the panel presents data and graphical user interfaces with excellent clarity. The SXGA resolution provides ample screen real-estate for complex schematics or detailed readouts, while the 262K color depth ensures accurate representation for standard industrial and medical applications.
- Reliable CCFL Backlight System: Equipped with a robust Cold Cathode Fluorescent Lamp (CCFL) backlight system, the CLAA170EA07 guarantees stable brightness and consistent color temperature over its extended operational life. This system is driven by reliable High voltage ICs, ensuring consistent performance and minimizing the risk of premature failure often seen in less durable solutions.
- Wide Viewing Angles: Designed for practicality, the display offers generous horizontal and vertical viewing angles. This ensures that operators can clearly read the screen from various positions, a critical requirement in dynamic factory floor or clinical settings where the user may not always be directly in front of the display.
Multi-Dimensional Application Scenarios
The CLAA170EA07's feature set translates directly into tangible benefits across several key sectors:
- Industrial Automation & HMI: In Human-Machine Interface (HMI) applications, the panel’s sharp resolution and anti-glare surface allow for clear visualization of process control data, even under harsh factory lighting. Its standard LVDS interface simplifies integration with industrial PCs and PLCs.
- Medical Diagnostic and Monitoring Equipment: For non-diagnostic viewing stations, such as patient monitors or medical device controls, the display's consistent color performance and high contrast ratio are essential for accurate data interpretation. Its durability ensures it can withstand the rigorous cleaning and operational demands of a healthcare environment.
- Test & Measurement Instruments: Precision instruments require displays that can render fine waveforms and detailed numeric readouts without ambiguity. The SXGA resolution of the CLAA170EA07 provides the necessary pixel density for these demanding tasks, enhancing user accuracy and efficiency.
- Specialized Kiosks and ATMs: For public-facing systems, reliability is paramount. The robust construction and long-life backlight of this panel reduce maintenance frequency and ensure high uptime, delivering a dependable user experience.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Name | CLAA170EA07 |
| Screen Size | 17.0 inch |
| Resolution | 1280(RGB)×1024, SXGA |
| Display Area | 337.92(W) × 270.336(H) mm |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Signal Interface | LVDS (2 ch, 6-bit), 30 pins Connector |
| Backlight | 4 pcs CCFL , 50K hours , W/O Driver |
| Operating Temperature | 0 ~ 50 °C |
For complete details, please refer to the official CLAA170EA07 Datasheet.
Frequently Asked Questions (FAQ)
- Is the CLAA170EA07 a suitable upgrade for legacy systems?
Absolutely. Its industry-standard 17-inch SXGA format and 30-pin LVDS interface make it an excellent drop-in replacement for aging or discontinued panels from other manufacturers, enabling cost-effective system life extension without extensive redesign. - How can I ensure electromagnetic compatibility (EMC) when using this display?
Proper system design is key. Use high-quality, shielded LVDS cables and ensure the display chassis is well-grounded to the system's main ground. For applications in noisy electrical environments, integrating a dedicated EMI filter on the power supply line is a recommended best practice.
The CLAA170EA07 is a testament to reliable engineering, offering a stable and visually superior platform for applications where failure is not an option. It adheres to strict manufacturing standards, including RoHS compliance, making it suitable for global deployment. If your project demands a proven and dependable display solution, the CLAA170EA07 is an outstanding choice.
To learn more about our display solutions, explore our full range of industrial LCDs or contact us for a direct quote on the CLAA170EA07.
