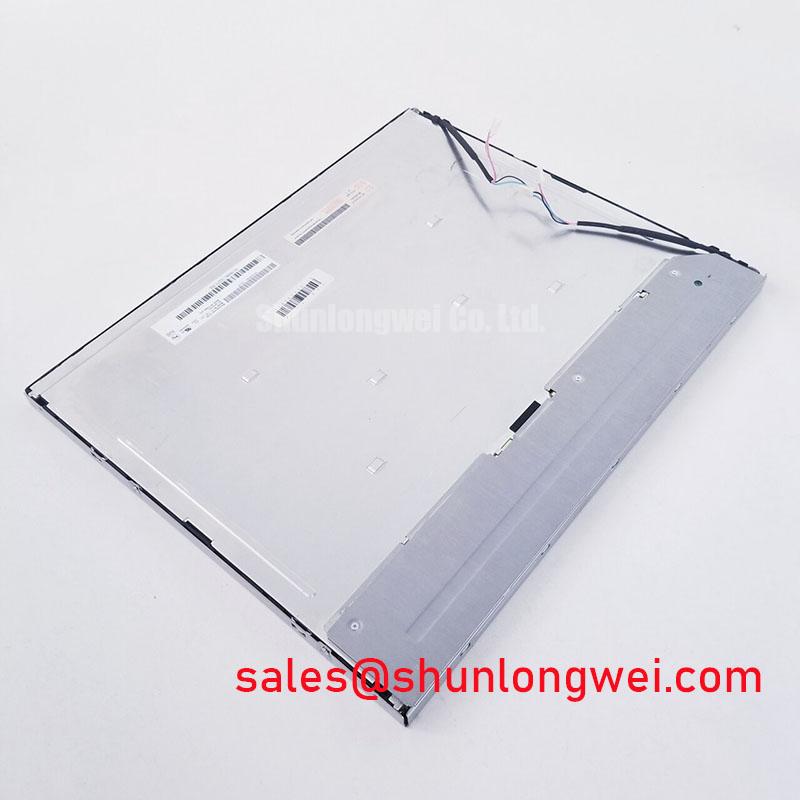

AUO M170EG01 VG LCD Display

AUO M170EG01 VG: Robust 17.0" SXGA industrial display. Features wide temp range & anti-glare. A reliable, long-life drop-in replacement for legacy medical & automation systems.

· Categories: LCD Display
· Manufacturer: AUO
· Price: US$ 150
· Date Code: 2024+
. Available Qty: 224
Like
Tweet
Pin It
4k
Email: sales@shunlongwei.com
Whatsapp: 0086 189 2465 1869

Contact us To Buy Now!

M170EG01 VG Specification

AUO M170EG01 VG | Legacy-Compatible 17.0" SXGA Industrial Display

The AUO M170EG01 VG is a testament to enduring industrial design, offering a robust and reliable 17.0-inch display solution engineered for demanding applications. As a classic 5:4 aspect ratio panel with SXGA (1280 x 1024) resolution, it serves as a critical component for both new systems and legacy equipment upgrades where form-fit-function compatibility is paramount. This display is not just a screen; it's a long-term asset for industrial automation, medical diagnostics, and public-facing terminals.

Technical Deep Dive: Engineering for Reliability

The value of the M170EG01 VG lies in its foundational technologies that ensure performance in non-ideal conditions. Two core strengths stand out:

  • Wide Operating Temperature Range: With an operational window of 0°C to +50°C, this panel is built to withstand the thermal fluctuations common in factory floors, control rooms, and semi-outdoor enclosures. This eliminates the need for complex and costly climate control systems, directly reducing system complexity and improving reliability in environments where consumer-grade displays would quickly fail.
  • Consistent Viewing Angles & Anti-Glare Surface: The M170EG01 VG provides 80/80/60/80 (L/R/U/D) viewing angles, ensuring image clarity and color fidelity even when viewed off-axis. This is crucial for HMI panels or medical equipment where multiple operators may view the screen from different positions. Paired with an anti-glare surface treatment, it minimizes reflections from overhead lighting, reducing operator eye strain and improving data readability.

Application Scenarios: Solving Real-World Challenges

The true measure of an industrial LCD is its performance in the field. The AUO M170EG01 VG excels across several key sectors:

  • Industrial Automation & HMI: Many legacy SCADA and HMI software applications are designed for a 5:4 aspect ratio. The M170EG01 VG serves as a perfect drop-in replacement, avoiding expensive software redesigns and UI scaling issues. Its durability ensures it can handle the 24/7 operational demands of a manufacturing environment.
  • Medical Imaging Systems: In diagnostic applications, precise image reproduction is non-negotiable. This display's high contrast ratio and stable color performance provide the consistency needed for reviewing medical scans and patient data, where every detail matters.
  • ATMs and Public Kiosks: These systems require displays that are both durable and easily readable. The robust construction of the M170EG01 VG resists the rigors of public use, while its brightness and anti-glare properties ensure excellent visibility for users in diverse lighting conditions, from bright lobbies to shaded outdoor locations.
  • Test and Measurement Equipment: For specialized instrumentation, a clear and stable display is essential for accurate readings. The classic SXGA resolution offers a sharp, detailed view of waveforms, schematics, and measurement data without pixel distortion.

Key Technical Parameters

For your engineering review, here are the essential specifications for the AUO M170EG01 VG. A complete datasheet is available upon request.

ParameterValue
Screen Size17.0 inch
Resolution1280(RGB)×1024, SXGA, 96PPI
Viewing Angle80/80/60/80 (Typ.)(CR≥10)
Brightness300 cd/m² (Typ.)
Contrast Ratio700:1 (Typ.) (TM)
Interface TypeLVDS (2 ch, 8-bit), 30 pins Connector
Backlight4 pcs CCFL, 50K hours, W/O Driver
Operating Temperature0 ~ 50 °C

Selection Advice: Embracing Legacy Compatibility

While the market trends towards widescreen (16:9) displays, the AUO M170EG01 VG holds a strategic advantage for specific use cases. If you are retrofitting existing machinery or designing a system around established software with a fixed 5:4 UI, this panel is the superior choice. Attempting to force a widescreen display into such an application can lead to distorted graphics, black bars (pillarboxing), and a compromised user experience. The M170EG01 VG, with its standard LVDS interface and proven CCFL backlight, ensures seamless electrical and mechanical integration, minimizing engineering risks and accelerating your time-to-market.

For projects requiring a reliable, long-lifecycle display that honors established design standards, the AUO M170EG01 VG is a technically sound and cost-effective solution. Contact us to discuss your project requirements or to request a quote.
