LM171WX3-TLC2: Engineering a 17.1-inch WXGA+ Display for Reliable System Integration
An In-Depth Technical Review of the LG Display LM171WX3-TLC2 TFT-LCD Module
Content last revised on October 9, 2025.

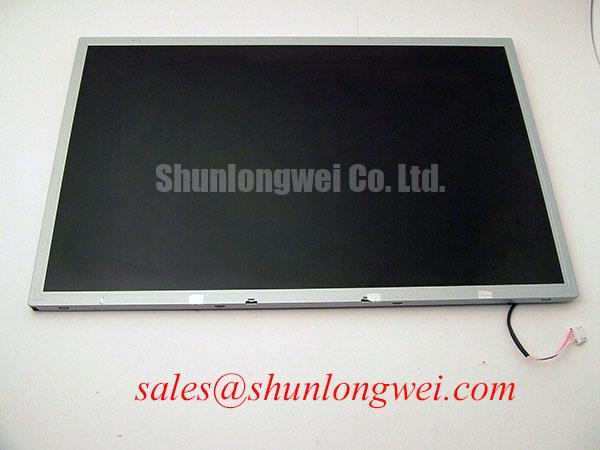

The LM171WX3-TLC2 is a 17.1-inch WXGA+ TFT-LCD module engineered for straightforward system integration, leveraging a standard LVDS interface and robust surface treatments for reliable performance. This panel delivers a functional resolution of 1440 x 900 pixels, powered by a mature CCFL backlight system, making it a well-documented component for legacy system upgrades or new designs requiring a 16:10 aspect ratio. What is the primary benefit of its standard LVDS interface? It ensures broad compatibility with industry-standard controllers, reducing design complexity. For systems requiring a proven, cost-effective display solution for industrial HMIs or information kiosks, the LM171WX3-TLC2 offers a dependable foundation.
Key Parameter Overview
Decoding the Specs for Seamless Integration
The technical specifications of the LM171WX3-TLC2 are foundational to its role as a reliable display solution. The combination of its WXGA+ resolution and standard interface protocol provides a clear path for system designers. Below are the key performance indicators derived directly from the official datasheet.
| Parameter | Specification | Engineering Significance |
|---|---|---|
| Screen Size | 17.1 inches (43.3 cm) | Provides a substantial active area for detailed GUIs without occupying an excessive footprint. |
| Resolution | 1440(RGB) × 900, WXGA+ | The 16:10 aspect ratio offers more horizontal space than traditional 4:3 displays, ideal for toolbars and widescreen data visualization. |
| Interface Type | LVDS (1 ch, 6-bit), 30 pins | Ensures plug-and-play compatibility with a vast range of standard motherboards and single-board computers (SBCs), minimizing integration risks. |
| Luminance | 250 cd/m² (Typ.) | Delivers sufficient brightness for typical indoor environments like control rooms, retail spaces, and medical offices. |
| Contrast Ratio | 500:1 (Typ.) | Provides clear differentiation between light and dark shades, critical for readability of text and graphical elements. |
| Surface Treatment | Antiglare, Hard coating (3H) | Reduces reflections from ambient light for improved operator comfort and protects the panel surface from incidental contact. |
| Backlight System | 1 pcs CCFL, 50K hours (Typ.) | A proven and cost-effective lighting technology with a well-defined service life, requiring a separate CCFL inverter. |
| Operating Temperature | 0 ~ 50 °C | Suitable for controlled indoor commercial and light industrial applications. |
Note: The parameters listed above are for reference. For complete electrical and mechanical specifications, please refer to the official documentation.
Download the LM171WX3-TLC2 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Commercial and Industrial HMIs
The LM171WX3-TLC2 is best suited for applications where a balance of screen real estate, standard connectivity, and long-term reliability is paramount. Its feature set addresses common engineering challenges in developing fixed-use systems like information kiosks, Human-Machine Interface (HMI) panels, and Point-of-Sale (POS) systems.
Consider the design of a process control panel for a manufacturing floor. The engineering challenge is to display a complex graphical user interface (GUI) with multiple data readouts, status indicators, and control buttons clearly. The LM171WX3-TLC2's WXGA+ (1440x900) resolution is a key enabler here. This resolution provides 30% more horizontal pixels than standard XGA (1024x768), allowing for a less cluttered GUI design. This is analogous to having a wider workbench; it allows for a more organized and efficient layout of tools and information, directly improving operator efficiency and reducing the potential for error. The standard LVDS Interface further simplifies development, as it connects directly to the LVDS controller on an industrial Single-Board Computer (SBC), eliminating the need for custom interface adapters.
For applications demanding a different form factor or higher brightness, other solutions may be more suitable. For instance, systems requiring a more compact and brighter display could evaluate a panel like the G101EVN01.0, which offers a smaller diagonal with higher luminance.
Frequently Asked Questions (FAQ)
Technical Inquiries for the LM171WX3-TLC2
What is the significance of the WXGA+ resolution in practical applications?
The WXGA+ (1440x900) resolution provides a 16:10 aspect ratio. This wider format is highly beneficial for productivity-oriented applications, such as industrial control panels or diagnostic equipment, as it allows for displaying additional data columns, toolbars, or video feeds alongside primary information without compromising readability.
Does the CCFL backlight require special consideration during design?
Yes. The CCFL backlight operates on high-voltage AC and requires a dedicated external CCFL inverter to power it. The inverter takes a DC input from the system's power supply and converts it to the necessary voltage for the lamp. The inverter and its high-voltage cabling should be properly shielded and routed to prevent EMI interference with other system components.
How does the 6-bit color depth impact visual performance?
A 6-bit color depth allows the panel to display 262,144 colors (2^6 x 2^6 x 2^6). This is sufficient for the vast majority of industrial and commercial HMI applications where the primary goal is to display clear graphics, text, and status indicators (e.g., green for 'on', red for 'off'). It provides a clear and functional color palette without the data overhead of true 8-bit color, simplifying the demands on the graphics controller.
Is the LM171WX3-TLC2 suitable for outdoor use?
No, this panel is specified for an operating temperature range of 0 to 50°C and has a typical brightness of 250 cd/m². These characteristics make it ideal for controlled indoor environments. Outdoor applications would require a display with much higher brightness for sunlight readability, a wider operating temperature range, and more robust environmental sealing.
Technical Deep Dive
A Closer Look at the LVDS Interface and Its Impact on System Reliability
The choice of a Low-Voltage Differential Signaling (LVDS) interface on the LM171WX3-TLC2 is a critical design feature that directly enhances system-level reliability and simplifies the integration process. LVDS transmits data using two differential lines with low voltage swings (around 350mV). This method offers two fundamental engineering advantages over older single-ended interfaces like TTL.
First, it provides superior noise immunity. Because the data is interpreted as the difference between the two wires, any common-mode noise induced from external sources (such as motors, power supplies, or radio frequencies) affects both lines equally and is largely cancelled out at the receiver. This is akin to using a balanced microphone cable in professional audio—it preserves signal integrity over distance and in electrically noisy environments. This inherent robustness is essential in industrial settings where electromagnetic interference (EMI) is a common challenge, ensuring a stable, flicker-free image.
Second, the low voltage swing and reduced number of conductors (compared to a parallel TTL interface) generate significantly less EMI themselves. This helps system designers meet regulatory compliance standards, such as those related to FCC or CE, with greater ease. By integrating a display with a well-behaved LVDS interface, engineers can often reduce the need for extensive shielding and filtering on the display data cable, saving cost and simplifying the mechanical design of the final product.
Strategic Integration
The LM171WX3-TLC2 represents a calculated choice for engineering teams tasked with developing or maintaining systems within the commercial and light-industrial sectors. Its value is not in pushing the boundaries of display technology but in providing a stable, predictable, and easily integrated visual component. By leveraging its industry-standard resolution and interface, designers can focus resources on software development and core system functionality rather than on overcoming display compatibility issues. This positions the LM171WX3-TLC2 as a strategic asset for projects where time-to-market, development cost, and long-term serviceability are the primary drivers of success.
