M190EN04 V1: Datasheet Insights for Industrial Displays
Engineered for Visual Consistency and Long-Term Service

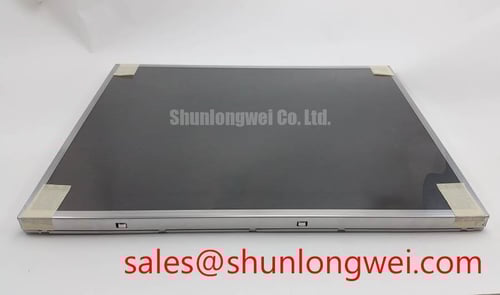

The AUO M190EN04 V1 is a 19.0-inch a-Si TFT-LCD module designed for applications demanding stable visual performance and extended operational life. It delivers a sharp 1280x1024 SXGA resolution complemented by a high brightness of 400 cd/m² and a 50,000-hour CCFL backlight system, ensuring readability and consistent performance. This display's robust build and proven backlight technology address the core need for long-term reliability in industrial environments. How does its design contribute to a lower total cost of ownership? The extended backlight lifespan directly reduces the frequency of maintenance cycles and replacements.
Technical Deep Dive: Core Visual Performance
The M190EN04 V1 is built on a foundation of proven TN (Twisted Nematic) technology, optimized for fast response times and high brightness. Its active area of 376.32 x 301.056 mm and a 5:4 aspect ratio make it a suitable fit for legacy systems and specialized equipment where this format is standard. The panel supports a 2-channel, 8-bit LVDS interface, a widely adopted standard that simplifies integration with a variety of industrial motherboards and single-board computers. This interface ensures reliable data transmission, which is critical for displaying precise graphical information without corruption or lag.
The specified typical response time of 3.6ms (Tr) and 8.4ms (Td) is particularly relevant for applications involving moving imagery or rapid data updates, such as process control monitoring. A swift response minimizes motion blur, ensuring that operators can clearly discern critical changes in real-time. This is analogous to a high shutter speed in photography; the faster the pixels can change state, the sharper the moving image appears, preventing critical details from being lost in a blur.
Strategic Advantage in Established Industrial Systems
In an era of rapid technological shifts, the M190EN04 V1 provides a strategic advantage for maintaining and upgrading existing infrastructure. Its classic 5:4 SXGA format and CCFL backlight system offer a direct, form-fit-function replacement path for aging industrial monitors. This continuity is vital for sectors like manufacturing automation and process control, where equipment has a service life measured in decades. Upgrading to a completely new form factor can trigger costly recertification and redesign of the entire Human-Machine Interface (HMI) enclosure. The M190EN04 V1 mitigates this by preserving the established mechanical and electrical footprint, enabling a cost-effective extension of asset life. For environments that require different optical properties, the related G190ETN01.4 presents an alternative set of specifications for evaluation.
Deployment Snippets: Proven in Demanding Environments
While specific end-user deployments are proprietary, the characteristics of the M190EN04 V1 align with the requirements of several established industrial use cases. Its high brightness and solid contrast ratio have made it a candidate for integration into factory floor control panels, where ambient lighting can be challenging. Similarly, in medical diagnostic equipment that has not yet transitioned to widescreen formats, this display serves as a reliable component for viewing critical patient data. Its physical durability, supported by a hard coating (2H) on the surface, provides resilience against the incidental contact common in these operational settings.
Application Scenarios & Engineering Value
The design of the AUO M190EN04 V1 lends itself to specific industrial and commercial applications where durability and consistent output are paramount.
- Industrial Automation & HMI: The 1280x1024 resolution and 5:4 aspect ratio are well-suited for displaying complex SCADA diagrams and control interfaces without distortion. The 50,000-hour backlight life translates to over 5.7 years of continuous 24/7 operation, minimizing downtime for maintenance.
- Specialized Kiosks & ATMs: The high brightness of 400 nits ensures content remains visible under the varied indoor lighting conditions typical of public spaces.
- Legacy System Upgrades: For systems originally designed around 19-inch 5:4 monitors, this module serves as a direct replacement component, extending the life of valuable capital equipment.
Best Fit: For industrial systems requiring a long-life, 5:4 aspect ratio SXGA panel with a standard LVDS interface, the M190EN04 V1 is an optimal choice for cost-effective lifecycle management.
Comparative Data for Informed Decisions
When evaluating displays for system integration, comparing key performance indicators is essential. The M190EN04 V1 sets a benchmark in its category, and engineers may consider other options based on specific project needs. For instance, the M170ETN01.1 offers a different screen size and aspect ratio, which may be more suitable for systems with different physical constraints. Another point of comparison could be the LM190E05-SL03, which may feature different optical characteristics or interface options. Presenting these models side-by-side allows for a data-driven decision based on the most critical parameters for the intended application, whether that is physical dimension, resolution, or interface type. This data is provided to empower engineering decisions, not to recommend one model over another.
Key Technical Specifications Overview
This table highlights the core parameters of the M190EN04 V1, providing at-a-glance data for initial assessment and system compatibility checks.
| Parameter | Specification |
|---|---|
| Screen Size | 19.0 inch |
| Resolution | 1280(RGB)×1024 (SXGA) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 450:1 (Typ.) |
| Backlight System | CCFL, 50,000 hours (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
For complete technical details, please refer to the official product datasheet.
Future-Proofing with Proven Technology
Integrating the M190EN04 V1 allows system designers to leverage a mature and well-understood technology platform. The use of a standard LVDS Interface and CCFL backlighting ensures a deep knowledge base for troubleshooting and driver development is readily available. This focus on established standards provides a low-risk, high-reliability display solution that supports long-term product roadmaps and service commitments, ensuring that systems deployed today can be maintained effectively for years to come. For a deeper understanding of the technologies behind modern industrial displays, explore The Ultimate Guide to TFT-LCD.
Frequently Asked Questions (FAQ)
What is the primary benefit of the M190EN04 V1's 50,000-hour backlight life?
The primary benefit is a significantly reduced total cost of ownership. This extended lifespan minimizes the need for costly maintenance interventions and panel replacements, which is particularly valuable in industrial settings where system uptime is a key performance indicator.
Is the M190EN04 V1 suitable for environments with fluctuating temperatures?
The datasheet specifies an operating temperature range of 0°C to 50°C. While suitable for most indoor industrial control rooms and commercial applications, it is not intended for deployment in outdoor or extreme temperature environments without an appropriate protective enclosure and thermal management system.
Does this module include a backlight driver?
No, the M190EN04 V1 is supplied without a backlight driver (inverter). System integrators must source or design a separate, compatible CCFL inverter to power the backlight system. This allows for greater flexibility in matching the inverter's characteristics to the specific power and control requirements of the end application.
