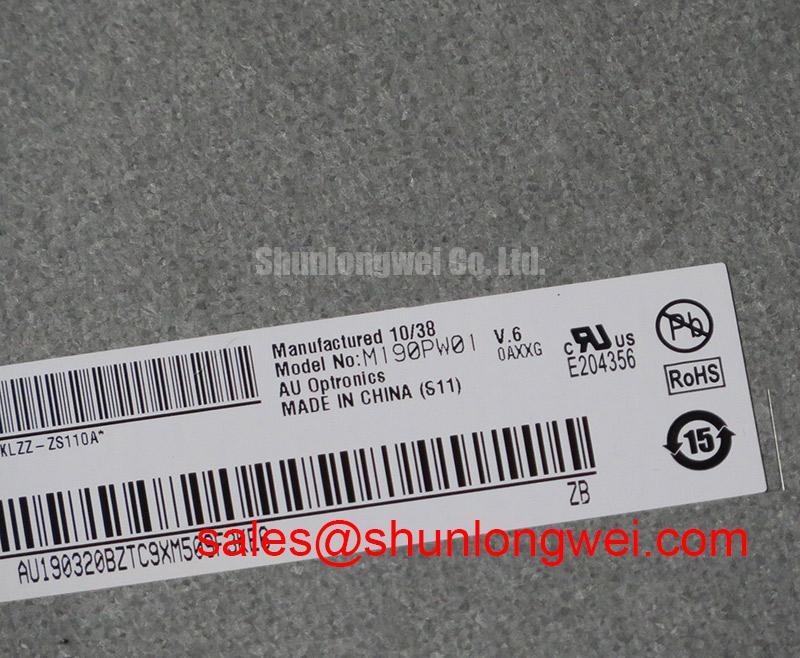

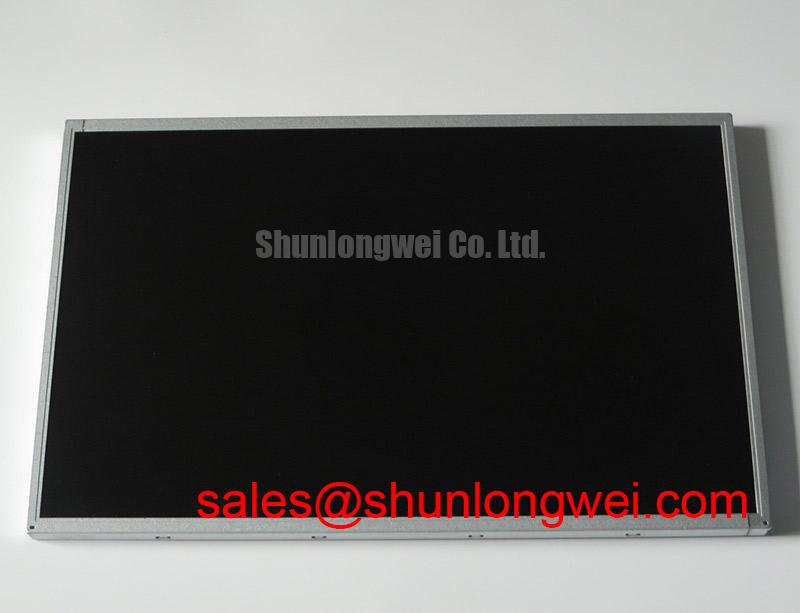

AUO M190PW01 V6 | Robust 19-inch WXGA+ Industrial LCD Display
The AUO M190PW01 V6 is a 19.0-inch diagonal a-Si TFT-LCD panel engineered for performance and reliability in demanding industrial environments. It delivers crisp, high-contrast visuals with a WXGA+ resolution, making it an ideal display solution for applications where data clarity and operational longevity are paramount. This panel represents a stable, proven platform for long-lifecycle system integration.
- Screen Size: 19.0 inch
- Resolution: 1440(RGB)×900, WXGA+
- Brightness: 250 cd/m² (Typical)
- Contrast Ratio: 1000:1 (Typical)
- Interface: LVDS (2 ch, 8-bit), 30 pins
- Backlight: WLED with a 50K hour lifetime
Key Parameters Overview
Engineers require precise data for system design and integration. The following table summarizes the core performance metrics of the M190PW01 V6. For a complete technical specification, you can download the full M190PW01 V6 datasheet here.
| Parameter | Specification |
|---|---|
| Manufacturer | AUO |
| Model Name | M190PW01 V6 |
| Panel Type | a-Si TFT-LCD, Cell |
| Resolution | 1440(RGB)×900 (WXGA+) |
| Active Area | 408.24(H) × 255.15(V) mm |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Color Gamut | 72% NTSC |
| Response Time | 3.6/1.4 (Typ.)(Tr/Td) ms |
| Operating Temperature | 0 ~ 50 °C |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pin Connector |
Application Scenarios & Value Proposition
The specific characteristics of the AUO M190PW01 V6 make it a superior choice for several key industrial sectors. Its value is not just in its specifications, but in how those specifications solve real-world engineering challenges.
- Industrial Automation & HMI: The 16:10 aspect ratio and WXGA+ resolution provide ample screen real estate for complex schematics, process control dashboards, and sophisticated industrial HMI interfaces. The high contrast ratio ensures that critical alerts and data points are easily legible under typical factory floor lighting.
- Medical Diagnostic Equipment: In non-diagnostic imaging applications, such as patient monitoring systems or equipment control panels, the consistent color reproduction and wide viewing angles allow multiple personnel to view information clearly from different positions around the device.
- Information Kiosks & Digital Signage: For indoor point-of-sale or information kiosk applications, the panel's robust build and 50,000-hour backlight lifetime ensure low maintenance and a long operational life, maximizing ROI.
Technical Deep Dive: Engineering for Reliability
Two core technologies define the M190PW01 V6's performance profile: its a-Si TFT substrate and its industry-standard LVDS interface.
The panel is built on an Amorphous Silicon (a-Si) TFT-LCD backplane. While newer technologies exist, a-Si remains a cornerstone of the industrial display market for its proven manufacturing process, cost-effectiveness, and exceptional stability over a wide range of operating conditions. This translates to a reliable component with a predictable and stable supply chain—a critical factor for industrial products with long service lives.
Data transmission is handled by a dual-channel, 8-bit LVDS Interface. Low Voltage Differential Signaling is the workhorse of industrial displays due to its high noise immunity and ability to drive signals over longer internal cabling without degradation. This simplifies the electronic design of the host system, reducing susceptibility to EMI/RFI common in industrial settings.
Frequently Asked Questions (FAQ)
1. Is the M190PW01 V6 suitable for direct sunlight applications?
With a typical brightness of 250 cd/m², this panel is designed for indoor or controlled-lighting environments. For direct sunlight readability, a display with much higher brightness (typically 1000 cd/m² or more) and often optical bonding would be required. This panel is ideal for factory floors, control rooms, and indoor kiosks.
2. What type of backlight driver is needed for this panel?
The M190PW01 V6 uses an integrated WLED backlight system and requires an external LED driver. The specific voltage and current requirements can be found in the official datasheet. Ensuring your driver matches these specifications is crucial for achieving the rated 50,000-hour backlight lifetime.
For detailed integration support or to discuss volume pricing for your project, please contact our technical team. We provide expert guidance to ensure your system design is optimized for performance and longevity.
