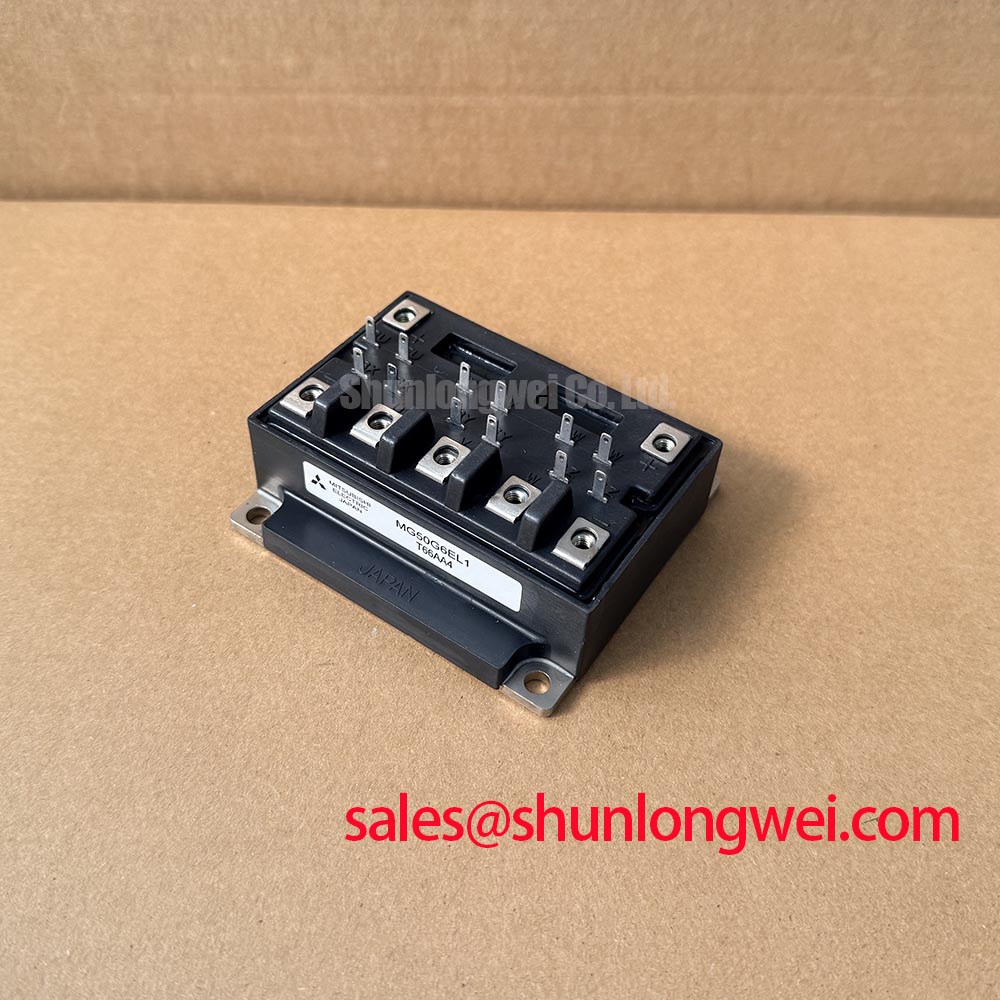

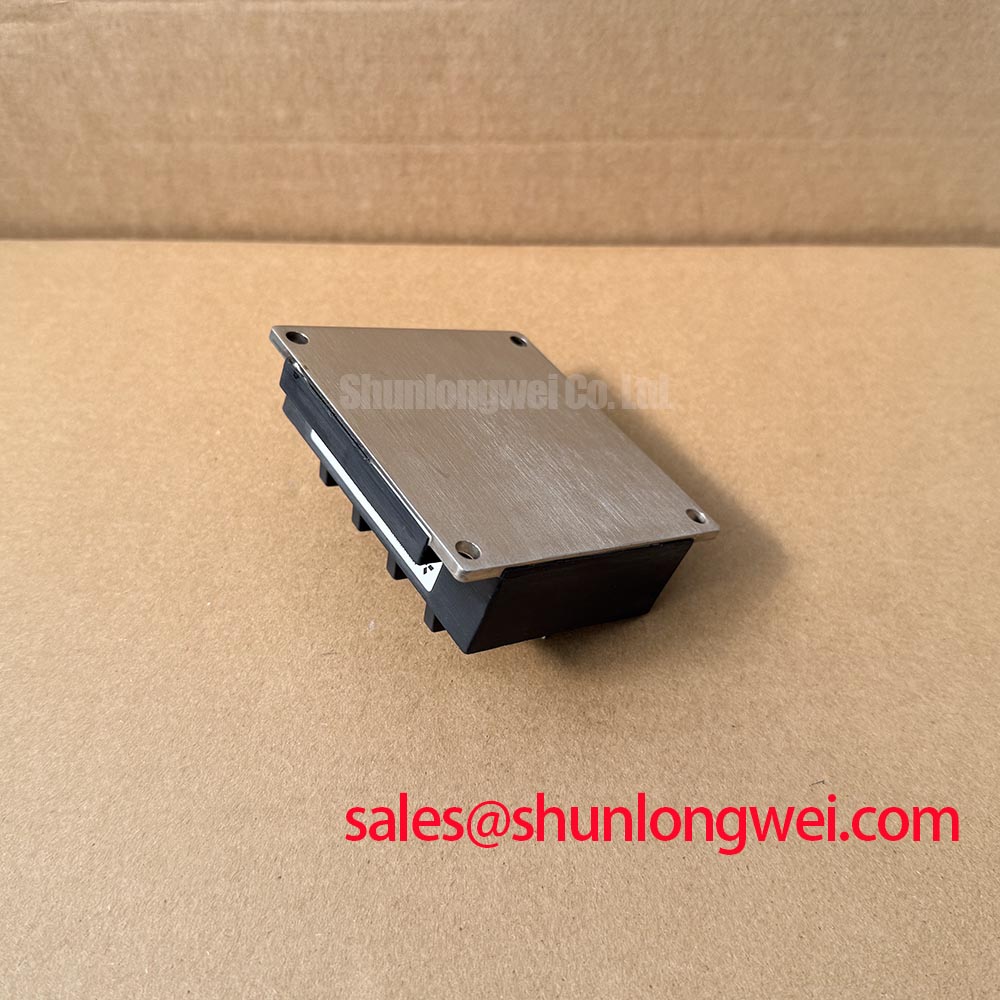

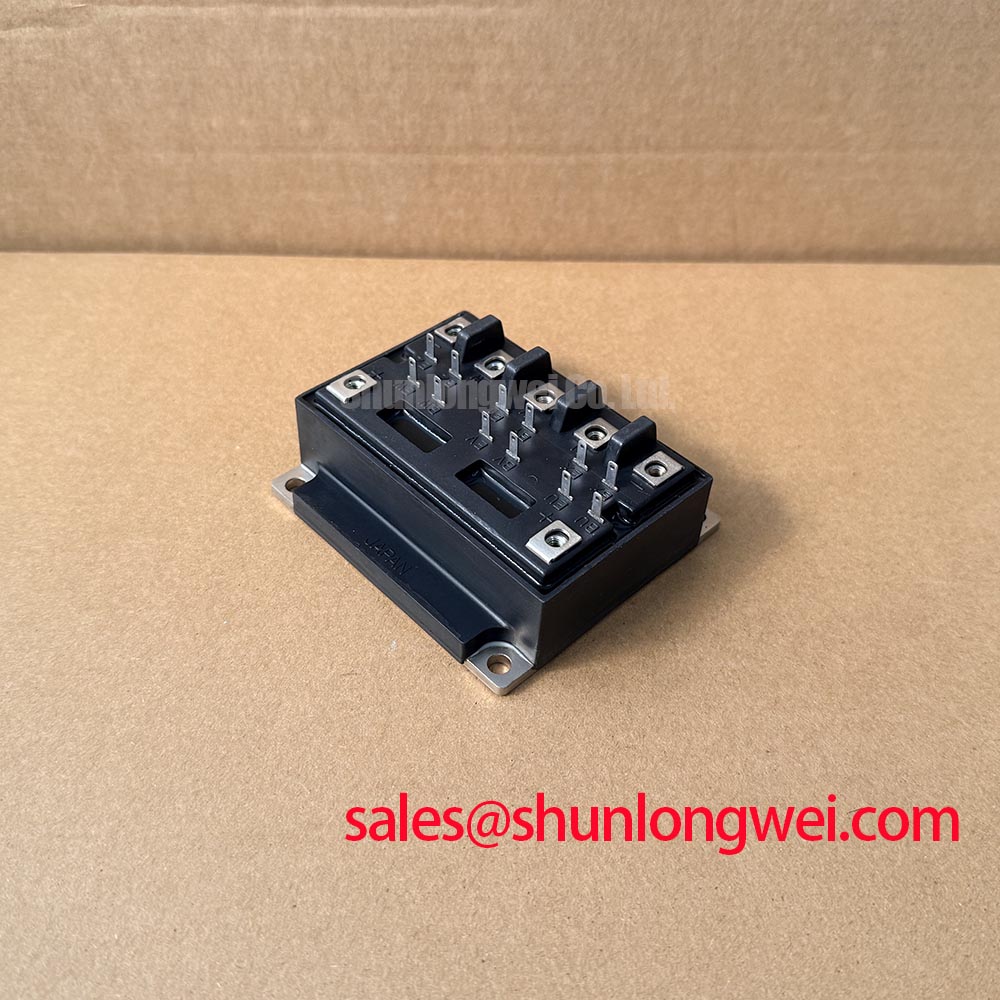

MG50G6EL1 Toshiba 600V 50A Power Transistor Module
Engineers maintaining legacy industrial systems often ask: "How can we maintain reliable 50A switching performance in high-power motor drives without transitioning to complex modern gate drive architectures?" The Toshiba MG50G6EL1 provides the definitive answer through its robust Darlington transistor structure, offering an integrated solution for high-power switching applications.
The MG50G6EL1 is a high-power GTR (Giant Transistor) module featuring a 600V collector-emitter voltage and a 50A collector current rating. Designed with an integrated fast-recovery freewheeling diode, this module simplifies circuit design by eliminating the need for external protection components in inductive load applications. For industrial drives prioritizing thermal margin and simplified base-drive requirements, this 600V module is the optimal choice.
Application Scenarios & Value
Optimizing Power Control in Legacy Motor Drive Systems
Engineers often face the challenge of sourcing high-reliability components for existing 600V infrastructure where modern IGBTs might require significant gate-driver redesigns. The MG50G6EL1 addresses this by utilizing a high-gain Darlington configuration, which significantly reduces the base current required to switch the primary 50A load. This makes it a preferred component for Variable Frequency Drives (VFD) and AC/DC servo motor controllers operating in the low-to-medium frequency range.
In high-fidelity engineering scenarios, such as industrial conveyor systems, the MG50G6EL1 handles the high inrush currents during motor startup with its peak current capability. The integrated high-speed diode ensures that back-EMF generated during the turn-off phase is safely recirculated, protecting the silicon from voltage spikes. While this module is ideal for standard industrial loads, systems requiring modern high-frequency switching might benefit from reviewing our analysis on IGBT vs MOSFET vs BJT architectures.
Frequently Asked Questions
Engineering Insights for Component Implementation
How does the VCE(sat) of the MG50G6EL1 impact the thermal management strategy in a 50A application?
The VCE(sat) (saturation voltage) of the MG50G6EL1 determines the conduction losses within the module. In a 50A continuous operation scenario, a lower saturation voltage translates to less heat generated at the junction. This directly influences the size of the required heatsink and the choice of thermal interface material. For detailed calculations on junction-to-case resistance, understanding why Rth matters is essential for long-term reliability.
What are the benefits of the integrated fast-recovery diode in the MG50G6EL1 for inductive load switching?
The integrated diode is specifically matched to the transistor's switching characteristics. It provides a low-impedance path for freewheeling current, which is critical in Servo Drive applications where rapid deceleration causes significant energy kickback. This integration reduces stray inductance in the power loop, minimizing electromagnetic interference (EMI) and preventing the transistor from exceeding its 600V rating during switching transitions.
Key Parameter Overview
Functional Grouping of Technical Specifications
| Category | Parameter Description | Typical Value |
|---|---|---|
| Voltage Ratings | Collector-Emitter Voltage (Vces) | 600V |
| Current Ratings | Continuous Collector Current (Ic) | 50A |
| Switching Specs | DC Current Gain (hFE) | 100 (Min) |
| Diode Specs | Forward Voltage (Vf) | 2.0V (Typical) |
| Mechanical | Isolation Voltage | 2500V AC |
Technical Deep Dive
The Darlington Advantage in High-Power Switching
The MG50G6EL1 utilizes a multi-stage Darlington configuration to solve a fundamental engineering trade-off: the need for high current handling paired with low control current. Think of the Darlington structure as a "current lever"—a small signal at the base is amplified twice through the internal transistor stages, allowing the 50A collector load to be controlled with precision. This is particularly valuable in Welding Power Supply units where base-drive simplicity is a requirement for ruggedness.
From a reliability standpoint, the module's 2500V AC isolation ensures that the high-voltage power stage is safely decoupled from the sensitive control electronics. This is a critical factor for compliance with IEC 61800-3 standards in industrial environments. By housing the transistor and the freewheeling diode in a single, thermally optimized package, Toshiba has minimized internal parasitic inductance. For engineers interested in how these principles translate to newer technologies, a deep dive into IGBT structures provides a useful comparison of evolution in power electronics.
For technical procurement and engineering support regarding the MG50G6EL1, consult with our specialists to ensure your system timing and thermal profiles align with the module's proven performance envelope. Our technical team is available to assist with logistics and data verification for your upcoming production or maintenance cycles.
