MIG15J503H: An In-Depth Engineering Review
Accelerating Low-Power Drive Design with Integrated Intelligence

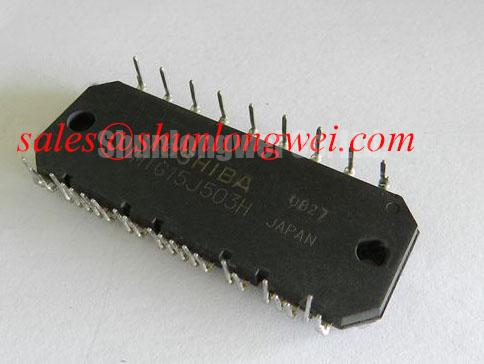

The MIG15J503H from Toshiba is an Intelligent Power Module (IPM) that delivers a complete, integrated three-phase inverter solution engineered to streamline the development of low-power motor control systems. With core specifications of 600V | 15A, this module consolidates the power stage, gate drive, and protection circuits into a single compact package. Key benefits include a significant reduction in design complexity and an inherent boost in system reliability. This component provides a direct answer for engineers seeking a fast and dependable method to drive small AC induction or brushless DC motors. For compact, low-power inverter designs up to approximately 2.2 kW, the MIG15J503H's high level of integration offers a decisive advantage in both board space and development time.
Key Parameter Overview
Decoding the Specs for Simplified System Integration
The specifications of the MIG15J503H are tailored for efficiency and reliability in 200/240V AC line-powered applications. Its integrated nature means many critical parameters are pre-optimized, a key benefit that can be explored further by contrasting IPM and discrete designs. The table below groups key ratings by function, highlighting the module's capabilities as a unified power stage.
| Functional Group: Inverter Power Stage | ||
|---|---|---|
| Parameter | Rating | Unit |
| Collector-Emitter Voltage (VCES) | 600 | V |
| Each Collector Current, DC (IC) | ±15 | A |
| Each Collector Current, Peak (ICP) | ±30 | A |
| Collector Power Dissipation (PC, per IGBT) | 43 | W |
| Functional Group: Control and Protection | ||
| Control Supply Voltage (VCC) | 20 | V |
| Input Voltage (VIN) | 5.5 | V |
| Fault Output Current (IFO) | 15 | mA |
| Functional Group: Thermal and Mechanical | ||
| Operating Temperature (TOPE) | -20 to +100 | °C |
| Junction Temperature (Tj, Note 1) | 150 | °C |
| Isolation Voltage (VISO) | 2500 | Vrms |
Note 1: While the maximum junction temperature is 150°C, the manufacturer specifies an average operating junction temperature of 125°C or less for safe, reliable operation.
Download the MIG15J503H datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in Compact Motion Control
The primary value of the MIG15J503H lies in its ability to accelerate the design of reliable, compact motor drives. It is an ideal fit for applications where space is at a premium and a fast time-to-market is critical. For systems requiring higher power handling, the related PS21865-P offers a 20A current rating within a similar integrated package.
Consider the design of a compact servo drive for an automated packaging machine. The engineering challenge is to create a small, reliable drive that can be placed close to the motor, reducing cabling and improving response time. Using discrete components would require a complex PCB layout with separate gate drivers, bootstrap circuits, and over-current sensing, all of which consume significant space and introduce potential points of failure. The MIG15J503H solves this by integrating these functions. An engineer can connect the module's inputs directly to a Microcontroller (MCU) and the outputs to the motor, drastically simplifying the power stage hardware. The integrated fault detection and output signal (FO pin) provides a direct, reliable feedback mechanism to the MCU, shutting down the drive safely without complex external monitoring circuits.
- Variable Frequency Drives (VFDs): Perfect for small VFDs controlling fans, pumps, and conveyors under 2.2 kW.
- Robotics and Automation: Its compact footprint is valuable for articulated robot joints and other precision servo applications.
- HVAC Systems: Suitable for driving compressor and fan motors in residential and light commercial air conditioning units.
- Appliance Motor Control: Ideal for high-efficiency washing machine drums or dishwasher pump motors.
Frequently Asked Questions (FAQ)
How does the integrated Fault Output (FO) pin on the MIG15J503H enhance system reliability?
The FO pin is an open-drain output that signals a fault condition (like short-circuit or over-temperature) directly to the system's microcontroller. This allows for immediate, hardware-level intervention, preventing catastrophic damage to the module and motor far more quickly than software-based monitoring could achieve.
What is the primary advantage of using this 15A IPM over designing a discrete IGBT solution?
The main advantage is design simplification and reliability. An IPM (Intelligent Power Module) like the MIG15J503H eliminates the complex and sensitive task of designing and laying out high-voltage gate drive circuits, level-shifting, and protection logic, which significantly reduces development time and minimizes the risk of parasitic-related failures.
Can the MIG15J503H be driven directly from a 3.3V or 5V microcontroller?
Yes, the module is designed for direct logic-level control. The datasheet specifies a maximum input voltage (V_IN) of 5.5V, making it compatible with standard 5V MCU I/O pins. This removes the need for any intermediate buffer or level-shifting stages between the control logic and the power module.
Technical Deep Dive
A Closer Look at Integration for Enhanced Reliability
The "intelligent" aspect of this Intelligent Power Module resides in the co-packaged control IC. This IC is not merely a gate driver; it is a dedicated supervisor for the six internal 600V IGBTs. This integration provides benefits that are difficult to achieve with a discrete component design, particularly for engineers who are not power electronics specialists.
Think of a discrete design as hiring six individual bodyguards (the IGBTs) and then needing to hire a separate manager (the driver IC), a communications expert (the level-shifter), and a paramedic (the protection circuit). You are responsible for ensuring they all work together perfectly. The MIG15J503H acts like an integrated, pre-trained security team. The gate drive current, switching speed, and protection thresholds are all factory-optimized for the specific IGBTs inside the module. This eliminates the guesswork in gate resistor selection and dead-time management, which are common sources of inefficiency and failure in discrete designs. By minimizing the physical distance between the driver and the IGBT gate, parasitic inductance is dramatically reduced, leading to cleaner switching waveforms and lower voltage overshoots, a crucial factor for long-term reliability.
Industry Insights & Strategic Advantage
Meeting the Demand for Decentralized and Rapid-Development Motor Control
The trend in modern industrial automation is moving towards decentralization, where smaller, intelligent motor drives are integrated directly onto or near the machinery they control. This approach reduces cabinet size, simplifies complex wiring harnesses, and improves diagnostic capabilities. The MIG15J503H is a key enabler for this strategy in the low-power segment. Its high level of integration allows design teams to create extremely compact Variable Frequency Drives (VFDs) or servo amplifiers that fit into tight spaces previously unimaginable with discrete power stages.
Furthermore, as product life cycles shorten, the pressure to accelerate development time is immense. By providing a pre-validated and protected power stage, this IPM allows engineering teams to focus their resources on value-added areas like control software, user interface, and network connectivity, rather than on the intricate and time-consuming process of power circuit design and validation. Leveraging a module like the MIG15J503H can directly translate into a competitive advantage by shortening the path from concept to production. For a comprehensive overview of how to interpret the specifications that enable these benefits, consulting a guide on decoding IGBT datasheets is highly beneficial.
For more information or to evaluate this module for your design, please contact our technical sales team for a consultation or to request a quote.
