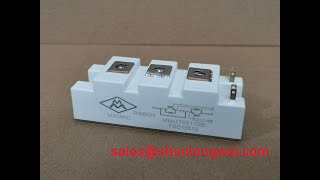

MacMic MMG75S170B | Robust 1700V Half-Bridge NPT IGBT Module
The MacMic MMG75S170B is an engineered solution for high-voltage power conversion systems that demand uncompromising reliability and thermal stability. This 1700V, 75A half-bridge module is built upon proven Non-Punch-Through (NPT) IGBT technology, offering a robust performance profile specifically tailored for demanding industrial applications operating on higher voltage buses.
- High Blocking Voltage: A 1700V VCES rating provides substantial design margin and enhanced safety for inverters and converters connected to 690V AC mains.
- Rugged NPT Technology: Known for its wide Safe Operating Area (SOA) and superior short-circuit withstand capability, the NPT design ensures device longevity in harsh electrical environments.
- Optimized for Paralleling: The positive temperature coefficient of the collector-emitter saturation voltage (VCE(sat)) facilitates stable current sharing when multiple modules are paralleled for higher power output.
- Integrated FWD: Includes a co-packaged fast-recovery freewheeling diode (FWD) optimized for soft-switching behavior and low reverse recovery losses, simplifying circuit design.
Technical Deep Dive: The Engineering Behind the MMG75S170B
While modern power electronics often focus on Trench and Field-Stop (FS) technologies, the deliberate choice of NPT technology in the MMG75S170B serves a critical purpose. This module prioritizes ruggedness and reliability over achieving the absolute lowest switching speeds, a crucial trade-off in many industrial systems.
The 1700V breakdown voltage is its defining feature. This provides the necessary headroom to handle the significant voltage transients and overshoots common in industrial servo drive and motor control applications, especially those operating from a 690V AC line. This elevated rating directly translates to enhanced system reliability and a reduced need for complex, oversized snubber circuits.
Furthermore, the inherent physics of NPT IGBTs results in a highly robust die that is less susceptible to failure during short-circuit events. Its positive VCE(sat) temperature coefficient means that as a chip heats up, its on-state resistance increases slightly. In a parallel configuration, this forces current to naturally balance among the devices, preventing thermal runaway in a single module and ensuring stable operation at high current levels.
Key Parameter Overview
The following table outlines the core electrical and thermal characteristics of the MMG75S170B. For comprehensive data, including characteristic curves and testing conditions, please refer to the official datasheet. Download the MMG75S170B Datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1700 V |
| Continuous Collector Current (IC) @ TC=80°C | 75 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) typ. @ IC=75A | 2.7 V |
| Total Power Dissipation (Ptot) @ TC=25°C | 520 W |
| Topology | Half-Bridge (Two IGBTs in series) |
| Isolation Voltage (Visol) | 3000 V (AC, 1 minute) |
Application Suitability and Value Proposition
The unique characteristics of the MacMic MMG75S170B make it an ideal choice for specific, high-stress power conversion topologies where reliability is paramount.
- Medium Voltage Motor Drives: Its 1700V rating is perfectly suited for three-phase inverters controlling 690V AC industrial motors, providing the necessary safety margin against DC bus ripple and inductive voltage spikes.
- Renewable Energy & UPS Systems: In solar inverters and uninterruptible power supplies (UPS) with high DC bus voltages, this module ensures dependable operation even with fluctuating input power.
- Industrial Welding and Induction Heating: The rugged NPT structure excels in the hard-switching and resonant circuits found in high-frequency induction heating and welding power supplies, where it can withstand significant electrical and thermal stress.
Frequently Asked Questions (FAQ) for Design Engineers
Q1: What are the key gate drive considerations for a 1700V IGBT like the MMG75S170B?
A: For a 1700V module, a robust gate drive is critical. We recommend a drive voltage of +15V for full enhancement. More importantly, a negative turn-off voltage (e.g., -8V to -15V) is strongly advised. This provides a solid buffer against dv/dt induced parasitic turn-on, which is a greater risk at higher bus voltages. Ensure low inductance in the gate-emitter loop by using twisted pair wires and keeping the driver physically close to the module. For more information, review our guide on robust IGBT gate drive design.
Q2: How does the NPT technology in this module affect switching frequency?
A: NPT IGBTs generally exhibit higher Switching Loss compared to more modern Trench-FS structures due to a longer "tail current" during turn-off. Consequently, the MMG75S170B is optimized for applications in the lower-to-medium frequency range, typically below 10 kHz. In this range, its lower conduction losses and superior ruggedness provide a net benefit over faster-switching alternatives that may be less robust.
