MACMIC MMGT25H120XB6C | Robust 1200V/25A 6-Pack IGBT for High-Efficiency Motor Drives

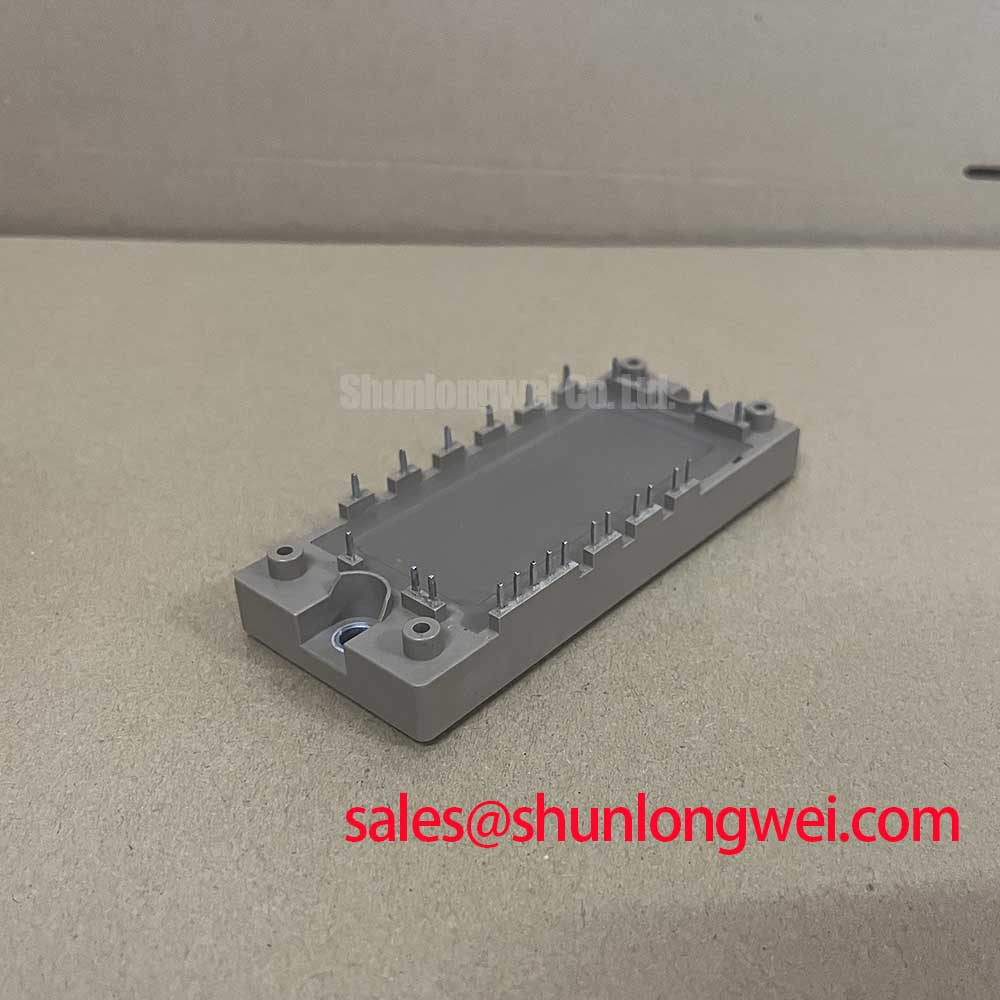

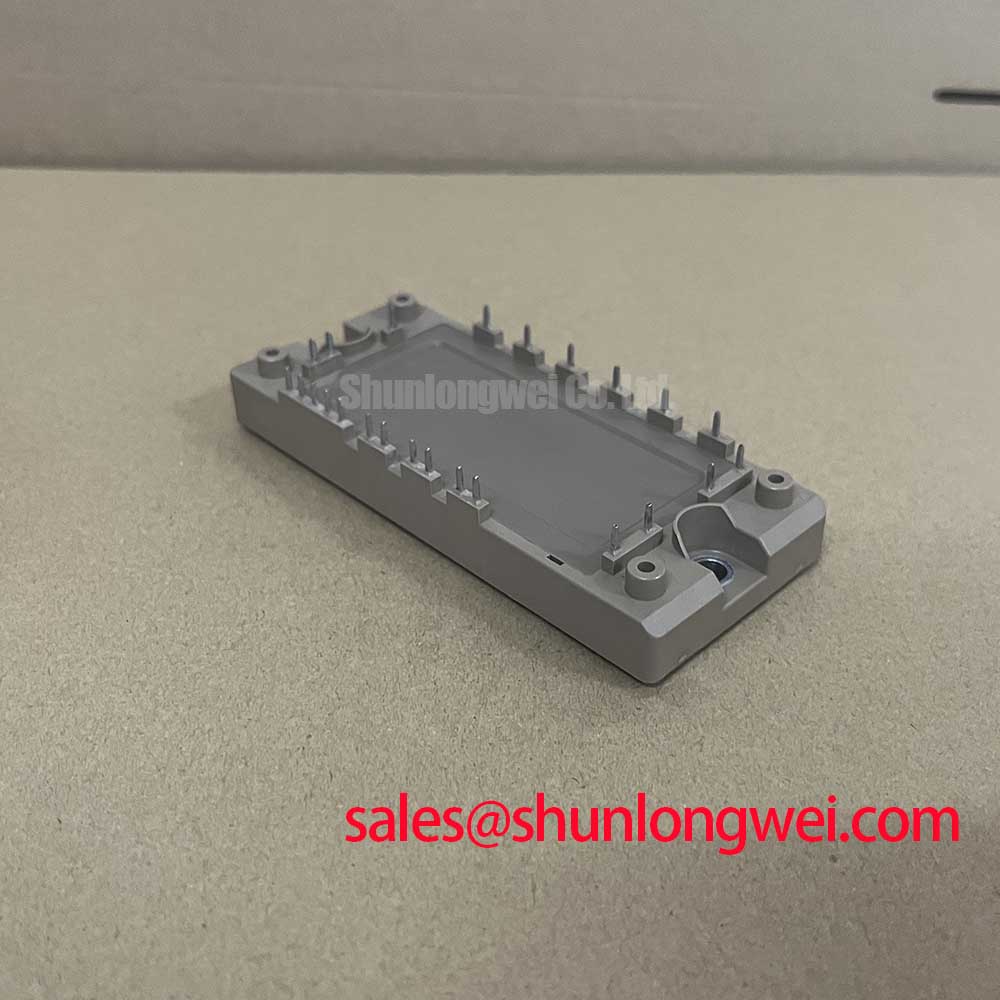

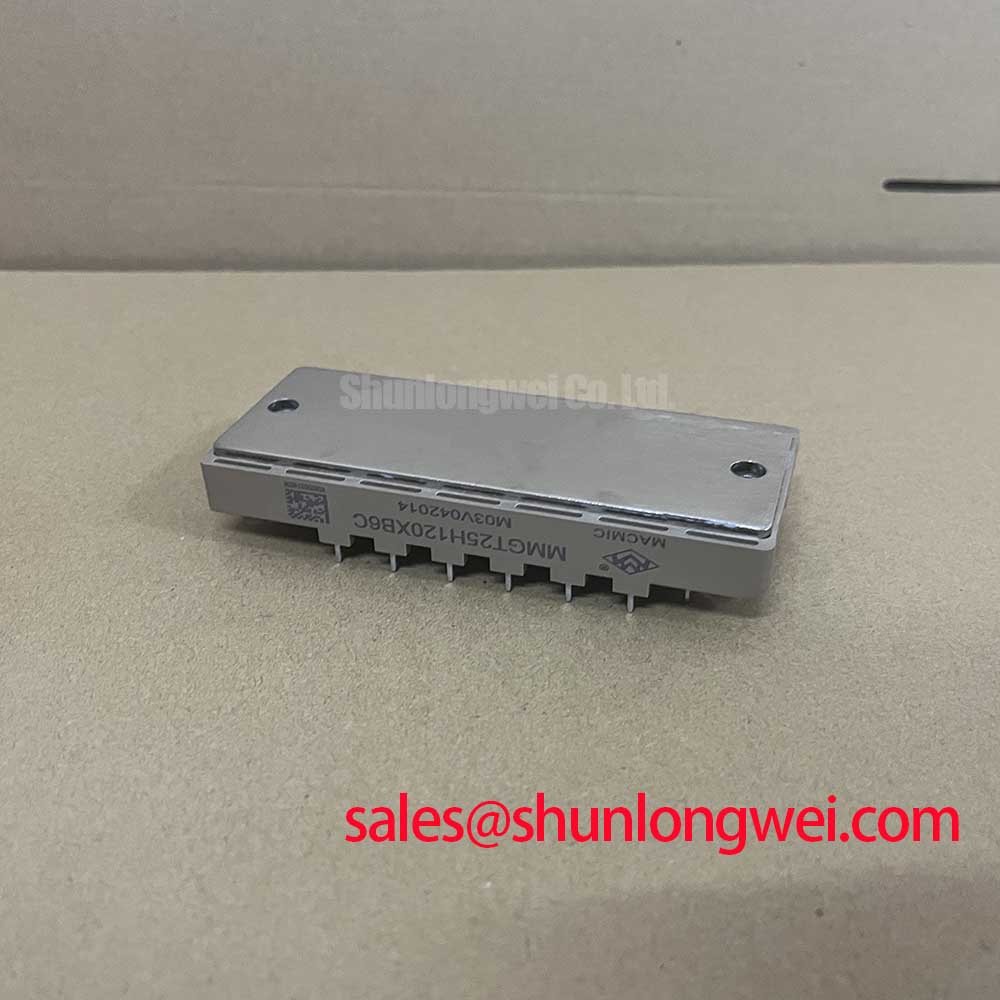

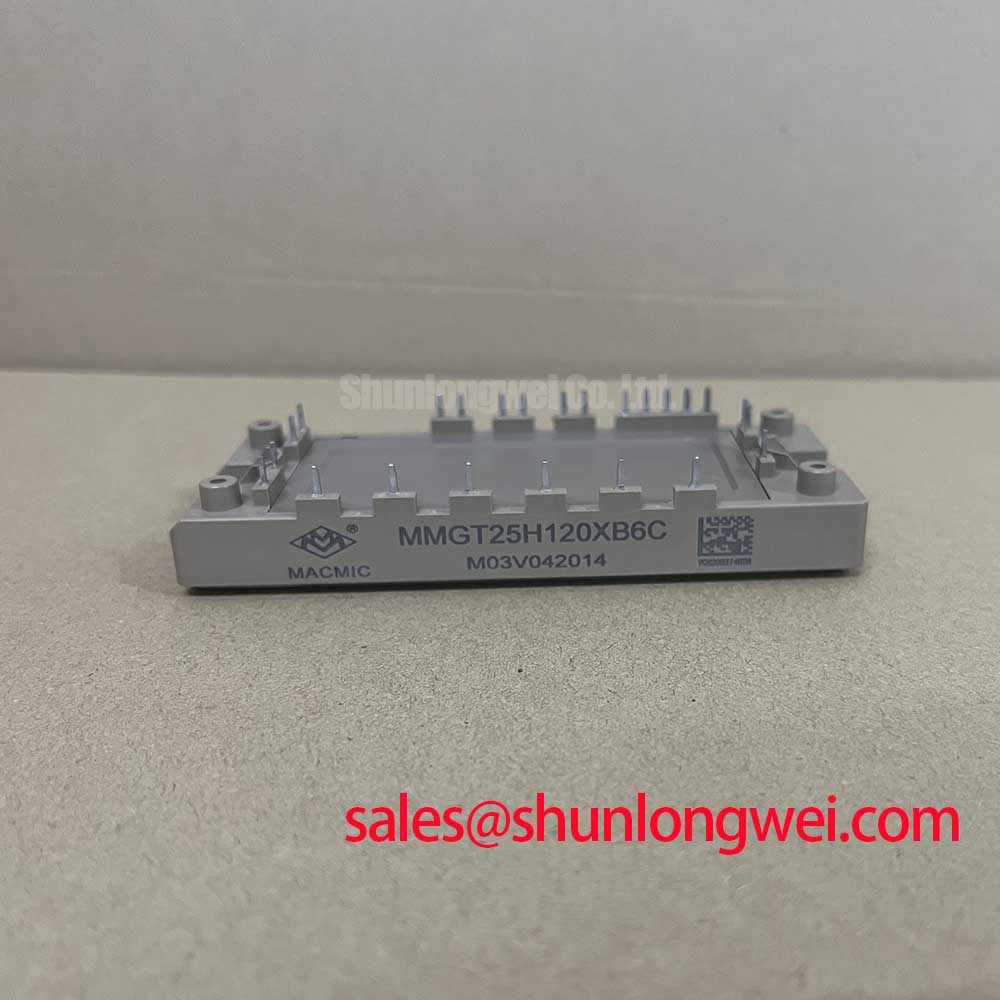

The MACMIC MMGT25H120XB6C is a high-performance 6-Pack IGBT module engineered for reliability and efficiency in demanding power conversion applications. Integrating a full three-phase inverter bridge into a compact, industry-standard package, this module provides a robust foundation for systems requiring precise control, low energy loss, and long operational life. It is an ideal solution for engineers designing low-to-mid power motor drives, uninterruptible power supplies, and industrial inverters.
Engineered for Performance: Key Highlights
- Advanced Trench Field-Stop Technology: Delivers an optimized trade-off between low collector-emitter saturation voltage (VCE(sat)) and minimal switching losses, boosting overall system efficiency.
- Integrated 6-Pack Configuration: Simplifies system design by incorporating a full three-phase inverter bridge (six IGBTs and six free-wheeling diodes) in a single module, reducing assembly time and component count.
- Superior Short-Circuit Capability: With a withstand time of ≥10µs, the module offers enhanced ruggedness, critical for protecting against fault conditions in demanding industrial environments.
- Soft-Recovery Anti-Parallel Diodes: The co-packaged FWDs are optimized for soft and fast recovery, minimizing electromagnetic interference (EMI) and voltage overshoot during switching operations.
- Excellent Thermal Performance: Built on an Al2O3 Direct Bonded Copper (DBC) substrate, the module ensures low thermal resistance for effective heat dissipation and improved reliability.
Application Scenarios & Engineering Value
The MMGT25H120XB6C is not just a component; it's a solution to specific engineering challenges across various industries. Its balanced feature set translates directly into tangible system-level benefits.
- AC Motor & Servo Drives: In variable frequency drives (VFDs), the low VCE(sat) directly reduces conduction losses, especially at lower operating speeds. This results in cooler operation and higher energy efficiency, a key requirement for modern industrial automation.
- Uninterruptible Power Supplies (UPS): The module's robust short-circuit rating and high reliability are paramount in UPS systems. It ensures the power stage can withstand load faults and grid disturbances without catastrophic failure, guaranteeing uptime for critical infrastructure.
- Welding Power Supplies: The fast switching characteristics and soft-recovery diodes enable the precise, high-frequency power control needed for advanced welding applications. This allows for stable arcs and high-quality welds while minimizing energy waste.
A Deeper Look: The Technology Inside
Trench Field-Stop (TFS) IGBT Structure
The core of the MMGT25H120XB6C is its advanced Trench Field-Stop IGBT silicon. Unlike older planar IGBTs, the trench-gate structure creates a vertical current path, significantly increasing channel density. This dramatically lowers the on-state voltage drop, or VCE(sat). The addition of a "field-stop" layer optimizes the electric field distribution in the off-state, allowing for a thinner drift region. This thinning action is the key to reducing switching losses (Eon and Eoff), enabling higher frequency operation without a severe efficiency penalty.
Optimized Free-Wheeling Diode (FWD)
In a Variable Frequency Drive (VFD), the FWD is just as critical as the IGBT itself. The diodes in this module are specifically engineered for soft recovery. A "snappy" or abrupt recovery can induce high voltage spikes (Vrr) and significant EMI. The soft recovery behavior of the integrated FWDs ensures smooth current commutation, reducing the need for bulky and expensive snubber circuits and simplifying EMC compliance.
Key Parameter Overview
The following table provides a snapshot of the critical electrical and thermal characteristics for the MACMIC MMGT25H120XB6C. For a comprehensive list of parameters and operating curves, please refer to the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V |
| Continuous Collector Current (IC) @ Tc=80°C | 25 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) @ 25A, 150°C | 2.20 V (Typ.) |
| Total Switching Energy (Ets) @ 25A, 150°C | 2.00 mJ (Typ.) |
| Short-Circuit Withstand Time (tsc) | ≥10 µs |
| Max. Junction Temperature (Tjmax) | 175 °C |
| Thermal Resistance, Junction-to-Case (Rth(j-c)) per IGBT | 1.14 °C/W (Max.) |
For detailed design information, you can download the complete MMGT25H120XB6C datasheet.
Frequently Asked Questions (FAQ)
What are the key considerations for the gate drive design for this module?
A robust gate drive is crucial for reliable operation. We recommend a gate voltage of +15V for turn-on and a negative voltage of -8V to -15V for turn-off to ensure immunity against parasitic turn-on induced by the Miller effect. The gate driver should have a low output impedance to provide the required peak gate current for fast, controlled switching. Separate gate resistors for turn-on and turn-off are recommended for fine-tuning the switching speed and mitigating EMI.
Can the MMGT25H120XB6C be used in higher-power systems by paralleling modules?
Yes, paralleling is feasible, though this is a 6-pack module designed as a self-contained inverter. For higher current, designers typically select a larger half-bridge module. However, if paralleling is necessary for a specific topology, the MMGT25H120XB6C exhibits a positive temperature coefficient for VCE(sat). This means as a chip heats up, its on-state resistance increases, which naturally helps balance current sharing between parallel devices. Careful layout to ensure thermal and electrical symmetry is still essential to prevent conditions that could lead to overcurrent or thermal runaway. For specific application guidance, please contact our technical team.
