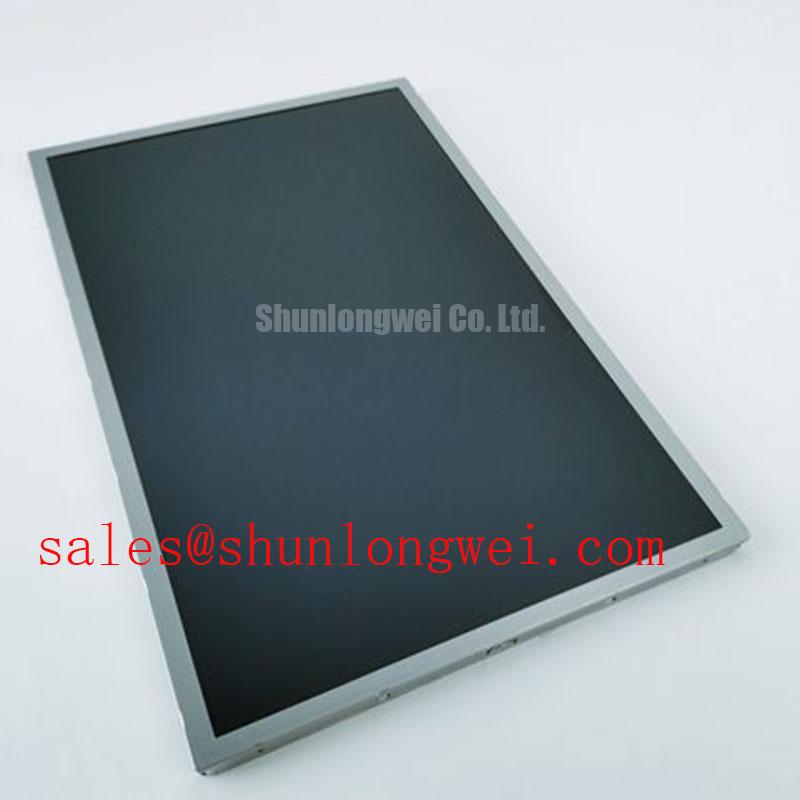

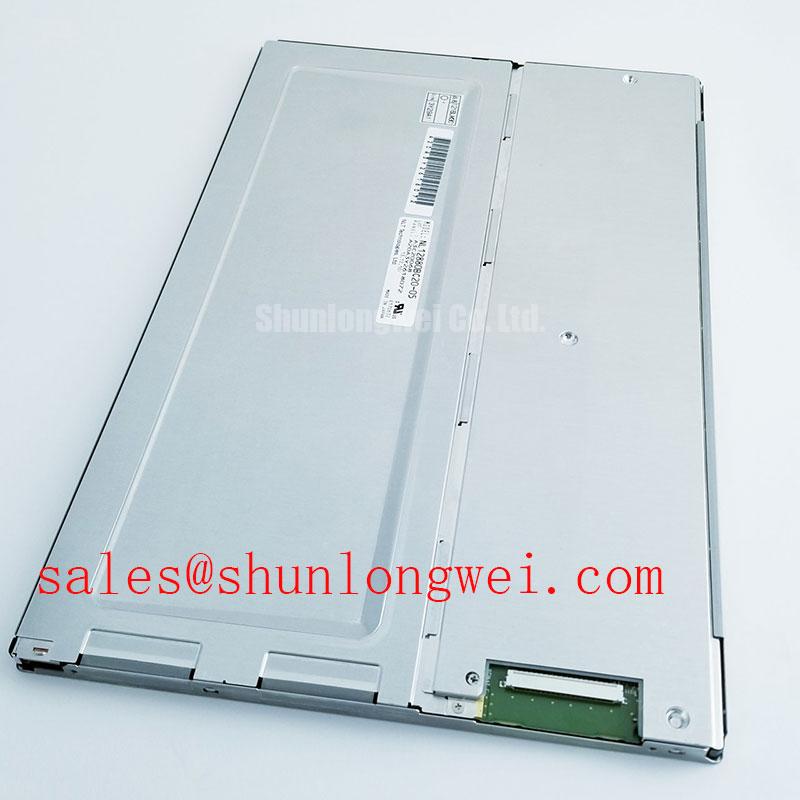

## Tianma NL12880BC20-05 | A Rugged 12.1-inch WXGA Display for Demanding Environments
The Tianma NL12880BC20-05 is a 12.1-inch WXGA TFT-LCD module engineered for applications where visual clarity, color fidelity, and operational reliability are non-negotiable. This display leverages Tianma's advanced SFT (Super Fine TFT) technology to deliver exceptional performance, making it a premier choice for next-generation industrial HMIs, medical diagnostic systems, and specialized instrumentation. It is not merely a screen but a robust visual interface designed for long-term deployment in challenging operational contexts.
### Technical Deep Dive: The Engineering Behind the Image
The performance of the NL12880BC20-05 is rooted in two core technological advantages that directly address common engineering pain points: display performance and environmental resilience.
* **SFT (Super Fine TFT) Technology:** Equivalent to IPS (In-Plane Switching), SFT technology arranges liquid crystal molecules to move parallel to the panel's surface. This architecture is pivotal in overcoming the viewing angle and color shift limitations of traditional TN (Twisted Nematic) panels. For the engineer, this means the display delivers consistent, accurate colors and a stable image across an ultra-wide 88/88/88/88 degree viewing cone. In a collaborative environment, like a medical operating room or a factory control center, multiple operators can view critical data from different positions without any loss of intelligibility.
* **Wide Operating Temperature Range:** The ability to function flawlessly from -20°C to +70°C is a testament to its robust industrial design. This is achieved through the careful selection of liquid crystal fluid with a stable viscosity across temperatures and the integration of durable electronic components. This broad operational window eliminates the need for auxiliary heating or cooling systems in many semi-outdoor or unconditioned indoor environments, simplifying system design and reducing the total cost of ownership for displays in heavy machinery and other rugged applications.
### Key Parameter Overview
For engineers requiring a quick assessment, the following table summarizes the critical performance specifications of the Tianma NL12880BC20-05. For comprehensive details, you can Download the Official Datasheet.
| Parameter | Value |
|---|---|
| Screen Size | 12.1 inches |
| Resolution | 1280 (RGB) × 800 (WXGA) |
| Technology | a-Si TFT-LCD, SFT (IPS-type) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Backlight | WLED, 50K hours (Typ.) |
### Application Scenarios & Value Proposition
The specific attributes of the NL12880BC20-05 translate directly into tangible benefits across several high-stakes applications:
* **Industrial Automation HMI:** In complex manufacturing settings, the WXGA resolution provides more screen real estate for displaying detailed process schematics, multiple data trend charts, and high-definition video feeds. The wide viewing angle ensures operators can monitor processes accurately while moving around the machinery.
* **Medical Diagnostic Equipment:** For devices like ultrasound scanners and patient monitoring systems, color accuracy and consistency are paramount for correct diagnosis. SFT technology ensures that subtle color gradients in medical imagery are rendered faithfully, regardless of the clinician's viewing position.
* **Marine and Transportation Systems:** The combination of a 400-nit brightness level and high contrast ratio provides good readability in the variable lighting conditions found in ship bridges or vehicle cabins. Its durability and wide temperature range ensure reliable operation in these demanding mobile environments.
* **Test and Measurement Instrumentation:** Precision instruments demand a display that can clearly render fine waveforms and numerical data. The high pixel density and sharpness of the Tianma NL12880BC20-05 allow for unambiguous readings, enhancing the accuracy and efficiency of testing procedures.
### Industry Insight: Meeting the Demand for Data-Rich, Rugged Interfaces
The industry trend is a clear push towards more data-intensive user interfaces, even in traditionally rugged fields. Operators require more than just basic status indicators; they need comprehensive, intuitive graphical displays. The Tianma NL12880BC20-05 is perfectly aligned with this trend. Its WXGA resolution provides a 30% increase in vertical pixels over standard XGA (1024x768) displays, enabling richer and more ergonomic UI designs. This model represents a strategic investment in a future-proof HMI component that balances modern resolution standards with the proven resilience required for long-lifecycle industrial products. For further insights into display technologies, explore The Ultimate Guide to TFT LCD.
If your project demands a high-performance visual interface with proven durability, the NL12880BC20-05 is an exceptional candidate. To discuss your specific application needs or request a quote, please contact our technical team.
