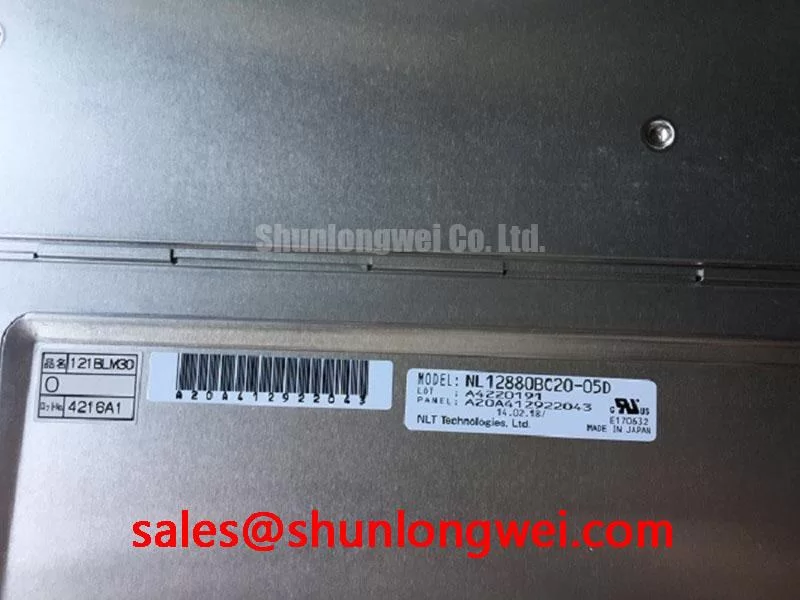

NL12880BC20-05D: 12.1-inch WXGA TFT Display for High-Clarity Industrial HMI
Introduction: A Deep Dive into Industrial-Grade Visual Performance
The NL12880BC20-05D is a 12.1-inch WXGA color TFT-LCD module engineered for industrial applications demanding superior image quality and operational robustness. It delivers exceptional visual fidelity through its combination of 1280x800 resolution, a 1000:1 contrast ratio, and Ultra-Advanced Super Fine TFT (UA-SFT) technology for ultra-wide viewing angles. This ensures crisp, color-accurate imagery vital for complex data visualization and control interfaces. Key benefits include enhanced readability in diverse lighting and simplified system integration via its standard LVDS interface. For systems requiring high-resolution data display with consistent off-axis legibility, this module provides the performance necessary for precise operator interaction. What is the primary benefit of its UA-SFT technology? Consistent, accurate color reproduction across an extremely wide 88-degree viewing cone in all directions. Its feature set makes it an optimal choice for advanced HMIs where visual precision and reliability are paramount.
Key Parameter Overview
Decoding the Specifications for Visual and System Integration
The technical specifications of the NL12880BC20-05D are tailored for demanding industrial environments. The combination of high resolution, exceptional contrast, and wide operational temperature range underscores its suitability for integration into a variety of control systems and monitoring equipment. Each parameter is optimized to contribute to the module's overall performance, reliability, and ease of implementation.
| Display Characteristics | |
|---|---|
| Resolution | 1280(RGB) × 800 (WXGA) |
| Diagonal Size | 12.1 inches (31 cm) |
| Luminance | 450 cd/m² (typ.) |
| Contrast Ratio | 1000:1 (typ.) |
| Viewing Angle (CR≥10) | 88° / 88° / 88° / 88° (Up/Down/Left/Right) |
| Display Colors | 16.7M / 262k colors |
| Electrical & Mechanical | |
| Interface | LVDS (1 port, 6/8-bit) |
| Power Supply Voltage | 3.3V (typ.) |
| Power Consumption | 6.45W (typ.) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Module Dimensions | 277.7(W) x 180.6(H) x 9.2(D) mm (max) |
Download the NL12880BC20-05D datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in High-Resolution Industrial Interfaces
The NL12880BC20-05D is engineered to address the challenges of modern industrial HMI and control panel design. Its specific feature set translates directly into tangible system-level benefits.
High-Fidelity Engineering Scenario: Process Control Systems
In a sophisticated process control system for a chemical plant or manufacturing line, operators must monitor complex schematics, real-time data streams, and alarm statuses simultaneously. The challenge is to present this dense information with absolute clarity to prevent misinterpretation and enable rapid decision-making. The NL12880BC20-05D's WXGA (1280x800) resolution provides the necessary pixel density to render fine lines, detailed text, and graphical elements without aliasing. Its high 1000:1 Contrast Ratio ensures that data remains legible even under the fluctuating ambient light common in factory environments, from bright overhead lighting to shadowed control rooms. This combination is crucial for reducing operator error and improving plant safety.
Medical Imaging and Diagnostic Displays:
For non-diagnostic viewing stations in medical environments, color accuracy and viewing angle consistency are critical. Multiple medical professionals often need to view a screen from different positions. The UA-SFT technology provides a full 88-degree viewing cone horizontally and vertically, ensuring that colors and grayscale levels do not shift, a vital attribute for consistent image assessment. The display's ability to render 16.7 million colors provides the nuance needed for viewing complex medical visuals.
For systems that require a different resolution or display size while maintaining robust industrial characteristics, the NL10276AC30-42D offers an alternative feature set for consideration.
Technical Deep Dive
A Closer Look at UA-SFT Technology and its Impact on Usability
The core of the NL12880BC20-05D's superior visual performance lies in its Ultra-Advanced Super Fine TFT (UA-SFT) technology, an evolution of in-plane switching (IPS) technology. Unlike conventional Twisted Nematic (TN) panels where liquid crystals twist perpendicularly to the screen, UA-SFT aligns the crystals parallel to the glass substrates. When a voltage is applied, the crystals rotate in this same plane. What is the engineering outcome of this design? This in-plane rotation is the key to minimizing light leakage and color shift when viewing the display from off-center angles.
Think of it like viewing a set of Venetian blinds. With traditional TN displays, viewing from the side is like looking at the blinds from an angle—the view is quickly obscured. With UA-SFT, the "blinds" (liquid crystals) rotate sideways, maintaining a clear, unobstructed view of the light passing through, regardless of your horizontal or vertical position. This is why the NL12880BC20-05D achieves a symmetrical 88-degree viewing angle in every direction, ensuring that an operator viewing a control panel from the side sees the exact same colors and brightness as someone standing directly in front of it. This consistency is not just a convenience; in collaborative environments like medical review stations or shared industrial control rooms, it is essential for accurate, shared understanding of the displayed information.
Frequently Asked Questions (FAQ)
How does the wide operating temperature range of -20°C to +70°C benefit industrial system design?
This wide range allows the NL12880BC20-05D to be deployed in non-climate-controlled environments, such as factory floors, outdoor kiosks (within a suitable enclosure), or vehicle-mounted systems, without requiring complex and costly heating or cooling subsystems. It ensures reliable display startup and operation in both cold and hot conditions, enhancing system robustness and reducing the total cost of ownership.
What is the significance of the LVDS interface for a WXGA+ display?
The LVDS (Low-Voltage Differential Signaling) Interface is a high-speed digital interface ideal for transmitting the large amount of data required by a 1280x800 resolution panel. Its key benefits are low power consumption and high noise immunity (low EMI). This makes it easier for engineers to achieve electromagnetic compatibility (EMC) compliance in their final product, a critical requirement for industrial and medical equipment from manufacturers like Tianma.
Engineering Perspective and Next Steps
The NL12880BC20-05D is a purpose-built display solution for applications where visual data integrity is non-negotiable. Its blend of high resolution, exceptional viewing angle performance via UA-SFT technology, and a robust operational range provides a solid foundation for designing next-generation HMIs. Engineers tasked with developing systems for process control, industrial automation, or specialized instrumentation will find its performance characteristics directly address common design challenges related to data clarity and environmental resilience. To evaluate this module for your next project, we recommend securing the datasheet to review detailed optical performance curves, interface timing diagrams, and mechanical drawings. This data will provide the necessary engineering insights for a confident and successful system integration.
