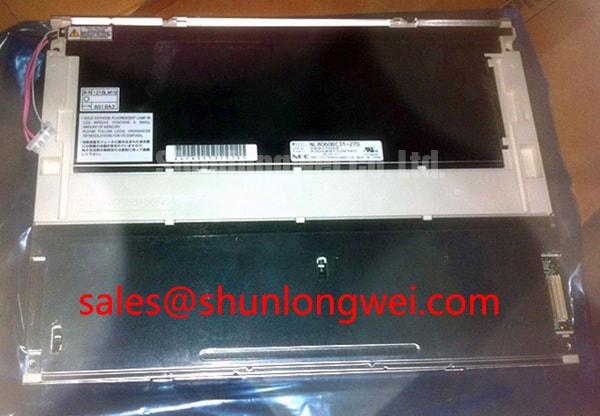

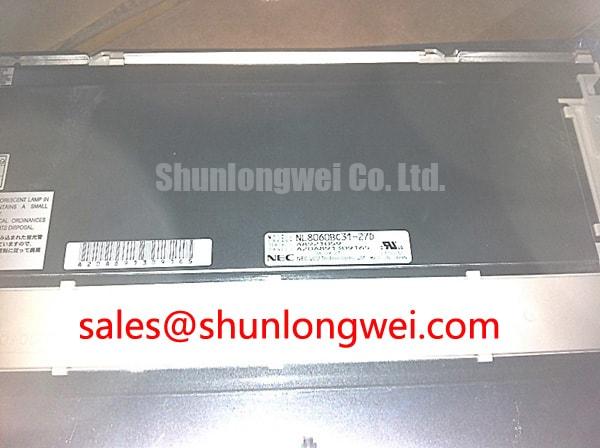

NEC NL8060BC31-27D | Industrial TFT-LCD with Superior SFT Viewing Angles
The NEC NL8060BC31-27D is a 12.1-inch SVGA display engineered not just for visual output, but for long-term operational reliability in demanding environments. This panel is a workhorse, specifically designed for applications where data integrity, off-axis readability, and extended service life are paramount. It represents a smart investment for system integrators in the medical, industrial automation, and test equipment sectors looking for a stable and high-performance display solution among our portfolio of industrial LCD modules.
Technical Deep Dive: The Core Advantages
- SFT (Super Fine TFT) for Uncompromised Viewing: Unlike conventional TN panels that suffer from significant color and contrast shifts at off-angles, the NL8060BC31-27D utilizes NEC's SFT technology. This is functionally equivalent to IPS (In-Plane Switching), ensuring that colors and data remain accurate and consistent across an exceptionally wide viewing angle of 80/80/80/60 degrees. For a multi-person HMI or a critical medical monitor, this means every viewer sees the same, correct information without needing to be perfectly centered.
- Exceptional Backlight Longevity: The display incorporates a white LED (WLED) backlight system rated for an impressive 70,000-hour lifetime. This is more than double the lifespan of many competing displays. In practical terms, this translates to nearly 8 years of continuous 24/7 operation, drastically reducing maintenance schedules, replacement costs, and overall system downtime—a critical factor in calculating the total cost of ownership.
Multi-Dimensional Application Scenarios
The specific features of the NEC NL8060BC31-27D directly address pain points in several key industries:
- Industrial HMI & Process Control: In a factory setting, operators often view screens from various positions. The SFT technology of the NL8060BC31-27D prevents misinterpretation of critical process data due to viewing angle distortion. Its robust wide operating temperature range (-10°C to 70°C) ensures flawless operation in environments lacking precise climate control.
- Medical Diagnostic Equipment: For patient monitoring systems, ultrasound machines, and diagnostic displays, color accuracy and consistent off-axis viewing are non-negotiable for accurate diagnosis. The stable, long-term supply chain of this Industrial LCD module is crucial for medical devices that require certifications and have long product lifecycles.
- Test & Measurement Instruments: The crisp 800x600 resolution provides excellent clarity for displaying waveforms and complex datasets on oscilloscopes, spectrum analyzers, and other specialized instruments. The reliable LVDS interface ensures clean, high-speed data transmission from the host system.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | NEC NL8060BC31-27D |
| Screen Size | 12.1 inch |
| Resolution | 800(RGB)×600 [SVGA] |
| Technology | a-Si TFT-LCD, SFT |
| Brightness | 400 cd/m² |
| Contrast Ratio | 600:1 |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Interface | LVDS (1 ch, 6-bit) |
| Backlight Lifetime | 70,000 Hours (Typ.) |
| Operating Temperature | -10 ~ 70 °C |
| Datasheet | NL8060BC31-27D Datasheet |
Comparative Insight: NL8060BC31-27D vs. Standard TN Panels
When selecting a 12.1" SVGA display, engineers might also consider lower-cost TN (Twisted Nematic) panels. While a TN panel may suffice for a single-user, straight-on application, its limitations become apparent in professional systems. The primary advantage of the NEC NL8060BC31-27D is its SFT technology, which provides superior color fidelity and viewing angles. For any application where multiple users may view the screen, or where the device may be mounted at an angle, the investment in SFT technology prevents critical data reading errors and enhances user experience, justifying its position as a premium industrial choice.
Ensuring your design has the right display is critical for its success and longevity. If you need to confirm compatibility with your existing hardware or explore volume pricing, please contact us for a quote and our technical specialists will provide dedicated support.
