Temperature Operating Limits and Cold Liquid Crystal Response
Begin a temperature assessment by separating the cabinet ambient temperature from the temperature at the display itself. Nearby power supplies, restricted ventilation, direct illumination, and an enclosed front window can change the panel’s thermal conditions. As a Design Consideration, measure the installed conditions during representative operation and compare them with the Sharp LM64C149 documentation before approving the assembly for a demanding environment.
A specific operating range is not established by the product identity alone. The −30°C to +85°C envelope must therefore not be treated as an LM64C149 official specification. Operating and storage limits also serve different purposes: a permitted storage condition does not establish acceptable image response, contrast, or backlight operation while powered.
Liquid crystal response generally becomes slower as temperature falls. This is a Design Consideration, not a model-specific response-time guarantee. During a cold-start assessment, observe changing text, moving indicators, and transitions between light and dark areas after the controller has stabilized. Record whether the behavior changes as the assembly warms. A sluggish image alone does not establish a defective panel; temperature, controller timing, and the displayed test pattern all affect the observation.
Do not assign an unsupported gray-to-gray response time to the LM64C149. Any response-time figure needs the manufacturer’s measurement conditions, including temperature and the transitions being measured. Where an equipment specification requires a cold-start readability check, the acceptance criterion should come from the equipment owner or system designer rather than an assumed generic LCD limit.
Condensation deserves a separate inspection. A cold console brought into warm, humid air can develop moisture on the protective window, connectors, or surrounding hardware. As a Design Consideration, inspect drainage paths, enclosure seals, and evidence of moisture before energizing the assembly. A heater, if present in the equipment, should be assessed using its control documentation; no heater strip setting or warm-up interval can be assigned to this module without supporting limits.
For a marine radar or navigation bridge console, replacement suitability additionally depends on the complete enclosure, environmental protection, and readability requirements. The LM64C149 designation does not independently establish salt-mist resistance, sunlight readability, or marine approval. Engineers should verify those requirements at the equipment level before considering the display for that application.
Thermal Expansion Clearance at the Enclosure Cutout
Before disconnecting a Sharp LM64C149 from an industrial console, isolate the equipment supply, confirm that stored energy has discharged, and record the display label, connector orientation, cable routing, and mounting arrangement. These details help distinguish a panel problem from a controller, backlight, or enclosure fault without exposing the replacement display to an unresolved system condition.
Inspect the existing mounting stack before removing it. Record which surfaces locate the module, where spacers support it, and whether the bezel, protective window, or touch assembly applies pressure to the display. A replacement can fit the visible opening yet still encounter interference behind the front panel. Connector access, cable bend space, and the position of mounting features matter as much as the opening itself.
As a Design Consideration, compare the module drawing with the enclosure drawing rather than measuring only the exposed viewing area. Check the specified outline, mounting-hole locations, viewing aperture, and available clearance against the exact LM64C149 revision. No numerical housing dimensions or bezel tolerances should be transferred from a visually similar module.
Differential thermal expansion can change the load applied by a rigid enclosure. The practical objective is to retain the display securely without forcing the housing or optical assembly out of shape as temperatures change. The required clearance depends on the enclosure materials, support arrangement, and equipment operating conditions. It should be established by the mechanical designer and verified on the assembled equipment.
A generic mounting torque is not an official LM64C149 parameter. In particular, an assumed screw size or tightening range cannot establish a safe assembly method without the specified fastener, thread engagement, support geometry, and manufacturer instructions. Use the equipment’s documented fastening procedure, and inspect for uneven seating before applying final tightening.
Maintenance Note: Inspect vibration pads and perimeter seals during service, and replace deteriorated parts to the equipment specification rather than tightening the bezel to compensate.
Dust, oil residue, and hardened seals can interfere with seating or place uneven pressure around the viewing area. Clean the enclosure contact surfaces using the equipment-approved method, keeping liquids away from exposed connectors and display edges. If an optical patch changes when the bezel is loosened, that observation supports checking assembly stress, but it does not by itself identify a particular internal defect.
When reviewing another display such as the Sharp LM64P10, use it as a separate comparison candidate, not an assumed interchangeable replacement. Confirm its dimensions, display format, electrical interface, optical characteristics, and backlight arrangement against both the LM64C149 documentation and the host equipment. A related model name is not evidence of mechanical or electrical compatibility.

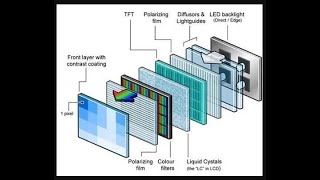

Polarizer Inspection and Readability under Direct Lighting
Assess readability with the display installed behind its normal front window and, where applicable, its touch overlay. An image that looks acceptable on an open bench can become difficult to read once reflections from the complete front assembly are included. Use representative screen content and inspect from the operator’s actual viewing position rather than relying only on a straight-on photograph.
As a Design Consideration, distinguish surface contamination from optical deterioration. Inspect the front window and accessible display surface for deposits, scratches, discoloration, and uneven reflections. Clean only with materials permitted by the relevant display and enclosure instructions. An aggressive solvent or abrasive method can damage a surface that initially needed only routine cleaning.
The LM64C149 should not be assigned an anti-glare coating, anti-reflection treatment, a particular polarizer construction, or a symmetric viewing-angle specification without its optical documentation. These are distinct properties. Reduced reflections do not automatically establish adequate luminance, and a satisfactory image from one direction does not establish the same contrast from every operator position.
Evaluate image contrast using the host controller’s documented settings. If a change in viewing position alters the apparent gray levels, record the direction and operating conditions before adjusting the equipment. The observation may reflect the display’s viewing characteristics, front-window reflections, or the current drive settings. It is not sufficient evidence to classify the module as a particular liquid crystal technology.
Touch operation belongs to the touch assembly and its controller, not automatically to the LCD module. For an HMI used with gloves or exposed to water, engineers should verify the installed touch system’s documented capabilities and test it under the equipment’s intended conditions. Do not attribute glove operation, wet-touch rejection, or a capacitive or resistive interface to the LM64C149 unless the supplied assembly explicitly includes those features.
For preventive maintenance, record image quality under repeatable lighting and viewing conditions. This makes later comparisons more useful than subjective descriptions such as “slightly dimmer.” If the screen appears dark, distinguish an absent image from an illumination problem using the equipment’s approved test procedure. Neither symptom establishes a single failed component.
The The Ultimate Guide to Industrial TFT LCD Technology provides broader background for separating optical, mechanical, and electrical issues. Its general discussion should support troubleshooting principles, not replace the LM64C149’s model-specific documentation.
Controller Interface, Supply Sequencing, and Backlight Fault Isolation
Identify the actual connector assignments before attaching a replacement module. Trace the host schematic and cable documentation to distinguish panel power, image signals, control signals, and any separate illumination connections. Connector shape and wire color are insufficient evidence of pin function. An interface mismatch can remain hidden until the display is energized.
Do not presume that the LM64C149 uses LVDS, accepts a particular logic supply, or requires VESA or JEIDA mapping. Those checks become relevant only when the module’s documented interface establishes them. Likewise, differential impedance, channel skew, transmitter jitter, and data setup or hold requirements must come from the applicable panel and controller specifications, not from generic interface targets.
As a Design Consideration, compare the controller output with the documented display timing and measure signals at the installed connection where practical. If image corruption changes with cable position, inspect connector seating, return paths, shielding, and routing before condemning the panel. The system designer should determine any routing or termination changes and validate them under representative equipment operation.
Power sequencing requires the same discipline. Verify the specified relationship between panel supply, interface signals, and backlight enable against the host circuit. Measure the actual sequence during startup and shutdown rather than assigning a generic voltage or rise-time interval. Equipment modifications and aging supply components can change the behavior even when the replacement display is correct.
The backlight driver is a separate compatibility question. Confirm its connection, operating requirements, enable behavior, and documented protection functions. Open-circuit detection, short-circuit protection, overvoltage response, and fault reporting must not be attributed to the LM64C149 without evidence. If the driver reports a fault, inspect the associated wiring and load using its service procedure; the report does not necessarily identify the panel as the cause.
The LMS700KF01-001 is a separate display model for comparison when reviewing display and controller arrangements. It is not identified here as an LM64C149 backlight driver or compatible accessory. Any comparison should retain each model’s own supply, interface, mechanical, and illumination requirements.
For procurement, request the exact model designation, available revision information, connector photographs, and the documentation needed to check the host interface. After installation, verify stable startup, representative image content, illumination control, cable retention, and enclosure seating. Where interference is suspected, evaluate the assembled equipment under its actual operating conditions; a display module alone does not establish complete-system EMC compliance.
