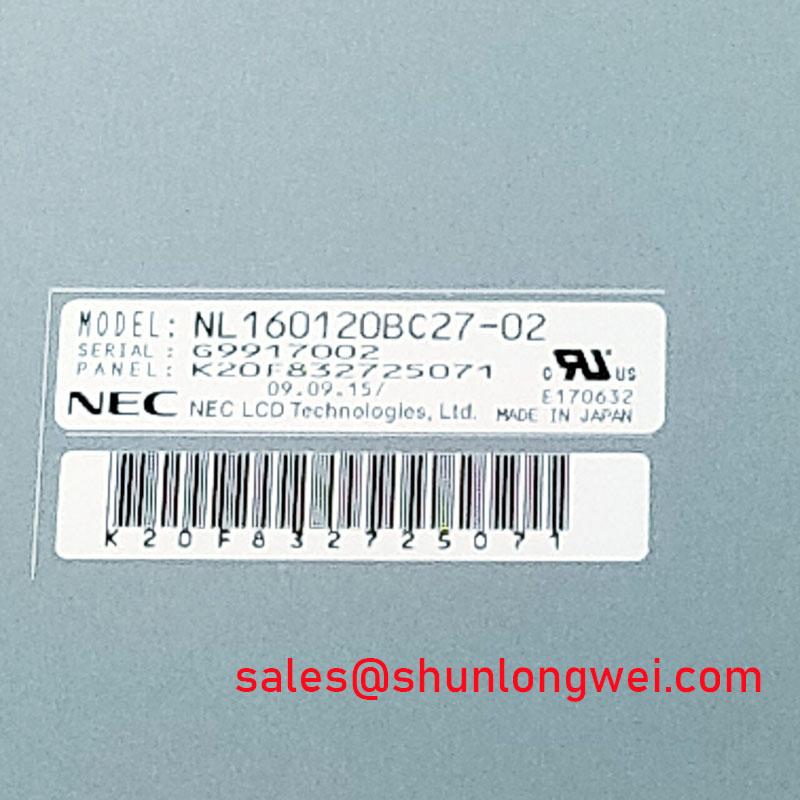

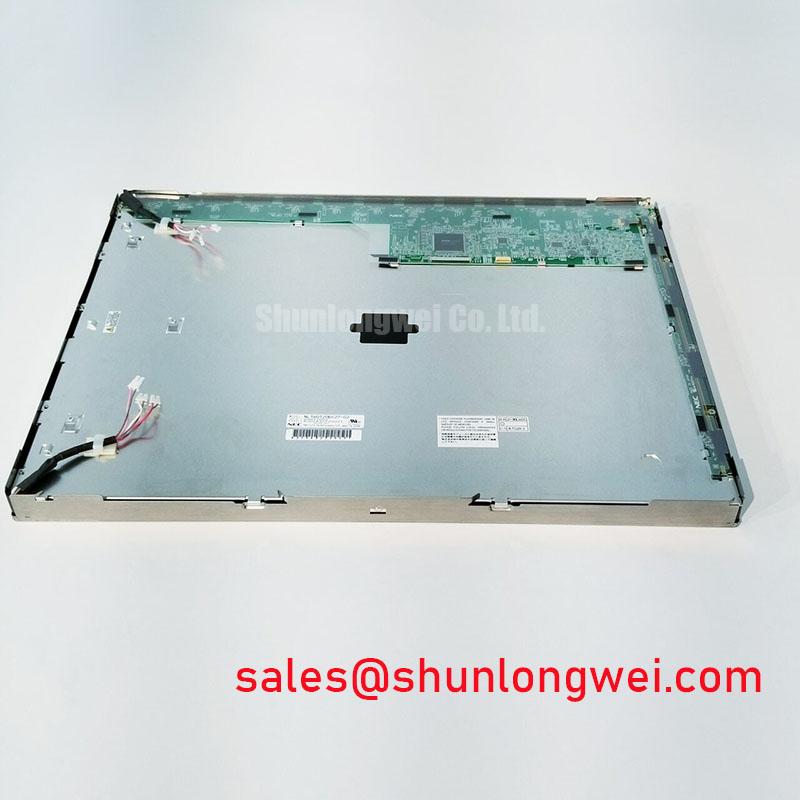

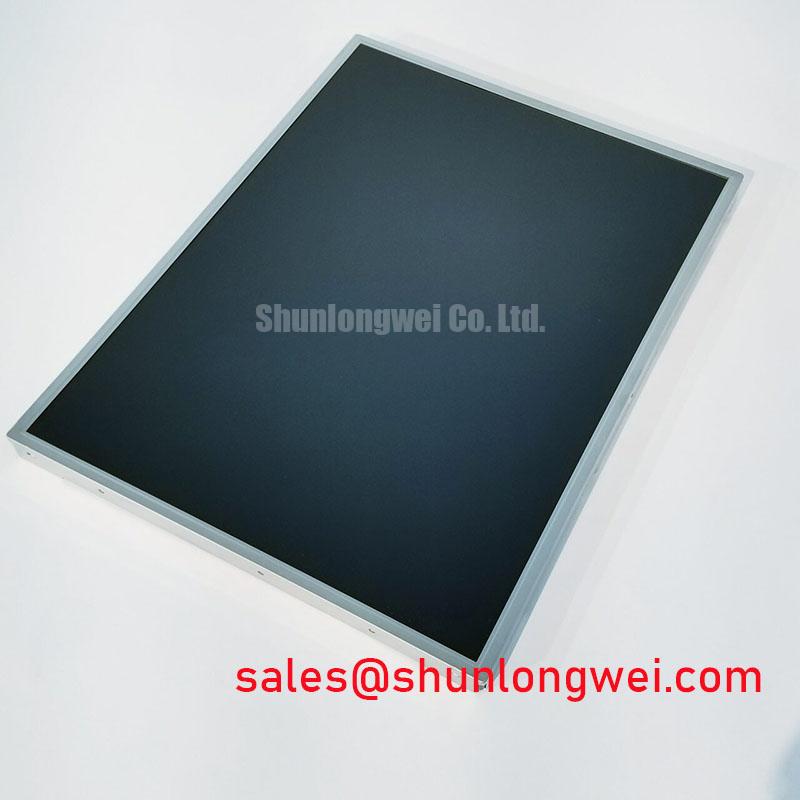

NL160120BC27-02 NEC 21.3-inch UXGA TFT-LCD Module: Precision Integration for Industrial & Medical Displays
This 21.3-inch TFT-LCD module simplifies the integration of high-resolution, 4:3 aspect ratio screens into specialized industrial workstations and medical diagnostic systems. By delivering a native 1600x1200 UXGA resolution, utilizing a 2-channel LVDS interface, and outputting a stable 250 cd/m² brightness, it ensures seamless legacy UI compatibility. If your older control system requires a strict 1600x1200 drop-in replacement, this panel's standard interface ensures native signaling without the scaling artifacts common in modern widescreen adaptations. What is the primary benefit of the dual-port LVDS interface? It ensures stable, high-bandwidth data transmission while significantly reducing EMI.
Application Scenarios & Value
Facilitating Seamless HMI Retrofits in Mission-Specific Environments
For HMI retrofits requiring exact legacy 4:3 dimensional matches, this 21.3-inch UXGA panel is the optimal choice. Engineers often face the critical challenge of sourcing high-resolution, non-widescreen displays when upgrading older control rooms or medical diagnostic equipment. Modern software frequently scales poorly on widescreen monitors, leading to distorted data visualization in environments where precision is non-negotiable.
The NL160120BC27-02 directly resolves this by offering a large-format 21.3-inch viewing area with a precise 1600x1200 UXGA pixel matrix. In a medical diagnostic display application, maintaining the original aspect ratio is crucial for accurate imaging analysis. Similarly, during an industrial HMI retrofit, utilizing this panel allows operators to retain their original legacy 4:3 format interfaces, completely bypassing the need for costly software reprogramming. While this large-format model is ideal for primary workstation monitors, for more compact control panels, the related NL10276BC24-21F offers a robust XGA alternative.
Technical Deep Dive
Decoding the Dual-Port LVDS and SA-SFT Architectural Benefits
The core advantage of the NL160120BC27-02 lies in its underlying electro-optical architecture. The display utilizes NEC's proprietary SA-SFT (Super-Advanced Super Fine TFT) technology. Think of SA-SFT as a wide-angle optical lens for a high-end camera—it inherently minimizes phase shift across the liquid crystal layer, ensuring that multiple operators standing around a centralized control console experience the exact same color accuracy and contrast, without the grayscale inversion typical of older TN panels. This guarantees a symmetrical viewing angle of 85 degrees in all directions.
Furthermore, driving a 1600x1200 UXGA matrix at a standard 60Hz refresh rate requires substantial pixel bandwidth. The integrated 2-channel 8-bit LVDS interface addresses this efficiently. The dual-port LVDS architecture functions like a multi-lane data highway; by splitting the video signal across two physical channels, it significantly lowers the required clock frequency on each individual transmission line. This reduction is highly effective at suppressing electromagnetic interference (EMI) within dense industrial enclosures, ensuring signal integrity even over extended cable runs from the host controller.
Key Parameter Overview
Critical Specifications for System-Level HMI Integration
| Optical Performance Group | |
|---|---|
| Resolution | 1600 x 1200 (UXGA) |
| Luminance (Brightness) | 250 cd/m² (Typ.) |
| Contrast Ratio | 450:1 (Typ.) |
| Viewing Angle (CR≥10) | 85° / 85° / 85° / 85° (Up/Down/Left/Right) |
| Electrical & Interface Group | |
| Signal Interface | LVDS (2-ch, 8-bit) |
| Panel Input Voltage | 12.0V (Typ.) |
| Backlight Type | CCFL (6 pcs) |
| Mechanical Group | |
| Active Area | 432.0 (W) x 324.0 (H) mm |
| Module Outline Dimensions | 457.0 (W) x 350.0 (H) x 25.0 (D) mm |
| Operating Temperature | 0°C to +55°C |
Download the NL160120BC27-02 datasheet for detailed specifications and performance curves.
FAQ
Addressing Common Engineer Inquiries on 21.3-inch UXGA Replacements
How does the 12.0V input voltage simplify controller board selection for the NL160120BC27-02?
A standard 12.0V panel voltage eliminates the need for complex, multi-rail step-down converters on your TFT-LCD controller board. This streamlines the power supply design, reduces component count, and enhances the overall mean time between failures (MTBF) for demanding industrial monitors.
Why is the 2-channel 8-bit LVDS necessary for a 1600x1200 resolution panel?
Transmitting 1600x1200 UXGA video data requires massive bandwidth. Splitting the signal across a 2-channel LVDS configuration reduces the clock frequency on each line, effectively lowering EMI emissions and preventing signal degradation in environments with heavy electrical noise.
When engineering high-reliability visualization systems, precision component selection dictates long-term performance. We recommend evaluating the detailed pinout configurations and thermal parameters of this module to ensure perfect alignment with your architectural requirements. Empower your next hardware revision by securing the exact display data you need to drive your project forward without delay.
