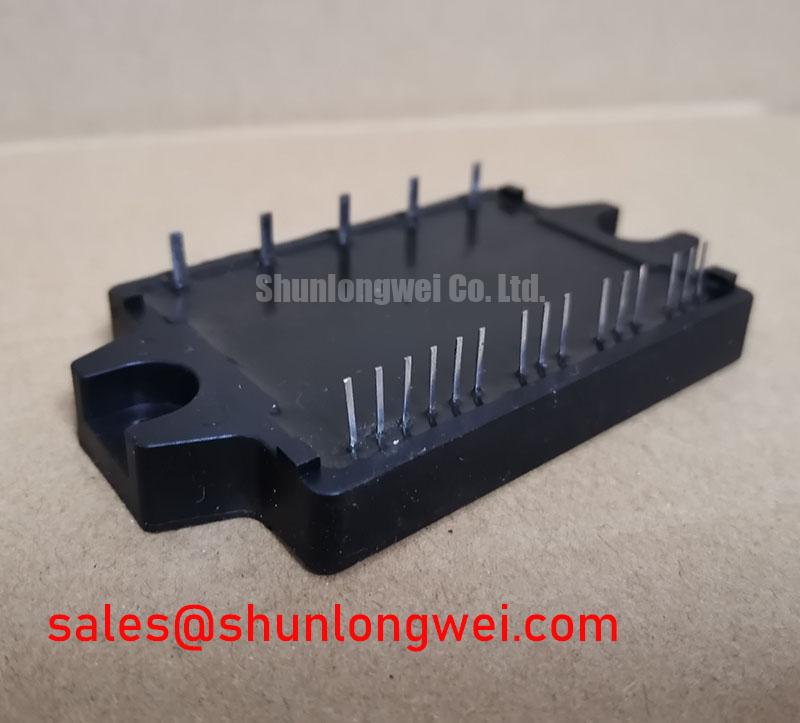

Mitsubishi PM15CMA060-1 | Compact 600V 15A PIM for Integrated Low-Power Motion Control
The Mitsubishi PM15CMA060-1 is a highly integrated Power Integrated Module (PIM) engineered to streamline the design of low-power motor drives and power conversion systems. By co-packaging a three-phase converter, a three-phase inverter, and a brake chopper circuit into a single, compact housing, this module offers a significant advantage in applications where space, assembly cost, and reliability are critical design drivers. It is a workhorse solution for systems requiring precise control of AC motors up to approximately 2.2 kW.
Key Performance Highlights
- System-in-a-Package Design: Integrates a 3-phase diode bridge rectifier, a 3-phase IGBT inverter, and a brake chopper with a freewheeling diode, drastically reducing component count and simplifying PCB layout.
- Optimized for Low-Power Drives: With a 600V blocking voltage and 15A nominal current rating, it is perfectly suited for 200/240V AC line-powered Variable Frequency Drives (VFDs) and servo amplifiers.
- Enhanced Thermal Efficiency: The single insulated substrate ensures simplified and effective thermal coupling to a heatsink, providing superior thermal management compared to multiple discrete components.
- Proven Reliability: Leverages Mitsubishi's established chip technology to deliver a robust solution with well-defined Safe Operating Areas (SOA) and short-circuit withstand capabilities, essential for demanding industrial environments.
Key Parameters Overview
The following table outlines the critical electrical and thermal characteristics of the PM15CMA060-1, providing engineers with the essential data for system design and simulation. For a comprehensive list of all parameters, please refer to the official datasheet. *Note: The provided datasheet link is for a reference product and may not match the PM15CMA060-1 exactly.*
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 600 V |
| Collector Current (IC) | 15 A |
| Topology | CIB (Converter-Inverter-Brake) |
| Collector-Emitter Saturation Voltage (VCE(sat)) (Typ. @ IC=15A) | 1.75 V |
| Maximum Junction Temperature (Tjmax) | 150 °C |
| Isolation Voltage (Visol) (AC, 1 min.) | 2500 V |
Application Scenarios & Engineering Value
The integrated nature of the PM15CMA060-1 provides tangible value across a range of applications by directly addressing common engineering pain points.
- Compact Variable Frequency Drives (VFDs): In small VFDs for pumps, fans, and conveyors, board space is at a premium. This PIM replaces over a dozen discrete components, shrinking the power stage footprint and reducing assembly time and potential points of failure. The integrated rectifier simplifies the front-end design directly from the AC line.
- Servo Drives for Automation: For robotic arms and CNC machines, high power density is crucial. The low-profile package of the PM15CMA060-1 allows for the design of smaller, more efficient servo drives, enabling more compact and responsive automation systems.
- Uninterruptible Power Supplies (UPS): In smaller-scale UPS systems, the module's reliability and integrated structure contribute to a more robust and cost-effective power conversion stage, ensuring dependable backup power.
Technical Deep Dive: The PIM Advantage
The engineering value of the PM15CMA060-1 extends beyond simple component consolidation. Its architecture delivers fundamental performance benefits.
First, the CIB (Converter-Inverter-Brake) topology is a complete power front-end and motor drive solution. Integrating these stages onto a single substrate minimizes the stray inductance between components, particularly in the high-current DC bus path between the rectifier and inverter. This reduction in parasitic inductance lowers voltage overshoots during switching, which simplifies or even eliminates the need for extensive snubber circuits, leading to a cleaner and more efficient design. For a deeper understanding of the building blocks of these systems, explore our guide to IGBT modules.
Second, the module utilizes advanced IGBT and Freewheeling Diode (FWD) chips optimized for a balance between conduction loss (low VCE(sat)) and switching loss. This makes it highly efficient for the typical switching frequencies (4 kHz to 16 kHz) used in motion control, minimizing the heat that needs to be dissipated and allowing for a smaller, more cost-effective heatsink solution.
Frequently Asked Questions (FAQ)
1. What are the primary gate drive requirements for this module?
The PM15CMA060-1 is designed for a standard IGBT gate drive logic. A VGE of +15V is recommended for full turn-on and achieving the rated VCE(sat). For secure turn-off and to prevent parasitic turn-on induced by the Miller effect, a negative gate voltage of -5V to -10V is advisable. The integrated nature simplifies layout, but it's still crucial to follow best practices for robust IGBT gate drive design, such as keeping gate drive traces short and using twisted pairs.
2. Can I parallel these modules for higher current applications?
No, PIM modules like the PM15CMA060-1 are not designed for direct paralleling. The integrated nature of the internal circuitry, including the converter front-end, makes current sharing impractical and unreliable. For applications requiring higher current, you should select a single, appropriately rated IGBT module from a higher power series. For any specific application questions or alternative component selection, please contact our technical team for expert guidance.
