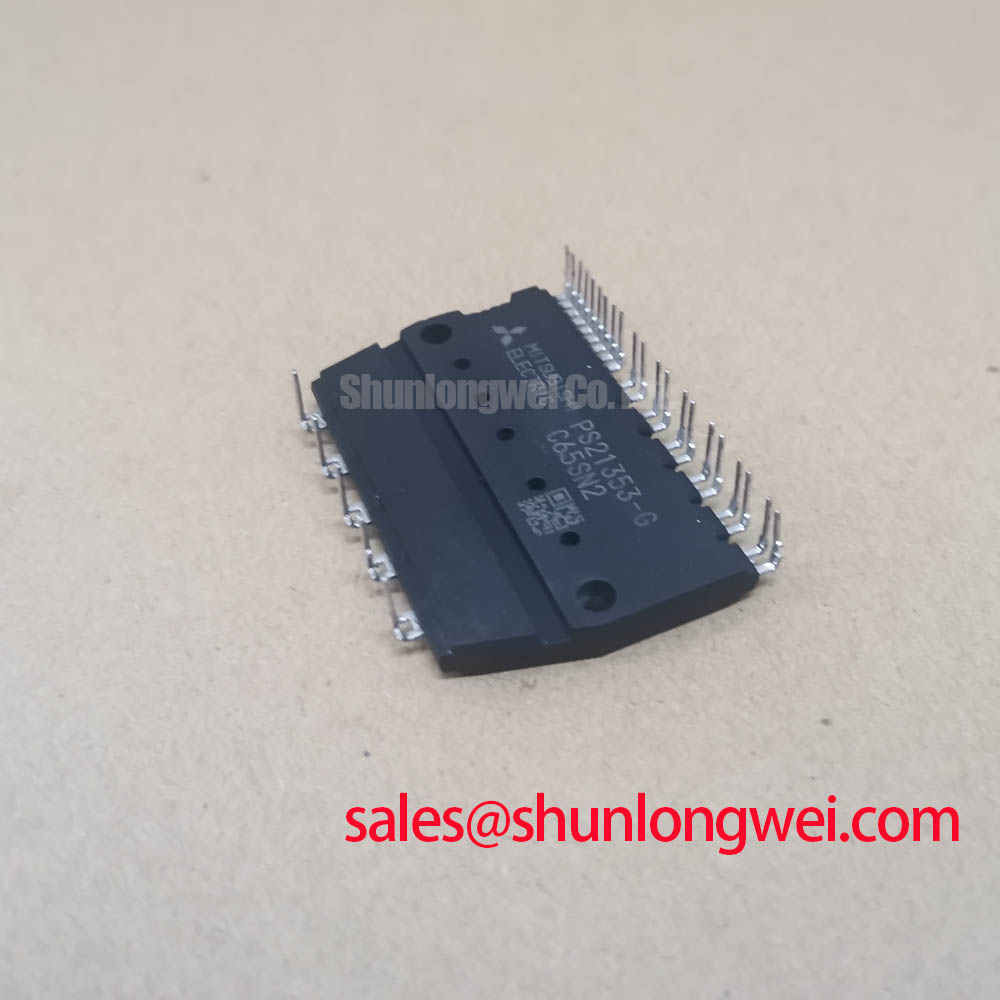

Mitsubishi PS21353-G DIP-IPM | Streamlining Low-Power Motor Control
The Mitsubishi PS21353-G is not just a component; it's a complete power stage solution engineered for modern, compact, and highly reliable low-power motor drive systems. As part of Mitsubishi's renowned DIP-IPM family, this Intelligent Power Module (IPM) integrates six IGBTs, freewheeling diodes, and the critical gate drive and protection circuitry into a single, compact dual-in-line package. It is the definitive choice for engineers developing systems for home appliances, small-scale industrial automation, and servo drives where efficiency, board space, and accelerated time-to-market are paramount.
Deep Dive: Integrated Intelligence and Protection
- All-in-One Gate Drive & Protection Circuitry: The core value of the PS21353-G lies in its integration. It incorporates dedicated high-voltage ICs (HVICs) that provide optimized gate signals for the internal IGBTs, along with a suite of essential protection functions. This includes under-voltage lockout (UV) for both high-side and low-side supplies and short-circuit (SC) protection.
Application Value: This high level of integration dramatically simplifies your PCB layout, reduces component count, and eliminates the complex and error-prone process of designing and tuning a discrete gate driver circuit. You achieve higher system reliability and a significantly shorter design cycle. - Optimized Thermal Performance in a Compact DIP Package: The PS21353-G is engineered with a low thermal resistance package. The internal structure is meticulously designed to ensure an efficient thermal path from the IGBT and diode chips to the module's case.
Application Value: This superior thermal management allows for smaller heatsinks or even heatsink-less operation in certain low-load conditions, directly reducing system size, weight, and bill-of-materials (BOM) cost. It ensures stable operation and enhances the long-term lifespan of your end product.
Where the PS21353-G Excels: Application-Specific Advantages
- Home Appliances (Washing Machines, Air Conditioners): In this cost-sensitive sector, the PS21353-G reduces BOM cost and assembly complexity. Its integrated protections safeguard the drive against common grid fluctuations and motor faults, improving the appliance's durability and reducing warranty claims.
- Small Industrial Pumps and Fans: For compact industrial equipment, board space is a premium. The DIP package of the Mitsubishi PS21353-G is ideal. Its inherent robustness and integrated fault detection provide the reliability needed for continuous operation in demanding factory environments.
- Low-Power Servo Drives: Precision is key in servo control. The matched characteristics of the integrated driver and IGBTs inside the PS21353-G ensure consistent, low-latency switching performance, which is critical for accurate position and speed control loops.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 600V |
| Collector Current (IC) | 10A |
| Circuit Supply Voltage (VCC) | 450V |
| Package Type | DIP (Dual In-line Package) |
| Datasheet | [PS21353-G Datasheet] |
Why Choose the PS21353-G IPM Over a Discrete Solution?
Designers often face a choice: use an integrated IPM like the PS21353-G or build a power stage with discrete IGBTs, diodes, and a gate driver IC. While a discrete approach offers granular component selection, the PS21353-G provides compelling system-level benefits. It eliminates concerns about gate drive layout, parasitic inductance, and component matching. For projects prioritizing development speed, reliability, and a compact footprint in the sub-1kW power range, this IPM is almost always the more efficient and robust choice. Explore our full range of IGBT solutions to compare different approaches.
Frequently Asked Questions
- How critical is heatsinking for the PS21353-G?
While its thermal performance is excellent, a heatsink is typically required for applications running near the rated current. The necessity and size depend on the switching frequency, load current, and ambient temperature. Always ensure a good thermal interface with quality thermal grease for optimal heat dissipation. - How does the short-circuit protection work?
The module uses an external sense resistor on the DC-bus negative rail to detect an overcurrent condition. When the voltage across this resistor exceeds a predefined threshold, the internal logic triggers a fault signal and safely shuts down all six IGBTs to prevent catastrophic failure.
By integrating key power and control functions, the Mitsubishi PS21353-G empowers engineers to create more efficient, compact, and reliable motor control systems with greater confidence and speed. For detailed application notes or to discuss your specific design challenge, contact our technical team for a quote or personalized support.
