PM300RSD060: 600V 300A Integrated IGBT Module for High-Efficiency Motor Control
Content last revised on October 24, 2025.

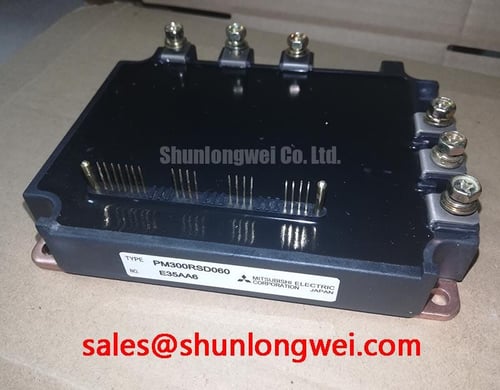

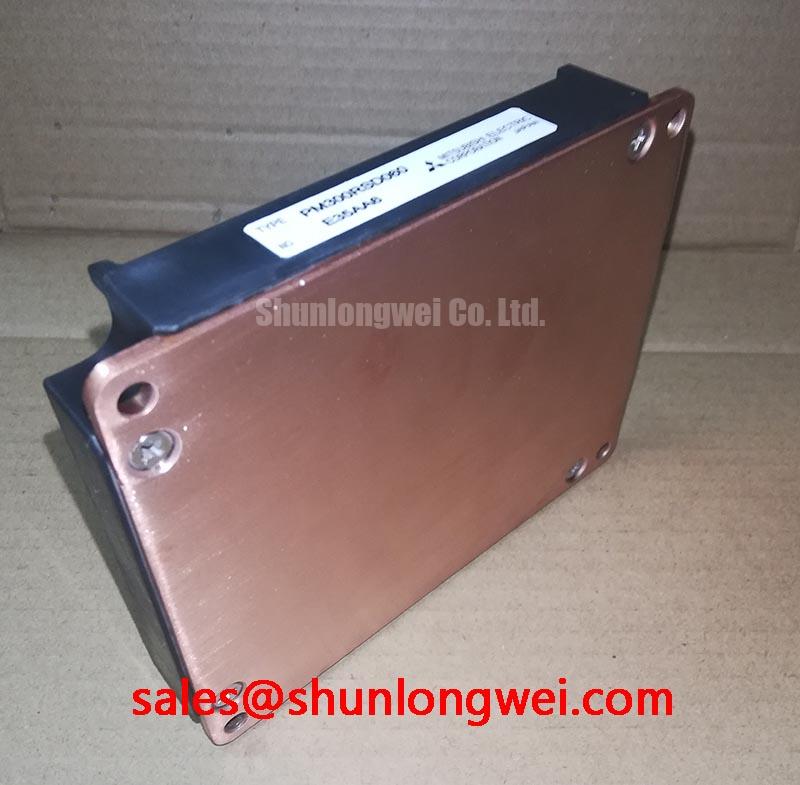

The Mitsubishi PM300RSD060 is a highly integrated Intelligent Power Module (IPM) designed to streamline the design of high-performance, compact motor drives. It combines a 600V | 300A | VCE(sat) 1.7V (typ) rating with extensive built-in protection, delivering superior energy efficiency and enhanced system reliability. This module provides a robust solution for engineers seeking to reduce design complexity and improve thermal performance in demanding industrial applications. For systems requiring a compact, all-in-one power stage for three-phase motor control, the PM300RSD060's integrated architecture offers a decisive advantage in both performance and assembly time.
Application Scenarios & Value
Accelerating Time-to-Market in Industrial Drive Systems
The primary value of the PM300RSD060 lies in its ability to provide a complete, optimized power stage in a single component. This is a critical advantage in the development of industrial systems like Variable Frequency Drives (VFDs), servo drives, and general-purpose inverters. An engineer's key challenge in these applications is managing the complex interactions between the gate drive, power switches, and protection circuits while minimizing electromagnetic interference (EMI) and thermal stress. The PM300RSD060 directly addresses this by integrating the gate drive and a suite of protection features—including short-circuit (SC), over-temperature (OT), and under-voltage (UV) lockout—within the module. This integration eliminates the need for numerous external components, simplifies PCB layout, and significantly reduces the risk of design errors associated with high-current switching circuits. The result is a more reliable system with a faster development cycle and a smaller physical footprint.
For applications with different current requirements, the product family offers alternatives. For instance, systems with lower power demands might utilize the PM200RSD060, while higher power systems could be designed around the PM450CS1H060, which offers a 450A rating.
Key Parameter Overview
Specifications Translated to Engineering Value
The specifications of the PM300RSD060 are tailored for efficiency and reliability in motor control applications. Each parameter has a direct implication on system-level performance, from thermal management to control precision.
| Parameter | Value | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 600V | Provides a safe operating margin for applications running on 200/240V AC lines, ensuring resilience against voltage spikes and transients common in industrial environments. |
| Collector Current (Ic) | 300A | Enables the control of high-power motors, suitable for applications up to approximately 30kW, depending on switching frequency and cooling conditions. |
| Collector-Emitter Saturation Voltage (Vce(sat)) | 1.7V (typ), 2.7V (max) | This value is critical for efficiency. A low Vce(sat) is like having less friction in a mechanical system; it directly reduces the power lost as heat during conduction, leading to a cooler-running module and smaller heatsink requirements. |
| Integrated Protections | SC, OT, UV | These built-in safety circuits act as a vigilant supervisor for the power stage. They protect the expensive IGBT chips from catastrophic failure modes, enhancing overall system robustness and reducing warranty concerns. |
| Isolation Voltage (Viso) | 2500Vrms | Ensures high electrical isolation between the power circuit and the control logic, which is a fundamental safety requirement for protecting operators and low-voltage control systems. |
Download the PM300RSD060 datasheet for detailed specifications and performance curves.
Frequently Asked Questions (FAQ)
What is the main benefit of the PM300RSD060's integrated 7-in-1 configuration?
Its primary advantage is system simplification. By integrating a three-phase converter, three-phase inverter, and a brake chopper into one package, it drastically reduces assembly time, component count, and the complexity of the power bus structure, leading to a more compact and reliable final product.
How does the typical Vce(sat) of 1.7V impact system design?
This low saturation voltage directly reduces conduction power loss (P = Vce(sat) * Ic). This means less heat is generated for a given current, allowing designers to potentially use a smaller, less costly heatsink and improve the overall energy efficiency of the thermal management system.
What does the integrated short-circuit (SC) protection entail?
The module includes current-sense IGBTs and a monolithic gate drive IC that can detect a short-circuit event. Upon detection, it will safely shut down the IGBTs to prevent catastrophic failure. It also provides a fault signal (Fo) to the system controller, enabling intelligent fault handling.
Is the PM300RSD060 suitable for high-frequency switching?
This module is optimized for switching frequencies up to 15kHz, making it well-suited for a wide range of motor control applications. The use of soft-recovery free-wheeling diodes helps to manage switching losses and reduce electromagnetic noise within this frequency range.
What is the function of the integrated brake chopper?
The brake chopper (or regenerative brake IGBT) is used to manage energy returned from the motor during deceleration. It safely dissipates this regenerative energy into a braking resistor, preventing the DC bus voltage from rising to dangerous levels and protecting the module and other DC link components.
Technical Deep Dive
Anatomy of a Low-Loss, High-Reliability Power Stage
The performance of the PM300RSD060 is rooted in its use of Mitsubishi's 4th generation planar IGBT chip technology. This advanced silicon is manufactured using a 1µm fine rule process, which is key to achieving the low collector-emitter saturation voltage (Vce(sat)) of 1.7V (typical). In high-current applications, Vce(sat) is a dominant factor in conduction losses. Reducing this voltage is akin to widening a pipeline; it allows current to flow with less resistance, thereby generating less heat. This efficiency gain is not just a marginal improvement; it fundamentally impacts the system's thermal design, enabling higher power density or operation in more demanding ambient conditions without excessive cooling hardware. Furthermore, the module incorporates specially designed soft-recovery diodes, which are critical for minimizing voltage overshoots and oscillations during IGBT turn-off, contributing to lower EMI and improved reliability in high-frequency PWM-controlled systems.
From an engineering standpoint, the true value of the PM300RSD060 is the pre-engineered synergy between its silicon, its integrated protection logic, and its physical construction. The internal layout is optimized to minimize stray inductance, a common source of voltage overshoots and instability in discrete designs. By providing a fully characterized and protected power block, it allows design teams to focus their efforts on higher-level system control and application software, rather than on the intricacies of high-power gate drive design and fault management.
