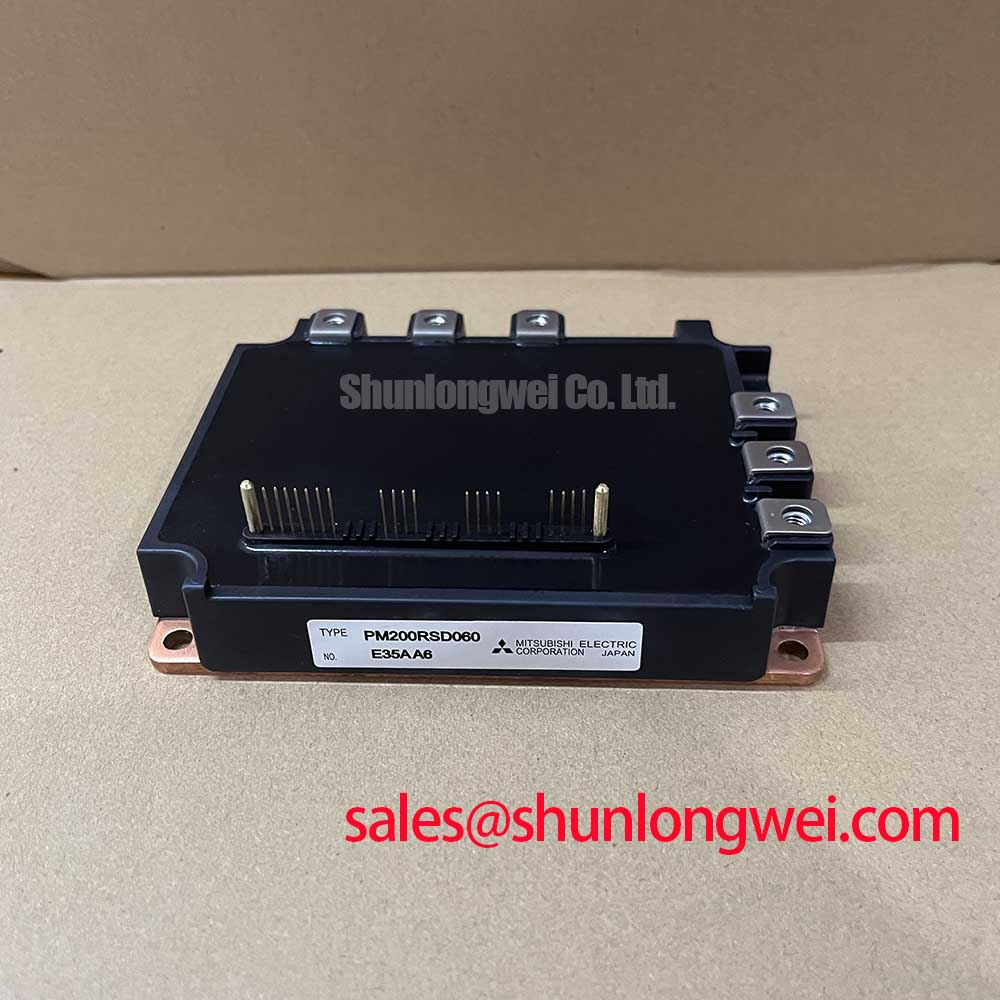

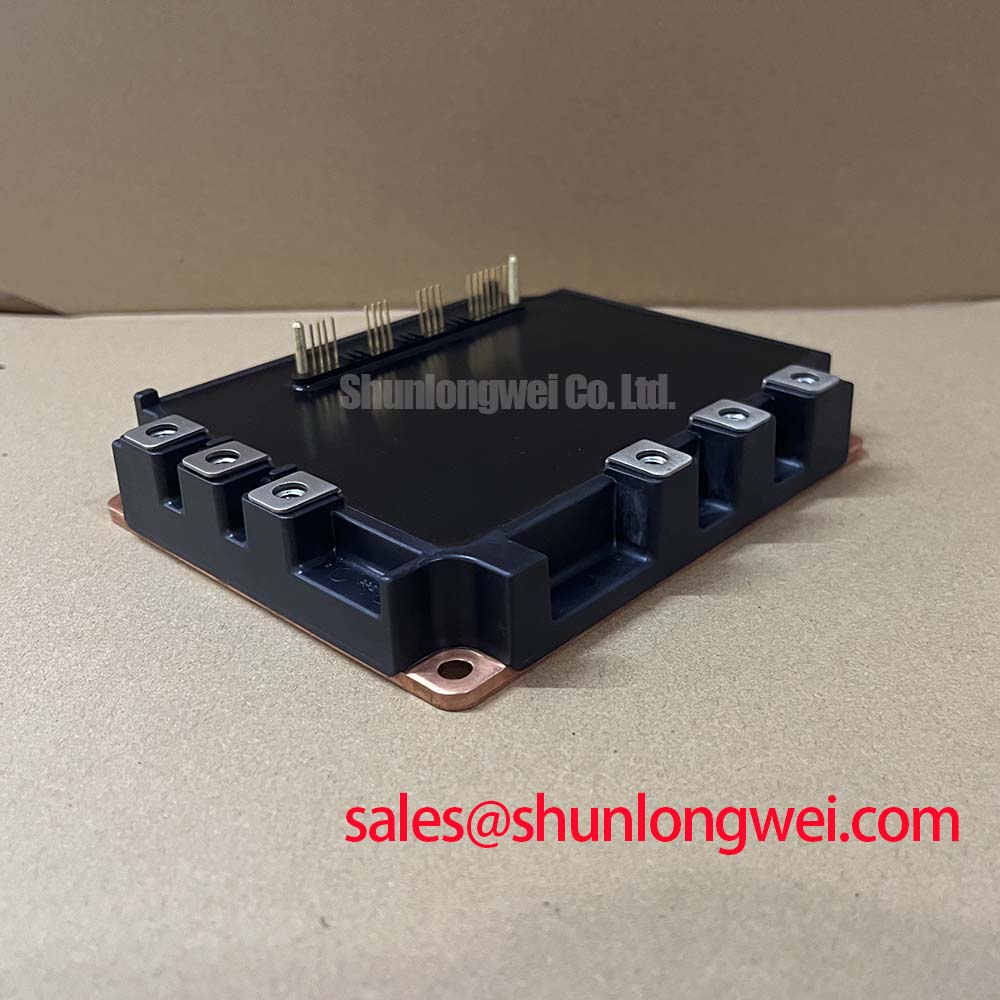

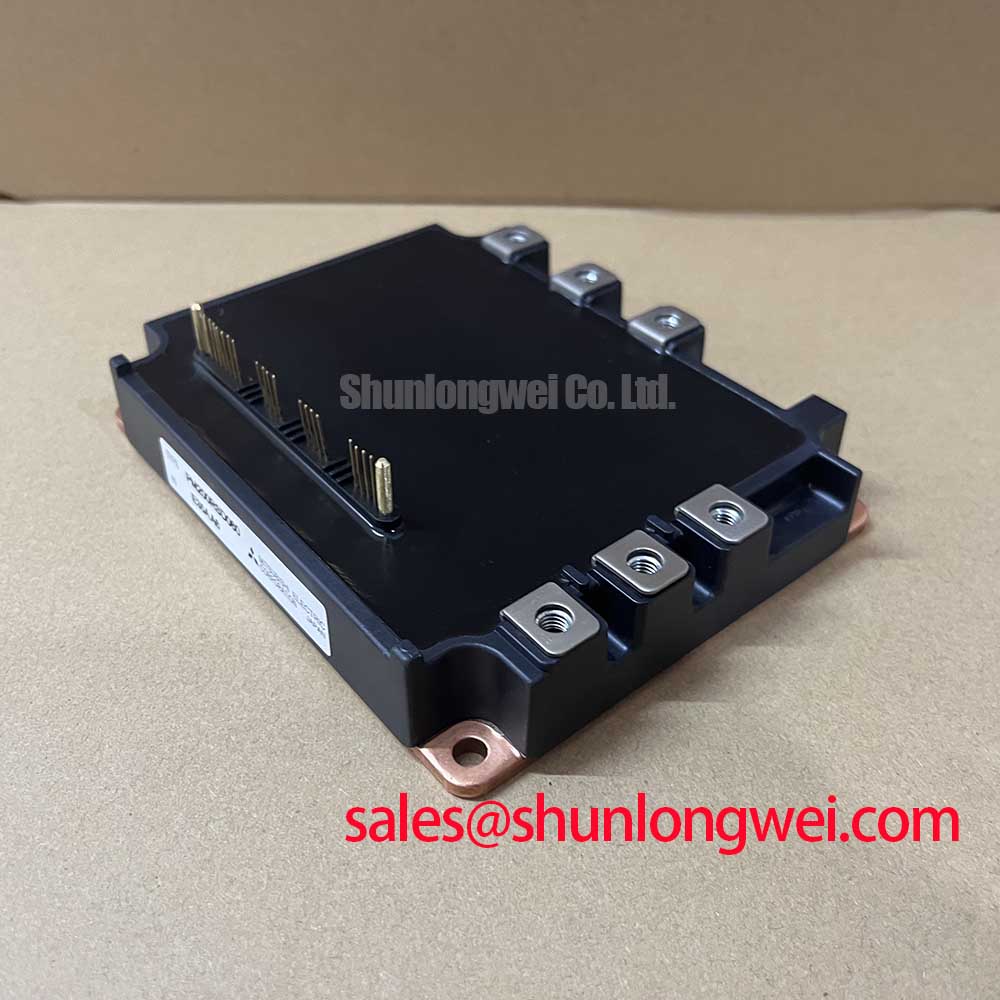

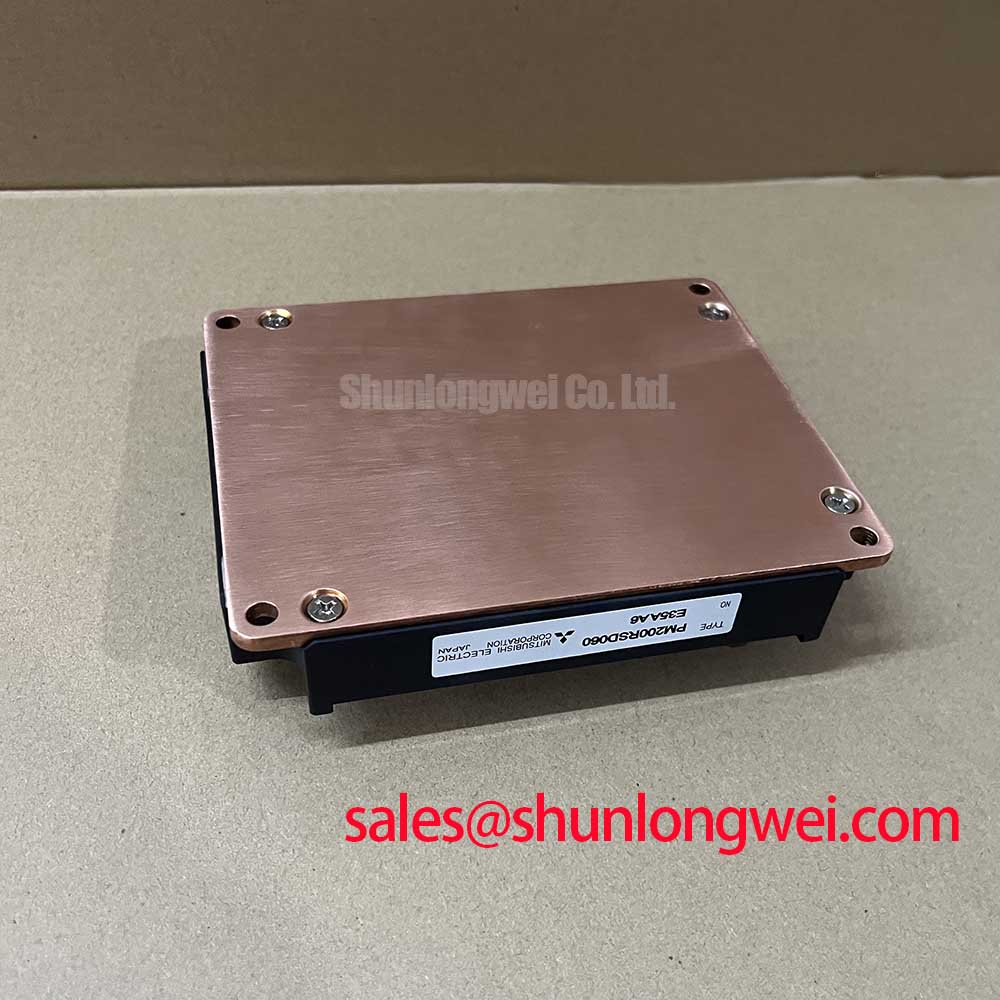

PM200RSD060 Mitsubishi 600V 200A Intelligent Power Module (IPM)

Content last revised on January 25, 2026

PM200RSD060 IPM: A Technical Analysis for High-Reliability Motor Control Applications

Mitsubishi 600V/200A Intelligent Power Module for Inverterized Systems

Engineered for demanding power conversion systems, the Mitsubishi PM200RSD060 is a 600V, 200A Intelligent Power Module (IPM) that integrates critical power and protection circuits into a single, compact package. Its design focuses on delivering robust thermal performance and simplifying the design of motor control systems. With key specifications of 600V Vces | 200A Ic | 15V VGE, this module provides significant advantages, including optimized thermal management and enhanced short-circuit protection. The PM200RSD060 directly addresses the engineering need for a reliable power stage in variable frequency drives by integrating drive and protection circuitry, reducing both component count and design complexity. For applications requiring a higher current rating within a similar package, the PM300RSD060 offers a 300A capability.

Key Parameter Overview

Decoding the Specs for Enhanced Thermal Reliability

The technical specifications of the PM200RSD060 are foundational to its performance in high-stress industrial environments. The parameters below highlight its capacity for thermal stability and efficient power handling, which are critical for long-term operational reliability.

Download the PM200RSD060 datasheet for detailed specifications and performance curves.

Application Scenarios & Value

Achieving System-Level Benefits in High-Current Motor Drives

The PM200RSD060 is best suited for 3-phase AC motor control in applications where reliability and thermal efficiency are paramount. Its high 200A current rating makes it a robust choice for medium-power Variable Frequency Drives (VFDs), commercial HVAC systems, and industrial servo drives. What is the primary benefit of its integrated design? Simplified thermal management and a reduced bill of materials. In a typical VFD design, engineers face the challenge of managing heat generated by the power switches while ensuring protection against fault conditions. The PM200RSD060's integrated nature, combining IGBTs with their gate drive and protection circuits (short-circuit, over-temperature, and under-voltage), provides a pre-optimized solution. This integration reduces parasitic inductance, leading to cleaner switching, and simplifies the heatsink design due to the module's defined thermal interface. This module's architecture allows designers to focus on system-level performance rather than discrete component-level complexities.

Frequently Asked Questions (FAQ)

What is the main advantage of the integrated gate driver in the PM200RSD060?
The integrated gate driver is optimized specifically for the internal IGBTs. This ensures proper gate voltage levels and timing, which is crucial for minimizing switching losses and preventing unintended turn-on events. It removes the guesswork from gate drive design and enhances overall reliability.

How does the built-in short-circuit (SC) protection function?
The module incorporates current sensors that monitor the collector current of the IGBTs. If the current exceeds a predetermined threshold, indicating a short-circuit event, the control circuit rapidly and safely shuts down the IGBTs to prevent catastrophic failure. This fast-acting protection is critical for system survivability in industrial environments.

What does the integrated temperature sensor provide?
The PM200RSD060 includes an internal thermistor that outputs an analog signal proportional to the module's substrate temperature. This allows the system controller to monitor the thermal state of the IPM in real-time, enabling it to implement soft shutdown procedures or adjust fan speeds if the temperature approaches its operational limits, thereby preventing failures due to overheating.

Is this module suitable for high-frequency switching applications?
While the PM200RSD060 is highly efficient, its primary design focus is on motor control applications, which typically operate at switching frequencies up to 20 kHz. The datasheet provides detailed switching time characteristics (ton, toff, trr) that are essential for calculating losses and determining its suitability for a specific operating frequency. For systems requiring even higher current handling, the related CM300HA-12H might be considered.

Technical Deep Dive

A Closer Look at the Integrated Protection for Enhanced Reliability

A key engineering value of the PM200RSD060 lies in its comprehensive, integrated protection suite. This isn't just a collection of power switches; it's an intelligent subsystem designed for survivability. The short-circuit protection, for instance, is more than a simple overcurrent trip. It's carefully calibrated to distinguish between a genuine fault and a temporary inrush current, preventing nuisance trips. Think of it like a sophisticated circuit breaker in your home that knows the difference between a real electrical fault and the momentary power surge from starting a large appliance. Similarly, the under-voltage lockout (UVLO) for the control supply is critical. It ensures that the gate drivers have enough voltage to fully turn on the IGBTs. Attempting to switch an IGBT with insufficient gate voltage can cause it to operate in its linear region, leading to extremely high power dissipation and rapid destruction. By preventing this condition, the UVLO acts as a fundamental safeguard for the power stage.

Strategic Outlook

The PM200RSD060 represents a strategic choice for engineers developing next-generation motor control systems. By consolidating power switching, gate drive, and multilayered protection into a single, thermally efficient package, it enables the design of more compact, reliable, and cost-effective inverters. This aligns with the industry-wide push towards higher power density and reduced system complexity in industrial automation and power conversion. Adopting such an integrated solution allows design teams to accelerate their development cycle and deliver a more robust end product to the market. For systems that may require a different voltage or current configuration, exploring alternatives like the CM200DY-24H could provide additional design flexibility.
