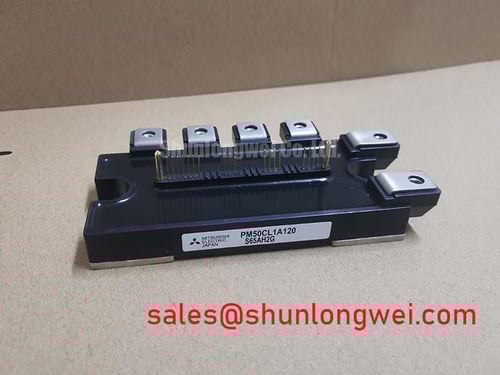

PM50CL1A120 L1-Series Intelligent Power Module (IPM)
Content last revised on October 27, 2025.
SEO Title: PM50CL1A120 Datasheet | 1200V 50A IPM Module | Mitsubishi
Introduction & Key Highlights
The Mitsubishi PM50CL1A120 is a highly integrated L1-Series Intelligent Power Module (IPM) that delivers robust system protection and high efficiency by leveraging 5th Generation CSTBT™ chip technology. It combines a three-phase IGBT inverter stage with optimized gate drive and protection circuits in a single, compact flat-base package. Key Specifications: 1200V VCES | 50A DC Collector Current | Rth(j-c) 0.27°C/W (IGBT). Its core benefits include simplified peripheral circuit design and enhanced system reliability through direct chip-level temperature monitoring. What is the primary benefit of its integrated protection? It enables a rapid and precise shutdown during over-temperature or short-circuit events, safeguarding the module and the load. For industrial motor drives requiring a compact, fault-tolerant power stage up to approximately 22kW, the PM50CL1A120 offers an optimal balance of performance and built-in reliability.
Key Parameter Overview
Decoding Specs for Integrated System Reliability
The technical specifications of the PM50CL1A120 are architected to deliver not just raw power, but dependable, protected performance in demanding industrial applications. The integration of drive and protection logic simplifies design, while the underlying silicon technology ensures operational efficiency and robustness.
| Parameter | Value & Conditions | Engineering Value & Interpretation |
|---|---|---|
| Collector-Emitter Voltage (VCES) | 1200V | Provides a substantial safety margin for nominal 380V-480V AC line applications, ensuring reliability against voltage transients commonly found in industrial environments. This high blocking voltage is critical for robust Variable Frequency Drive (VFD) designs. |
| DC Collector Current (IC) | 50A @ TC = 25°C | This continuous current rating supports applications like servo drives and general-purpose inverters for motors typically in the 15kW to 22kW range, depending on cooling efficiency and switching frequency. |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 1.65V (Typ), 2.15V (Max) @ IC = 50A, Tj = 25°C | This value, a direct result of the 5th Gen Mitsubishi CSTBT™ technology, is crucial for efficiency. A lower VCE(sat) means less power is wasted as heat during conduction. Think of it as electrical friction; lower friction means less energy loss and a cooler-running system, which simplifies thermal management. |
| Thermal Resistance (Rth(j-c)) | 0.27 °C/W (IGBT Part) | Represents the efficiency of heat transfer from the IGBT junction to the case. A lower value is superior. This 0.27 °C/W rating indicates an effective thermal pathway, allowing the heat generated during switching to be evacuated efficiently to the heatsink, which is paramount for long-term reliability. |
| Integrated Protections | Short-Circuit (SC), Over-Temperature (OT), Under-Voltage (UV) | This built-in intelligence is a key differentiator. The module's ability to detect over-temperature directly on the chip surface provides a faster and more accurate response than external NTC thermistors alone, preventing catastrophic failure. |
Download the PM50CL1A120 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Enhancing Reliability in AC Motor Control and Servo Systems
The PM50CL1A120 is engineered for power conversion systems where operational uptime and fault tolerance are critical. Its primary application is in AC motor control, including general-purpose inverters and high-performance Servo Drive systems. In a typical manufacturing automation scenario, an unexpected drive failure can halt an entire production line. The key challenge for engineers is to design a power stage that not only performs efficiently but can also protect itself from abnormal conditions like a motor stall (leading to overcurrent) or cooling fan failure (leading to overheating). The integrated short-circuit and direct chip-level over-temperature protection of the PM50CL1A120 directly addresses this challenge. It provides a self-contained safety net, significantly reducing the reliance on slower, external protection circuits and ultimately enhancing the overall robustness of the servo drive or VFD. For systems requiring higher power handling, the related PM75CL1A120 offers a 75A current rating within a similar integrated framework.
Technical Deep Dive
A Closer Look at Integrated Protection for System-Level Reliability
A standout feature of the PM50CL1A120 is its comprehensive, monolithic protection architecture. Unlike discrete solutions where protection circuits are designed externally, this IPM integrates them directly with the gate driver. The most critical of these is the over-temperature (OT) protection. Traditional modules often rely on an NTC thermistor mounted on the baseplate, which introduces a thermal lag. The PM50CL1A120, however, detects the temperature directly at the surface of the CSTBT™ chip. This is analogous to having a fever thermometer on the brain versus on the skin; the internal measurement is far faster and more indicative of critical stress. This direct sensing allows the control logic to trigger a fault output and initiate a safe shutdown before the IGBT's maximum junction temperature is breached, drastically improving the module's survivability under fault conditions and contributing to a longer operational lifespan for the entire power system.
FAQ
How does the integrated gate driver in the PM50CL1A120 simplify the design process?
The integrated gate driver eliminates the need for designing complex and sensitive external driver circuits, including component selection for gate resistors, Zener diodes, and isolated power supplies. This integration reduces PCB footprint, component count, and potential noise coupling issues, accelerating the development cycle.
What is the significance of the 5th Generation CSTBT™ (Carrier Stored Trench Bipolar Transistor) technology?
This proprietary Mitsubishi technology is engineered to optimize the trade-off between collector-emitter saturation voltage (VCE(sat)) and switching losses. For the design engineer, this translates to lower overall power dissipation—meaning less heat is generated, leading to higher system efficiency and potentially smaller heatsink requirements.
Can the PM50CL1A120's fault output (FO) signal distinguish between different types of faults?
The device provides a unified fault output signal for short-circuit, over-temperature, and supply under-voltage conditions for both the upper and lower arms. While it signals that a fault has occurred, external logic would be required to differentiate the specific cause if needed. Its primary function is to provide an immediate, actionable alarm to the system controller.
What is the practical benefit of the 2500Vrms isolation voltage?
The high isolation voltage ensures a robust barrier between the high-power circuitry and the low-voltage control logic. This is a critical safety and regulatory requirement (e.g., for UL recognition) in industrial equipment, preventing control-side damage during high-voltage faults and ensuring operator safety.
How does the flat-base package design impact thermal performance?
The flat-base design ensures a large, uniform contact area with the heatsink. When properly mounted with thermal grease, it facilitates low case-to-fin thermal resistance, maximizing heat transfer away from the module. This is fundamental to achieving the specified current ratings and ensuring long-term reliability by keeping junction temperatures within safe operating limits.
An Engineer's Perspective on Application
From a design engineering standpoint, the true value of the PM50CL1A120 lies in its ability to de-risk the power stage design. By integrating the most critical protection features with a proven 5th generation IGBT chipset, it shifts the engineering focus from component-level circuit design to system-level integration and performance optimization. This module is not merely a collection of components; it is a pre-validated power subsystem that offers predictable performance and, more importantly, predictable failure modes, which is essential for building reliable and serviceable industrial machinery.
