PM25RSH120 IPM: Integrated 1200V/25A IGBT for Motor Drives
Technical Introduction to the PM25RSH120 Intelligent Power Module

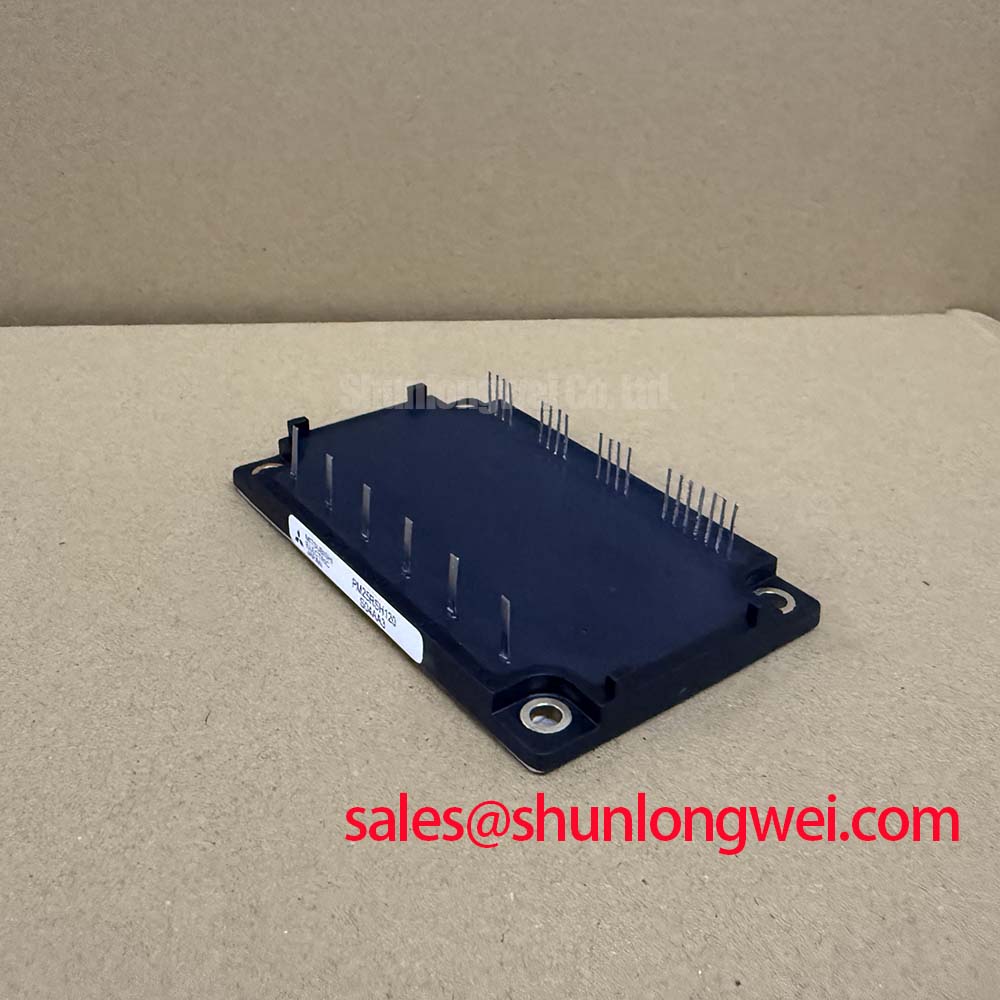

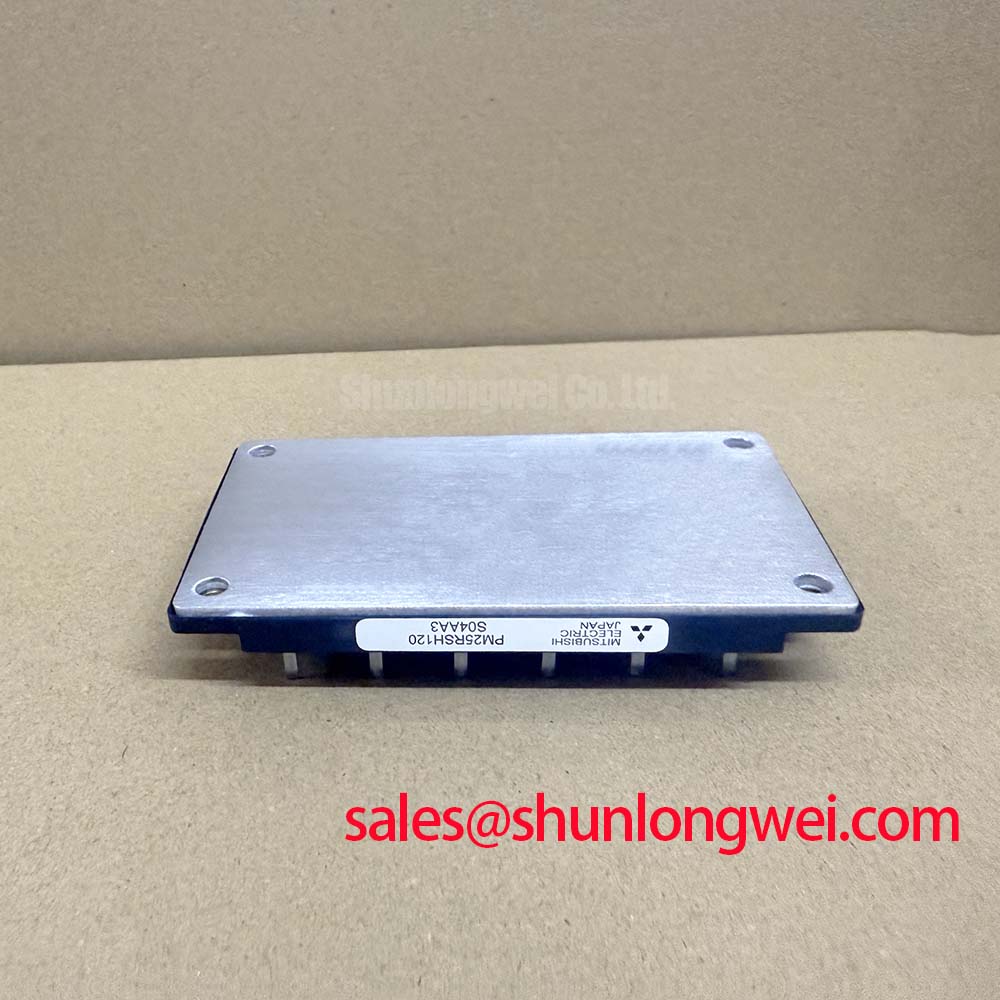

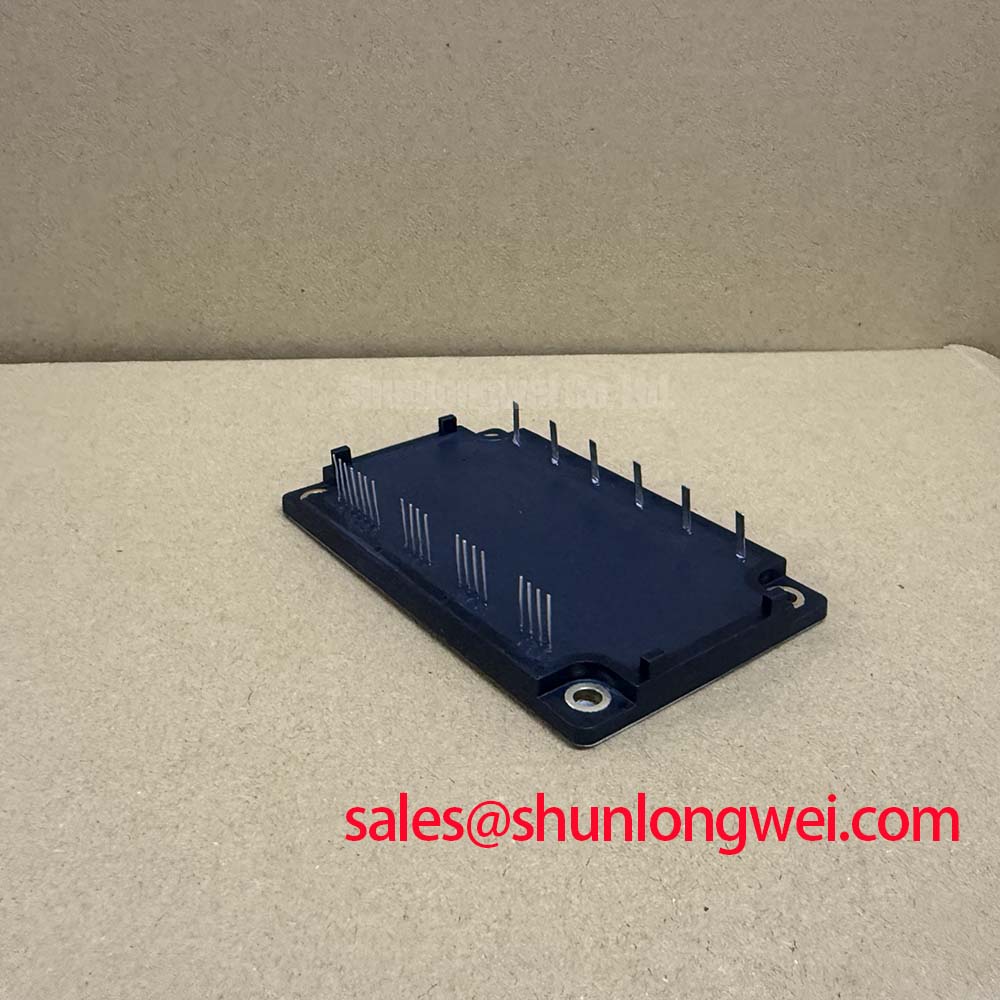

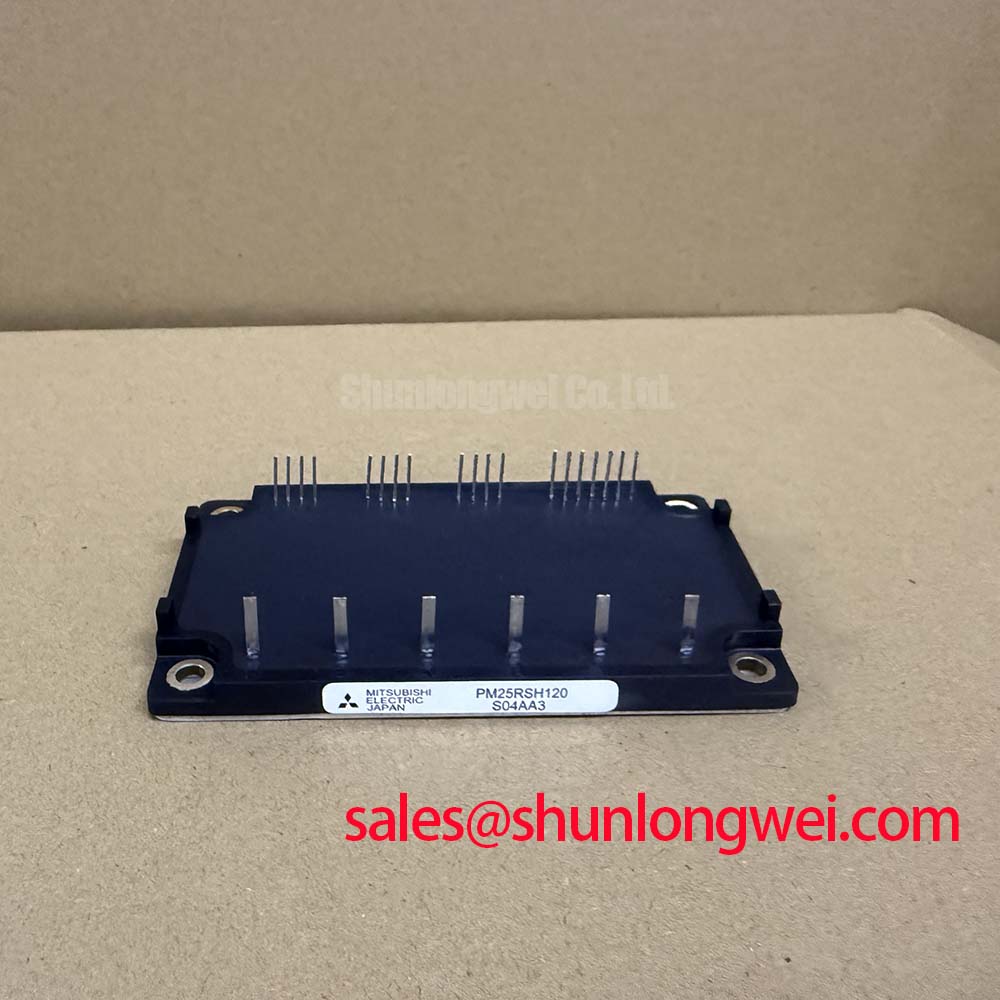

The Mitsubishi PM25RSH120 Intellimod™ streamlines inverter design by integrating a complete 7-pack IGBT power stage with gate drivers and protection circuits into a single, compact module. This intelligent power module (IPM) is engineered to simplify control logic and enhance system reliability. Key specifications include: 1200V | 25A | VCE(sat) 2.7V (typ). It offers significant benefits such as reduced component count and accelerated development time. For engineers asking how to simplify inverter gate drive design, the PM25RSH120 provides a direct answer by allowing control from logic-level signals, thereby eliminating complex intermediary circuits.
Strategic Advantage: The Role of Integrated Power Modules in Modern Systems
In today's competitive landscape, time-to-market and long-term reliability are paramount. The adoption of integrated solutions like the PM25RSH120 represents a strategic shift away from complex, discrete component designs. By consolidating the power switches, gate drive logic, and a suite of protection features into one pre-validated package, engineering teams can reallocate resources from low-level circuit design and validation to higher-value system-level features. This modular approach not only de-risks the development process but also facilitates easier manufacturing and field service, contributing to a lower total cost of ownership. The move towards such IPM (Intelligent Power Module) architectures is a key enabler for creating more compact, robust, and cost-effective power conversion systems.
Architectural Breakdown: Inside the PM25RSH120's Integrated Design
The PM25RSH120 is more than just a collection of IGBTs; it is a cohesive power subsystem. Its internal architecture is carefully designed to optimize performance and simplify external circuitry.
- 7-Pack IGBT Configuration: This module includes six IGBTs for a full three-phase inverter bridge and an additional seventh IGBT for a dynamic braking circuit. This 7-in-1 topology is ideal for motor control applications requiring regenerative energy management.
- Integrated Gate Drivers: High-voltage ICs (HVICs) and low-voltage ICs (LVICs) are built-in, providing optimized gate signal conditioning for the IGBTs. This removes the need for external gate driver design and layout, which is often a source of noise and performance issues.
- Comprehensive Protection Suite: The module features built-in protection against short-circuits (SC), over-current (OC), control supply under-voltage (UV), and over-temperature (OT). Upon detecting a fault, the module provides a dedicated fault signal (Fo) output pin for immediate feedback to the main system controller.
- Simplified Power Requirements: The entire control-side logic operates from a single 15V power supply, greatly simplifying the power tree on the control board and reducing the number of required isolated power sources. For a deeper understanding of how IPMs simplify power design, see our guide on IPM vs. Discrete IGBTs.
Application Focus: Accelerating Development in Compact Motor Drives
The highly integrated nature of the PM25RSH120 makes it an excellent fit for applications where space, assembly time, and reliability are critical design constraints. The module's characteristics enable engineers to develop compact and robust power conversion systems with fewer design iterations.
Primary application areas include:
- AC Servo Drives and Spindle Drives: The module's fast-switching capability and integrated braking circuit are well-suited for the precise control and dynamic response needed in robotics and CNC machinery.
- General-Purpose Inverters: For small to medium-sized industrial motors, this IPM provides a complete power stage, significantly reducing the complexity of variable frequency drive (VFD) designs.
- Commercial HVAC Systems: In compressors and fan motors, the PM25RSH120 offers a reliable and efficient control solution, contributing to overall system energy savings.
For motor drives up to ~1.5kW requiring rapid development and verified protection, the PM25RSH120's integrated architecture presents a more efficient design path than a discrete component approach.
Decision Framework: Evaluating Integrated vs. Discrete Solutions
Choosing between an IPM like the PM25RSH120 and a solution built from discrete IGBTs and drivers involves a trade-off analysis. This data is provided to support your design evaluation.
| Evaluation Factor | PM25RSH120 (IPM Approach) | Discrete Component Approach |
|---|---|---|
| Design Complexity & Time | Low. Pre-integrated and optimized gate drive and protection circuits. | High. Requires separate design, layout, and validation of gate drive, protection, and bootstrap circuits. |
| PCB Footprint | Compact. Consolidates multiple functions into a single module. | Large. Requires significant board space for IGBTs, drivers, protection ICs, and passive components. |
| Reliability & Validation | High. Internally matched components and validated protection schemes from the manufacturer. | System-dependent. Relies entirely on the designer's expertise in layout and component matching. |
| Flexibility | Moderate. Fixed internal topology and components. | High. Allows full customization of IGBTs, diodes, and gate drive characteristics for specific needs. |
For systems that may not require the all-in-one integration of an IPM but still benefit from a modular approach, a component like the 7MBR25SA120-50, a CIB (Converter-Inverter-Brake) module, could be considered as it integrates different stages of the power conversion process.
Core Specifications for System-Level Assessment
This table highlights the key parameters of the PM25RSH120 to facilitate your engineering evaluation. For a complete list of specifications, please download the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200V |
| Collector Current (IC) | 25A |
| Collector Power Dissipation (PC) | 96W |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.7V (Typical) at IC=25A |
| Control Circuit Supply Voltage (VCC) | 15V (13.5V to 16.5V) |
| Isolation Voltage (Viso) | 2500 Vrms (for 1 minute) |
Frequently Asked Questions
What is the primary benefit of the integrated fault signal (Fo) on the PM25RSH120?The Fo pin provides a direct, logic-level alert to the system's microcontroller when any of the module's internal protections (over-current, short-circuit, under-voltage, or over-temperature) are triggered. This enables immediate, controlled shutdown of the system, preventing catastrophic failure and simplifying fault diagnosis in the field.
Can the PM25RSH120 be driven directly from a 3.3V or 5V microcontroller?Yes, the high-active logic input terminals of the module are designed to be compatible with standard logic levels from CPUs and MCUs. This direct interface capability is a core feature that simplifies the control board design, eliminating the need for level-shifters or opto-isolators for the gate signals, which is a common requirement in discrete designs.
How does the module's internal temperature protection work?The PM25RSH120 includes an analog voltage output signal (VOT) that is proportional to the temperature of the internal LVIC. In addition, if the internal junction temperature exceeds a predefined limit (OT protection level), the module automatically shuts down the IGBTs and asserts the fault (Fo) signal. This dual mechanism allows for both preemptive thermal monitoring and definitive shutdown in an over-temperature event, ensuring robust protection against thermal damage.
Future-Facing Design with Integrated Architectures
Embracing integrated power modules like the PM25RSH120 is a strategic step towards more agile and resilient product development. As demands for power density, efficiency, and system intelligence continue to grow, the value of pre-engineered, highly reliable power stages becomes increasingly evident. By abstracting the complexities of gate drive and protection design, these modules empower engineers to focus on innovation at the system level, paving the way for the next generation of advanced motor control and power conversion solutions.
