PM450CS1H060: Technical Analysis of a 600V 450A Chopper IPM
Product Overview & Key Specifications
Integrated Protection for High-Reliability DC Switching

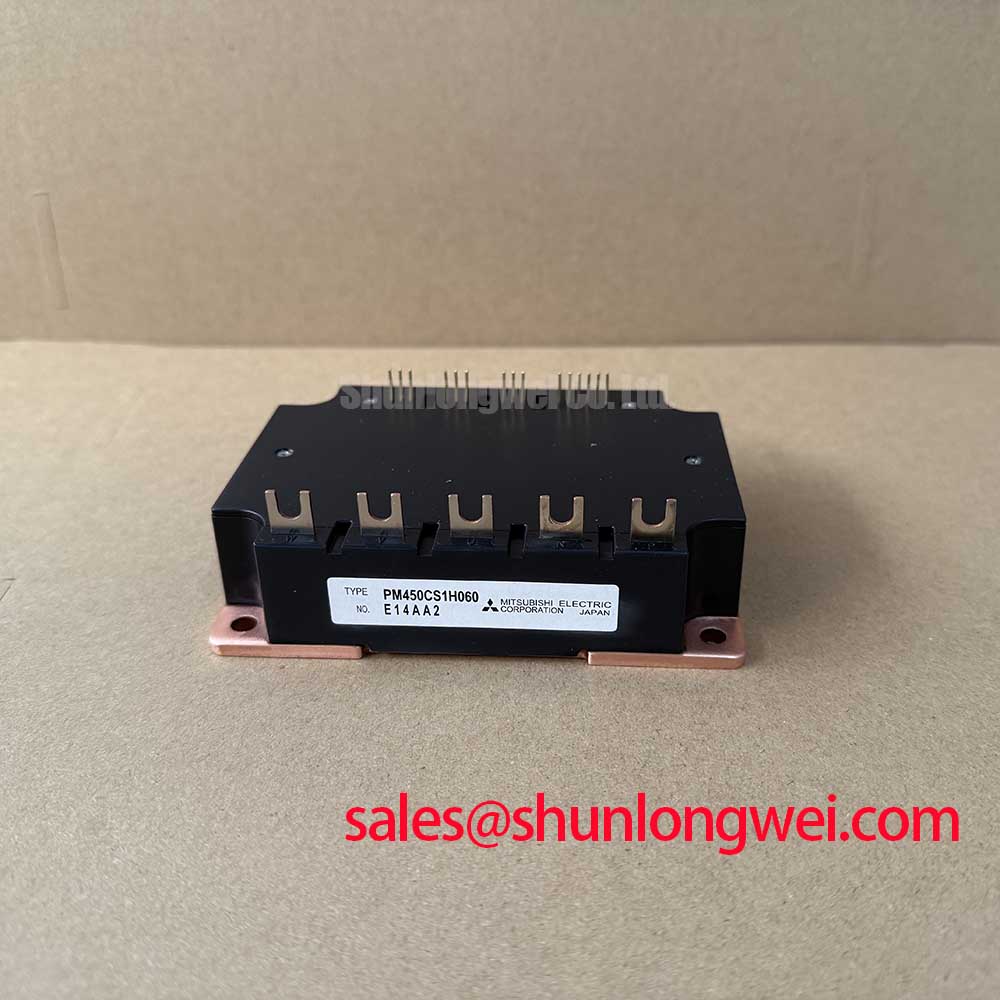

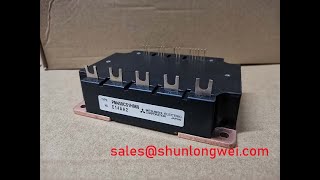

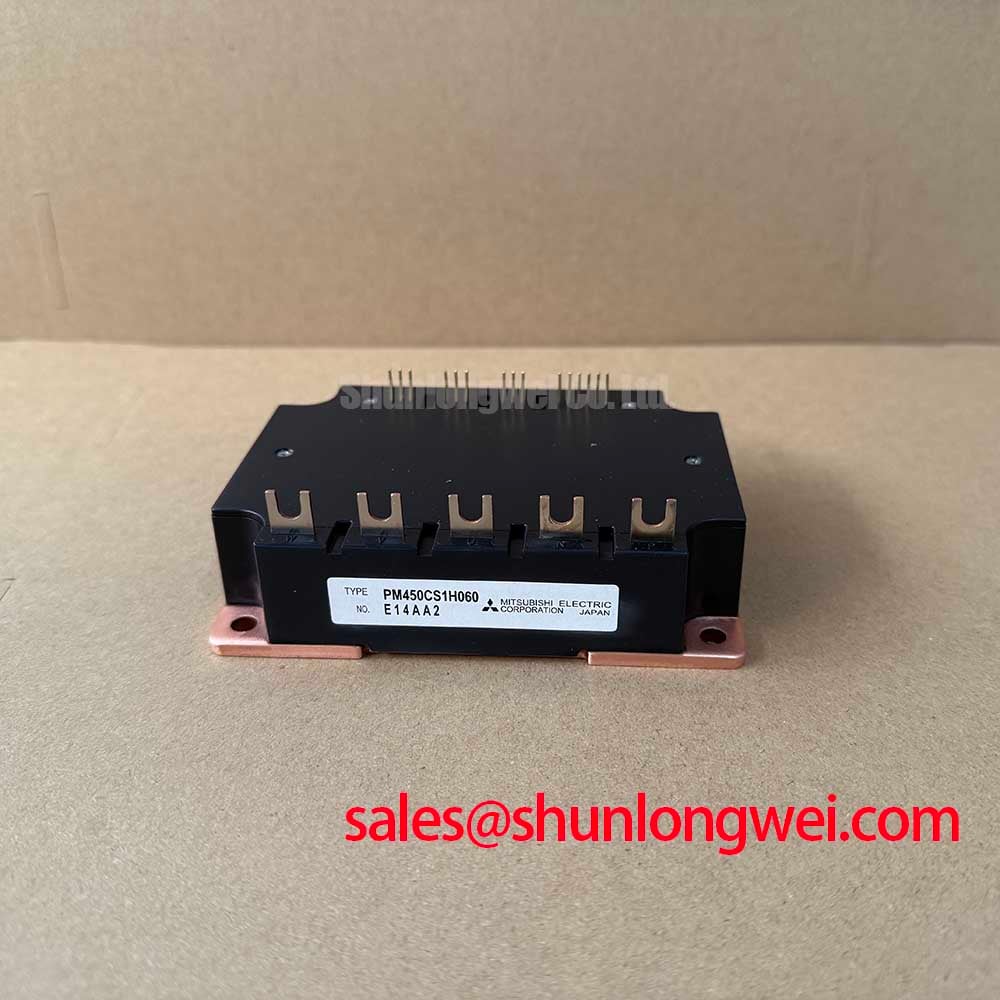

The Mitsubishi PM450CS1H060 is a high-power intelligent power module (IPM) delivering a robust, integrated solution for demanding DC switching applications. It combines a 600V | 450A IGBT with optimized gate drive and comprehensive protection circuits into a single, reliable package. Key engineering benefits include significantly simplified design cycles and enhanced system-level reliability. This module directly addresses the need for a protected, high-current switch by integrating short-circuit, over-current, and over-temperature protections, which are critical for safe operation in high-power systems. With its integrated fault diagnostics and chopper configuration, this IPM is the optimal choice for high-power regenerative braking circuits where reliability and design simplicity are paramount.
Key Parameter Overview
Decoding the Specs for High-Current DC Applications
The technical specifications of the PM450CS1H060 are tailored for efficiency and safety in high-stress DC power control. The parameters below highlight its capacity for robust performance. The low VCE(sat) is particularly crucial as it directly reduces conduction losses, a dominant factor in high-duty-cycle DC chopper applications.
| Parameter | Symbol | Value | Conditions |
|---|---|---|---|
| Collector-Emitter Voltage | VCES | 600V | - |
| Collector Current (DC) | IC | 450A | TC = 25°C |
| Collector Current (Peak) | ICP | 900A | Pulse Width ≤ 1ms |
| Collector-Emitter Saturation Voltage | VCE(sat) | 2.3V (Typ), 2.8V (Max) | IC = 450A, Tj = 125°C |
| Power Dissipation | PC | 1666W | TC = 25°C |
| Operating Junction Temperature | Tj | -20 to +150°C | - |
| Isolation Voltage | Viso | 2500Vrms | AC 1 minute |
| Protection Features | Short-Circuit (SC), Over-Current (OC), Control Supply Under-Voltage (UV), Over-Temperature (OT) | - | |
Application Scenarios & Value
Achieving System-Level Benefits in Regenerative Braking and DC Choppers
The PM450CS1H060 is purpose-built for high-power DC switching environments where reliability and fault tolerance are non-negotiable. Its single-switch chopper topology makes it a superior choice for applications like the regenerative braking circuits found in large Variable Frequency Drives (VFDs), elevators, and industrial machinery.
Consider the engineering challenge of designing a braking chopper for a 150 kW motor drive. The circuit must safely absorb and manage massive amounts of energy returned from the motor during deceleration. A discrete solution would require a separate high-current IGBT, a sophisticated gate driver, multiple protection components, and complex logic for fault detection. The PM450CS1H060 consolidates all these functions. Its integrated over-current and short-circuit protection provides a coordinated and rapid shutdown of the IGBT, preventing catastrophic failure far more effectively than a discrete implementation. This integration drastically reduces PCB complexity, simplifies thermal management, and shortens the design and validation timeline. The result is a more robust, reliable, and compact braking system.
While the PM450CS1H060 excels at 450A, for systems with lower power requirements, the related PM200DSA060 offers a similar integrated approach in a 200A/600V rating.
Frequently Asked Questions (FAQ)
What is the primary benefit of the PM450CS1H060's integrated protection features?
The primary benefit is enhanced system reliability. By integrating optimized gate drive with over-current, short-circuit, and over-temperature protection, the module can react to fault conditions much faster and more effectively than discrete solutions. This prevents catastrophic IGBT failure and protects downstream components, reducing potential system downtime.
How does the Fault Output (Fo) signal simplify system design?
The Fo pin provides a direct, low-voltage digital signal to the main system controller (MCU or PLC) whenever a protection function is triggered. This eliminates the need for complex external monitoring circuits. Engineers can use this signal to immediately flag an issue, log the fault type, and initiate a safe system shutdown, greatly simplifying diagnostic and safety protocols.
Is the chopper configuration suitable for inverter applications?
No, the single-switch chopper configuration is not suitable for creating an AC output like in a motor inverter. It is specifically designed for DC switching applications, such as controlling power flow to a DC motor, managing a braking resistor in a Variable Frequency Drive (VFD), or acting as the main switch in a high-power DC-DC converter.
Technical Deep Dive
A Closer Look at the Integrated System-on-a-Chip Approach
The term "Intelligent Power Module" signifies a fundamental shift from a simple power switch to a self-contained power subsystem. Inside the PM450CS1H060, the 450A IGBT die is co-packaged with dedicated control ICs. These ICs are not just simple drivers; they are the module's central nervous system. They constantly monitor the IGBT's current (for OC and SC protection) and the baseplate temperature. This is analogous to a modern car's Engine Control Unit (ECU) being tightly coupled with the engine itself, rather than being a separate, slower system. This tight integration allows for protection trip levels and response times that are perfectly matched to the IGBT's Safe Operating Area (SOA), a level of optimization difficult to achieve with external components. The result is a power switch that actively protects itself, enabling engineers to build systems with higher safety factors and operational confidence.
Strategic Outlook
The Role of IPMs in Accelerating Industrial Electrification
As industries from manufacturing to logistics continue to electrify their heavy equipment, the demand for reliable, power-dense, and easy-to-implement power electronics grows. The PM450CS1H060 represents a strategic component in this transition. By abstracting the complexity of gate drive design and protection circuitry, these highly integrated modules enable engineering teams to focus on system-level innovation rather than on the nuances of power stage design. This accelerates time-to-market for next-generation electric forklifts, high-efficiency industrial drives, and large-scale energy storage systems, where robust DC power control is a foundational requirement. Modules like this are critical enablers for building more efficient and reliable electrified systems. For more on the core technology, explore this in-depth analysis of IGBT modules.
