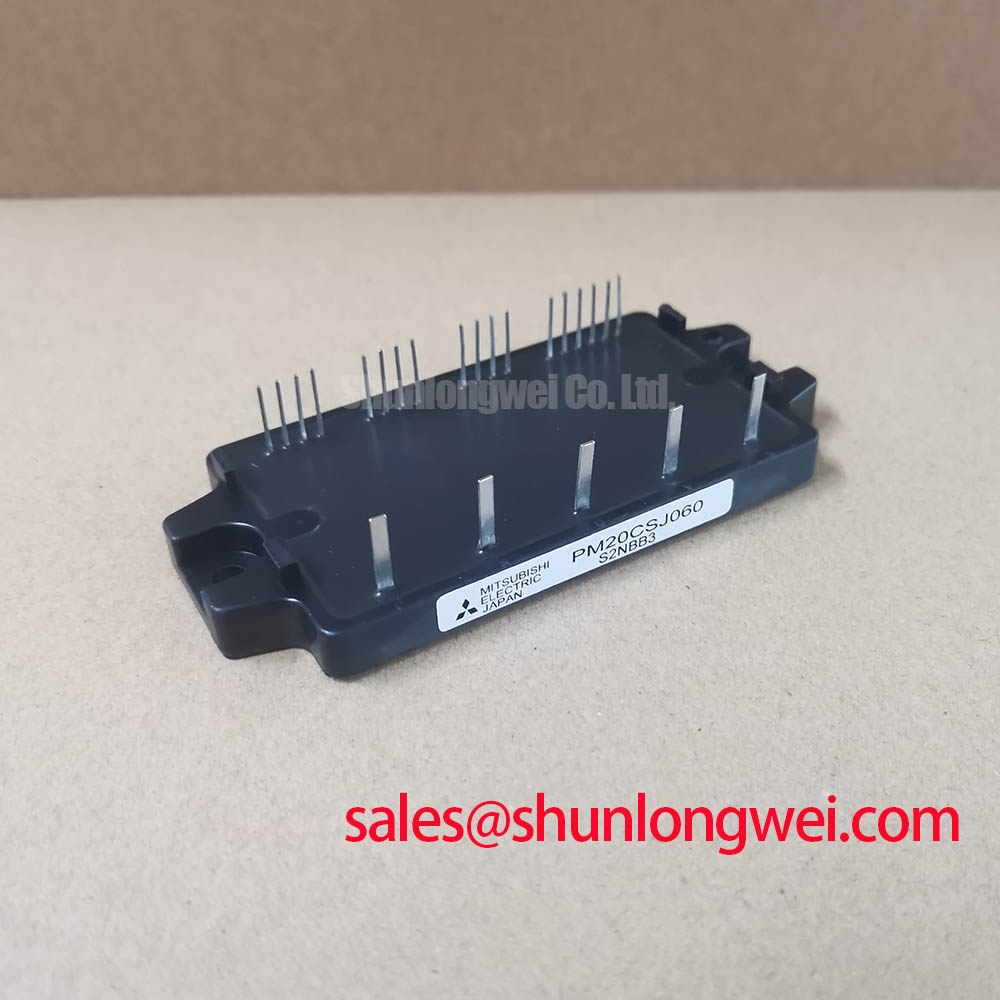

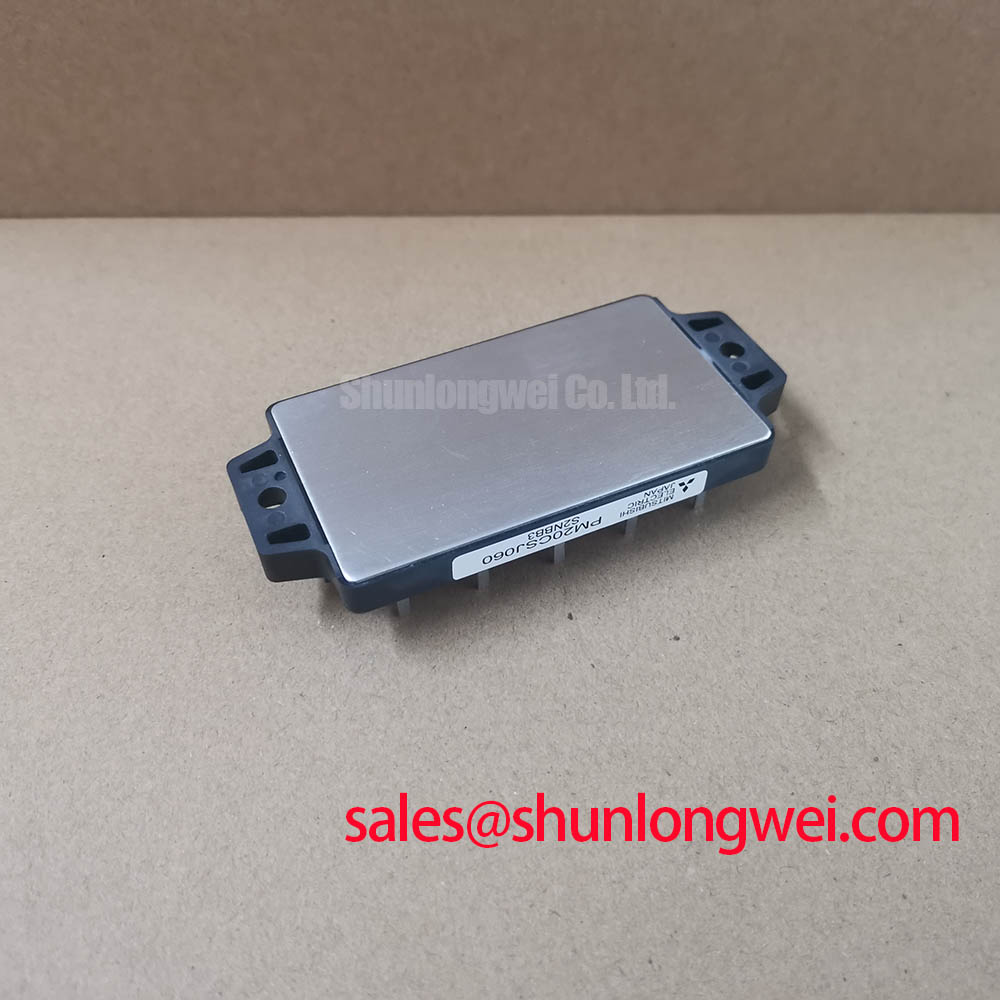

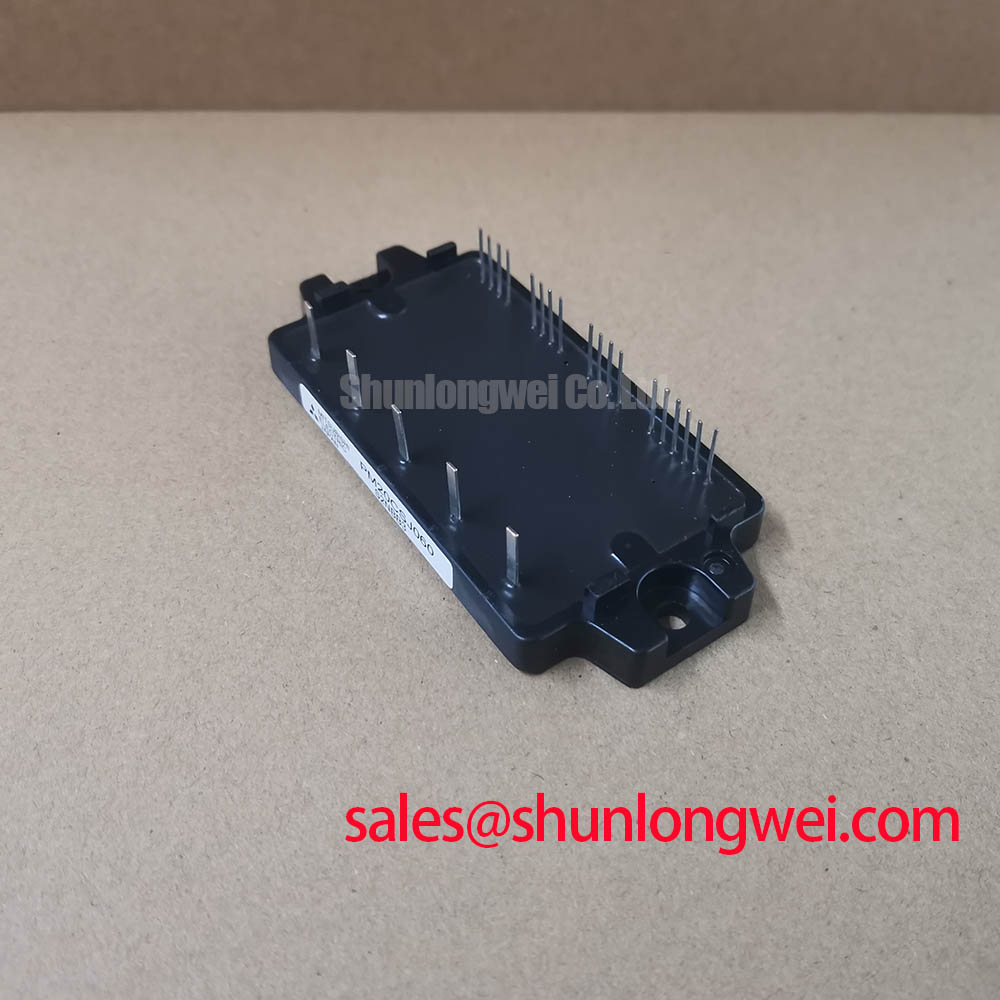

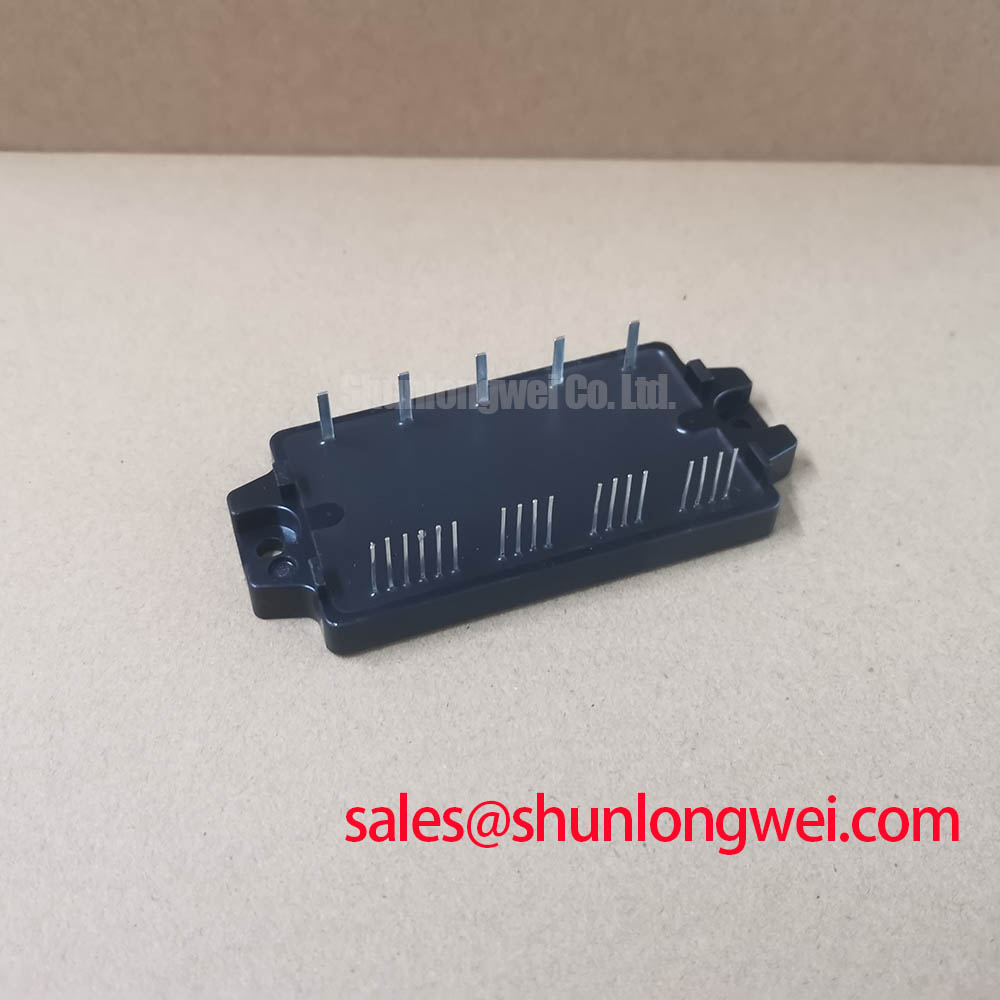

## Mitsubishi PM20CSJ060 | Integrated CIB Intelligent Power Module for Compact Motor Drives
Streamlined Power Conversion for Low-Power Systems
The Mitsubishi PM20CSJ060 is a J-Series Intelligent Power Module (IPM) engineered to provide a highly integrated and reliable power conversion solution for low-power motor control applications. This module encapsulates a complete Converter-Inverter-Brake (CIB) topology, combining a three-phase diode bridge rectifier, a three-phase IGBT inverter stage, and a brake chopper IGBT with its associated freewheeling diode. By integrating the power switches with optimized gate drive and protection circuits, the PM20CSJ060 dramatically simplifies system design, reduces PCB footprint, and accelerates time-to-market for engineers developing compact and efficient drive systems.
- All-in-One CIB Topology: Integrates rectifier, inverter, and brake circuits into a single compact package, minimizing external component count.
- Built-in Intelligence: Features integrated gate drivers and crucial protection functions, including short-circuit (SC), over-temperature (OT), and control supply under-voltage (UV) lockout.
- Optimized for Motor Control: Rated at 600V and 20A, it is perfectly suited for driving small induction or permanent magnet motors up to approximately 1.5 kW.
- Enhanced Reliability: As part of the established Mitsubishi DIPIPM™ family, it offers proven performance and robust protection for demanding industrial environments.
Application Scenarios & Engineering Value
The true value of the PM20CSJ060 lies in its ability to solve specific engineering challenges in space-constrained and cost-sensitive applications. Its high level of integration provides tangible benefits across several domains.
- Compact Variable Frequency Drives (VFDs): For small conveyor belts, pumps, and fans, board space is at a premium. The module's CIB configuration eliminates the need for a separate rectifier module and external brake circuit components, enabling a smaller, more cost-effective overall design. This simplifies thermal management and PCB layout significantly.
- Robotics and Servo Drives: Precision and reliability are non-negotiable in robotics. The PM20CSJ060's integrated protection circuits provide a robust defense against common failure modes like short-circuits and overheating, ensuring the integrity of the robotic servo drives. The low-profile package is ideal for integration into articulated joints and compact actuator housings.
- Commercial Appliances and HVAC Systems: In applications like commercial washing machines or HVAC compressors, the module offers a plug-and-play power stage. This simplifies manufacturing and improves the system's overall reliability compared to a design based on dozens of discrete components.
Key Parameter Overview
The following table outlines the critical electrical characteristics that define the performance envelope of the PM20CSJ060. For a comprehensive analysis, engineers should consult the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 600 V |
| Collector Current (Ic) | 20 A |
| Collector-Emitter Saturation Voltage (Vce(sat)) | Typ. 1.7 V (at Tj=125°C, Ic=20A) |
| Topology | Converter-Inverter-Brake (CIB) |
| Integrated Protections | Short-Circuit, Over-Temperature, Under-Voltage Lockout |
| Isolation Voltage (Viso) | 2500 Vrms (1 minute) |
For detailed specifications and operational curves, you can download the complete PM20CSJ060 datasheet.
Technical Deep Dive: The IPM Advantage
Choosing an Intelligent Power Module like the PM20CSJ060 over a discrete solution offers more than just integration; it provides pre-validated performance. The internal gate driver is perfectly matched to the IGBT chips, ensuring optimal switching characteristics, controlled di/dt and dv/dt, and minimized switching losses. This eliminates the complex and error-prone task of designing a robust gate drive circuit with proper bootstrap supply and protection logic.
Furthermore, the short-circuit protection is not just a simple logic function. It is implemented with high-speed current sensing and feedback directly to the gate driver, enabling a shutdown in microseconds. This level of protection is difficult and costly to replicate reliably with external components, making this IPM a superior choice for building robust and fault-tolerant Variable Frequency Drive (VFD) systems.
Frequently Asked Questions (FAQ)
What is the primary function of the integrated brake chopper in the PM20CSJ060?
The brake chopper is essential for applications involving rapid deceleration of a motor with high inertia. When a motor is decelerated, it acts as a generator, feeding energy back into the DC bus. This can cause a dangerous over-voltage condition. The integrated brake IGBT allows a designer to connect an external braking resistor across the circuit, which dissipates this regenerative energy as heat, maintaining a stable DC bus voltage and protecting the entire drive.
How does the under-voltage (UV) protection work and why is it important?
The UV protection circuit monitors the control supply voltage (Vcc) for the internal gate drivers. If this voltage drops below a safe operating threshold, the module will shut down all IGBTs and issue a fault signal. This is critical because an insufficient gate voltage can cause an IGBT to operate in its linear region instead of as a saturated switch, leading to extremely high power dissipation and rapid thermal failure. The built-in UV lockout prevents this catastrophic failure mode.
For expert guidance on selecting the right IGBT modules for your specific motor control or power conversion project, please contact our technical team.
