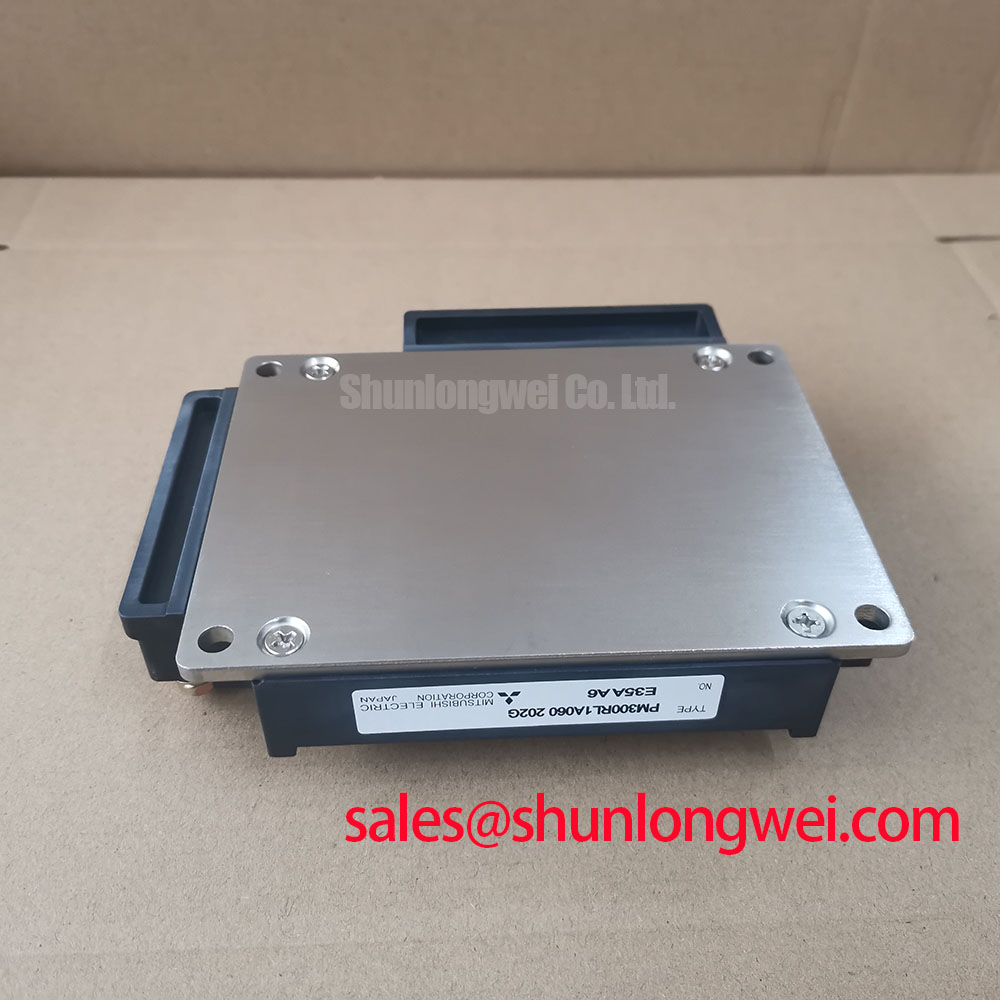

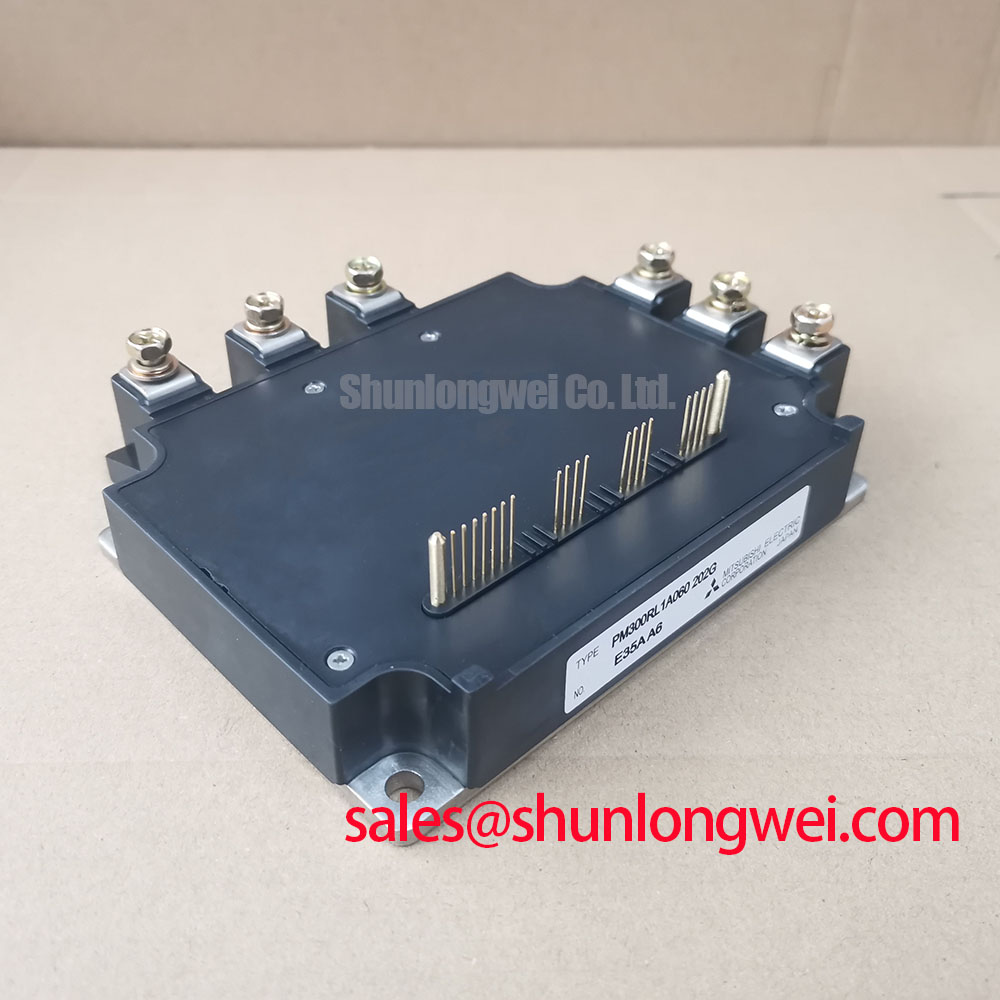

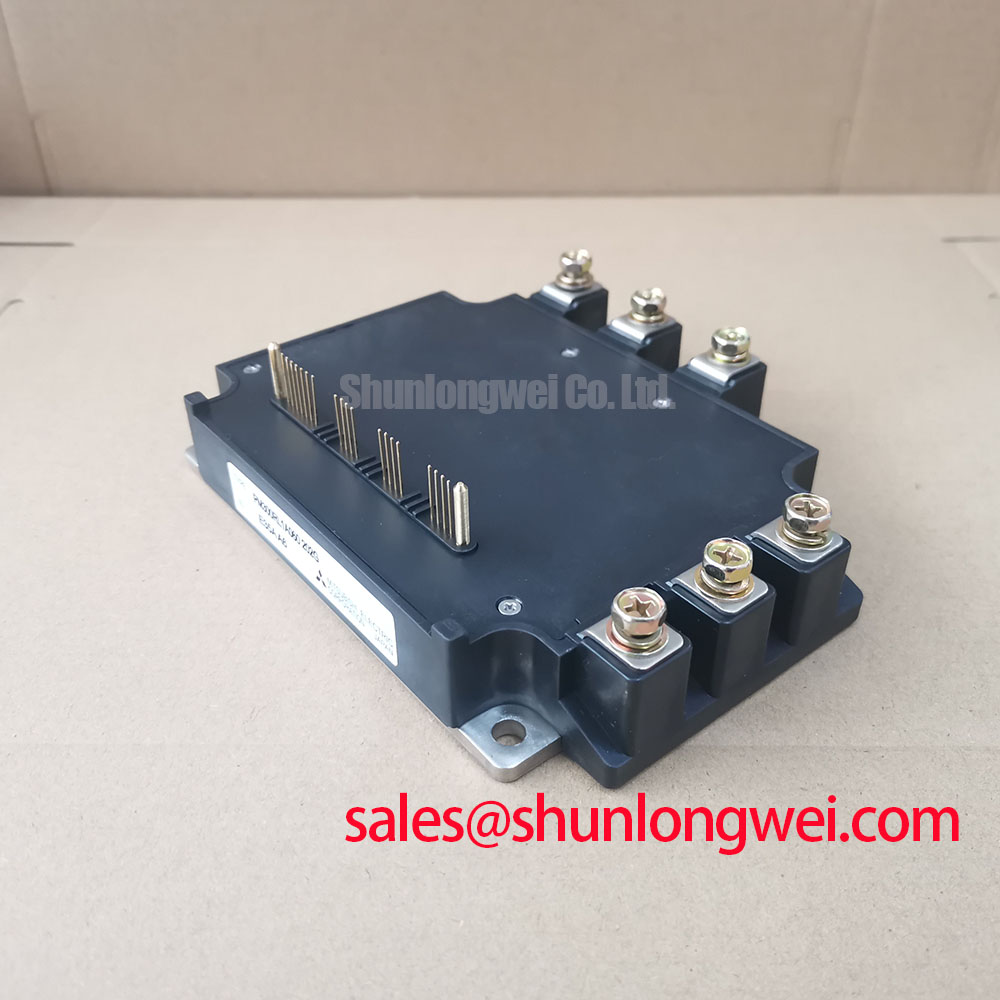

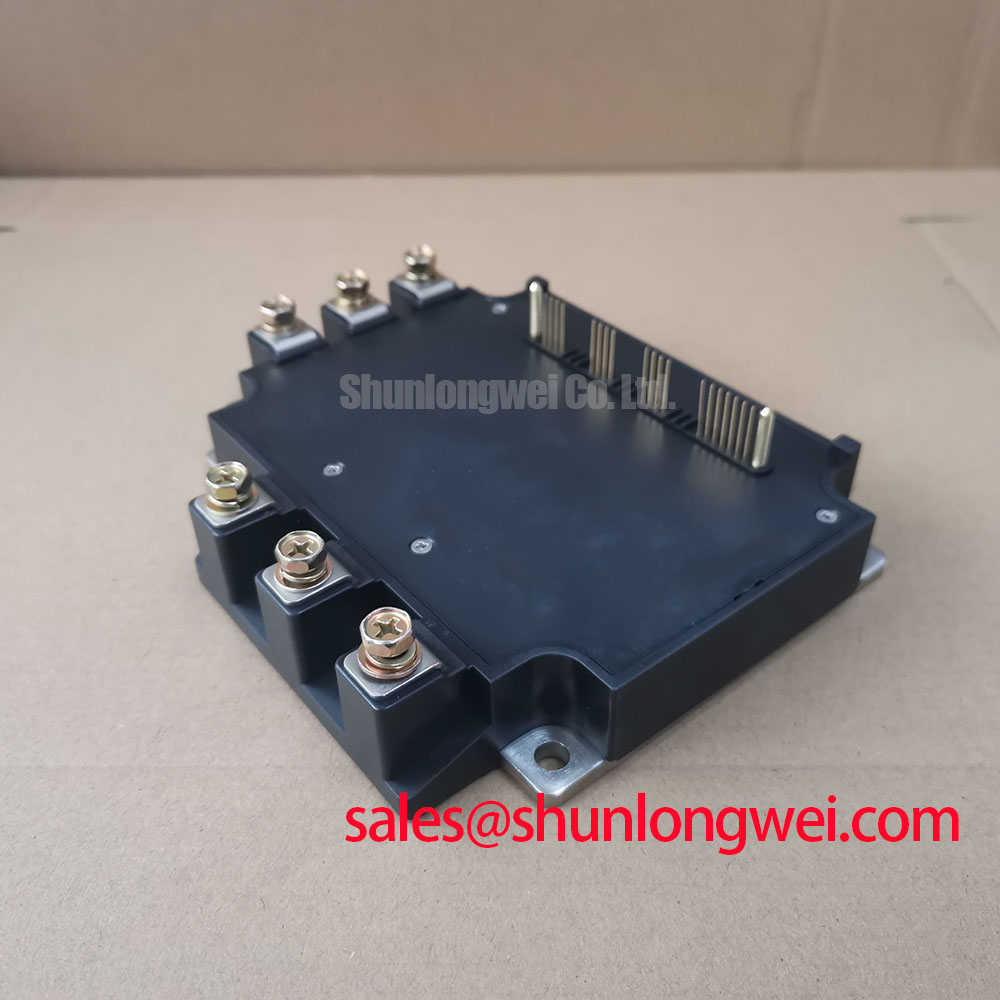

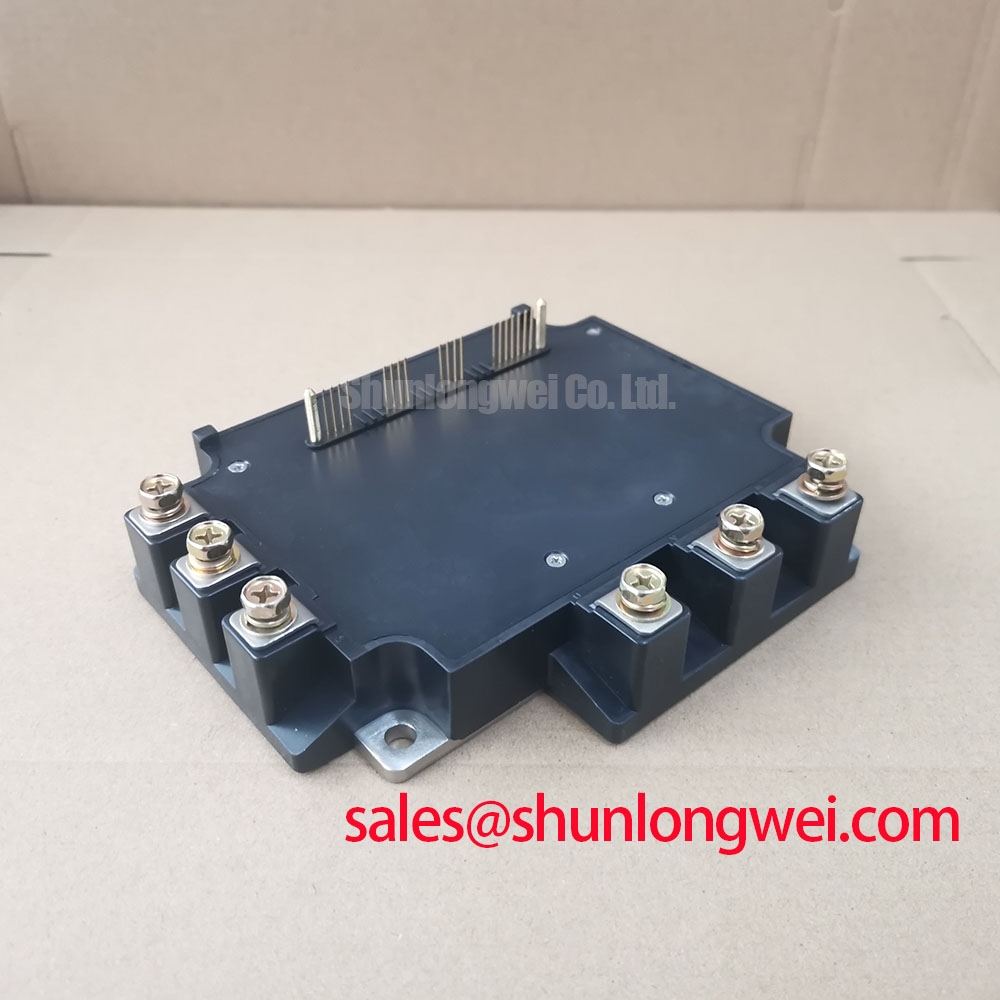

## Mitsubishi PM300RL1A060 | Integrated 7-Pack Intelligent Power Module (IPM)
The Mitsubishi PM300RL1A060 is a high-performance Intelligent Power Module (IPM) from the L1-Series, engineered to streamline the design and enhance the reliability of motor control and power conversion systems. This module integrates a three-phase inverter stage, a brake chopper, and dedicated control circuitry into a single, thermally efficient package. It is designed for engineers seeking to accelerate development cycles and improve system robustness in demanding industrial applications.
Application Scenarios & Engineering Value
The true value of the PM300RL1A060 lies in its ability to solve specific engineering challenges across various applications. Its integrated nature provides a distinct advantage over discrete component designs.
- Robotic Servo Drives: In high-precision motion control, the integrated brake chopper is critical for managing regenerative energy during rapid deceleration, ensuring positional accuracy and protecting the DC bus. The module's low-latency protection circuits provide the fast fault response essential for protecting both the drive and the high-value motor. For engineers working on these systems, this translates to superior control dynamics and enhanced equipment safety, a core topic we explore in our guide on IGBTs in robotic servo drives.
- General-Purpose Inverters: For industrial AC drives, the PM300RL1A060 significantly reduces assembly complexity and component count. The pre-optimized gate drive and built-in protections eliminate the complex task of designing, testing, and qualifying a separate driver board, reducing susceptibility to EMI and improving overall system reliability.
- Industrial Automation Systems: In applications like CNC machines and material handling equipment, uptime is paramount. This module's integrated over-temperature (OT) and short-circuit (SC) protections prevent catastrophic failures, offering a level of resilience that is difficult and costly to achieve with discrete IGBTs.
Technical Deep Dive: Integrated Intelligence and Protection
The "Intelligent" in IPM (Intelligent Power Module) refers to the on-board control and protection logic, which sets the Mitsubishi PM300RL1A060 apart from standard IGBT modules. This integration is not merely about convenience; it is a fundamental design choice for performance and reliability.
- Optimized Gate Drive Circuitry: The module contains a gate driver circuit specifically matched to the characteristics of the internal IGBTs. This ensures optimal switching performance, minimizes switching losses, and controls dv/dt and di/dt to manage electromagnetic interference (EMI) without external guesswork.
- Comprehensive On-Board Protection: The PM300RL1A060 features a robust suite of protections including Short-Circuit (SC), Under-Voltage (UV) lockout for the control supply, and Over-Temperature (OT) detection. In the event of a fault, the module sends a signal to the system controller and initiates a controlled shutdown, safeguarding the entire power stage from damage. This level of integration is a cornerstone of building high-efficiency inverter ACs.
Key Parameter Overview
The following table outlines the critical electrical and thermal characteristics of the PM300RL1A060, providing engineers with the data needed for system design and simulation. For a complete specification, you can download the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 600 V |
| Collector Current (Ic) | 300 A |
| Configuration | 3-Phase Inverter + Brake Chopper (7-Pack) |
| Collector-Emitter Saturation Voltage (Vce(sat)) (Typ.) | 1.75 V (at Tj=125°C) |
| Isolation Voltage (Viso) | 2500 Vrms (1 minute) |
| Max Junction Temperature (Tj max) | 150 °C |
Industry Insight: The Strategic Shift to Integrated Power Modules
The industry trend towards higher power density, increased reliability, and faster time-to-market makes integrated solutions like the Mitsubishi PM300RL1A060 strategically advantageous. While discrete components offer design flexibility, they also introduce significant challenges in thermal management, gate drive optimization, and layout parasitics. An IPM effectively abstracts these complexities, allowing engineering teams to focus on system-level innovation and application logic rather than on the nuances of power stage design. This approach minimizes design risk and often results in a lower total cost of ownership when factoring in development time, testing, and long-term reliability.
Frequently Asked Questions (FAQ)
1. How does the PM300RL1A060 differ from a standard 7-pack IGBT module?A standard IGBT module contains only the power switches (IGBTs and diodes). The PM300RL1A060 is an Intelligent Power Module (IPM), meaning it also includes the gate drive circuits, level shifting, and a comprehensive suite of protection features like over-current and over-temperature protection. This integration simplifies design and improves reliability.
2. What are the key thermal management considerations for this module?Like any power module, effective thermal management is crucial. It requires a properly selected heatsink and the correct application of Thermal Interface Material (TIM) to minimize the thermal resistance between the module's baseplate and the heatsink. The module's integrated over-temperature protection provides a failsafe, but system design should always aim to keep the junction temperature (Tj) well below the 150°C maximum for long-term reliability. Understanding these factors is key, which is why we've created a guide on how to decode IGBT datasheets for thermal parameters.
3. Can this module be used for applications other than motor drives?Absolutely. While its 7-pack topology is ideal for motor drives, it is also highly suitable for other three-phase power conversion applications, such as active front-end (AFE) rectifiers, grid-tied solar inverters, or uninterruptible power supplies (UPS) that require robust, reliable power switching with integrated protection.
