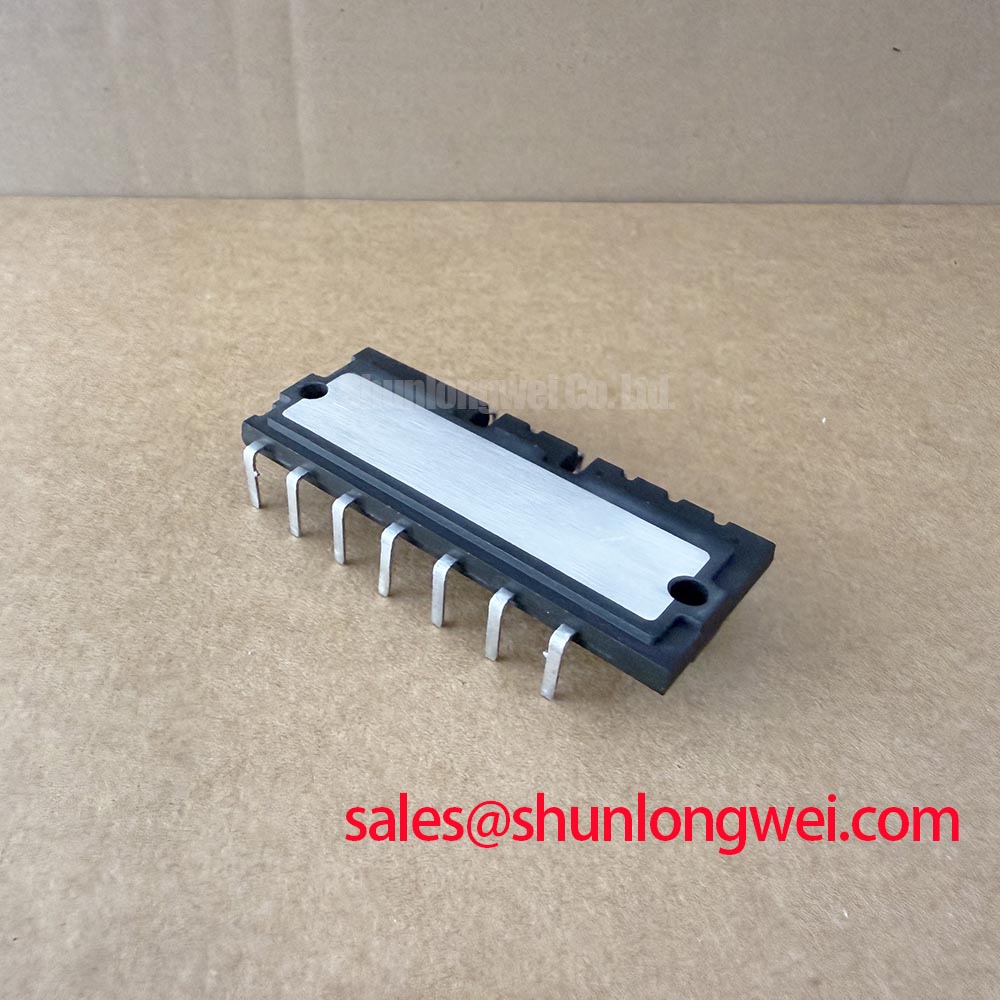

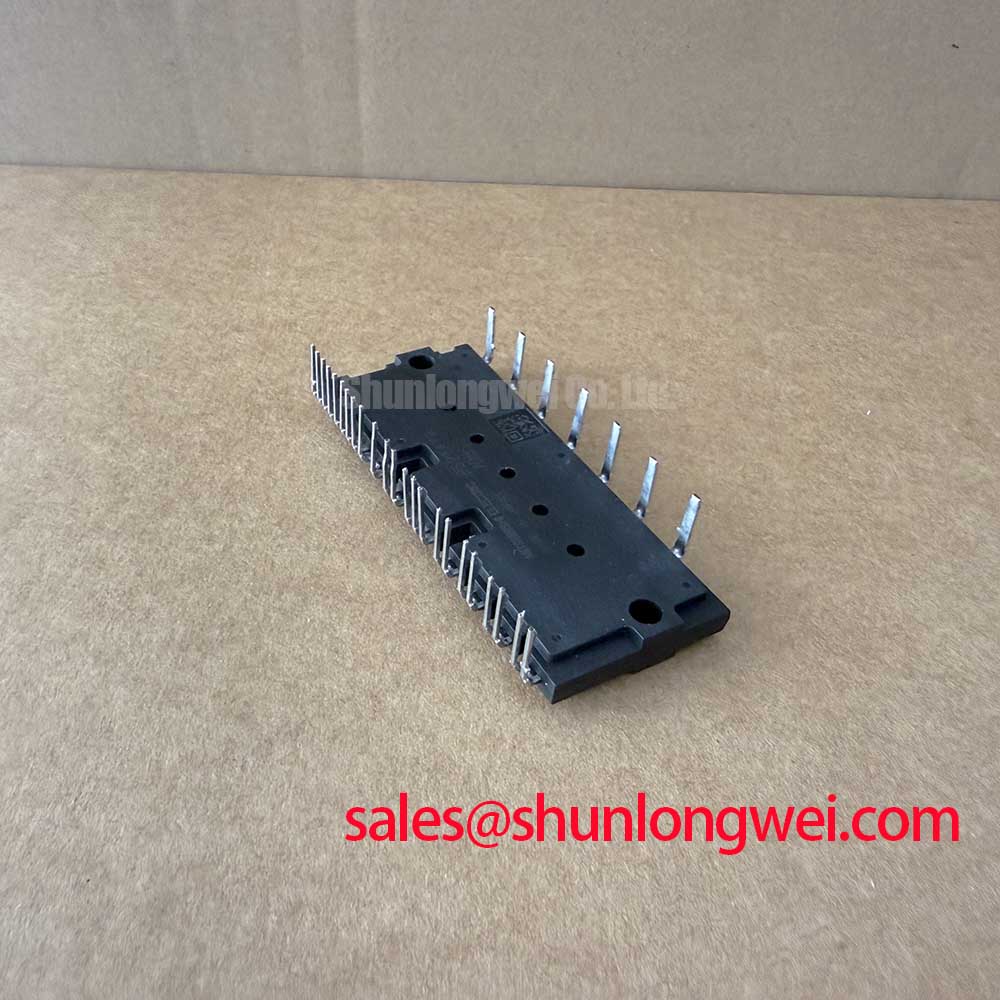

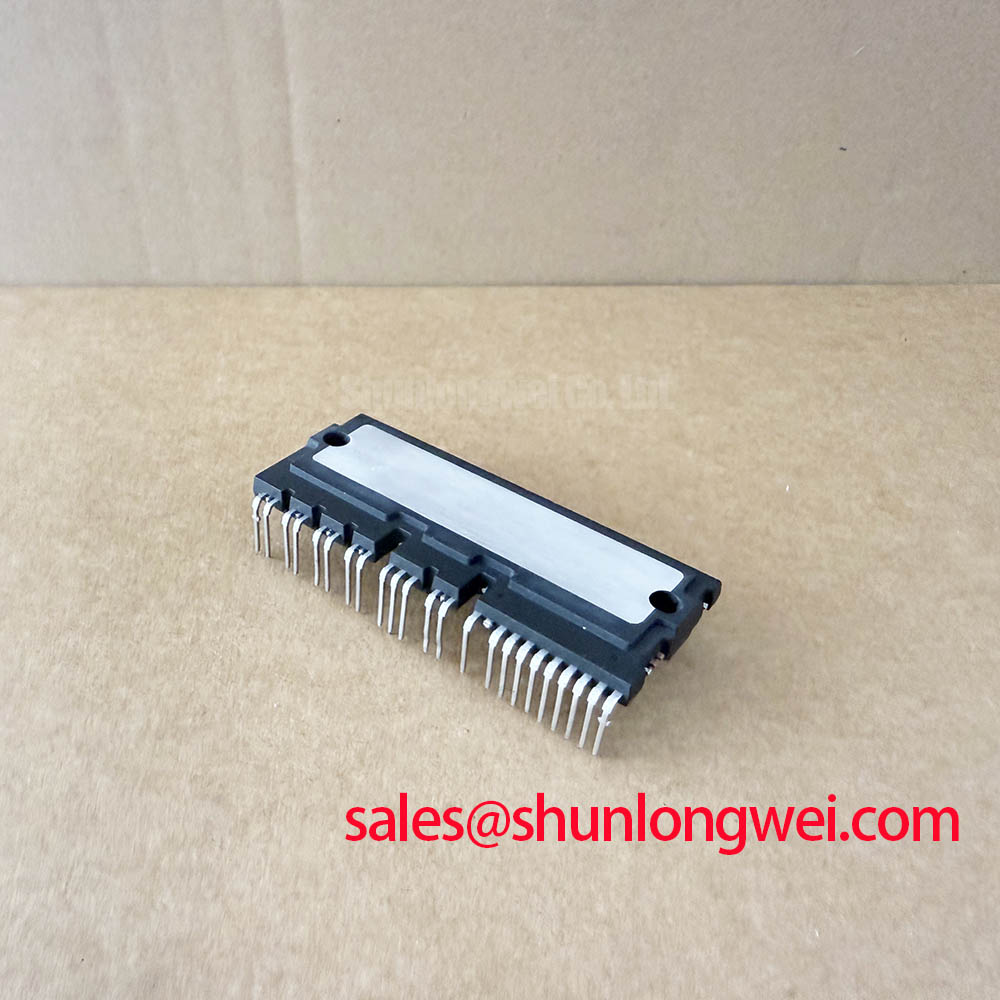

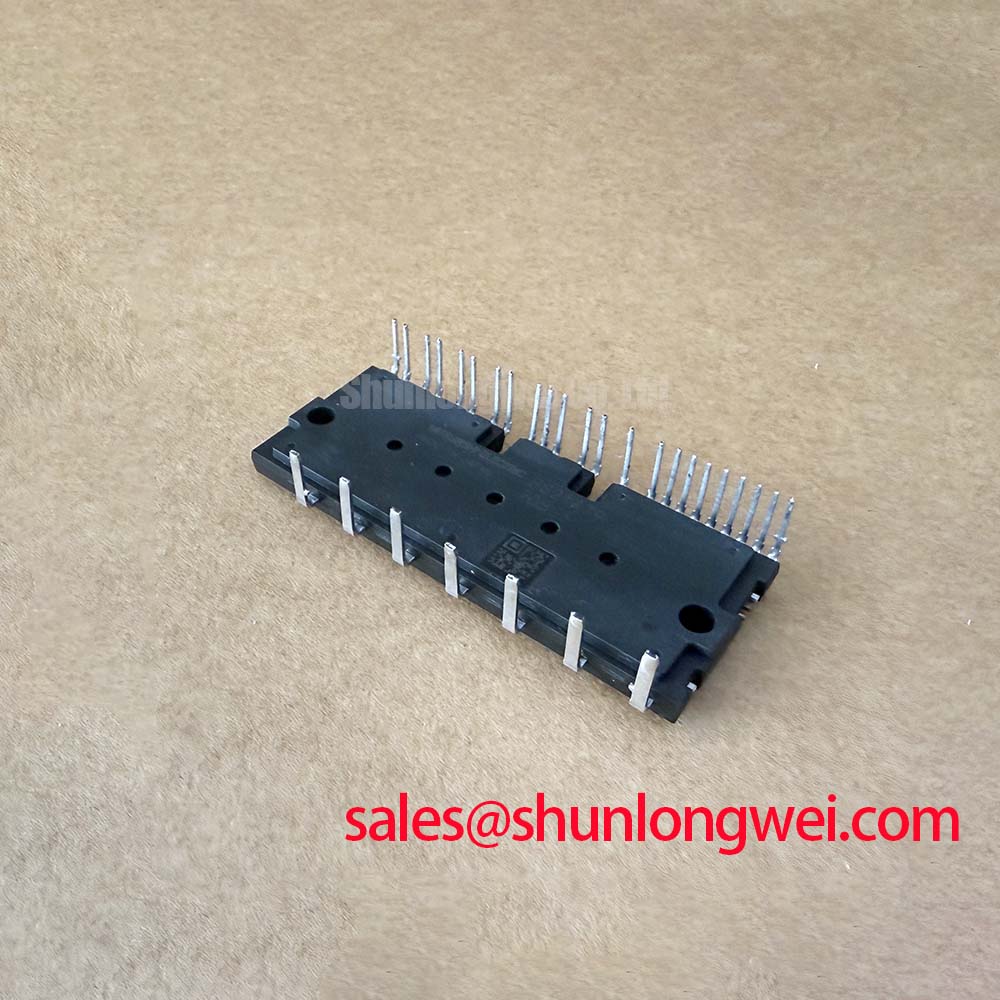

PS21A79 Mitsubishi 600V 50A Intelligent Power Module IPM
The PS21A79, a flagship member of the Mitsubishi Electric Large DIPIPM Ver. 4 family, represents a significant leap in power density and system-level integration for high-power motor drives. By integrating 6th generation IGBT technology with dedicated drive and protection circuitry, this Intelligent Power Module (IPM) empowers engineers to reduce PCB footprint while enhancing overall system reliability. For industrial air conditioning systems requiring high-density integration and 50A current capacity, the PS21A79 is the definitive engineering choice.
Top Specifications: 600V | 50A | Viso 2500Vrms
- Loss Reduction: Optimized switching characteristics for high-frequency PWM control.
- Integrated Protection: On-chip short-circuit, under-voltage, and over-temperature monitoring.
One common technical query engineers face is whether the PS21A79 requires an external negative power supply for the gate drive. The answer is no; the module is designed for single 15V supply operation via an integrated bootstrap circuit, which simplifies the isolated power stage design and reduces component count significantly.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The following technical parameters are extracted directly from the official Mitsubishi documentation to support precise engineering evaluation. The PS21A79 is built on a CSTBT™ (Carrier Stored Trench-Gate Bipolar Transistor) architecture, which balances low collector-emitter saturation voltage with robust short-circuit withstand capabilities.
| Feature | Specification Value | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 600V | Ideal for 220V/240V AC line input applications. |
| Collector Current (Ic) | 50A (at Tc=25°C) | Supports high-torque motor startup and heavy loads. |
| Isolation Voltage (Viso) | 2500Vrms | Ensures safety compliance for industrial HMI and motor casing. |
| Package Type | Large DIP | Optimized for through-hole assembly and thermal heatsink mounting. |
| Integrated Protection | SC, UV, OT | Prevents catastrophic failure during desaturation or overheating. |
Download the PS21A79 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Power Conversion
Engineers often face the challenge of balancing high current handling with the parasitic inductance inherent in discrete designs. The PS21A79 solves this by housing a complete three-phase inverter bridge within a single package. In a typical Industrial Air Conditioning application, the module manages the compressor motor drive with minimal EMI, thanks to the internal Kelvin emitter connections that decouple the power loop from the control loop.
The 50A rating makes it particularly suited for 3.0HP to 5.0HP inverter systems. For systems with lower power requirements, such as small residential units, the PS21865-P offers a more compact current profile, while the PS21A79 remains the workhorse for high-demand Motor Drive units and industrial washing machines.
By leveraging the Mitsubishi CSTBT™ technology, the PS21A79 reduces total power dissipation, which directly impacts the Thermal Management strategy. This allows for smaller heatsinks, ultimately reducing the TCO (Total Cost of Ownership) and meeting stringent IEC 61800-3 standards for energy efficiency.
Technical Deep Dive
Integrated Protection Logic and CSTBT Physics
At the heart of the PS21A79 is the 6th Generation IGBT chip. Think of the CSTBT™ structure as a "carrier reservoir"; by storing additional charge carriers in the trench gate area, Mitsubishi has achieved a lower Vce(sat) without sacrificing switching speed. This is analogous to a wide highway that allows high traffic volume (current) to flow with minimal friction (resistance).
The module's reliability is further bolstered by its Safe Operating Area (SOA) management. The internal LVIC (Low Voltage IC) and HVIC (High Voltage IC) handle the gate timing and level shifting, providing a Short-Circuit Withstand Time that protects the module from IGBT failure during locked-rotor conditions. This level of integration is a cornerstone of High-Efficiency Power Systems, where internal logic can shut down the drive within microseconds of detecting an over-current event.
Frequently Asked Questions
What is the primary benefit of the PS21A79's CSTBT architecture?
It significantly reduces power consumption by optimizing carrier distribution within the chip, leading to lower conduction losses compared to standard trench IGBT modules.
How does the integrated bootstrap circuit simplify design?
It allows a single 15V power supply to drive the entire module, eliminating the need for three isolated high-side power stages, which reduces PCB complexity and cost.
Can the PS21A79 monitor its own temperature?
Yes, the module features an integrated LVIC with a temperature-monitoring analog output (VOT), allowing the system MCU to implement proactive thermal throttling before the Over-Temperature (OT) trip point is reached.
Is the PS21A79 compatible with standard lead-free soldering?
Yes, the Large DIP package is designed for standard industrial soldering processes, ensuring robust mechanical and electrical connections for high-vibration applications like industrial washing machines.
As a global distributor, we support high-efficiency designs by providing technical data and reliable logistics. For procurement teams evaluating long-term availability and system-level thermal performance, the PS21A79 stands as a benchmark in the IPM market.
