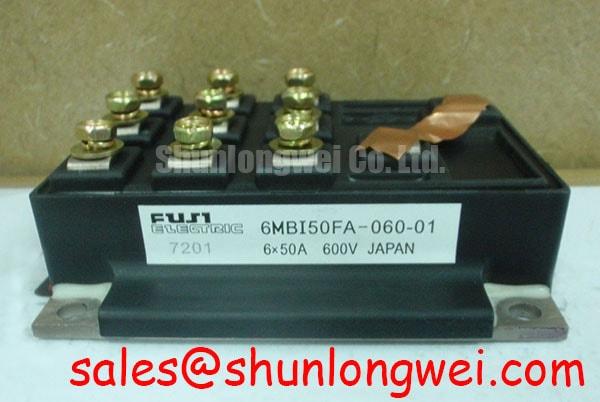

6MBI50FA-060 Fuji Electric 600V 50A IGBT Module

Content last revised on July 11, 2026

6MBI50FA-060 Fuji Electric 600V 50A IGBT Module

The 6MBI50FA-060, a flagship component of the Fuji Electric F-series, is a high-performance IGBT Module engineered for superior switching efficiency and thermal management in compact power conversion systems. With a 600V collector-emitter voltage and a 50A continuous collector current rating, this six-pack (6-pack) configuration provides an integrated solution for three-phase inverter stages, significantly reducing component count and parasitic inductance compared to discrete designs. This module is specifically optimized for high-frequency pulse width modulation (PWM) applications where reducing switching losses is paramount for system-level energy efficiency.

UVP Statement: This module delivers an optimized balance of low VCE(sat) and rapid switching speeds to maximize power density in 400V DC-link motor drive architectures. For engineers prioritizing switching speed, what is the primary benefit of the 6MBI50FA-060 F-series architecture? It offers significantly reduced turn-off energy losses (Eoff) compared to standard N-series modules. For industrial designs requiring high switching frequencies without sacrificing thermal stability, the 6MBI50FA-060 stands as a data-proven benchmark for reliable power delivery.

Key Parameter Overview

Decoding the Specs for Enhanced Thermal Reliability

Evaluating the 6MBI50FA-060 requires a deep understanding of its electrical limits and thermal characteristics. The 600V Vces rating provides an ample safety margin for standard 200-240V AC line inputs, common in global industrial environments. To better understand VCE(sat), think of it as a "voltage toll" paid by the current; a lower toll of 2.1V means less heat is generated during the conduction phase, much like a wider pipe reduces water friction. This low saturation voltage directly correlates to higher overall system efficiency.

Application Scenarios & Value

Achieving System-Level Benefits in High-Frequency Power Conversion

The 6MBI50FA-060 is engineered to thrive in environments where space is at a premium and high switching frequencies are required to maintain smooth motor control or high-quality power output. In Variable Frequency Drives (VFD), the ability of this module to handle 50A within a 6-pack footprint allows for the design of extremely compact motor controllers for industrial automation. For example, in a 5.5kW motor drive system, the 6MBI50FA-060 handles the high-frequency switching necessary to minimize torque ripple and audible noise, ensuring precision in robotic or CNC movements.

In the context of Uninterruptible Power Supplies (UPS) and Solar Inverters, the module’s optimized switching speed ensures that conversion losses remain low even at carrier frequencies above 15kHz. While this 600V module is ideal for low-voltage industrial systems, for applications requiring higher voltage overhead, the related 6MBI50S-120-02 offers a 1200V Vces rating. Furthermore, when scaling current for larger industrial loads, the 2MBI200VA-060 provides an alternative with significantly higher current handling capability.

By integrating six IGBTs and their corresponding freewheeling diodes into a single IGBT Module, the 6MBI50FA-060 simplifies the layout of the PFC stage and inverter bridge, reducing the Total Cost of Ownership (TCO) through faster assembly and higher reliability. This integration is a cornerstone of modern Industrial 4.0 power electronics design, where modularity and efficiency drive competitive advantage.

Application Vignette

Optimizing Precision Control in Robotic Servo Drives

Consider the challenge faced by an engineer designing a high-speed robotic arm for a precision assembly line. The Servo Drive must provide instantaneous torque response while operating in a thermally constrained cabinet. The high Icp of 100A in the 6MBI50FA-060 allows the drive to handle the transient surge current required during rapid acceleration cycles without risking desaturation. By leveraging the fast turn-off characteristics of the F-series, the engineer can push the switching frequency higher, which reduces the size of the output filter components, effectively increasing the system's power density. This "fast switching" capability is like the shutter speed of a high-end camera; the faster it switches, the less "blur" or energy leakage occurs between cycles, resulting in a cleaner output signal for the motor.

Technical Deep Dive

A Closer Look at the F-Series Switching Topology and Loss Mitigation

The internal architecture of the 6MBI50FA-060 utilizes Fuji Electric's proprietary field-stop technology, which significantly narrows the drift region, leading to a substantial reduction in stored charge. This technical advancement directly translates to a smaller tail current during turn-off, which is the primary source of switching losses in conventional IGBTs. When we analyze the Switching Loss curves, the 6MBI50FA-060 maintains a highly stable Eoff across its entire temperature range, ensuring that thermal runaway is avoided even under heavy load conditions. To understand the significance of the 0.45 °C/W Thermal Resistance, one should view the module as a high-efficiency heat conduit; the lower this number, the more effectively the silicon can "breath," transferring heat to the sink and maintaining the Junction Temperature well below the 150°C limit.

FAQ

How does the F-series technology in the 6MBI50FA-060 compare to standard N-series modules for high-frequency PWM?

The F-series, which the 6MBI50FA-060 belongs to, is specifically optimized for high-speed switching. While the N-series focuses on lower conduction losses (Vcesat), the F-series reduces the turn-off energy (Eoff), making it significantly more efficient for applications operating at higher switching frequencies where switching losses dominate total heat dissipation.

What considerations are necessary for the gate drive design of the 6MBI50FA-060?

Because the 6MBI50FA-060 is a high-speed module, the Gate Drive circuit must be designed with low parasitic inductance to prevent voltage oscillations. Using a Miller Clamp or a Negative Gate Voltage during the off-state is recommended to ensure the IGBT remains robustly off during high dv/dt events, preventing accidental turn-on and potential short circuits. Detailed insights on this can be found in our guide on voltage-controlled switching principles.

How does the 50A current rating impact the selection of the cooling system?

With a maximum Ic of 50A, the total power dissipation must be calculated based on both conduction and switching losses. Given the Rth(j-c) of 0.45 °C/W, engineers must ensure the heatsink and interface material (TIM) can maintain the case temperature low enough to keep Tj within safe limits. For systems requiring higher reliability under extreme stress, understanding why Rth matters is critical for long-term field stability.

For engineering teams developing next-generation motor control platforms, the 6MBI50FA-060 represents a strategic choice for balancing cost, size, and electrical performance. Its integration of Fuji Electric's switching expertise into a 6-pack module ensures that your design meets the rigorous efficiency demands of modern industrial applications. For more technical deep dives, explore the ultimate IGBT knowledge base or visit Fuji Electric for corporate technology updates.
